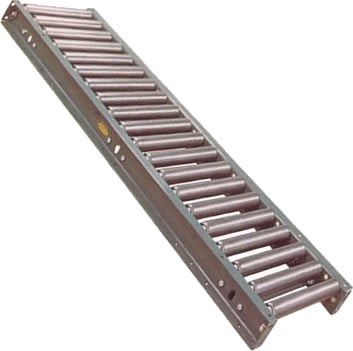

Gravity Roller Conveyor Section, 5' Aluminum

$256.00
Dimensions
18" OAW x 5'L

1 3/8" dia x 18 ga. rollers spaced on 4 1/2" centers.

*Images may or may not be your exact model. Images are for reference only.

*Note: Image Shown with Butt Couplings

SKU
SAR-18-4 1/2-5
main product photo

GRAVITY ROLLER CONVEYOR

1-3/8 IN. DIA. X 18 GA. ROLLERS
gravity roller conveyor 1-3/8 in. dia. Gravity Roller Conveyor is used to carry
lightweight packages or when operation requires
lightweight sections. Useful in setting up permanent or
temporary conveyor lines in warehousing activities,
shipping departments, assembly areas, etc. Majority of
products will convey with minimum amount of pitch.
4 Widths
6 Roller Centers
Powder Painted Steel or Aluminum Frames
SEE BELOW FOR SUPPORTS
supports
conveyors
gravity conveyor
LOAD CAPACITY CHART
Frame Material Support Centers Frame Capacity (Lbs.) Roller Capacity (Lbs.)
Maximum Distributed
Live Load Per Foot		 Maximum Load
Per Wheel

Steel		 5' 250
45
10' 31

Aluminum		 5' 83
30
10' 10

STANDARD SPECIFICATIONS
WIDTHS–12 in., 15 in., 18 in. and 24 in. overall. ROLLERS–1-3/8 in. dia. x 18 ga. galvanized steel or
heat-treated aluminum tubing. Spring loaded axle allows
roller to be easily removed or inserted.
FRAME–2-1/2 in. deep x 1 in. flange x 12 Ga. powder
painted formed steel or 1/8 in. heat-treated aluminum
channel with bolt-in cross members.
AXLES–1/4 in. dia. round
COUPLINGS–Bolt on one end, hooks on opposite end. CAPACITY–See Load Capacity Chart above.
LENGTHS–5 ft. and 10 ft. straight sections.

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths
PRICING FOR 1-3/8" DIA. GRAVITY ROLLER CONVEYOR
STRAIGHT STEEL SECTIONS
12" Overall Width 15" Overall Width
Model No. Roller
Centers		 Wgts.
(Lbs.)		 Price Per
Sections		 Model No. Roller
Centers		 Wgts.
(Lbs.)		 Price Per
Sections
5' 10' 10' 5' 5' 10' 10' 5'
SSR-12-1 1/2 1-1/2" 55 101 SSR-15-1 1/2 1-1/2" 62 112
SSR-12-3 3" 37 68 SSR-15-3 3" 42 78
SSR-12-4 1/2 4-1/2" 32 58 SSR-15-4 1/2 4-1/2" 33 61
SSR-12-6 6" 29 52 SSR-15-6 6" 30 55
18" Overall Width 24" Overall Width
SSR-18-1 1/2 1-1/2" 72 135 SSR-24-1 1/2 1-1/2" 91 168
SSR-18-3 3" 47 97 SSR-24-3 3" 58 108
SSR-18-4 1/2 4-1/2" 40 73 SSR-24-4 1/2 4-1/2" 47 88
SSR-18-6 6" 32 63 SSR-24-6 6" 42 78
All weights are conveyor weights only. Accessories, crating, etc., are not included.

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths
STRAIGHT ALUMINUM SECTIONS
12" Overall Width 15" Overall Width
Model No. Roller
Centers		 Wgts.
(Lbs.)		 Price Per
Section		 Model No. Roller
Centers		 Wgts.
(Lbs.)		 Price Per
Section
5' 10' 10' 5' 5' 10' 10' 5'
SAR-12-1 1/2 1-1/2" 29 53 SAR-15-1 1/2 1-1/2" 33 56
SAR-12-3 3" 20 36 SAR-15-3 3" 23 41
SAR-12-4 1/2 4-1/2" 17 30 SAR-15-4 1/2 4-1/2" 18 32
SAR-12-6 6" 15 27 SAR-15-6 6" 16 29
18" Overall Width 24" Overall Width
SAR-18-1 1/2 1-1/2" 38 70
SAR-24-1 1/2
 1-1/2" 48 88
SAR-18-3 3" 27 51
SAR-24-3
 3" 30 56
SAR-18-4 1/2 4-1/2" 20 38
SAR-24-4 1/2
 4-1/2" 25 46
SAR-18-6 6" 18 33
SAR-24-6
 6" 22 41
All weights are conveyor weights only. Accessories, crating, etc., are not included.
IMPORTANT NOTES...
SPECIAL LENGTH SECTIONS OTHER WIDTHS
Under 10'-0", use per foot price (on odd lengths, use
next whole foot)		 For "IN-BETWEEN WIDTHS", use next width plus
10%. Does not apply to tapered rollers, contact
us. For widths up to 30" OAW, interpolate plus
10%. For widths over 30" OAW, contact us.
HOOKS & BOLTS
Standard straight sections have bolts on one end and
hooks on the other end. For LESS Hooks and Bolts per
section, Deduct $5.99 per section.
NON-STANDARD WIDTHS
Contact us for lead time.
BUTT COUPLINGS IN PLACE OF HOOKS &
 BOLTS
(Square Ends) ......................................... No Charge

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths
PARTS PRICE LIST
1-3/8" DIA. ROLLER 1-3/8" DIA. GALVANIZED TAPERED ROLLER
Galvanized (B-03935) (B-06992)
10" BR for 12" wide steel conveyor ................. 10" BR for 12" wide steel conveyor .................
13" BR for 15" wide steel conveyor ................. 13" BR for 15" wide steel conveyor .................
16" BR for 18" wide steel conveyor ................. 16" BR for 18" wide steel conveyor ..................
22" BR for 24" wide steel conveyor ................ 22" BR for 24" wide steel conveyor .................
1-3/8" DIA. ALUMINUM ROLLER (G-00436) HOOK COUPLINGS
10" BR for 12" wide aluminum conveyor .......... Includes nuts & bolts. For both Steel and Aluminum.
13" BR for 15" wide aluminum conveyor ..........
G-00207-L........L.H.Each ..........................
16" BR for 18" wide aluminum conveyor .......... G-00207-R.......R.H. Each .........................
22" BR for 24" wide aluminum conveyor ..........
Note : Contact factory for special BR.
Do not interpolate for non-standard BR widths on tapered rollers.

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

STATIONARY FLOOR SUPPORTS
SUPPORTS FOR SKATEWHEEL AND 1 3/8 ROLLER
stationary floor supports PRICES FOR STATIONARY SUPPORTS INCLUDE:
Welded Frame Assembly
Adjustable Feet
Adjustable Pivot Plate
Model No. Adjustment to Top of Roller Weight
(Lbs.)		 Price Up to
60" Each		 Price Up Above
61" Each
Wheel & 1-3/8" Roller
LSL-1 4-13/16" to 5-13/16" 8
LSL-2 5-13/16" to 7-9/16" 8
LSL-3 7-9/16" to 10-3/16" 8
LS-1 10-1/16" to 11-13/16" 8
LS-1.2 11-1/16" to 12-13/16" 8
LS-1.4 12-1/16" to 13-13/16" 8
LS-2 13-1/16" to 16-1/16" 8-1/2
LS-3 15-11/16" to 18-11/16" 11
LS-4 18-11/16" to 24-11/16" 13-1/2
LS-5 22-11/16" to 28-11/16" 19-1/2
LS-6 26-11/16" to 38-11/16" 22-1/2
LS-7* 36-11/16" to 48-11/16" 24
LS-8* 48-11/16" to 60-11/16" 26-1/2
LS-9* 60-11/16" to 72-11/16" 29-1/2
LS-10* 72-11/16" to 84-11/16" 35-1/2
LS-11* 82-11/16" to 94-11/16" 38-1/2
LS-12* 94-11/16" to 106-11/16" 42
*Price Includes Knee Braces

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

IMPORTANT NOTES.....
4 in. Dia. 6 in. Dia.
CASTERS Steel Rubber Steel Rubber
Extra Per Support*
CASTERS
Are available in either Rigid or Swivel type - specify.
WHEN ORDERING SUPPORTS
*Price Includes Knee Braces.
Specify Overall Conveyor Width.
CAPACITY DATA CASTERS ARE RECOMMENDED FOR MS AND
LS TYPE SUPPORTS ONLY.
LS & MS .......................... 1500 lbs. ea.
Caster Foot ..................Per Support ........... $57.70
Floor Lock ..........................Each.............. $200.60 (Customer supplied caster must match our caster bolt pattern)
Knee Braces ......................Per Pair ......... $31.80 *Available on Swivel Caster Only.
Single Center Leg..................................... $64 ** **Center legs available from stockyards, same sizes as
LS-MS shown in chart above.
Brakes for Casters (Add-On Per Support)*:
4" Dia. Caster ....................................... $41.50
6" Dia. Caster ....................................... $132.70

TRIPOD STAND
tripod stand Adjustable Tripod Stands are used with straight or curved sections of gravity skatewheel
and 1-3/8 in. dia. roller conveyor. Optional leg angles can be supplied to a fasten stand to
floor.
4 Widths
Portable applications
Easily adjusted
CAPACITY DATA:
350 lbs. with 180 in./lbs. of torque on locking screw.
(No Shock Loading).

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

Model No. 12" Wide Wgt.
(lbs.)		 Adjustment
Height Top
of Conveyor		 Model No.
15" Wide		 Wgt.
(lbs.)		 Adjustment
Height Top
of Conveyor		 Model No.
18" Wide		 Wgt. (lbs.) Adjustment Height Top
of Conveyor		 Model No.
24" Wide		 Wgt (lbs.)

Price Ea. (All
Widths)
TS-12-018 5-1/2 12"-18" TS-15-018 6 12"-18" TS-18-018 6-1/2 12"-18" TS-24-018 7
$74.40
TS-12-030 8-1/2 18"-30" TS-15-030 9 18"-30" TS-18-030 9-1/2 18"-30" TS-24-030 10
$79.90
TS-12-040 10-1/2 24"-40" TS-15-040 11 24"-40" TS-18-040 11-1/2 24"-40" TS-24-040 12
$85.20
TS-12-052 13-1/2 30"-52" TS-15-052 14 30"-52" TS-18-052 14-1/2 30"-52" TS-24-052 15
$90.80
TS-12-072 19-1/2 40"-72" TS-15-072 20 40"-72" TS-18-072 20-1/2 40"-72" TS-24-072 21
$106
TS-12-110 23-1/2 60"-110" TS-15-110 24 60"-110" TS-18-110 24-1/2 60"-110" TS-24-110 25
$217.80
OPTIONAL ITEM
• Replacement Locking Screw (B-00804) . . . . . . . . . . . . . . . . . . . . . . Each .. . . . . . . . . . . . . . . . . . . . . . . . . . . $8.10
• Leg Angles—to fasten stand to floor (LA). . . . . . . . . . . . . . . . . . .. . .Per Set of 3 . . . . . . . . . . . . . . . . . . . . . . $11.30
