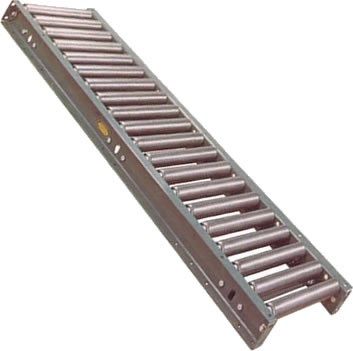

1-3/8 in. dia. Gravity Roller Conveyor is used to carry lightweight packages or when operation requires lightweight sections. Useful in setting up permanent or temporary conveyor lines in warehousing activities, shipping departments, assembly areas, etc. Majority of products will convey with minimum amount of pitch.
4 Widths
6 Roller Centers
Powder Painted Steel or Aluminum Frames
SEE BELOW FOR SUPPORTS
LOAD CAPACITY CHART
Frame Material
Support Centers
Frame Capacity (Lbs.)
Roller Capacity (Lbs.)
Maximum Distributed Live Load Per Foot
Maximum Load Per Wheel
Steel
5'
250
45
10'
31
Aluminum
5'
83
30
10'
10
STANDARD SPECIFICATIONS
WIDTHS–12 in., 15 in., 18 in. and 24 in. overall.
ROLLERS–1-3/8 in. dia. x 18 ga. galvanized steel or heat-treated aluminum tubing. Spring loaded axle allows roller to be easily removed or inserted.
FRAME–2-1/2 in. deep x 1 in. flange x 12 Ga. powder painted formed steel or 1/8 in. heat-treated aluminum channel with bolt-in cross members.
AXLES–1/4 in. dia. round
COUPLINGS–Bolt on one end, hooks on opposite end.
CAPACITY–See Load Capacity Chart above.
LENGTHS–5 ft. and 10 ft. straight sections.
Order Online
Click the button of the item you wish to purchase.
All weights are conveyor weights only. Accessories, crating, etc., are not included.
IMPORTANT NOTES...
SPECIAL LENGTH SECTIONS
OTHER WIDTHS
Under 10'-0", use per foot price (on odd lengths, use next whole foot)
For "IN-BETWEEN WIDTHS", use next width plus 10%. Does not apply to tapered rollers, contact us. For widths up to 30" OAW, interpolate plus 10%. For widths over 30" OAW, contact us.
HOOKS & BOLTS
Standard straight sections have bolts on one end and hooks on the other end. For LESS Hooks and Bolts per section, Deduct $5.99 per section.
NON-STANDARD WIDTHS
Contact us for lead time.
BUTT COUPLINGS IN PLACE OF HOOKS & BOLTS
(Square Ends) ......................................... No Charge
Order Online
Click the button of the item you wish to purchase.
Adjustable Tripod Stands are used with straight or curved sections of gravity skatewheel and 1-3/8 in. dia. roller conveyor. Optional leg angles can be supplied to a fasten stand to floor.
4 Widths
Portable applications
Easily adjusted
CAPACITY DATA:
350 lbs. with 180 in./lbs. of torque on locking screw. (No Shock Loading).
Order Online
Click the button of the item you wish to purchase.
