Jib Kits feature heavy duty I-beam booms or C-rail booms. 50 lb. capacity kits are painted beige polyester and are available with either fixed or swing (180°) booms up to 18' long. Columns available to 12’ high. Booms may be mounted higher or lower on the column to suit your specific application. Booms are WS50 rail for loads up to 50 lbs. (22.5kg). Vertical columns include pre-drilled, gusseted mounting bases with 10" adapter plates now available for round columns. The Vertical columns are 3" O.D. x 2.5" I.D. (76mm x 64mm) welded steel tubing. Vertical column for 18’ boom is 6" square steel tube with 3" dia. x 2’ mounting shaft at top. Vertical columns for 50 lb. capacity jibs also available separately, see model chart below.
JIB KITS include (1) boom, (1) vertical column with integral mounting base (1) balancer trolley, (1) Hose/Cable Trolley, (1) End Clip, and all assembly hardware.
KIT NUMBERS assume festoon trolleys for typical 3/8"(9mm) I.D. hose with saddle to handle O.D. range of 0.60"-0.94"(15-24mm). If optional saddle with range of 0.31"- 0.59"(08-15mm) is desired, substitute "1" for "2" as last digit of model number. Example: W5S-060301
STOPS TO LIMIT BOOM SWING
Manual Boom Stop - Model W5S-SK. Spring Loaded Boom Stop - W5S-BMLK - 20" Release Rod & W5S-BMLK54 - 54" Release Rod. Both W5S-BMLKs include spring loaded lock, brackets and all hardware. All field installed only.
Many people want the flexibility a swing boom provides but need to limit swing in one or both directions. Two boom stops are available. One (below) has manually positioned (screw-in) stops that limit swing to 15º, 30º, 45º, or 60º in either direction. The other (left) has a spring loaded stop that, when pulled, allows the boom to swing freely throughout its normal 180º arc and,
when released, lock it at the straight position or every 15º in either direction. Stops are easily installed on 50 lb. capacity swing booms without drilling or welding.

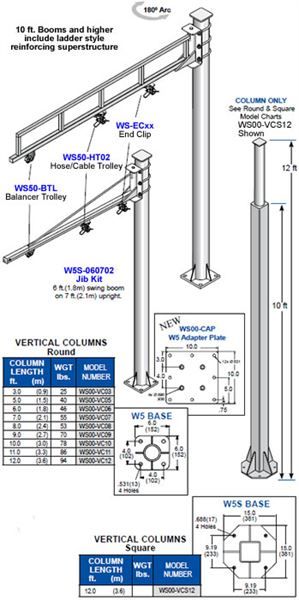

6’ Boom Length Application - Shown with optional Balancers over machining work area.
