RADIO REMOTE CONTROL
RC-R SERIES
|
|

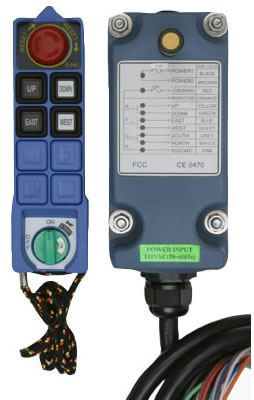

RC-2M2 & RC-3M1
This Series of Radio Controls are ideal for smaller, simpler operations such as light-duty cranes and monorails.
The RC-2M2 Series Radio Control offers the user 2-step pushbuttons, while the RC-3M1 Series Radio Control
has 1-step pushbuttons. Both wireless control systems operate on exceptionally low power consumption (up to
three months on two AA batteries) and feature a user-friendly design. Operating range for the remote system is
300+ feet. |
|
|
|
 |
|
General Specifications
• Durable, robust IP 65 industrial casing
• New lightweight (250g) user friendly design
• Advanced RF circuitry design with over 4 billion ID codes
• Exceptionally low Power Consumption - up to 3 months
usage with 2 AA batteries
• Error free Hamming code technology
• Working temperature range from -45° to +80°C
• Long distance operation up to 100m
• Purposely designed for the control of high-vibration,
heavy-duty mobile and industrial equipment
• Remote ID Setting Technology allowing for instant maintenance
at site
• Multi-optional receiver input power. 48/110, 48/200, 110/220,
220/380 VAC ± 12-24V DC* |
|
|
|
© RC-2M2: 4 pushbuttons with 2-step (Up, Down, East, West)
+ EMS + Start Key
© RC-3M1: 6 pushbuttons with 1-step (Up, Down, East, West,
North, South) + EMS + Start Key |
|
|
|
 |
RC-3M2 Series
The 3M2 Series Radio / Remote Control is a versatile System, ideal for complex industrial applications. The
compact, 8-pushbutton Transmitter fits easily in the user's hand. The 3M2 Series is a 3-motion, 2-speed radio,
suitable for most industrial applications. With a range of 300 feet, the 3M2 can accommodate larger applications
without compromising safety. |
|
|
|
|
|
Installation of the 3M2 Series is very simple, and both AC and DC* voltage configurations are available. As with all
OUR Controls products, the 3M2 Series comes with a standard two-year Warranty against all manufacturer's defects. |
|
|
|
|
|
 |
|
General Specifications
• Enclosure: IP65 (indoor/outdoor)
• Structure: Fiberglass
• Crystal-Based
• Both power source and output relays with fuses
• Synchronous transmission encoding and decoding
• Frequency: 310.0325 ~ 321.535 MHz
• Operating temperature: -30° - +75° C
• Relays: 10A/250V
• ID Code: 32 bit
• Response time = 65ms
• Range: 300 feet
• *AC Standard - Contact Us for DC Configuration |
|
|
|
|
|
Transmitter Specifications
• 6.4" L x 1.9" W x 1.8" H
• 0.6 lbs.
• 2 AA size alkaline batteries
• 3-stage power indicator
• Synchronous transmission encoding and decoding
• Buzzer/Alarm
• Removable key (waterproof)
• Changeable push button symbols
• Shock resistant design
• Password power-on: 4 digits
• Normal power consumption: about 40mA |
|
|
|
Receiver Specifications
• 6.6" L x 6.1" W x 3.5" H
• 3.1 lbs.
• Input: 110 VAC
• Alarm and signal light output
• Power source detector
• Anti-power interrupt circuit
• Shock resistant
• Enhanced watch-dog circuit
• 3 superheterodyne
• Frequency deviation tracing circuit |
|
|
|
|
|
RC-4M2 Series
The RC-4M2 Series Radio Control is capable of carrying out the most complex of tasks with its 12 2-step push-
buttons. For instance, the RC-4M2 has the capability to remotely operate cranes outfitted with two trolleys and
two hoists by means of its five-motion, two-speed versatility. With a wireless range of over 300 feet and the ability
to carry out flawless operations in the harshest of industrial conditions (-22° - 167° F), the RC-4M2 is ideal for the
most extreme of circumstances. |
|
|
|
|
|
|
The RC-4M2 series Remote Controls, with their advanced technological design, easily satisfy the requirements of
diverse industries. All functions are readily customized to suit YOUR equipment. |
|
|
|
|
|
|
The RC-4M2 series Remote Controls advanced technology offer the user small, lightweight yet exceptionally robust
Transmitters designed to reduce user fatigue, damage, wear and tear. The Receivers also adopt this technology to
minimize "on-board" space requirements. |
|
|
|
|
|
|
The RC-4M2 series Remote Controls ensure smooth operation under severe environmental conditions, especially
where there is likely to be serious frequency interference and large variations in temperature. |
|
|
|
|
|
|
 |
|
General Specifications
• Enclosure: IP65
• Structure: Glass fiber
• Crystal Frequency Control
• Both power source and output relays with fuses
• Synchronous transmission encoding and decoding
• Changing frequency manual/auto
• Auto signal searching
• No. of functions & parameters setting > 57
• No. of self-diagnosis > 28
• No. of alarm > 28
• Frequency: 415 ~ 483MHz
• Operating temperature: --22° to +167° F
• Relays: 10A/250V
• ID Code: 32 bit
• Response time = 65ms
• Static > 15KV
• Surge > 4KV
• Field strength > 10V/m
• Range: 300 feet |
|
|
|
|
|
|
|
|
| Other Specifications: |
|
Transmitter Specifications
• 10.79" L x 3.03 " W x 1.65 " H
• about 1.21 lbs. (without batteries)
• 6 AA size alkaline/rechargeable batteries |
|
• 3-stage power indicator
• Buzzer/Alarm
• Removable key (waterproof)
• Changeable pushbutton symbols
•Shock resistant design
• Password power-on: 4 digits
• Output power = 10mW
• Normal power consumption: about 40mA
• Harmonic = 65dB
• Modulation = 2.5KHz
• Alarm and signal light output
• Power source detector
• Anti-power interrupt circuit
• Shock resistant
• Enhanced watch-dog circuit
• 3 superheterodyne
• Frequency deviation tracing circuit
• Sensitivity = -110dBm
• Adjacent channel restrain > 80dB |
|
|
|
|
|
|
Receiver Specifications
• 9.96 " L x 10.51 " W x 5.91 " H
• about 6.62 lbs. (without cables)
• AC: 24V, 48/110/220, 110/220/380V
• DC: 14~40V |
|
|
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
|
PRICING
|
|
Catalog No.
|
Description
|
Price
|
|
|
Three motion Single Speed with Key On/Off, Emergency Stop, 2 Transmitters
and 1 Receiver |
$660.00
|
|
|
Two Motion Two Speed for Monorail Application Key On/Off, E-Stop,
2 Transmitters and 1 Receiver |
$720.00
|
|
|
Three Motion Two Speed with Key On/Off E-Stop, 2 Transmitters and
1 Receiver,
Separate Commons |
$870.00
|
|
|
Three Motion Two Speed with Key On/Off Programmed for A / Both / B
Operation |
$890.00
|
|
|
Four Motion Two Speed w/Emergency Stop, 2 Programmable Aux Switches,
2 Transmitters and 1 Receiver |
$1,390.00
|
|
Radio Remote Control Accessory and Replacement Parts
|
|
Catalog No.
|
Description
|
Price
|
|
|
Two Way Selector Switch for "Radio" / "Pendant" Opeartion |
$246.00
|
|
|
Replacement Magnetic Key for Series RC-3M2, and RC-3M2 A/B |
$30.00
|
|
|
Pulse Alarm (requred by OSHA in most states) Specify 120 VAC or 24 VDC |
$110.00
|
|
|
Spare Transmitter for RC-3M2 and RC-3M2 A/B (specify channel number) |
$320.00
|
|
|
Spare Transmitter for RC-3M1 (specify channel number) |
$310.00
|
|
|
Spare Transmitter for RC-2M2 (specify channel number) |
$310.00
|
|
|
Rubber Protective Boot (specify model number) |
$55.00
|
|
|
