NER Single Speed Hoist with Hook Suspension

$9,213.51

The Harrington NER030L-10 is a 3 ton single speed electric chain hoist with hook suspension and a 10 ft standard lift. A 4.7 HP three phase motor (208-230/460V, 60 Hz; 18.3 A at 230V, 9.2 A at 460V) lifts at 16 ft/min on a single fall of 12.5 mm Grade 80 nickel-plated load chain. Headroom is 26.0 in., net weight is 256 lbs, and each additional foot of lift adds 2.3 lbs. The NER030L is the previous hoist model.

Standard features include "The Guardian" smart brake with a 10-year hoist brake warranty, a friction clutch, low-profile upper and lower limit switches, a count hour meter, thermal motor protection, a notched hook with latch, and a 2-button pendant with 110V control. It is rated for a 60-minute duty cycle (ASME H4), listed to UL 1340, and rated NEMA 4/IP55 with an IP65 pendant. With a canvas chain container, lifts up to 26 ft are supported.

SKU
NER030L-10

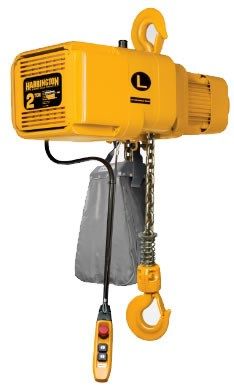

main product photo
Images may not be your exact model - for reference only.

ELECTRIC CHAIN HOISTS

IMPROVE EFFICIENCY

Our company is a broad line distributor of Material Handling Equipment such as Electric Chain Hoists, Chain Hoists,
Motor Driven Trolleys, Lodestar, and Hoists. In addition, our knowledgeable and friendly staff specializes in Trolleys,
Harrington, CM, Coffing, Yale, Chester, Push Trolley, Low Headroom, Dual Speed Hoist, Single Speed Hoist,
Powerstar, and Geared Trolleys.
Product Specifications
More Information
Capacity 3 ton
Lift Height 10 ft
Lift Speed 16 FPM
Speed Control Single speed
Suspension Hook
Motor Power 4.7 HP
Voltage 208-230/460V, 3 phase, 60 Hz
Rated Current at 230V (208V) 18.3 A
Rated Current at 460V 9.2 A
Control Voltage 110V (optional 24V)
Duty Cycle 60 min
Duty Classification ASME H4 / ISO M5 / FEM 2M or 1Am
Load Chain Diameter 12.5 mm
Chain Falls 1
Load Chain Grade 80, nickel-plated
Clutch and Load Brake Friction clutch
Brake The Guardian smart brake (10-year warranty)
Limit Switches Upper and lower, low-profile
Hook Notched hook with positive-closing latch
Pendant 2-button (momentary contacts)
Pendant Drop About 4 ft above the fully extended bottom hook
Push Button Cord Length 8.2 ft
Power Cord Length 15 ft
Headroom 26.0 in
Net Weight 256 lbs
Weight per Additional Foot of Lift 2.3 lbs
Max Lift with Canvas Chain Container 26 ft
Contactors Mechanically interlocked, heavy-duty
Count Hour Meter Yes
Thermal Motor Protection Yes
Certifications UL 1340 listed, RoHS compliant
Enclosure Rating Hoist NEMA 4/IP55, pendant IP65
Operating Temperature -4°F to +104°F
Operating Humidity 85% or less
