Stainless Steel Series - 3/8", 1/2", 3/4", 1" I.D.
Stainless steel hose reels will increase the life of expensive chemical fluid transfer and wash down hoses. By properly storing hose when not in use, occupational safety will improve by eliminating the tripping hazard of unstored hose and sanitation will improve.
Stainless steel hose reels are ideal for food processing, pre-rinse, wash down, chemical transfer and industrial solvent handling. Also suitable for coastal, offshore onboard ship in marine applications where the harsh environment of salt water spray requires the use of stainless steel hose reels. Swivels include Viton® "O" rings. Buna seals are available for water applications by adding a -B at the end of the model number.

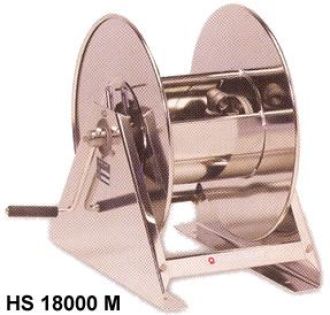

Manual Crank Reels Note: The Series HS models include aluminum hubs and bronze bushings.
COMPACT - Great for areas where space is critical
FEATURES
Full-flow stainless steel shaft and swivel assures maximum product delivery. Exception: Series 80000- aluminum fluid path.
Heavy duty brackets to eliminate bending due to angular hose pull
Banded drive spring gives smooth automatic hose retrieval
Multi-position guide arm permits wall, floor, ceiling, pit or truck mounting
Nylon guide rollers reduce hose drag and abrasion
Pos-i-latch will maintain the desired working length of hose. Mechanism assures a positive latch of the hose
All reels are permanently factory lubricated
7000 Series offers weatherproof gasketed spring motor, assures maximum service life
GENERAL USE - Many versatile applications in corrosive or sanitary environments.
APPLICATIONS
• Restaurants
• Car Washes
• Laboratories
• Dairies
• Marinas
• Grocery Stores
• Photo Finishing
• Meat Packing Plants
• Chemical Plants
• Printing Industry
• Pharmaceutical
• Food Processing
• Ships
HEAVY DUTY
*Series 80000 & D80000 stainless reels have an aluminum fluid path and may not be suitable for all applications. The -S models include stainless latch parts and fluid path (OLS-S).
DIMENSIONS
5000 O
7000 O
80000
D80000
HS18000 M
in
mm
in
mm
in
mm
in
mm
in
mm
A
14 1/2
368
20 1/4
514
25 3/8
645
25 3/8
645
19
483
B
13 3/4
348
19
483
24
610
24 1/8
613
20
508
C
9 3/4
248
7 7/8
200
10
254
10 1/2
267
15
381
D
2 1/2
64
3 7/8
98
6
153
7 7/8
199
10
253
E
6
152
7
178
10 1/2
267
14 1/4
362
16 1/4
413
F
3/8" NPTF (F)
1/2" NPTF (F)
1/2" NPTF (F)
3/4" NPTF (F)
1/2" NPTF (F)
3/4" NPTF (F)
1" NPTF (F)
Series 5000 has four 5/16" (8mm) diameter mounting holes. Series 7000, 80000 & D80000 has four 1/2" (13mm) diameter mounting holes. Series HS 18000 has four 7/16" (11mm) diameter mounting holes. Series 80000 & D80000 inlet matches recommended hose ID
Order Online
Click the button of the item you wish to purchase.
Adjustable hose bumpers are solid molded rubber assuring a long life and nonslip grip. Hose bumpers allow the desired length of hose to be permanently stored outside the reel. Hose bumpers are included on the reels purchased with hose. Reels purchased without hose do not include the hose bumper. When ordering, advise the part number, reel model and the hose ID and OD
Order Online
Click the button of the item you wish to purchase.
A flexible hose connection must be used between the hose reel inlet and the source of supply to prevent possible misalignment and binding or warranty is void. The inlet size of reel series 4000 O, 5000 O and 5000 E is 3/8" (9.5 mm) NPTF (F), 7000 O & 7000 E is 1/2" (12.7 mm) NPTF (F), D8000 O and D8000 E is 1/2" (12.7 mm) NPTF (F) depending on hose size. Please furnish the following infor- mation when ordering: Part number-product and pressure to be handled. Other sizes available as well.
S601020-2 1/2" ID X 2 FEET 300 PSI WORKING PRESSURE
Order Online
Click the button of the item you wish to purchase.
Full-flow stainless steel shaft and swivel assures maximum
