Fixed-Height Rolling A-Frame
|
|
|
|
|
|
|
|
|
|
Fall Protection Anywhere: The Ultimate
In Mobility For Fall Protection Systems
|
|
|
 |
|
|
|
|
|
|
|
|
Rigid Lifelines® Rolling A-Frame Anchor Track™ System is the
ultimate in mobility for fall protection systems. Simply roll the
system into position and lock into place. Perfect for maintenance
and manufacturing applications, this system provides coverage to
virtually every area of your plant. Its mobility saves space, time,
and money by eliminating the need to install fall protection
equipment around temporary work stations. This system is also
available as a custom engineered solution for your facility. |
|
|
|
|
|
|
|
|
|
|
Important Note
|
|
|
|
|
|
|
|
|
|
|
These systems can be designed for workers up to 400 pounds
when used with 900 maximum average arresting force (MAAF)
energy absorbing self-retracting lanyards. Custom systems are
available for heavier workers; please contact our sales team for
more information. |
|
|
|
|
|
|
|
|
Possible Applications
|
|
|
|
|
|
|
|
|
|
|
• Aircraft Maintenance and
Manufacturing
• Large Vehicle Maintenance
and Manufacturing
|
• Oil and Gas Drilling
and Extraction
• Mining and Excavating
• Utility Work |
|
|
|
|
|
|
|
|
|
|
|
|
|
Features
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
• Simply rolls into place to provide fall
protection and rolls out of area when
finished
• Standard inside clear width distances
between 17 and 35 feet (custom distances
available)
• Standard trolley-hook height between 20
and 30 feet (custom heights available)
• Large diameter casters to ease positioning
• Quick and simple field assembly with
bolt-together components - no welding
required
• Enclosed track design decreases the
possibility of dirt or dust build-up
interfering with trolley travel
• Anchor Trolley comes standard
• Meets or exceeds OSHA and ANSI
standards |
|
|
|
|
|
|
|
|
Coverage is provided to virtually every location in your plant.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Support Structures
|
|
 |
|
|
|
|
|
|

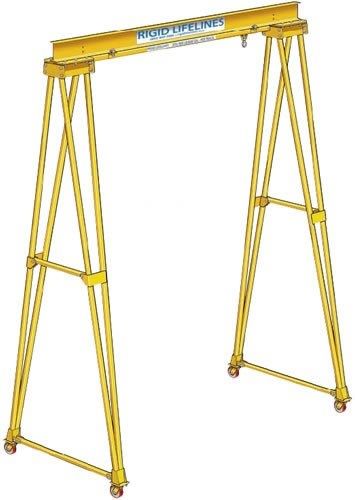

Caster-equipped legs and braces hold a header that the track
attaches to. |
|
|
|
|
|
|
|
Advantages
|
|
|
|
|
|
|
|
Highly mobile fall protection coverage. |
|
|
|
|
|
|
|
Available Options
|
|
|
|
|
|
|
|
• Single, dual, or multiple tracks for
one, two, or multiple workers
• Manual leveling jacks
• Foam-filled pneumatic casters (tires)
• Heavy duty casters
• Power drives
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Anchor Trolley™
|
|
|
|
|
|
|
|
|
|
Minimizing Track Drift |
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
The Anchor Trolley™ is our ultimate innovation in rolling trolley
technology. The Anchor Trolley is designed with cone teeth
made of hardened alloy steel that act as a braking mechanism
and engage the steel track in the event of a fall. The engagement
of the trolley teeth and track causes the trolley to anchor into
place without damaging the track, virtually eliminating post-fall
drift on the track. The Anchor Trolley greatly increases the
opportunity for conscious and able-bodied workers to perform
a self-rescue after a fall event. Like our other trolleys, the Anchor
Trolley is made from non-consumable materials while being
weather-proof and temperature-proof. This design ensures that
you still have the same smooth movement that has come to be
associated with Rigid Lifelines® enclosed track fall arrest trolleys. |
|
|
|
|
|
|
|
|
|
Features
• Reduces drifting on the track after a fall event
• Increases the chances for self-rescue
• Comes standard with Anchor Track Systems from Rigid Lifelines |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Greatly Reduces Risk of Suspension Trauma
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
 |
|
|
|
Fixed-Height Rolling A-Frame Reference Chart
(for use with below price table)
|
|
 |
Click the button of the item you wish to purchase. Contact us for special lengths
|
Fixed-Height Rolling A-Frame Prices
|
|
|
|
|
|
Rigid Lifelines® Anchor Trolley™ connector is included. System is painted with yellow industrial enamel for indoor
applications. Systems modified from the standard dimensions shown below require custom engineering.
NOT included: self-retracting lanyards, carabiners, and harnesses
Includes eight-inch diameter polyurethane casters with swivel locks and wheel brakes. |
|
|
|
|
|
Options:
Pneumatic foam-filled swivel tires with swivel locks and wheel brakes:
• Price when purchased with a system in lieu of standard casters: Contact us for pricing.
• Price when purchased for existing Rigid Lifelines system: Contact us for pricing.
|
|
|
|
|
|
Heavy duty casters with swivel locks and wheel brakes:
• Price when purchased with a system in lieu of standard casters: $902.72
• Price when purchased for existing Rigid Lifelines system: $3,138.72
|
|
|
|
|
|
Standard off-plumb (off-center) use is 10 degrees. For more than 10-degree off-center use, contact a technical sales
support specialist for possible extended caster frame width: Price is per application. |
|
|
|
|
|
Outdoor: Includes continuous welds and yellow ArmorPoxy finish: Contact our Sales Department |
|
|
|
|
|
|
Model No.
|
Inside
Clear Width
|
Overall Width
|
Trolley-Hook
Height
|
Overall
Height
|
Caster Frame
Width
|
Weight
|
Prices
|
|
1 Worker Capacity
|
|
FAPF-1-2020
|
17'
|
20'
|
20'
|
21' 5"
|
7' 9"
|
1175 lbs
|
|
|
FAPF-1-2025
|
|
|
25'
|
26' 5"
|
9' 7"
|
1690 lbs
|
|
|
FAPF-1-2030
|
|
|
30'
|
31' 5"
|
11' 5"
|
2210 lbs
|
|
|
FAPF-1-2520
|
21'
|
25'
|
20'
|
21' 5"
|
7' 9"
|
1480 lbs
|
|
|
FAPF-1-2525
|
|
|
25'
|
26' 5"
|
9' 7"
|
2025 lbs
|
|
|
FAPF-1-2530
|
|
|
30'
|
31' 5"
|
11' 5"
|
2515 lbs
|
|
|
FAPF-1-3020
|
26'
|
30'
|
20'
|
21' 7"
|
7' 9"
|
2025 lbs
|
|
|
FAPF-1-3025
|
|
|
25'
|
26' 7"
|
9' 7"
|
2560 lbs
|
|
|
FAPF-1-3030
|
|
|
30'
|
31' 7"
|
11' 5"
|
3050 lbs
|
|
|
FAPF-1-3520
|
31'
|
35'
|
20'
|
21' 9"
|
7' 9"
|
2675 lbs
|
|
|
FAPF-1-3525
|
|
|
25'
|
26' 9"
|
9' 7"
|
3175 lbs
|
|
|
FAPF-1-3530
|
|
|
30'
|
31' 9"
|
11' 5"
|
3660 lbs
|
|
|
FAPF-1-4020
|
36'
|
40'
|
20'
|
21' 9"
|
7' 9"
|
3010 lbs
|
|
|
FAPF-1-4025
|
|
|
25'
|
26' 9"
|
9' 7"
|
3515 lbs
|
|
|
FAPF-1-4030
|
|
|
30'
|
31' 9"
|
11' 5"
|
3995 lbs
|
|
|
2 Worker Capacity with Worker Passability
|
|
FAPF-2-2020-DST
|
17'
|
20'
|
20'
|
21' 5"
|
7' 9"
|
1300 lbs
|
|
|
FAPF-2-2025-DST
|
|
|
25'
|
26' 5"
|
9' 7"
|
1815 lbs
|
|
|
FAPF-2-2030-DST
|
|
|
30'
|
31' 5"
|
11' 5"
|
2350 lbs
|
|
|
FAPF-2-2520-DST
|
21'
|
25'
|
20'
|
21' 7"
|
7' 9"
|
1635 lbs
|
|
|
FAPF-2-2525-DST
|
|
|
25'
|
26' 7"
|
9' 7"
|
2175 lbs
|
|
|
FAPF-2-2530-DST
|
|
|
30'
|
31' 7"
|
11' 5"
|
2675 lbs
|
|
|
FAPF-2-3020-DST
|
26'
|
30'
|
20'
|
21' 9"
|
7' 9"
|
2210 lbs
|
|
|
FAPF-2-3025-DST
|
|
|
25'
|
26' 9"
|
9' 7"
|
2745 lbs
|
|
|
FAPF-2-3030-DST
|
|
|
30'
|
31' 9"
|
11' 5"
|
3225 lbs
|
|
|
FAPF-2-3520-DST
|
31'
|
35'
|
20'
|
21' 0"
|
7' 9"
|
2875 lbs
|
|
|
FAPF-2-3525-DST
|
|
|
25'
|
27' 0"
|
9' 7"
|
3390 lbs
|
|
|
FAPF-2-3530-DST
|
|
|
30'
|
32' 0"
|
11' 5"
|
3875 lbs
|
|
|
FAPF-2-4020-DST
|
35'
|
40'
|
20'
|
22' 0"
|
7' 9"
|
3240 lbs
|
|
|
FAPF-2-4025-DST
|
|
|
25'
|
27' 0"
|
9' 7"
|
3750 lbs
|
|
|
FAPF-2-4030-DST
|
|
|
30'
|
32' 0"
|
11' 5"
|
4225 lbs
|
|
|
|
|
|
System Accessories
|
|
|
|
|
|
|
|
|
|
|
|
Self-Retracting Lanyards
|
|
|
|
|
|
|
All SRLs offered by Rigid Lifelines include an ANSI-rated steel swivel snap hook on the lifeline,
an installation carabiner for the top, a tagline, and meet ANSI Z359.14-2014, ANSI A10.32-12,
OSHA 1910, and OSHA 1926 Subpart M. |
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
C9000 & C9001: Cable Hybrid Self-Retracting Lanyard
|
|
|
|
|
|
|
|
|
|
|
|
|
(Galvanized Cable, Polymer Housing, Hybrid Dual ANSI Class A and Class B, Locking
Snap Hook on Cable End, Installation Carabiner on Top, Tagline Included) |
|
|
|
|
|
|
|
|
|
|
|
|
Features
|
|
|
|
|
|
• Lengths: 20 feet (C9000) and 30 feet (C9001)
• Housing—high-impact resistant polymer
• Cable material—galvanized steel wire rope—3/16-inch diameter
• Working load capacity rating—310 pounds
• Minimum capacity rating—130 pounds
• Hybrid dual class that meets both ANSI Class A and Class B requirements
• 24-inch maximum arresting distance |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
C7002: Cable Self-Retracting Lanyard
|
|
|
|
|
|
|
|
|
|
|
(Galvanized Cable, Polymer Housing, Locking Snap Hook on Cable End, Installation
Carabiner on Top, Tagline Included) |
|
|
|
|
|
|
|
|
|
Features
|
|
|
|
|
|
|
|
|
|
|
• Lengths: 50 feet
• Housing—high-impact resistant polymer
• Cable material—galvanized steel wire rope—3/16-inch diameter
• Working load capacity rating—310 pounds
• Minimum capacity rating—130 pounds |
|
|
|
|
|
|
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
Self-Retracting Lanyard Prices
|
|
|
|
Model No.
|
Lanyard
Length
|
Housing
|
Weight
(lbs)
|
Working Load
Capacity (lbs)
|
Prices
|
|
900-Pound Maximum Average Arresting Force (MAAF)
|
|
C9000
|
20'
|
High-Impact Resistant Polymer
|
11.3
|
310
|
|
|
C9001
|
30'
|
High-Impact Resistant Polymer
|
12.1
|
310
|
|
|
C7002
|
50'
|
High-Impact Resistant Polymer
|
14.6
|
310
|
|
|
|
|
|
Full-Body Harnesses
|
|
|
|
|
|
|
|
|
|
Single Back D-Ring, Two Side D-Rings, Comfort Padding on Shoulders, Back,
Waist, and egs, Dual Lanyard Keepers, Dual Fall Indicators, Quick-Connect
Chest and Leg Buckles |
|
 |
|
|
|
|
|
|
|
Features
|
|
|
|
|
|
|
|
• Sizes: S, M, L (B2202) and XL, XXL (B2203)
• Made up of high-tenacity polyester webbing—5,000-pound break strength
• One dorsal D-Ring for fall arrest
• Five-point adjustability (chest, legs, and torso)
• Grommeted waistband with tongue buckle adjustment
• Quick-connect chest and leg buckles for adjustability
• Two lanyard keepers for proper stowing of idle lanyard connector(s)
• Dual fall indicators on shoulder straps
• Meets ANSI Z359.11-2014, ANSI A10.32-12, OSHA 1910, and
OSHA 1926 Subpart M |
|
|
|
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
Full-Body Harness Prices
|
|
|
|
Model No.
|
Fits Sizes
|
Weight (lbs)
|
Prices
|
|
B2202
|
Small, Medium, & Large
|
6.1
|
|
|
B2203
|
Extra Large & Double Extra Large
|
6.4
|
|
|
|
|
Warning: Applications involving aggressive atmospheres and environments may require the use of a specialized fall protection harnesses. Please contact us for more information. |
|
|
|
Fall Protection Standards (ANSI and OSHA)
|
|
|
Fall protection regulations make a distinction between whether you’re in General Industry or the Construction
Industry. This overview first discusses what is common to both industries.
|
|
|
|
|
|
The most important Fall Protection Code is ANSI Z359.2 "Minimum Requirements for a Comprehensive
Managed Fall Protection Program." The ANSI fall protection standard Z359.2-2007 clearly defines all the
duties and responsibilities that OSHA will require from an organization using fall protection. Furthermore,
ANSI Z359.2 clearly defines issues that are generally not fully defined within OSHA law, such as hazard
analysis, rescue plans, and anchorage requirements for fall restraint systems and work positioning systems. |
|
|
|
|
|
Systems thought to originally be OSHA compliant may not be, specifically if the OSHA inspector uses the
"General Duty Clause" to cite the more detailed ANSI Z359.2 Code. |
|
|
|
|
|
A great starting reference for fall protection is the definitions section of Z359, available for free at: ASSP.org
(search for "Z359.0"). |
|
|
General Industry - Fall Protection Codes
|
|
|
The most important standard for the safety of your general industry employees is ANSI Z359.2; the most important
standard for federal law compliance is OSHA 1910.66 App C.
• ANSI Fall Protection Code Z359 (Nationally Recognized Safety Standard) is available for a nominal fee: search
at ANSI.org.
• OSHA Fall Protection Code 1910.66 App C (Federal Law) is available for free: search at OSHA.gov. |
|
|
Construction Industry - Fall Protection Codes
|
|
|
The most important standard for the safety of your construction employees is ANSI Z359.2; the most important
standard from a federal law compliance perspective is OSHA 1926. The construction industry-specific fall
protection code is ANSI A10.32.
• ANSI Z359 Fall Protection Code (Nationally Recognized Safety Standard)
• ANSI A10.32 Construction Fall Protection. Both ANSI standards are available for a nominal fee: search at
ANSI.org.
• OSHA 1926 Subpart M App C (Federal Law), available for free: search at OSHA.gov.
|
|
|
