Fork Model Stacker

$3,476.72
Dimensions
80"H

Fork Model, 1000 lbs capacity

Lift Ht: 64"

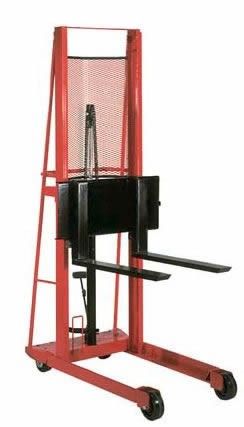

*Images may or may not be your exact model. Images are for reference only.

SKU
ESFL-64-25
main product photo
"S"TANDARD LINE AND "E"CONOMY
LINE FORK MODEL
HYDRAULIC STACKERS
FORK MODEL: hydraulic stackers
fork model stackers
FEATURES:

• 1" thick x 3" wide x 25" long forks.
• Adjustable span up to 25".
• 15" load center.
• 25.5" overall width; 40" depth.
• Base leg span - 15" inside, 21" outside.
• Forks lower to ground.
• 1,000 LB capacity.
Straddle Fork Model
Wide Straddle Fork Model
STRADDLE FORK MODEL
straddle fork model wide straddle fork model
FEATURES:
• 1" thick x 3" wide x 30" long forks.
• Adjustable span up to 25".
• 18" load center.
• 32" overall width; 44" depth.
• Base leg span - 25.5" inside, 32"
outside.
• Forks lower to ground.
• 1,000 LB capacity.
WIDE STRADDLE FORK MODEL
wide straddle fork model
FEATURES:
• Base leg span - 42" inside, 48.75" outside.
• 1" thick by 3" wide by 30" long forks
adjustable span.
• Overall width 48.75", depth 48.25".
• Forks lower to the ground.
• 1,000 lb. capacity.

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

PRICING
MODEL # PART # LIFT
HEIGHT		 OVERALL
HEIGHT		 WEIGHT
(lbs.)		 CAPACITY PRICE
FORK MODELS
SFL-56-25 260035 56" 75" 265 1,000 lbs.
$3,382.08
SFL-64-25 260036 64" 83" 273 1,000 lbs.
$3,505.84
SFL-76-25 260037 76" 94" 306 1,000 lbs.
$3,883.36
ESFL-56-25 260047 56" 72" 258 1,000 lbs.
$3,096.08
ESFL-64-25 260048 64" 80" 266 1,000 lbs.
$3,476.72
ESFL-76-25 260049 76" 92" 295 1,000 lbs.
$3,685.76
STRADDLE FORK MODELS
SFL-56-30S 260041 56" 75" 288 1,000 lbs.
$3,649.36
SFL-64-30S 260042 64" 83" 298 1,000 lbs.
$3,804.32
SFL-76-30S 260043 76" 94" 333 1,000 lbs.
$4,123.60
ESFL-56-30S 260053 56" 72" 281 1,000 lbs.
$3,374.80
ESFL-64-30S 260054 64" 80" 289 1,000 lbs.
$3,746.08
ESFL-76-30S 260055 76" 92" 322 1,000 lbs.
$4,114.24
ESFL-56-30-42S 260075 56" 72.5" 290 1,000 lbs.
$4,469.92
Fork Model Hydraulic Stackers, 1" Thick x 3" Wide x 25" Long Forks, Forks Lower to Ground, 1,000 lb Capacity,
Straddle Fork Model, and Wide Straddle Fork Model from your source for material handling equipment.
