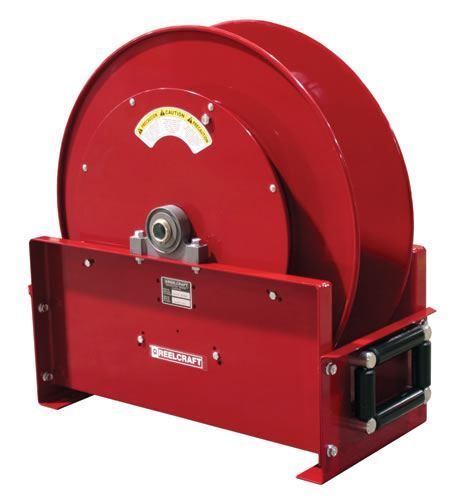

• Ideal for service trucks, permanent service, or plant work areas • Substantial base frame – full width frame has the greatest amount of mounting area and overall strength of reels within its class
• Latch and ratchet are made of heavy duty cast aluminum to limit the opportunity for premature wear • Reels are shipped in the bottom wind position with right hand inlet; see Hose Guide Roller Position for other options
DIMENSIONS - SIZE INDEX
1
2
3
in
mm
in
mm
in
mm
A
26 3/8
670
26 3/8
670
26 3/8
670
B
26 1/4
667
26 1/4
667
26 1/4
667
C
22 1/4
556
22 1/4
556
22 1/4
556
D
7 3/4
195
13 1/2
343
7 3/4
195
E
12
305
17 3/4
451
13 3/8
340
F
24 1/8
613
24 1/8
613
24 1/8
613
G
4 3/4
121
3 7/8
98
4 1/2
114
Order Online
Click the button of the item you wish to purchase.
Low pressure reels furnished standard with PVC hose. Medium pressure reels supplied with S.A.E. 100R1-AT (3/4") one wire braid hose.
REEL ACCESSORIES
Mounting brackets, motors display stand and more
ADDITIONAL ACCESSORIES
340° PIVOT BASE
600608 / 600801 / 600801-12
340° Pivot Base
Aligns reel to the direction of hose or cord run. May be mounted with reel upright or hanging. Mounting holes for reels are pre-drilled to adapt to 4000, 5000, 5005 and 7000 series reels. Weight 10 lbs. (5 kg).
Series 80000 & D80000 & 30006 order Model 600801. For Series 30012 order model 600801-12.
WALL-MOUNTED UNIVERSAL SWING BRACKET
600626 / 600980
Wall-Mounted Universal Swing Bracket
Bracket will pivot approximately 180°. All steel construction with a durable baked on powder coat finish. Swing bracket model 600626 will accommodate reel models 4000, 5000, 5005 and 7000 series reels. Model 600980 will accommodate reel models 80000 and D80000. Weight 6 lbs (3 kg).
Note: Not for overhead mounting
Order Online
Click the button of the item you wish to purchase.
Wall mounted universal swing bracket for Reelcraft hose, cord &cable reels adapter assembly for mounting series
$84.94
ADJUSTABLE HOSE BUMPERS
Adjustable hose bumpers are solid molded rubber assuring a long life and nonslip grip. Hose bumpers allow the desired length of hose to be permanently stored outside the reel. Hose bumpers are included on the reels purchased with hose. Reels purchased without hose do not include the hose bumper. When ordering, advise the part number, reel model and the hose ID and OD
Order Online
Click the button of the item you wish to purchase.
