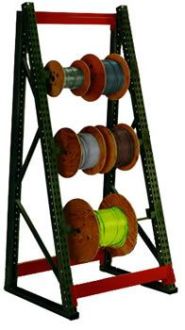

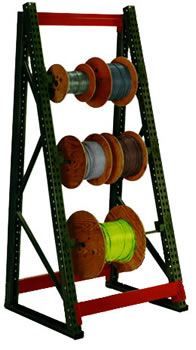

CABLE REEL RACKS |
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
 |
|
|
|
•
Economically stores and dispenses
• 10,000 lb. capacity |
|
|
|
|
|
|
|
|
|
|
Ideal for wire, rope, chain,
hose,
welding cable, etc. Handles up to
48" diameter reels. Durable,
welded steel construction. 96"
unit includes 2 uprights, 3 tie
beams, 3 sets of axle brackets.
You provide the bars that hold the
reels on the unit. Rack should be
anchored to the floor. Add-on
units are also available.
F.O.B. - Shipping Point |
|
|
|
|
|
|
|
|
|
|
|
Color: Green Uprights and
Orange
Beams |
|
|
|
|
Starter Unit |
|
|
|
Adder Unit |
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
|
Width
dimensions between columns - not axle brackets. Cut size for axle is 1/2"
less than actual width.
Example: 24" wide unit - use 23-1/2" axles. |
|
|
|
Standard Starter Unit Prices (Axle Not Included) |
|
10,000
Pound
Capacity + 8'
Units Include:
2 Upright,
3 Tie Beams,
3 Sets of Axle
Brackets |
Model No. |
Width |
Depth |
Height |
Weight |
Price |
| CR-24-24-96 |
24" |
24" |
96" |
114 lbs |
$1,203.00 |
| CR-36-24-96 |
36" |
24" |
96" |
122 lbs |
$1,238.00 |
| CR-48-24-96 |
48" |
24" |
96" |
130 lbs |
$1,210.00 |
| CR-24-36-96 |
24" |
36" |
96" |
119 lbs |
$1,224.00 |
| CR-36-36-96 |
36" |
36" |
96" |
126 lbs |
$1,259.00 |
| CR-48-36-96 |
48" |
36" |
96" |
134 lbs |
$1,231.00 |
10'
Units
Include:
2 Upright,
4 Tie Beams,
4 Sets of Axle
Brackets |
CR-24-24-120 |
24" |
24" |
120" |
144 lbs |
$1,448.00 |
| CR-36-24-120 |
36" |
24" |
120" |
155 lbs |
$1,495.00 |
| CR-48-24-120 |
48" |
24" |
120" |
165 lbs |
$1,457.00 |
| CR-24-36-120 |
24" |
36" |
120" |
148 lbs |
$1,463.00 |
| CR-36-36-120 |
36" |
36" |
120" |
158 lbs |
$1,510.00 |
| CR-48-36-120 |
48" |
36" |
120" |
168 lbs |
$1,472.00 |
12'
Units
Include:
2 Upright,
4 Tie Beams,
4 Sets of Axle
Brackets |
CR-24-24-144 |
24" |
24" |
144" |
164 lbs |
$1,541.00 |
| CR-36-24-144 |
36" |
24" |
144" |
174 lbs |
$1,588.00 |
| CR-48-24-144 |
48" |
24" |
144" |
184 lbs |
$1,550.00 |
| CR-24-36-144 |
24" |
36" |
144" |
165 lbs |
$1,564.00 |
| CR-36-36-144 |
36" |
36" |
144" |
175 lbs |
$1,611.00 |
| CR-48-36-144 |
48" |
36" |
144" |
185 lbs |
$1,574.00 |
|
|
|
Additional Pair of Axle Brackets Prices |
| Model No. |
Weight |
Capacity (Per Pair) |
Price |
| I4500 |
3 lbs |
2000 lbs |
$69.05 |
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
Width
dimensions between columns - not axle brackets. Cut size for axle is 1/2"
less than actual width.
Example: 24" wide unit - use 23-1/2" axles. |
Standard Adder Unit Prices (Axle Not Included) |
10,000 Pound
Capacity + 8'
Units Include:
1 Upright,
3 Tie Beams,
3 Sets of Axle
Brackets |
Model No. |
Width |
Depth |
Height |
Weight |
Price |
| CR-24-24-96A |
24" |
24" |
96" |
73 lbs |
$817.00 |
| CR-36-24-96A |
36" |
24" |
96" |
80 lbs |
$852.00 |
| CR-48-24-96A |
48" |
24" |
96" |
88 lbs |
$824.00 |
| CR-24-36-96A |
24" |
36" |
96" |
75 lbs |
$827.00 |
| CR-36-36-96A |
36" |
36" |
96" |
83 lbs |
$862.00 |
| CR-48-36-96A |
48" |
36" |
96" |
90 lbs |
$834.00 |
10' Units
Include:
1 Upright,
4 Tie Beams,
4 Sets of Axle
Brackets |
CR-24-24-120A |
24" |
24" |
120" |
93 lbs |
$1,011.00 |
| CR-36-24-120A |
36" |
24" |
120" |
103 lbs |
$1,058.00 |
| CR-48-24-120A |
48" |
24" |
120" |
114 lbs |
$1,020.00 |
| CR-24-36-120A |
24" |
36" |
120" |
95 lbs |
$1,018.00 |
| CR-36-36-120A |
36" |
36" |
120" |
105 lbs |
$1,065.00 |
| CR-48-36-120A |
48" |
36" |
120" |
115 lbs |
$1,027.00 |
12'
Units
Include:
1 Upright,
4 Tie Beams,
4 Sets of Axle
Brackets |
CR-24-24-144A |
24" |
24" |
144" |
102 lbs |
$1,057.00 |
| CR-36-24-144A |
36" |
24" |
144" |
113 lbs |
$1,104.00 |
| CR-48-24-144A |
48" |
24" |
144" |
123 lbs |
$1,067.00 |
| CR-24-36-144A |
24" |
36" |
144" |
103 lbs |
$1,069.00 |
| CR-36-36-144A |
36" |
36" |
144" |
113 lbs |
$1,116.00 |
| CR-48-36-144A |
48" |
36" |
144" |
124 lbs |
$1,078.00 |
|
|
