MODEL 138-LRC, 138-LRS, 138-LRSS
|
LIVE ROLLER CURVE, SPUR, OR STRAIGHT SPUR CONVEYOR
|
|

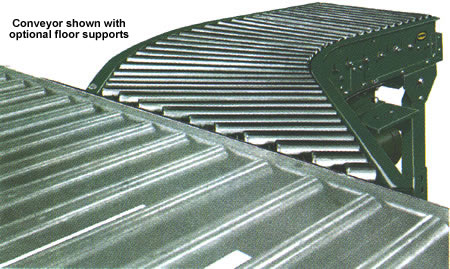

MODEL 138-LRC - LIVE ROLLER CURVE CONVEYOR
|
|
|
|
 |
|
The Model 138-LRC is a light-duty live
roller curve that provides a positive drive
for negotiating 90°, 60°, 45°, or 30° turns.
It may be self-powered or can be slave
driven from 138-ACC, LRS or LRSS
conveyors. |
|
|
|
• 4 Bed Widths
• Reversible
• Adjustable LS-Type Floor
Supports Available
|
|
|
|
 |
|
|
|
| STANDARD SPECIFICATIONS - MODEL 138-LRC |
|
|
|
BED– Roller bed with 1 3/8 in. dia. roller x 18 ga.
galvanized tube and 5/16 in. HRS hex shafts (12 in.–
18 in. OAW) and 2 1/2 in. dia. tapered to 1 11/16 in.
dia. roller x 16 ga. galvanized tube and 1.9 in. dia.
straight rollers x 16 ga. galvanized tube 7/16 in. HRS
hex shafts (24 in. OAW). Mounted in 6 1/2 in. x 12 ga
powder painted formed steel channel frame. |
|
BEARINGS - Sealed, pre-lubricated, self aligning ball
bearings with eccentric lock collar on flange and pillow
block bearings. Pre-lubricated ball bearings in tread rollers. |
|
|
|
BUTT COUPLINGS - Standard for connecting
138-ACC, 138-LRS, and 138-LRSS, 138-LRC. |
|
|
|
SPEED REDUCTION - Sealed worm gear reducer,
driven by V-belt No. 50 roller chain to drive sheave. |
|
|
END DRIVE - Mounted underneath bed section
on outside radius.. |
|
|
|
|
MOTOR - 1/2 HP-208/230/460/575V-3 Ph.
60 Hz. Totally Enclosed |
|
|
DRIVE BELT - Endless B-section V-Belt, industrial
grade. |
|
|
|
|
CONVEYING SPEED - Constant 65 FPM. |
|
|
|
CAPACITY - 150 lbs. total distributed live load. |
|
|
PRESSURE SHEAVES - 2-1/2 in. dia. with 3/8 in.
bore. |
|
|
|
|
FLOOR SUPPORTS - Now supplied as optional
equipment. |
|
|
TAKE-UP - Take-ups provided to maintain proper
V-belt tension. Includes 4-3/8 in. dia. x 5/8 in. bore
V type take-up sheave. |
|
|
|
|
IDLER SHEAVE - 4 in. dia. x 5/8 in. bore V type
and/or 5-1/2 in. dia. x 5/8 in. bore flat type. |
|
|
|
|
|
| DRAWING FOR 138-LRC |
Horsepower required to slave-drive LRC’s from ACC’s
affect the lengths of ACC’s due to the capacities of the
driving V-belt. The four (4) arrangements shown, illustrate
basic slave limitations. Other arrangements are possible. |
|
NOTES
• CURVES MAY BE 30°, 45°, 60°, AND 90°
• CURVES ARE NOT ACCUMULATING
• SNUB ROLLER ADJUSTMENT IS ON DRIVE
BELT SIDE OF CONVEYOR
|
|
|
|
 |
|
|
|
| OPTIONAL EQUIPMENT |
|
|
|
FLOOR SUPPORTS–LS Type floor supports are
available with a wide range of adjustment. Specify top
of belt or roller elevation. One support required at
every bed joint and ends of conveyor. Holes in feet for
lagging to floor. Knee braces recommended above
LS-6 support. |
|
O-RING DRIVE CHAIN–With sealed in lubricant
(Recommended for applications that do not permit
regular lubrication). |
|
|
|
CEILING HANGERS - 5/8 in. dia. x 8 ft. long
unplated rods fully threaded. Other lengths and
galvanized rods available. |
|
|
CONVEYING SPEED - Other constant and variable
speeds from 25 to 120 FPM. NOTE: Capacity
affected with speed change. |
|
|
|
SLAVE DRIVEN - Standard drive may be omitted
and curve or spur slave driven from 138-ACC. (Specify
by sketch, location of slave connection). Minimum
elevation 10-1/2 in. |
|
|
SIDE MOUNTED DRIVE - Motor reducer unit
mounted to side of conveyor. Specify inside or outside.
Minimum elevation 11-1/16 in. |
|
|
|
|
MOTOR- Energy efficient, single phase, brakemotor,
other characteristics. 1 HP maximum. |
|
|
GUARD RAILS - Adjustable Universal Channel
Guard Rail, fixed channel, type A or B angle. See
Accessory section. NOTE: If product comes
in contact with guard rails, product flow will
be affected. |
|
|
|
POLY-TIER SUPPORTS - 36 in. to 120 in. support
heights in 6 in. increments. Knee braces supplied. |
|
|
|
ELECTRICAL CONTROLS - Non-reversing or
reversible magnetic starters and push-button stations.
AC variable frequency drive. |
|
|
END DRIVE–Mounted on inside radius. Minimum
elevation 18-7/8". |
|
|
|
|
| STANDARD SPECIFICATIONS - MODEL 138-LRS |
|
|
|
BED– Roller bed with 1 3/8 in. dia. roller x 18 ga.
galvanized tube and 5/16 in. HRS hex shafts (12 in.–18 in.
OAW) and 2 1/2 in. dia. tapered to 1 11/16 in. dia. roller x
16 ga. galvanized tube and 1.9 in. dia. straight rollers x
16 ga. galvanized tube 7/16 in. HRS hex shafts (24 in.
OAW). Mounted in 6 1/2 in. x 12 ga powder painted
formed steel channel frame. |
|
BEARINGS - Pre-lubricated, self aligning ball bearings
in tread rollers. Flange and pillow block bearings are
sealed, pre-lubricated with eccentric lock collar. |
|
|
|
BUTT COUPLINGS - Standard for connecting
138-ACC and 138-LRC. |
|
|
|
SPEED REDUCTION - Sealed worm gear reducer,
driven by V-belt No. 50 roller chain to drive sheave. |
|
|
END DRIVE - Mounted underneath bed section
on outside radius.. |
|
|
|
|
MOTOR - 1/2 HP-208/230/460/575V-3 Ph.
60 Hz. Totally Enclosed |
|
|
DRIVE BELT - Endless B-section V-Belt, industrial
grade. |
|
|
|
|
CONVEYING SPEED - Constant 65 FPM. |
|
|
|
CAPACITY - 150 lbs. total distributed live load. |
|
|
PRESSURE SHEAVES - 2-1/2 in. dia. with 3/8 in.
bore. |
|
|
|
|
FLOOR SUPPORTS - Now supplied as optional
equipment. |
|
|
TAKE-UP - Take-ups provided to maintain proper
V-belt tension. Includes 4-3/8 in. dia. x 5/8 in. bore
V type take-up sheave. |
|
|
|
|
IDLER SHEAVE - 4 in. dia. x 5/8 in. bore V type
and/or 5-1/2 in. dia. x 5/8 in. bore flat type. |
|
|
|
|
|
MOUNTING BRACKET–Bracket is supplied to attach
spur to side channels of 138-ACC conveyor. |
|
|
|

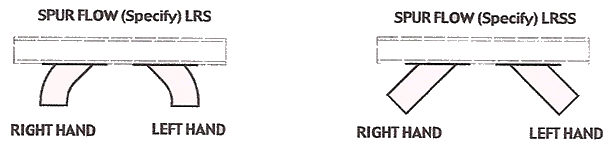

| DRAWING FOR 138-LRS |
|
|
|
SPUR
APPLICATIONS
|
Live Roller Spurs are used to transfer cartons, etc., onto and off of main
conveyor lines. The illustrations below show the correct usage of Plows
and Turning Wheels with Spurs in Diverging and Converging applications. |
|
|
|
 |
|
| OPTIONAL EQUIPMENT |
|
|
|
FLOOR SUPPORTS–LS Type floor supports are
available with a wide range of adjustment. Specify top
of belt or roller elevation. One support required at
every bed joint and ends of conveyor. Holes in feet for
lagging to floor. Knee braces recommended above
LS-6 support. |
|
O-RING DRIVE CHAIN–With sealed in lubricant
(Recommended for applications that do not permit
regular lubrication). |
|
|
|
CEILING HANGERS - 5/8 in. dia. x 8 ft. long
unplated rods fully threaded. Other lengths and
galvanized rods available. |
|
|
CONVEYING SPEED - Other constant and variable
speeds from 25 to 120 FPM. NOTE: Capacity
affected with speed change. |
|
|
|
SLAVE DRIVEN - Standard drive may be omitted
and curve or spur slave driven from 138-ACC. (Specify
by sketch, location of slave connection). Minimum
elevation 10-1/2 in. |
|
|
SIDE MOUNTED DRIVE - Motor reducer unit
mounted to side of conveyor. Specify inside or outside.
Minimum elevation 11-1/16 in. |
|
|
|
|
MOTORS - Energy efficient, single phase, brakemotor,
other characteristics. 1/2 HP maximum. |
|
|
GUARD RAILS - Adjustable Universal Channel
Guard Rail, fixed channel, type A or B angle. See
Accessory section. NOTE: If product comes
in contact with guard rails, product flow will
be affected. |
|
|
|
POLY-TIER SUPPORTS - 36 in. to 120 in. support
heights in 6 in. increments. Knee braces supplied. |
|
|
|
ELECTRICAL CONTROLS - Non-reversing or
reversible magnetic starters and push-button stations.
AC variable frequency drive. |
|
|
END DRIVE–Mounted on inside radius. Minimum
elevation 18-7/8". |
|
|
|
|
|
MODEL 138-LRSS - LIVE ROLLER STRAIGHT SPUR CONVEYOR
|
 |
|
|
|
|
The Model 138-LRSS Live Roller Straight Spur is used in
diverging or converging applications. It may be self-powered
or can be slave driven from 138-ACC, LRC, or LRS
conveyors. |
|
|
|
|
|
• 4 Bed Widths
• Reversible
• Right or Left Hand Units Available
• Adjustable LS-Type Floor Supports Available |
|
|
|
|
 |
|
|
|
|
|
| STANDARD SPECIFICATIONS |
|
|
|
BED–Roller bed with 1 3/8 in. dia. roller x 18 ga.
galvanized tube 5/16 in. HRS hex shafts spaced every
1 1/2 in. Mounted in 6 1/2 in. x 12 ga. powder painted
steel frame. |
|
BEARINGS - Tread rollers have pre-lubricated, self
aligning ball bearings. Flange and pillow block bearings
are sealed, pre-lubricated with eccentric lock collar. |
|
|
|
MOUNTING BRACKET - Bracket is supplied to
attach spur to side channels of 138-ACC conveyor. |
|
|
| END DRIVE - Mounted underneath bed section. |
|
|
|
|
| DRIVE BELT - Endless B-section aramid core V-Belt drives each section of conveyor. |
|
BUTT COUPLINGS - Standard for connecting
138-ACC and 138-LRC. |
|
|
|
PRESSURE SHEAVES - 2-1/2 in. dia. with 3/8 in.
bore. |
|
SPEED REDUCTION - Sealed worm gear C-Face
speed reducer. No. 50 roller chain to drive sheave |
|
|
|
SNUB RETURN SHEAVE - 3 1/4 in. dia. x 1/2 in. bore
flat idler has seven position adjustment. |
|
MOTOR - 1/2 HP-208/230/460/575V-3 Ph.
60 Hz. Totally Enclosed |
|
|
|
TAKE-UP - Take-up provided to maintain proper
V-belt tension. Includes 4 3/8 in. dia. x 5/8 in. bore
V type take-up sheave. |
|
CONVEYING SPEED - Constant 65 FPM. |
|
|
|
FLOOR SUPPORTS - Now supplied as optional
equipment. |
|
|
| CAPACITY - 150 lbs. total distributed live load. |
|
|
|

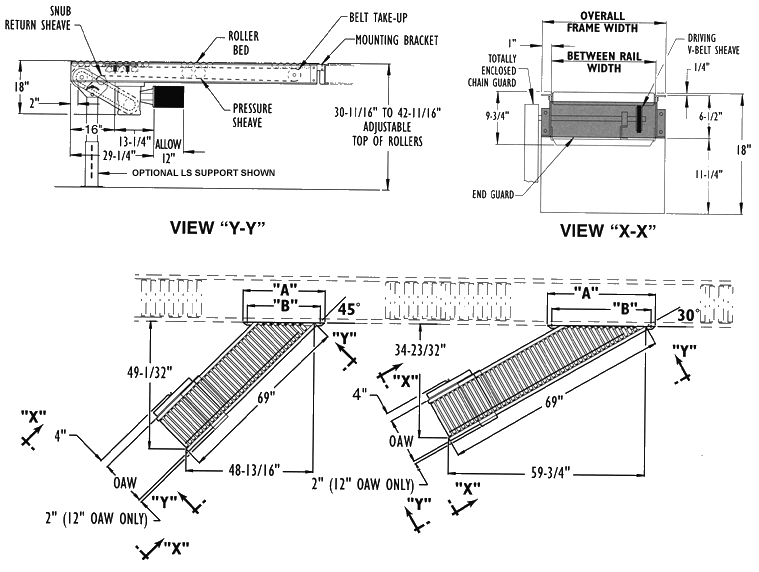

| DRAWING FOR 138-LRSS |
|
SPUR
APPLICATIONS
|

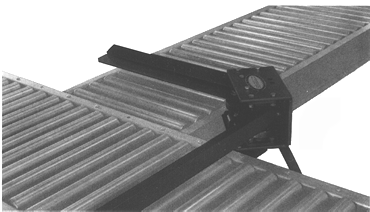

Live Roller Spurs are used to transfer cartons, etc., onto and off of main
conveyor lines. The illustrations below show the correct usage of Plows
and Turning Wheels with Spurs in Diverging and Converging applications. |
|
|
|
|
 |
|
|
|
| OPTIONAL EQUIPMENT |
|
|
|
FLOOR SUPPORTS–LS Type floor supports are
available with a wide range of adjustment. Specify top
of belt or roller elevation. One support required at
every bed joint and ends of conveyor. Holes in feet for
lagging to floor. Knee braces recommended above
LS-6 support. |
|
GUARD RAILS - Adjustable Universal Channel
Guard Rail, fixed channel, type A or B angle. See
Accessory section. NOTE: If product comes
in contact with guard rails, product flow will be
affected. |
|
|
|
POLY-TIER SUPPORTS - 36 in. to 120 in. support
heights in 6 in. increments. Knee braces supplied. |
|
|
BED LENGTHS–57 in. and 63 in. Drive not available
on all lengths and widths. Contact us. |
|
|
|
|
CEILING HANGERS - 5/8 in. dia. x 8 ft. long
unplated rods fully threaded. Other lengths and
galvanized rods available. |
|
|
CONVEYING SPEED - Other constant and variable
speeds from 25 to 120 FPM. NOTE: Capacity affected
with speed change. |
|
|
|
|
SLAVE DRIVEN - Standard drive may be omitted
and curve or spur slave driven from 138-ACC. (Specify
by sketch, location of slave connection). Minimum
elevation 10-1/2 in. |
|
|
SIDE MOUNTED DRIVE - Motor reducer unit
mounted to side of conveyor. Minimum elevation with
standard sheave retainer 11 1/16 in. |
|
|
|
|
O-RING DRIVE CHAIN–With sealed in lubricant
(Recommended for applications that do not permit
regular lubrication). |
|
MOTORS - Energy efficient, single phase, brakemotor,
other characteristics. 1/2 HP maximum. |
|
|
|
ELECTRICAL CONTROLS - Non-reversing or
reversible magnetic starters and push-button stations.
AC variable frequency drive. |
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
| PRICES FOR COMPLETE CONVEYOR INCLUDE: |
* 1-3/8" Dia. x 18 Ga. Galvanized Roller (for 138-LRSS
roller are on 1-1/2" Centers) in a 6-1/2" x 12 Ga.
Channel Frame
* Driving V-Belt
* 1/2 HP - Totally Enclosed Motor (Specify Exact
Voltage) |
|
* V-Belt Drive (for 138-LRSS has C-Face Drive)
* Totally Enclosed Chain & Motor V-Belt Guard
* 65 FPM Constant Conveying Speed
* End Guards
* Less Electrical Controls
* Less Floor Supports |
|
|
|
|
|
|
| IMPORTANT NOTES... |
*OTHER WIDTHS - Contact us for "IN-BETWEEN WIDTHS". |
*NON-STANDARD WIDTHS WITH STANDARD
INSIDE RADIUS - Contact us for lead time. |
|
|
|
|
|
|
PRICES FOR 138-LRC Live ROLLER CURVE CONVEYOR
|
| Between Rail Width |
10" |
13" |
16" |
22" |
| Overall Frame Width |
12" |
15" |
18" |
24" |
|
90°
|
|
|
|
|
|
60°
|
|
|
|
|
|
45°
|
|
|
|
|
|
30°
|
|
|
|
|
|
| NOTE: 24" OAW supplied with 1.9" dia. Tapered rollers. |
|
|
|
|
|
|
PRICES FOR 138-LRS Live ROLLER SPUR CONVEYOR
|
|
Between Rail Width
|
10"
|
13"
|
16"
|
22"
|
|
Overall Frame Width
|
12"
|
15"
|
18"
|
24"
|
|
45°
|
|
|
|
|
|
30°
|
|
|
|
|
|
| NOTE: 24" OAW supplied with 1.9" dia. Tapered rollers. |
|
|
PRICES FOR 138-LRSS Live ROLLER STRAIGHT SPUR CONVEYOR
|
|
Between Rail Width
|
10"
|
13"
|
16"
|
22"
|
|
Overall Frame Width
|
12"
|
15"
|
18"
|
24"
|
|
45°
|
|
|
|
|
|
30°
|
|
|
|
|
|
|
 |
|
IMPORTANT NOTES...
|
• WHEN ORDERING–Live Roller Spurs, please
specify, Right or Left Hand unit. See illustration. |
• LIMITATIONS–For Slave-Driving limitations, refer
to Conveyor Technical Manual. |
• ATTACHMENT BRACKETS–Please specify
conveyor to which spur is to be attached so proper
attachment brackets are supplied. |
• APPLICATIONS–If a curve is driven from a straight
"ACC" conveyor, sketch should be provided noting
Right or Left Hand applications. |
Click the button of the item you wish to purchase. Contact us for special lengths
|
| PRICES FOR OPTIONAL EQUIPMENT |
|
|
|
|
|
|
|
|
|
|
| OPTIONAL DRIVES |
|
CONSTANT AND VARIABLE SPEEDS |
DRIVE
TYPE |
OVERALL FRAME WIDTH
|
| 12" TO 24" |
| Side Mounted* |
$393.30
|
|
|
|
Constant - C-Face Within 25 - 120 FPM |
No Charge |
|
|
Variable Speed....See Electrical Controls and Drive
Section Below. |
|
|
NOTE: Speeds above 90 FPM NOT
RECOMMENDED. |
| * 11-1/16" minimum elevation |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| FLOOR SUPPORTS |
|
DRIVE COMPONENT DEDUCTS |
Not included in base price. Use chart below for required
elevation. |
|
Less Motor Drive, Motor Mount and Guards, but with |
|
Shaft Extension..............Deduct............. |
$694.20 |
|
|
|
|
|
|
Less Motor Only (1/2 HP-208/230/460/575V- |
|
| "LS" SUPPORT |
| Model No. |
Adjustment to Top of Roller |
Price Each |
| LSL-1* |
8-3/4" to 9-3/4" |
|
| LSL-2* |
9-3/4" to 11-1/2" |
|
| LSL-3* |
11-1/2" to 14-1/8" |
|
| LS-1* |
14-1/16" to 15-13/16" |
|
| LS-1.2* |
15-1/16" to 16-13/16" |
|
| LS-1.4* |
16-1/16" to 17-13/16" |
|
| LS-2* |
17-1/16" to 20-1/16" |
|
| LS-3 |
19-11/16" to 22-11/16" |
|
| LS-4 |
22-11/16" to 28-11/16" |
|
| LS-5 |
26-11/16" to 32-11/16" |
|
| LS-6 |
30-11/16" to 42-11/16" |
|
| LS-7 |
40-11/16" to 52-11/16" |
|
| LS-8 |
52-11/16" to 64-11/16" |
|
| LS-9 |
64-11/16" to 76-11/16" |
|
| LS-10 |
76-11/16" to 88-11/16" |
|
| LS-11 |
86-11/16" to 98-11/16" |
|
| LS-12 |
98-11/16" to 110-11/16" |
|
|
|
|
|
3 Ph.-60 Hz).............Deduct...................... |
$258.30 |
|
|
*Less Reducer........Deduct...................... |
$307.40 |
|
|
*Less V-Belt Guard, Chain Guard, sheaves and
sprockets when V-Belt drive is supplied. Less chain
guard and sprockets when C-Face drive is supplied. |
|
|
|
|
|
|
|
|
SLAVE DRIVEN |
|
|
The "138-LRC", "138-LRS", & "138-LRSS" |
|
|
may be slave driven from straight |
|
|
|
|
|
"138-ACC" ...............Deduct .................. |
$490.30 |
|
|
LRC Slave Connection on Inside Radius |
|
|
(Please Provide Sketch) |
|
|
|
|
|
|
|
|
SLAVE DRIVE FROM SLIDER BED
(From TA Only) |
|
|
.........................................Deduct ............ |
$412.00 |
|
|
NOTE: Drive deduct included slave connection and
system end for slider bed. (Belt 6" less than Bed Width). |
|
|
|
|
|
|
|
|
GUARD RAILS |
|
|
Adjustable Universal Channel Guard Rail ..... |
|
|
|
|
|
|
|
|
|
|
|
|
90°, 60°, 45°, & 30° |
|
*Less than 18-1/2" top of roller elevation-Side Mounted
Drive Required. |
|
|
|
Both Sides............................................... |
$237.90
|
|
|
|
|
|
|
| NOTE: LS-7 to LS-12: Knee Braces Included in price. |
|
|
Outside Only............................................ |
$160.40
|
| Extra Knee Braces................. per pair......... |
|
|
|
Inside Only.............................................. |
$105.70
|
| Single Center Leg (LS-6 and below) each ..... |
|
|
|
Angle Type "A" - 1" x 1" x 12 Ga |
| Single Center Leg (LS-7 and above) each ..... |
|
|
|
90°,60°, 45°, & 30° |
|
|
|
|
|
|
Both Sides............................................... |
$97.30
|
| LOW ELEVATION |
|
|
Outside Only............................................ |
$60.40
|
|
Low Elevation Sheave Retainer Brackets and Low Elevation Take-Up to provide 11-1/8" elevation.
(Side mounted drive required. See Optional Drives.) |
|
|
|
Inside Only.............................................. |
$35.80
|
|
|
Angle Type "B" - 1" x 1" x 12 Ga |
|
|
90°,60°, 45°, & 30° |
|
|
|
|
|
|
| Add-on for LRC & LRS per bracket ........... |
|
|
|
|
| $459.30
|
|
|
Both Sides............................................... |
$145.40
|
| Add-on for LRSS per bracket ................... |
|
|
| $353.20
|
|
|
Outside Only............................................ |
$92.40
|
|
|
|
|
|
|
|
|
|
|
Inside Only.............................................. |
$53.70
|
|
|
|
|
|
|
|
|
|
|
|
TANGENTS (Add-on to Curve) |
|
|
Fixed Channel Type - 2-1/2" x 1" x 12 Ga. |
|
|
|
| *OAL Tangent |
**138-LRC & 138-LRS |
| 9", 12", 15", 18", & 21" |
|
| 24", 27", 30", 33", & 36" |
|
| 39", 42", 45", 48" |
|
|
|
|
90°,60°, 45°, & 30° |
|
|
|
|
|
Both Sides............................................... |
$218.10
|
|
|
|
|
Outside Only............................................ |
$114.60
|
|
|
|
|
Inside Only.............................................. |
$67.30
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
* "OAL Tangent" includes a 6-1/4" long tangent on 90°
and an 18" long tangent on a 30°, 45°, & 60°. Tangent
lengths increase in 3" increments only. Rollers on 1-1/2"
centers. For Tangent over 18" long on either or both
ends, add one additional floor support per end.
Combined Tangent lengths cannot exceed 54-1/4". |
|
|
PACKAGE STOPS |
|
|
|
Angle End Stop |
|
|
|
1-1/2" x 1-1/2" x 12 Ga. Steel
10" to 22" Between Rail Width .................... |
|
|
|
|
|
|
|
$33.65
|
|
|
|
|
|
|
|
|
|
ELECTRICAL CONTROLS |
|
|
|
|
See below. |
|
**NOTE: 30°, 45°, & 60° minimum 18 in. Long tangent
on one end. All curves, no more than 48 in. Long tangent
on one end. For Tangents over 18" long on either or
both ends, add one additional floor support per end.
Combined Tangent lengths cannot exceed 54-1/4". |
|
|
|
|
|
|
|
|
|
|
|
GALVANIZING |
|
|
|
Contact us. |
|
|
|
|
|
|
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
| MOTORS |
Extra Motor Price for OTHER THAN: 1/2 HP–208/230/460/575 V–3 Ph.–60 Hz.–Totally Enclosed. Speed affects
horsepower requirements. |
|
|
H.P.
REQ.
|
TOTALLY ENCLOSED
|
ENERGY EFFICIENT
|
|
200/208 V
3 Ph.-60 Hz.
|
230/460/575 V
3Ph.-60 Hz.
|
115/230 V
1 Ph.-60 Hz.
|
230/460/575 V
3Ph.-60 Hz.
|
|
1/2
|
N/C
|
N/C
|
|
|
|
1
|
N/A
|
N/A
|
|
|
|
|
| • CEILING HANGERS |
|
Ceiling Hanger Brackets with (2) 5/8" dia. x 8’-0" long unplated
fully threaded rods ...................................................................... |
|
 |
$156.70
|
Ceiling Hanger Brackets with (2) 5/8" dia. x 8’-0" long galvanized
fully threaded rods ....................................................................... |
|
| $187.20
|
Ceiling Hanger Brackets with (2) 5/8" dia. x 10’-0" long unplated fully
threaded rods................................................................................ |
|
| $231.60
|
| Ceiling Hanger Brackets with (2) 5/8" dia. x 10’-0" long galvanized fully threaded rods................................................................................. |
|
| $381.20
|
| Ceiling Hanger Brackets with (2) 5/8" dia. x 12’-0" long unplated fully threaded rods................................................................................. |
|
|
|
|
$384.40
|
|
Ceiling Hanger Brackets with (2) 5/8" dia. x 12’-0" long galvanized fully threaded rods.................................................................................. |
|
|
$444.50
|
|
Ceiling Hanger Brackets, Less Rods Only .................................... |
$98.70
|
|
Extra Length Rods: |
|
|
(2) 8’-0" long x 5/8" dia. unplated fully threaded rods .................. |
$57.40
|
|
(2) 8’-0" long x 5/8" dia. galvanized fully threaded rods ............... |
$88.40
|
|
(2) 10’-0" long x 5/8" dia. unplated fully threaded rods ................ |
$132.70
|
|
(2) 10’-0" long x 5/8" dia. galvanized fully threaded rods ............. |
$282.30
|
|
(2) 12’-0" long x 5/8" dia. unplated fully threaded rods ................ |
$285.80
|
|
(2) 12’-0" long x 5/8" dia. galvanized fully threaded rods ............. |
$346.00
|
|
Hex Coupling Nuts for Rods ......................................................... |
$5.20
|
|
Above noted delivery times determined by delivery time of model ordered. |
|
|
|
| • POLY-TIER SUPPORTS |
 |
|
PRICES FOR COMPLETE
SUPPORT INCLUDE:
|
|
|
|
IMPORTANT NOTES
• Check for Clearance
• Specify type of conveyor to be used.
• Use in place of LS or MS Supports only. |
|
• Painted Steel Support Legs
• Adjustable Cross pipe Assembly
• Knee Braces (1 set per level of
conveyor)
• "U" Brackets
• Single Width Conveyor Only |
|
|
|
|
|
|
|
|
|
|
|
|
CAPACITY DATA:
1500 lbs..............................................per cross pipe
4500 lbs..............................................per set of legs |
|
|
|
|
|
|
|
|
|
|
|
|
| (2) TIER POLY-TIER SUPPORTS |
|
36"
|
|
|
42"
|
|
|
48"
|
|
|
54"
|
|
|
60"
|
|
|
66"
|
|
|
72"
|
|
|
78"
|
|
|
84"
|
|
|
90"
|
|
|
96"
|
|
|
102"
|
|
|
108"
|
|
|
114"
|
|
|
120"
|
|
|
|
| (3) TIER POLY-TIER SUPPORTS |
|
36"
|
|
|
42"
|
|
|
48"
|
|
|
54"
|
|
|
60"
|
|
|
66"
|
|
|
72"
|
|
|
78"
|
|
|
84"
|
|
|
90"
|
|
|
96"
|
|
|
102"
|
|
|
108"
|
|
|
114"
|
|
|
120"
|
|
|
|
|
|
|
|
|
|
TC-250 TRAFFIC COP
|
|
|
The Traffic Cop controls product flow from one
conveyor onto another. It allows products from one
line of traffic to flow freely, without interference from
another converging line of traffic. This eliminates collision
of products which may cause damage and disrupt
product flow. Specify model, width and degree.
• 7 arm widths, aluminum
• Available in 30°, 45°, 60°, 90° & 180° applications.
Includes mounting hardware.
* 180° application - 10" minimum required between lines. |
|
|
|
|
|
 |
|
|
| Overall Frame Width |
12" to 15" |
18" to 24" |
| Price Each |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
TURNING WHEEL
|
|
Turning Wheels are used in converging 30° and 45° spur applications. Also used at 90° (right angle) transfers where
Traffic Cops, Package Stops and other product flow controlling devices are used. Wheel is mounted on adjustable
bracket to insure proper package orientation through transfer. Can be mounted to slider bed or side channels of
powered and gravity conveyors - specify model where applicable. |
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
B-05568 Turning Wheel Assembly with 6" dia. wheel & mounting
hardware ............................................................................. $130.40
|
|
|
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
| ELECTRICAL CONTROLS AND DRIVE SECTION |
|
|
|
|
MANUAL START SWITCH or
SAFETY DISCONNECT
|
|
 |
|
|
|
LIMIT SWITCH, SINGLE POLE,
WITH NYLON ROLLER LEVER |
 |
|
|
|
|
| #032.1014......................................... |
$225.79
|
|
|
|
|
#033.2032 & #033.2072..................$589.01
Nema 4 |
"START-STOP", Nema 1, One direction, 30
AMP, 3 Pole (Single or 3 phase) |
|
|
|
|
|
|
|
|
LIMIT SWITCH, DOUBLE POLE,
WITH NYLON ROLLER LEVER |
|
 |
|
|
|
|
|
|
|
|
|
#033.2033& #033.2072...................$352.04
Nema 4 |
|
REVERSING DRUM SWITCH |
|
|
|
|
|
|
#032.103.......................................... |
$905.51
|
|
|
|
 |
|
|
|
|
|
|
|
|
"Fwd-Stop-Rev", Nema 1, for 1-1/2 HP at
115 volts or 2 HP at 230 volts single phase,
or 2 HP max. three phase |
|
|
|
|
|
 |
PROXIMITY SWITCH, INDUCTIVE,
(METAL SENSING) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
#032.210.........................................$217.67
115 Volt AC, two wire with ground, 30mm dia.,
10mm range
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
FOOT SWITCH WITH GUARD |
|
|
|
|
|
|
|
|
|
|
#032.211.........................................$257.68
24 Volt DC, two wire with ground, 30mm dia.,
10mm range |
|
#032.200........................................... $286.50
(Constant Pressure) "On-Off" type, Nema 1,
Pilot Control or 1 HP max. single phase. |
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
PHOTO EYE, ON-OFF TYPE |
 |
|
|
|
|
|
|
|
#EA-000005......................................$1,122.83
Banner Q45 Retro Reflective Photo Eye Kit
with timing module, reflector and mounting
brackets. Photo Eye output is one form C
type relay, Operating voltage
24-250VAC/12-250VDC |
|
POWER CORD AND PLUG (20') |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
POWER CORD WITH PLUG ONLY 20' LONG
|
|
Model No.
|
Voltage
|
HP Rating
|
Prices
|
|
EA-039-1A
|
115/1
|
1/2-3/4
|
|
|
EA-039-2A
|
115/1
|
1
|
|
|
EA-039-3A
|
115/1
|
1 1/2
|
|
|
EA-039-4A
|
230/1
|
1/2-1
|
|
|
EA-039-5A
|
230/1
|
1 1/2-2
|
|
|
EA-039-6A
|
208-230/3
|
1/2-2
|
|
|
EA-039-7A
|
460/3
|
1/2-2
|
|
|
|
|
POWER CORD WITH PLUG 20' LONG WITH MANUAL START SWITCH AND MOUNTING BRACKET
|
|
Model No.
|
Voltage
|
HP Rating
|
Prices
|
|
EA-039-1B
|
115/1
|
1/2-3/4
|
|
|
EA-039-2B
|
115/1
|
1
|
|
|
EA-039-3B
|
115/1
|
1 1/2
|
|
|
EA-039-4B
|
230/1
|
1/2-1
|
|
|
EA-039-5B
|
230/1
|
1 1/2-2
|
|
|
EA-039-6B
|
208-230/3
|
1/2-2
|
|
|
EA-039-7B
|
460/3
|
1/2-2
|
|
|
|
|
|
|
|
|
|
|
|
|
MOUNTING BRACKETS FOR PHOTO
EYE #033.2122 |
|
|
|
|
B-05165...........................................$125.19
|
|
|
|
|
|
|
|
|
|
|
|
 |
AIR PRESSURE SWITCH |
|
#094.191........................................$732.79
Nema 4 |
|
|
|
|
|
|
|
|
|
|
EMERG. STOP PULL CORD SWITCH |
|
|
|
|
|
#032.285 with 032.2851 Turnbuckle
...........................................................$737.85
Nema 4 |
|
|
|
|
|
"RED" EMERGENCY PULL CORD
CABLE AND MOUNTING HARDWARE |
|
|
|
|
|
#032.281...one side.................$7.88
per / ft.
both sides..............$16.83
per / ft. |
|
|
|
|
|
EMERGENCY PUSH BUTTON |
|
|
|
|
|
#032.284..........................................$296.39
Nema 4 |
|
|
|
|
|
|
|
|
PHOTO EYE, 18MM DIA., DIFFUSED,
(PHOTO PROX.) 115 VOLT, LIGHT
OPERATE, 2-METER CABLE |
|
|
|
|
|
#032.2113 (100mm range, 3.94")....$1,130.24
#032.2116 (200mm range, 7.87")....$205.79
#033.218 (400mm range, 15.74")....$311.09
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
NOTE: PRICING LISTED NOT MOUNTED
OR WIRED |
|
|
|
|
"PHOTO EYE, RETRO-REFLECTIVE,
(POLARIZED) 24 VOLT DC |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
#033.2128 with 032.21122 Cable.....$253.44
#032.21122 (Cable Only)...................$76.71
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
CONTROLLER PRICES
|
|
|
|
|
AC VARIABLE SPEED CONTROLLER ONLY
|
|
SINGLE PHASE CONTROLLER INPUT
|
| Motor Size |
115 Volt |
208/230 Volt |
| 1/2 |
VSC-12-10 |
VSC-12-12 |
| Price |
$1,581.35
|
$1,260.73
|
| 1 |
VSC-12-11 |
VSC-12-13 |
| Price |
$1,827.73
|
|
| 2 |
N/A |
VSC-12-14
|
| Price |
~ |
|
|
THREE PHASE CONTROLLER INPUT
|
| Motor Size |
208/230 Volt |
460 Volt |
575 Volt |
| 1/2 |
VSC-01-15
|
VSC-01-18
|
VSC-12-29
|
| Price |
|
|
|
| 1 |
VSC-01-16
|
VSC-01-19
|
VSC-12-29
|
| Price |
|
|
|
| 2 |
VSC-01-17
|
VSC01--20
|
VSC-12-30
|
| Price |
|
|
|
|
|
REPLACEMENT INVERTER DUTY
ENERGY EFFICIENT MOTORS
|
|
| HP |
Part No. |
Price |
| 1/2 |
032.351 230/460 |
|
| 1 |
032.353 230/460 |
|
| 2 |
032.355 230/460 |
|
| 1/2 |
032.3512 575 |
|
| 1 |
032.3532 575 |
|
| 2 |
032.3552 575 |
|
|
|
|
|
|
|
IMPORTANT NOTES...
|
|
|
• All above motors are 230 / 460 / 575 Volt, 3 Phase.
• All above V/S Drive Kits include NEMA 1 / IP30
Junction Box, Controller and Motor.
• Good for cycle rates of up to 15 cycles per minute, at
1/2 second ramp time, with a maximum speed of 250
FPM.
• Drawing No. DG-001146. |
|
|
|
|
|
OPTIONAL: Mounting and Wiring Add-On . . .
(mounted close to the motor) |
$715.70
|
|
|
|
|
|
|
|
| Brake Relay Kit (EA-068A).............................. |
$575.24
|
|
|
• When AC Variable Speed Controller is used with a
Brake Motor, A Brake Relay Kit (EA-068A) is
required. Add an additional $575.24
for this option.) |
|
|
|
|
|
|
ELECTRONIC CLUTCH BRAKE DRIVE PACKAGE
|
| Part No. |
Description |
Price |
| EA-VSC-01-CB |
2 HP Electronic Clutch-Brake Kit |
$5,361.50
|
|
|
|
|
|
OPTIONAL: Mounting and Wiring Add-on .
(mounted close to the motor) |
$715.70
|
|
|
|
|
|
|
|
KIT INCLUDES
|
|
|
|
| Part No. |
Description |
| VSC-01-20 |
AC Variable Speed Controller, 460 Volt, 3 Phase |
| 032.345 |
2 HP 460 Volt, 3 Phase, C-Face Motor TEBC
(Blower Cooled) With 5AC Reducer and #60 Chain
and Sprockets |
|
|
|
|
|
IMPORTANT NOTES
|
|
• Good for cycle rates of up to 60 cycles per minute.
• 1/10 second Accel and Decel time, with 350 FPM
Maximum Speed.
• 230 or 460 Volt Only, Other Voltages, Contact us.
• Motor Cooling Blower is 115 Volt, 1 Phase, 60 Hz.
• Price Includes 5AC Reducer and #60 Chain and
Sprockets |
| Part No. |
Description |
| VSC-01-17 |
AC Variable Speed Controller, 230 Volt, 3 Phase |
| 032.345 |
2 HP 230 Volt, 3 Phase, C-Face Motor TEBC
(Blower Cooled) With 5AC Reducer and #60 Chain
and Sprockets |
|
|
|
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
| • "Start-Stop" Push-button Station |
|
|
• "Start-Stop"Push-button Station |
| 033.1955 |
$223.91
|
|
|
|
033.195................................................. |
$151.10
|
| Remote mounted, Nema 1 |
|
|
|
To be mounted in Mag Starter Cover |
|
|
|
|
|
|
|
|
|
|
| • "Fwd-Rev-Stop" Push-button Station |
|
|
• "Fwd-Rev-Stop"Push Button Station |
| 033.1965 |
$420.87
|
|
|
|
033.196.................................................. |
$520.41
|
| Remote mounted, Nema 1 |
|
|
|
To be mounted in Mag Starter Cover |
|
|
|
|
|
|
|
|
|
|
| • "Up-Down-Stop" Push-button Station |
|
|
|
| 033.1975 |
$420.87
|
|
|
• Mounting Brackets for photo eye |
| Remote mounted, Nema 1 |
|
|
|
|
|
#033.2122
B-05165 .............................................. |
$125.19
|
|
|
|
|
|
|
|
|
|
| 138-LRC CONVEYOR WEIGHT TABLE |
|
Between Rail Width
|
Overall Frame Width
|
"A"
|
"B"
|
"C"
|
"R"
|
Number of Rollers**
|
Weight (Lbs.)
|
|
90°
|
60°
|
45°
|
30°
|
90°
|
60°
|
45°
|
30°
|
|
10"
|
12"
|
3 1/16" MAX.
|
9 3/4"
|
9 5/8"
|
25"
|
30S
|
38S
|
34S
|
30S
|
272
|
262
|
252
|
242
|
|
13"
|
15"
|
278
|
268
|
258
|
248
|
|
16"
|
18"
|
287
|
277
|
267
|
257
|
|
22"
|
*24"
|
10 5/16"
|
10 1/8"
|
32 1/2"
|
22T/4S
|
14T/12S
|
10T/12S
|
6T/12S
|
302
|
292
|
282
|
272
|
|
| All weights are conveyor weights only. Accessories, crating, etc., are not included. |
NOTE: 24 IN. OAW Curve has 1.9 in. dia. Tapered& straight rollers mounted in a 6 1/2 in. x 1 in. x 12 Ga. powder
painted formed steel channel.
* T = TAPERED S = STRAIGHT |
| 138-LRCT CONVEYOR WEIGHT TABLE |
|
Between Rail Width
|
Overall Frame Width
|
"A"
|
"B"
|
"C"
|
"R"
|
Number of Rollers**
|
Weight (Lbs.)
|
|
90°
|
60°
|
45°
|
30°
|
90°
|
60°
|
45°
|
30°
|
|
10"
|
12"
|
3 1/16" MAX.
|
9 3/4"
|
9 5/8"
|
25"
|
30S
|
38S
|
34S
|
30S
|
272
|
262
|
252
|
242
|
|
13"
|
15"
|
278
|
268
|
258
|
248
|
|
16"
|
18"
|
287
|
277
|
267
|
257
|
|
22"
|
*24"
|
10 5/16"
|
10 1/8"
|
32 1/2"
|
39T/8S
|
26T/24S
|
19T/22S
|
13T/22S
|
302
|
292
|
282
|
272
|
|
| All weights are conveyor weights only. Accessories, crating, etc., are not included. |
| NOTE: All Rollers have 5/16" hex shafts. |
| * T = TAPERED S = STRAIGHT |
|
|
|
|
|
| 138-LRS CONVEYOR WEIGHT TABLE |
|
|
Between
Rail
Width
|
Overall
Frame
Width
|
"R"
|
"A"
|
"B"
|
"C"
|
"D"
|
"E"
|
"F"
|
"G"
|
Number of
Rollers**
|
Weight
(Lbs.)
|
|
45°
|
30°
|
45°
|
30°
|
45°
|
30°
|
45°
|
30°
|
45°
|
30°
|
45°
|
30°
|
45°
|
30°
|
|
10"
|
12"
|
25"
|
23"
|
32"
|
21"
|
30"
|
21"
|
33"
|
22 11/32"
|
41 3/32"
|
50 23/32"
|
44 19/32"
|
9 3/4"
|
9 5/8"
|
36S
|
40S
|
182
|
190
|
|
13"
|
15"
|
26"
|
38"
|
24"
|
36"
|
186
|
194
|
|
16"
|
18"
|
32"
|
44"
|
30"
|
42"
|
190
|
198
|
|
22"
|
24"
|
32 1/2"
|
44"
|
56"
|
42"
|
54"
|
30"
|
45"
|
30 3/4"
|
55 7/32"
|
62 3/8"
|
57 3/32"
|
10 5/16"
|
10 1/8"
|
16S/10T
|
17S/14T
|
218
|
288
|
|
|
| All weights are conveyor weights only. Accessories, crating, etc., are not included. |
|
Accessories, crating, etc., are not included.
NOTE: 24 IN. OAW Spur has 1.9 in. dia. Tapered& straight rollers mounted in a 6 1/2 in. x 1 in. x 12 Ga. powder
painted formed steel channel.
* T = TAPERED S = STRAIGHT |
|
|
|
| 138-LRSS CONVEYOR WEIGHT TABLE |
|
|
Between Rail Width
|
Overall Frame Width
|
"A"
|
"B"
|
Weight (Lbs.)
|
|
45°
|
30°
|
45°
|
30°
|
45°
|
30°
|
|
10"
|
12"
|
23"
|
32"
|
21"
|
30"
|
162
|
187
|
|
13"
|
15"
|
26"
|
38"
|
24"
|
36"
|
167
|
193
|
|
16"
|
18"
|
32"
|
44"
|
30"
|
42"
|
172
|
200
|
|
22"
|
24"
|
41"
|
56"
|
39"
|
54"
|
177
|
206
|
|
|
| All weights are conveyor weights only. Accessories, crating, etc., are not included. |
|
| Accessories, crating, etc., are not included. |
|
Accumulating Conveyor, Conveyor, Live Roller Curve Conveyor, Spur, Live Roller Conveyors, Powered Live Roller,
Conveyors, and Roller Conveyors from your source for material handling equipment.
|
|
