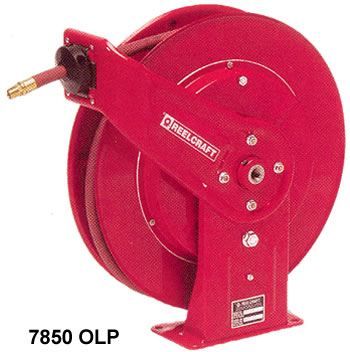

Series 7000 is very robust and ideal for the most demanding applications. The reel’s base and guide arms are formed from high-grade steel and engineered with structural forms and gussets to yield the greatest amount of strength. The standard low pressure hose is for air or water service only. The basic reel without hose can be used for air, water or oil. Consult us for other products and hoses. Guide arm adjusts to 7 position.
APPLICATIONS
• Industrial
• Automotive Service Centers
• Transmission Shops
• Fleet Maintenance Facilities
• Pneumatic Tools
• Aircraft Maintenance
• Tire Stores
• Agriculture
• Service Trucks
• Wash Down
Series 7000 E reels are the same as 7000 O reels except E Series reels are fully enclosed.
Cabinet style reel - guide arm not included; inlet hose is included
DIMENSIONS
7000 O
7000 E
in
mm
in
mm
A
20 1/4
514
20 7/8
530
B
19 3/4
502
21 1/8
537
C
7 13/16
198
7 13/16
198
D
3 7/8
98
3 7/8
98
E
7
178
7 5/8
194
Order Online
Click the button of the item you wish to purchase.
Low pressure reels furnished standard with PVC hose. Medium pressure reels furnished standard with S.A.E. 100 R1T one wire braid hose. High pressure reels furnished standard with S.A.E. 100 R2T two wire braid hose. For hydraulic or other applications please consult us. *Cabinet style reel - guide arm not included; inlet hose is included
Order Online
Click the button of the item you wish to purchase.
Low pressure reels furnished standard with PVC hose. Medium pressure reels furnished standard with S.A.E. 100 R1T one wire braid hose. High pressure reels furnished standard with S.A.E. 100 R2T two wire braid hose. For hydraulic or other applications please consult us.
REEL ACCESSORIES
Mounting brackets, motors display stand and more
ADDITIONAL ACCESSORIES
340° PIVOT BASE
600608 / 600801 / 600801-12
340° Pivot Base
Aligns reel to the direction of hose or cord run. May be mounted with reel upright or hanging. Mounting holes for reels are pre-drilled to adapt to 4000, 5000, 5005 and 7000 series reels. Weight 10 lbs. (5 kg).
Series 80000 & D80000 & 30006 order Model 600801. For Series 30012 order model 600801-12.
WALL-MOUNTED UNIVERSAL SWING BRACKET
600626 / 600980
Wall-Mounted Universal Swing Bracket
Bracket will pivot approximately 180°. All steel construction with a durable baked on powder coat finish. Swing bracket model 600626 will accommodate reel models 4000, 5000, 5005 and 7000 series reels. Model 600980 will accommodate reel models 80000 and D80000. Weight 6 lbs (3 kg).
Note: Not for overhead mounting
Order Online
Click the button of the item you wish to purchase.
Wall mounted universal swing bracket for Reelcraft hose, cord & cable reels adapter assembly for mounting series
$99.45
ADJUSTABLE HOSE BUMPERS
Adjustable hose bumpers are solid molded rubber assuring a long life and nonslip grip. Hose bumpers allow the desired length of hose to be permanently stored outside the reel. Hose bumpers are included on the reels purchased with hose. Reels purchased without hose do not include the hose bumper. When ordering, advise the part number, reel model and the hose ID and OD
Order Online
Click the button of the item you wish to purchase.
A flexible hose connection must be used between the hose reel inlet and the source of supply to prevent possible misalignment and binding or warranty is void. The inlet size of reel series 4000 O, 5000 O and 5000 E is 3/8" (9.5 mm) NPTF (F), 7000 O & 7000 E is 1/2" (12.7 mm) NPTF (F), D8000 O and D8000 E is 1/2" (12.7 mm) NPTF (F) depending on hose size. Please furnish the following infor- mation when ordering: Part number-product and pressure to be handled. Other sizes available as well.
S601020-2 1/2" ID X 2 FEET 300 PSI WORKING PRESSURE
Order Online
Click the button of the item you wish to purchase.
*Male x Female Welding / **Female Welding both ends.
CAUTION: Be sure working pressure required does not exceed above rating. Misapplication can result in serious injury.
