Steel Platform Truck

$787.43
Dimensions
60"L x 30"W

4000 lb max capacity

*Images may or may not be your exact model. Images are for reference only.

SKU
272270

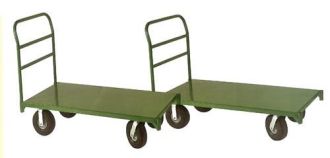

main product photo

STEEL PLATFORM TRUCKS
FEATURES:

• Heavy duty 12 gauge steel
reinforced welded construction.
• Constructed for both standard
corner or diamond caster mounting
pattern.
• Removable two cross-brace
handle can be inserted in either end.
• Eight platform sizes available.
• Choose your caster. Platforms
and casters sold separately,
except #272265.
• Each caster set contains: 2 swivel
and 2 rigid casters.
• All platforms include one handle.
Additional handles available as
an option.(except #272265)
• All listed capacities are based on
evenly distributed loads.
• 32" high handles from platform top.

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

STEEL PLATFORM TRUCKS PRICING (Casters sold separately)
MODEL
SIZE L X W
MAXIMUM
PLATFORM CAPACITY
PLATFORM
WEIGHT LBS.
PRICE
36" X 24"
4,000 lbs.*
54
$388.78

48" X 24"
4,000 lbs.*
65
$509.71
54" x 27"
4,000 lbs.*
82
$550.34
48" x 30"
4,000 lbs.*
115
$640.09
60" x 30"
4,000 lbs.*
132
$787.43
60" x 36"
4,000 lbs.*
111
$681.88
72" x 36"
4,000 lbs.*
127
$845.14
*1 - UPS Shippable * Capacity based on evenly distributed loads.
Caster Sets *1 Actual capacity of assembled platform is dependent upon caster capacity but should never exceed the
platform's structural capacity, regardless of caster type.
MODEL
CASTER DESCRIPTION
CAPACITY
WEIGHT (LBS.)
PRICE
6" X 1.375" Polyolefin
1,600 lbs.
25
$95.15
8" x 2" Polyolefin
2,500 lbs.
31
$159.86
8" x 2" Moldon Polyurethane on cast iron hub
4,000 lbs.
38
$195.40
8" x 2.5" Full Pneumatic
1,600 lbs.
28
$211.95
10" x 3.5" Full Pneumatic
2,500 lbs.
37
$178.53
5" x 2" Moldon Rubber on cast iron hub
1,600 lbs.
32
$145.12
6" x 2" Moldon Rubber on cast iron hub
1,800 lbs.
35
$156.15
8" x 2" Moldon Rubber on cast iron hub
2,200 lbs.
40
$181.93
*1 - UPS Shippable
EXTRA HANDLES *1
MODEL
DESCRIPTION
PRICE
24" Extra Handle
$47.42
27" Extra Handle
$36.81
30" Extra Handle
$47.63
36" Extra Handle
$52.83
*1 - UPS Shippable

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

• Ships complete. Platform, one handle, four 5" x 1.25" casters.
• Deck height - 5.75", handle height - 41".
• Maximum capacity 750 lbs.
• Overall Dimensions: 24"w x 41"h x 42"d
ECONOMY STEEL PLATFORM TRUCK
MODEL
SIZE
L x W
MAX. PLATFORM CAP.
PLATFORM WEIGHT (lbs.)
CASTER
PRICE
42" X 24"
750 lbs.
74
5" x 1.25" Rubber
$365.76
*Capacity based on evenly distributed loads.
Steel Platform Trucks, Heavy Duty 12 Gauge Steel, Welded Construction, Diamond Caster Mounting Pattern, Removable Two
Cross-Brace Handle, Standard Caster Pattern, Diamond Caster Pattern, and Economy Steel Platform Truck from your source
for material handling equipment.
