10' Roller Straight Section, 2-1/2" x 11 ga

$1,419.00
Dimensions
46-1/4" OAW

6" roller centers

*Images may or may not be your exact model. Images are for reference only.

Please Note: This Model Is Non-Stock, Made To Order, Non-Refundable.

SKU
25SR-43-6-10

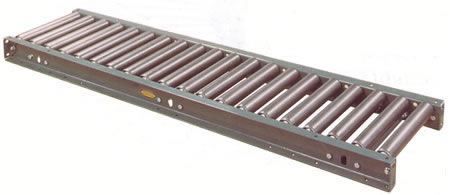

main product photo

GRAVITY ROLLER CONVEYOR
2-1/2 IN. DIA. X 11 GA. ROLLERS
gravity roller conveyor SEE BELOW FOR SUPPORTS
stationary floor support
gravity roller conveyor gravity roller conveyor
ORDERING NOTE: Specify SET HIGH (most common) or SET LOW
Standard Specifications
WIDTHS–Between Rail Width 13 in., 15 in., 17 in.,
19 in., 21 in., 23 in., 25 in., 27 in., 31 in., 33 in., 37 in.,
and 39 in., 43 in., 47 in., 51 in. & 55 in.		 ROLLERS– 25-SR 2-1/2 in. dia. x 11 ga. steel tubing.
26-SR 2-5/8 in. dia. x 7 ga. unplated steel tubing.
Bearings are labyrinth sealed and grease packed.
FRAME–4 in. deep x 1-5/8 in. flange x 4 ga. powder
painted formed steel channel with bolt-in cross members
set high, welded cross members set low.		 AXLES–11/16 in. hex shaft, spring loaded.
CAPACITY–See Load Capacity Chart this page.
BUTT COUPLINGS–For bolting sections together.
LOAD CAPACITY CHART
 OPTIONAL EQUIPMENT
Support
Centers		 Frame Capacity (Lbs.)
Maximum Distributed
Live Load Per Foot		 Roller Capacity (Lbs.)
Max. Load per Roller
13" to 39" BR 43" to 51" BR
5' 1620 2-1/2" 2-5/8" 2-1/2" 2-5/8"
10' 288 630
FRAME–4 in. x 5.4 lb. powder painted
structural steel channel with bolt-in cross
members set high, welded cross members
set low.

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths
ORDERING NOTE: Specify SET HIGH (most common) or SET LOW
PRICING FOR 2-1/2" DIA. GRAVITY ROLLER CONVEYOR
2-1/2" DIA. X 11 GA. ROLLER STRAIGHT SECTIONS
Over
All
Width
Between
Rail
Width
Model No.
2.5 x 11 Ga
Roller
Centers
(inches)
Weights (Lbs.)
Price Per Section
5'
10'
5'
10'
16-1/4"
13"
25SR-13-3
3"
185
364
16-1/4"
13"
25SR-13-4
4"
155
303
16-1/4"
13"
25SR-13-6
6"
125
242
18-1/4"
15"
25SR-15-3
3"
200
390
18-1/4"
15"
25SR-15-4
4"
170
330
18-1/4"
15"
25SR-15-6
6"
135
260
20-1/4"
17"
25SR-17-3
3"
215
420
20-1/4"
17"
25SR-17-4
4"
180
350
20-1/4"
17"
25SR-17-6
6"
145
280
22-1/4"
19"
25SR-19-3
3"
234
458
22-1/4"
19"
25SR-19-4
4"
192
375
22-1/4"
19"
25SR-19-6
6"
151
292
24-1/4"
21"
25SR-21-3
3"
245
480
24-1/4"
21"
25SR-21-4
4"
200
390
24-1/4"
21"
25SR-21-6
6"
160
310
26-1/4"
23"
25SR-23-3
3"
260
510
26-1/4"
23"
25SR-23-4
4"
210
410
26-1/4"
23"
25SR-23-6
6"
165
320
28-1/4"
25"
25SR-25-3
3"
282
552
28-1/4"
25"
25SR-25-4
4"
230
447
28-1/4"
25"
25SR-25-6
6"
177
342
30-1/4"
27"
25SR-27-3
3"
285
560
30-1/4"
27"
25SR-27-4
4"
235
460
30-1/4"
27"
25SR-27-6
6"
180
350
34-1/4"
31"
25SR-31-3
3"
331
646
34-1/4"
31"
25SR-31-4
4"
267
519
34-1/4"
31"
25SR-31-6
6"
203
391
36-1/4"
33"
25SR-33-3
3"
330
650
36-1/4"
33"
25SR-33-4
4"
265
520
36-1/4"
33"
25SR-33-6
6"
200
390
40-1/4"
37"
25SR-37-3
3"
355
700
40-1/4"
37"
25SR-37-4
4"
285
560
40-1/4"
37"
25SR-37-6
6"
215
420
42-1/4"
39"
25SR-39-3
3"
375
740
42-1/4"
39"
25SR-39-4
4"
285
580
42-1/4"
39"
25SR-39-6
6"
220
430
46-1/4"
43"
25SR-43-3
3"
415
820
46-1/4"
43"
25SR-43-4
4"
305
620
46-1/4"
43"
25SR-43-6
6"
225
450
50-1/4"
47"
25SR-47-3
3"
455
900
50-1/4"
47"
25SR-47-4
4"
325
660
50-1/4"
47"
25SR-47-6
6"
235
470
54-1/4"
51"
25SR-51-3
3"
495
980
54-1/4"
51"
25SR-51-4
4"
345
700
54-1/4"
51"
25SR-51-6
6"
245
490
58-1/4"
55"
25SR-55-3
3"
535
1060
58-1/4"
55"
25SR-55-4
4"
365
740
58-1/4"
55"
25SR-55-6
6"
255
550

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

PRICING INFORMATION
STANDARD WIDTHS GALVANIZING

All Standard Widths to be offered 2 weeks,
10 ft. and 5 ft. lengths only.

 Contact us.
FILLER PLATES
STRUCTURAL CHANNEL FRAME
Specify Roller Centers (4", 6", 8" & 12" Only)
In place of formed channel (On odd lengths, use next
whole foot) Set High Only.
13"-25" BR ..............Each .......................... $267.40
27"-39" BR ..............Each .......................... $387.70
4" x 5.4 LB ...add-on per foot both sides..... $8.60
43"-55" BR ..............Each .......................... $423.10
5" x 6.7 LB Add-on per foot both sides ...... $17.80
HEAVY DUTY END STOP
6" x 8.2 LB Add-on per foot both sides ...... $32.90
6" x 8.2 lbs. structural channel
GUARD RAIL
13"-43" BR ................................................ $98.40
2" x 1-5/8" x 4 ga Fixed Angle "Type A"
45"-55" BR ................................................ $143.70
both sides Add-on per foot ........................ $20.40
one sides Add-on per foot ......................... $10
2" x 1-5/8" x 4 GA Fixed Angle "Type B"
both sides Add-on per foot ........................ $20.40
one sides Add-on per foot ......................... $10
IMPORTANT NOTES...
PRICING FOR ROLLERS ONLY
BUTT COUPLINGS
Between
Rail
Width		 2-1/2" Dia.
G-00472
Price Each
13"
15"
17"
19"
21"
23"
25"
27"
31"
33"
37"
39"
43"
47"
51"
55"
Standard straight sections & curves have butt couplings
on both ends.
SHIPPING INFORMATION
All 2-1/2" & 2-5/8" dia. roller gravity conveyor sections
are shipped with rollers installed in frames when total
weight of section is 500 lbs. or less. All sections
exceeding this weight will have a portion of rollers
removed and crated separately to keep weight under
500 lbs. limit.
OTHER WIDTHS
For "IN-BETWEEN WIDTHS", use next width
plus 10%.
For widths up to 74-1/4" OAW, interpolate plus 10%.
For widths over 74-1/4" OAW, contact us.
Does not apply to tapered rollers, contact us.
NON-STANDARD WIDTHS
Contact us for lead time.

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

STATIONARY FLOOR SUPPORTS
FOR USE WITH 2-1/2" AND 2-5/8" ROLLER SECTIONS
stationary floor supports PRICES FOR STATIONARY SUPPORTS INCLUDE:
Welded Frame Assembly
Adjustable Feet
Adjustable Pivot Plate
HS Capacity: 4000 lbs. ea.
"HS" SUPPORT
Model No. Adjustment to
Top of Roller		 Weight
(lbs.)		 Price Up to
73 1/4" OAW		 Price Up to
74 1/4" OAW
HSL-1 4-3/8" to 4-7/8" 16
HSL-2 4-3/8" to 4-7/8" 16
HSL-3 4-3/8" to 4-7/8" 16
HSL-4 4-7/8" to 6-5/8" 16
HSL-5 6-7/8" to 10-1/2" 16
HS-1 10 1/2" to 12" 16
HS-2 12" to 15" 18
HS-3* 15" to 18" 19-1/2
HS-4** 18" to 21" 27
HS-5** 21" to 24" 28-1/2
HS-6** 24" to 30" 31-1/2
HS-7** 30" to 36" 35
HS-8** 36" to 48" 43
HS-9* 48" to 60" 49-1/2
HS-l0* 60" to 72" 56
HS-11* 72" to 84" 62
HS-12* 84" to 96" 68
HS-13* 96" to 102" 74
HS-14* 102" to 114" 80
HS-15* 114" to 126" 86
HS 16* 126" to 138" 92
HS-17* 138" to 150" 98
HS 18* 150" to 162" 104
HS-19* 162" to 174" 110
*Price includes Knee Braces
** 16 1/4, 22 1/4, 28 1/4, 30 1/4, 34 1/4, 50 1/4, 54 1/4, 58 1/4 are 24 hour all other widths are 2 weeks.
IMPORTANT NOTES...
WHEN ORDERING
 SUPPORTS
OPTIONAL ITEMS
Specify Overall
Conveyor Width. 		Knee Braces .........................Per Pair ................ $77.20
Single Center Leg ............................................... $74.40
