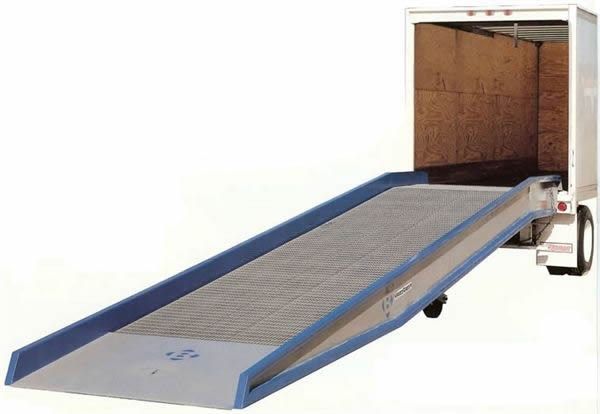

YARDRAMP
|
|
 |
|
 |
|
|
|
The yard ramp is simply moved into position at trailers,
railcars, or docks. The operator utilizes a self-contained,
double-acting hydraulic pump to adjust the unit to the
proper position. In minutes you are ready to load or
unload freight. Solid 18" rubber tires provide easy
positioning and towing. Open serrated steel grating
provides excellent traction while preventing build-up
of snow, water, and other debris. Beveled approach
provides a smooth transition.
|
|
|
|
For truck or railcar to ground applications choose a
36' yard ramp including a level off. Choose a 30'
straight yard ramp design for quick loading from dock
to ground. |
|
|
|
High strength steel yard ramps make even the toughest unloading jobs easy! |
|
|
|
|
|
|
OPTIONS AND ACCESSORIES
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
HYDRAULIC PUMP
|
|
|
|
|
|
 |
|
|
|
|
• Double-acting
• Two hydraulic cylinders |
|
|
|
|
|
The hydraulic system allows for smooth and quick raising of the front
lip to the proper dock or trailer height. Simply open the release valve
to safely lower the unit into position. The pump is mounted internally
to protect it from accidental damage. |
|
|
|
|
|
Optional: Yard ramp pump 5,000 PSI with mounting hardware
Model No. YRAPUMP - PRICE: $2,613.50 Weight: 35 lbs. |
|
|
|
|
|
|
|
|
UNDERCARRIAGE ASSEMBLY
|
|
|
|
• Tubular steel box undercarriage assembly
• 18" solid rubber pneumatic profile tires |
|
 |
|
|
Heavy-duty wheels and solid rubber, pneumatic profile tires make
positioning the Yardramp easy. For stationary dock installations,
standard Yardramps are available in 30' and 36' lengths without
wheel assemblies. |
|
|
|
Optional: Complete undercarriage assy - 84" ramp
Model No. YRAUC84ASSY - PRICE: $7,980.00 Weight: 435 lbs. |
|
|
|
|
|
|
RAMPCLAMP
|
|
|
|
 |
|
|
|
The optional rampclamp assists operator in moving the Yardramp
over short distances. Forklift tine inserts into the swiveling lift loop
and is secured by a locking device.
|
|
|
|
Optional:
Model No. YRARC - PRICE: $471.90 Weight: 25 lbs. |
|
|
|
|
|
|
SAFETY CHAIN
|
|
|
|
|
|
|
 |
|
| Standard safety chains hold Yardramp securely to the trailer or dock.
|
|
|
|
|
|
Optional:
Model No. YRACB - PRICE: $154.62 Weight: 6 lbs. |
|
|
|
|
|
|
TOW BAR
|
|
|
|
 |
|
|
|
The optional towbar features a fast-locking, easy hook-up to the
Yardramp and makes towing over long distances practical. A quick
disconnect feature improves handling efficiency.
|
|
|
|
Optional:
Model NO. YRATOW - PRICE: $471.90 Weight: 85 lbs. |
|
|
|
|
|
|
OPTIONS
|
|
DESCRIPTION
|
|
MODEL NO.
|
|
WT./LBS
|
|
PRICES
|
|
|
92
49 |
|
$1,341.90
$1,066.20
|
|
Pneumatic Wheel in Place of Solid Wheels / pr.
Solid Rubber Wheel assembly (no hub)
|
|
YRAPNEUX
YRASOLID |
|
|
|
|
|
|
|
|
|
|
GRATING
|
|
|
|
|
|
 |
• Serrated for Traction
• Self-Cleaning |
|
|
|
Serrated grating provides excellent traction and the open design
prevents buildup of water, snow, oil, grease and miscellaneous
debris. The lower end approach plate provides maximum support
and smooth transition onto the ramp grating surface. |
|
|
|
|
|
|
|
GIRDERS
|
|
|
|
 |
|
• Heavy-duty formed steel side girders provide main
load-bearing capability
• Steel side girders welded to steel Z members form a
superior frame |
|
|
|
Multiple Z cross members are welded to the side girders, then self-cleaning
steel grating is welded to the Z members to form a one-piece unitized
Yardramp. |
|
|
|
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
PRICES
|
|
Model No.
|
Capacity
|
Length
|
Width
|
Weight Lbs.
|
Prices
|
|
|
16,000
|
30'
|
70"
|
4159
|
$18,820.40
|
|
|
16,000
|
30'
|
84"
|
5217
|
$20,187.70
|
|
|
16,000
|
30'
|
96"
|
5769
|
$22,880.80
|
|
|
16,000
|
30'
|
102"
|
5700
|
$24,444.20
|
|
|
16,000
|
30'
|
120"
|
6300
|
$30,057.70
|
|
|
16,000
|
36'
|
70"
|
5102
|
$21,390.00
|
|
|
16,000
|
36'
|
84"
|
5828
|
$23,828.10
|
|
|
16,000
|
36'
|
96"
|
7150
|
$28,763.10
|
|
|
20,000
|
30'
|
70"
|
4384
|
$19,362.70
|
|
|
20,000
|
30'
|
84"
|
5189
|
$23,065.40
|
|
|
20,000
|
30'
|
96"
|
5900
|
$25,461.90
|
|
|
20,000
|
30'
|
102"
|
6430
|
$29,776.20
|
|
|
20,000
|
30'
|
120"
|
7350
|
$31,872.70
|
|
|
20,000
|
36'
|
70"
|
5327
|
$23,318.10
|
|
|
20,000
|
36'
|
84"
|
6084
|
$25,929.20
|
|
|
20,000
|
36'
|
96"
|
6912
|
$29,515.40
|
|
|
25,000
|
30'
|
70"
|
4780
|
$22,100.80
|
|
|
25,000
|
30'
|
84"
|
5751
|
$24,573.50
|
|
|
25,000
|
30'
|
96"
|
6405
|
$26,693.10
|
|
|
25,000
|
30'
|
102"
|
6400
|
$30,441.90
|
|
|
25,000
|
30'
|
120"
|
6905
|
$32,522.30
|
|
|
25,000
|
36'
|
70"
|
5762
|
$24,815.80
|
|
|
25,000
|
36'
|
84"
|
6350
|
$27,680.80
|
|
|
25,000
|
36'
|
96"
|
7478
|
$30,676.20
|
|
|
30,000
|
30'
|
70"
|
5030
|
$24,372.70
|
|
|
30,000
|
30'
|
84"
|
6051
|
$25,610.80
|
|
|
30,000
|
30'
|
96"
|
6520
|
$27,446.50
|
|
|
30,000
|
30'
|
102"
|
6400
|
$31,271.50
|
|
|
30,000
|
30'
|
120"
|
7700
|
$33,701.50
|
|
|
30,000
|
36'
|
70"
|
6020
|
$27,310.40
|
|
|
30,000
|
36'
|
84"
|
8264
|
$29,765.80
|
|
|
30,000
|
36'
|
96"
|
8265
|
$31,502.30
|
|
|
