Click the button of the item you wish to purchase. Contact us for special lengths
|
|

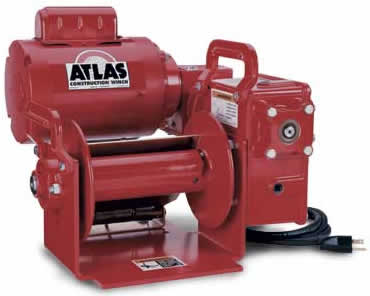

PRICING AND PERFORMANCE CHARACTERISTICS FOR SERIES 4WP2 & 4WP2T
|
|
|
Model No.
|
Description
|
Motor
hp
|
Amps
full
load
|
Load rating
(lb)
|
Wire¹
rope
dia.
(in)
|
Line speed
(fpm)
|
Drum
Capacity (ft) ²
|
Approx.
ship
wt. (lb)
|
Price
|
|
1st
layer
|
Mid
drum
|
Full
drum
|
1st
layer
|
Full
drum
|
1st
layer
|
Mid
drum
|
Full
drum
|
|
|
115/1/60 VAC -
6 ft. pendant
|
1.3
|
16
|
2000
|
1500
|
1200
|
1/4
|
8
|
13
|
11
|
35
|
77
|
83
|
$3,316.00
|
|
|
Includes
controls
|
1.3
|
16
|
2000
|
1200
|
800
|
1/4
|
8
|
19
|
19
|
130
|
280
|
101
|
$3,768.00
|
|

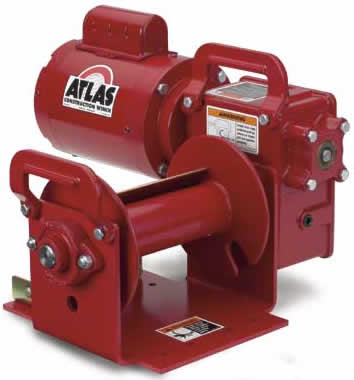

ATLAS winch
|
8" drum - for pulling or lifting
|
5/16
|
8
|
19
|
15
|
85
|
190
|
|
|
|
Includes
controls
|
1.3
|
16
|
2000
|
1200
|
800
|
1/4
|
8
|
19
|
12
|
87
|
190
|
100
|
$4,230.00
|
| clutch model - 5.5" drum- for horizontal pulling only |
|
|
|
Motor Options– standard motor is 115/1/60 VAC TEFC, for
other configurations add motor code to model number when ordering.
Example: 4WP2T8-2000-8-PN (pneumatic winch) |
¹ Minimum wire rope diameter is 1/4 inch. |
|
² Actual drum capacities may be 25-30% less, due
to nonuniform winding. |
|
³ Model 4WP2, 115 VAC motor includes 8 foot
power cord with grounded plug, and push button
pendant control on 6 foot cord. |
|
|
|
|
| -A5 |
115 volt 1 phase - no controls or power cord - TENV.... |
LESS $120 |
|
| -B5 |
230 volt 1 phase - no controls or power cord - TEFC.... |
add $108 |
|
4 For 4WP2T8 and 4WP2TC, 115 VAC motor
includes 16 ft power cord with grounded plug,
and push button pendant control on 16 ft. cord. |
|
| -D5 |
230 volt 3 phase - no controls or power cord - TEFC.... |
add $194 |
|
| -E5 |
460 volt 3 phase - no controls or power cord - TEFC.... |
add $194 |
|
5 Controls are sold separately, see Electric Drum
Control Switches below, for all non-standard
electric motors (-A, -B, -D, and -E), see table
below drum dimensions chart. |
|
| -F5 |
all other voltages or hertz................................................ |
CALL US
|
|
| -PN |
8-vane air motor w/controls (mounted).......................... |
add $1,064 |
|
|
|
|
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
|
PRICING FOR ELECTRIC DRUM CONTROL SWITCHES
|
|
| Model No. |
Description |
Voltage/Phase/Hertz with maximum rated motor hp |
Weight |
Price |
| 115/1/601 |
230/1/60 |
230/3/60 |
460/3/60 |
| 10L2A1 |
NEMA 1 |
to 1.5 hp |
to 2 hp |
to 3 hp |
to 3 hp |
3 lb |
$587.00
|
| 10L7E1 |
NEMA 1 |
to 1.5 hp |
to 3 hp |
to 5 hp |
to 7.5 hp |
3 lb |
$822.00
|
| 10L2A4 |
NEMA 4 - watertight |
to 1.5 hp |
to 2 hp |
to 3 hp |
to 3 hp |
7 lb |
$930.00
|
| 10L7E4 |
NEMA 4 - watertight |
to 1.5 hp |
to 3 hp |
to 5 hp |
to 7.5 hp |
7 lb |
$1,489.00
|
| 10P1A46 |
6 ft pendant control |
to 1 hp |
- |
- |
- |
5 lb |
$490.00
|
|
Drum control switches for 115 volt single phase motors up to 1.5 hp, include 8 ft power cord with grounded plug. Please specify voltage,
phase, and motor hp when ordering. For magnetic reversing starters see Electric Controls below. |
|
|

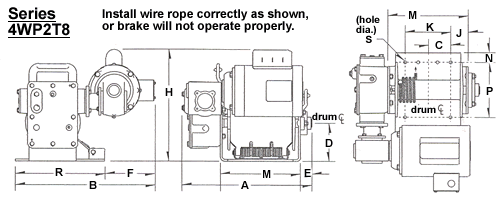

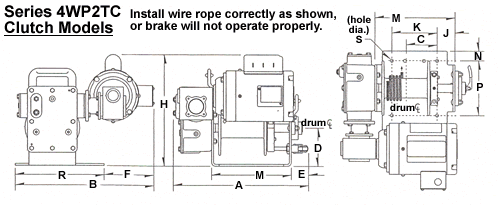

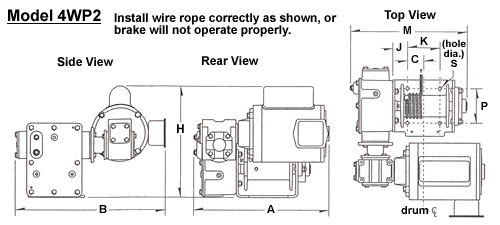

SERIES 4WP2 & 4WP2T - DIMENSIONS (IN)
|
| Model Number |
A |
B |
C |
D |
E |
F |
H |
J |
K |
M |
N |
P |
R |
S
(hole dia.) |
| 4WP2 |
15.63 |
17.28 |
1.88 |
- |
- |
- |
12.84 |
1.75 |
3.75 |
13.50 |
- |
4.00 |
- |
0.41 |
| 4WP2T8-2000-8 |
16.62 |
17.80 |
2.75 |
4.88 |
1.44 |
6.43 |
14.25 |
2.25 |
5.81 |
10.25 |
1.25 |
7.00 |
11.38 |
0.41 |
| 4WP2TC-2000-8 |
17.34 |
17.80 |
4.02 |
4.88 |
2.16 |
6.43 |
14.25 |
2.25 |
5.81 |
10.25 |
1.25 |
7.00 |
11.38 |
0.41 |
|
| Dimensions are for reference only and subject to change without notice. |
|
|

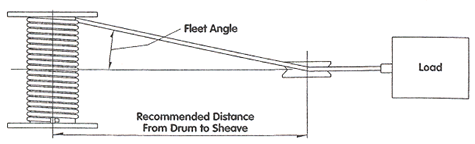

SERIES 4WP2 & 4WP2T - DRUM DIMENSIONS
|
|
|
|
|
 |
|
|
|
|
| Model extension |
Drum dia. |
Flange dia. |
Drum width |
Fleet angle distance² |
| 4WP2 |
2.50 in |
5.00 in |
5.00 in |
8.0 ft |
| 4WP2T8-2000-8 |
2.50 in |
7.00 in |
8.00 in |
12.75 ft |
| 4WP2TC-2000-8 |
2.50 in |
7.00 in |
5.50 in |
8.75 ft |
|
| ² Recommended minimum distance between drum and lead sheave for smooth drum. |
| Dimensions are for reference only and subject to change without notice. |
Click the button of the item you wish to purchase. Contact us for special lengths
|
|
|
|
PRICE FOR OPTION
|
|
| Model No. |
Description |
Weight |
Price |
| TPL-4WP2T8 |
Two Part Line Kit - not available for Series 4WP2 |
4 lb |
$574.00 |
|
|
|
|
|
|
|
|
|

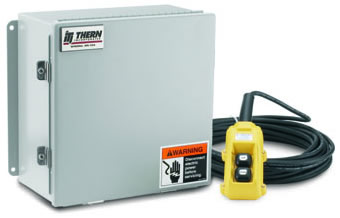

ELECTRIC MOTOR CONTROLS
|
|
|
|
 |
|
Single Speed Reversing Magnetic Controls for
1 and 3 phase motors up to 40 hp
|
|
|
|
 UL, IEC, or CSA Recognizedcomponents throughout. |
|
Steel EnclosureNEMA 4 rated (watertight) keeps dirt
and water out. Approved for most outdoor applications. |
|
Pendant Control SwitchNEMA 4X rated (watertight),
on 50 foot cord, allows operator to stand away from winch
during operation. Pendant control is operated with momen-
tary contact-type push buttons. Cord lengths of less than
50 feet are available, please specify when ordering. |
|
Reversing Contactoris electrically and mechanically
interlocked to deliver smooth reversing control. |
|
|
When ordering please include the following:
voltage and phase required, motor horsepower,
pendant control cord length - up to 50 ft., and
pendant control labeling - For/Rev or Up/Down. |
|
|
Thermal Overload Relaytrips power OFF to protect
motor from overheating. Switch is manually reset. |
|
Fused Control Circuit powers pendant with 115 volt,
2 amp current to help protect against high voltage shocks. |
|
|
Wiring Diagramis supplied inside enclosure. |
| OPTIONS |
|
|
Steel Mounting Bracket secures control box to winch. |
|
|
|
|
|
Special current or horsepower ratings, special
rated enclosures for explosive or harsh
environments, soft start or soft stop controls,
variable speed or multispeed controls, torque
limiting controls, selector switches, power cord
disconnects, and various panel mounted controls
or pilot lights. |
|
|
|
Variable Frequency Drives |
|
Variable frequency drive controls are available to provide
accurate positioning of loads, soft starts and soft stops, and
overload protection. |
|
For 3 phase 230 VAC and 460 VAC motors from 1 to 5 hp. |
|
For 3 phase 230 VAC motors from 1 to 30 hp. |
|
For 3 phase 460 VAC motors from 1 to 60 hp. |
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
|
PRICING FOR SERIES EL - ELECTRIC MOTOR CONTROLS
|
|
Starters listed include NEMA 4 rated pendant control on 50 foot cord.
Please specify voltage, phase, and motor hp when ordering. Contact us for required voltages and options. |
| Model No. |
Maximum rated motor horsepower for power supply current |
Weight |
Price |
| 115/1/60 |
230/1/60 |
208/3/60 |
230/3/60 |
460/3/60 |
| 10S2A4 |
to 1.5 hp |
- |
- |
- |
- |
25 lbs |
$2,053.00
|
| 10S3B4 |
- |
to 3 hp |
- |
- |
- |
25 lbs |
$2,010.00
|
| 10S3C4 |
- |
- |
to 3 hp |
- |
- |
25 lbs |
$1,688.00
|
| 10S3D4 |
- |
- |
- |
to 3 hp |
- |
25 lbs |
$1,570.00
|
| 10S7E4 |
- |
- |
- |
- |
to 7.5 hp |
25 lbs |
$1,548.00
|
|
|
|
WIRE ROPE
|
|
|
|
|
 |
|
How to Order Wire Rope |
|
The breaking strength of new wire rope should be 5 times the size of the
largest load for lifting applications, and 3 times the size of the largest load
for pulling applications. Contact a reputable wire rope supplier for more
information. |
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
Breaking Strength of New Wire Rope (lb)
|
| wire rope diameter |
|
7x19 Galvanized Aircraft Cable |
304 Stainless Steel wire rope |
| 1/8 in |
-0.13 |
2,000 |
1,760 |
| 3/16 in |
-0.19 |
4,200 |
3,700 |
| 1/4 in |
-0.25 |
7,000 |
6,400 |
| 5/16 in |
-0.31 |
9,800 |
9,000 |
| 3/8 in |
-0.38 |
14,400 |
12,000 |
|
| Values shown are for reference only. When selecting a wire rope, use the breaking strength specified by the rope manufacturer. |
|
|
Breaking Strength of New Wire Rope (lb)
|
| wire rope diameter |
|
6 x 37 IWRC IPS
(Improved Plow Steel) wire rope |
6 x 37 IWRC EIPS
(Extra Improved Plow Steel) wire rope |
| 3/8 in |
-0.38 |
12,400 |
15,100 |
| 7/16 in |
-0.44 |
16,500 |
20,400 |
| 1/2 in |
-0.50 |
23,000 |
26,600 |
| 9/16 in |
-0.56 |
29,000 |
33,600 |
| 5/8 in |
-0.63 |
35,800 |
41,200 |
| 3/4 in |
-0.75 |
51,200 |
58,800 |
| 7/8 in |
-0.88 |
69,200 |
79,600 |
| 1 in |
-1.00 |
89,800 |
103,400 |
| 1-1/8 in |
-1.13 |
113,000 |
130,000 |
| 1-1/4 in |
-1.25 |
138,800 |
159,800 |
| 1-1/2 in |
-1.50 |
197,800 |
228,000 |
|
| Values shown are for reference only. When selecting a wire rope, use the breaking strength specified by the rope manufacturer. |
Click the button of the item you wish to purchase. Contact us for special lengths
|
|

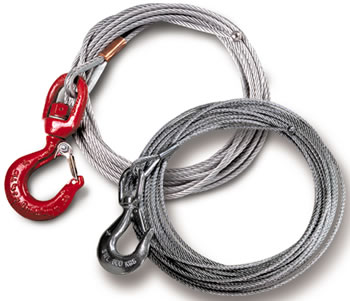

PRICING FOR WIRE ROPE
|
| Model No. |
Wire Rope Diameter and Length |
Weight |
Price |

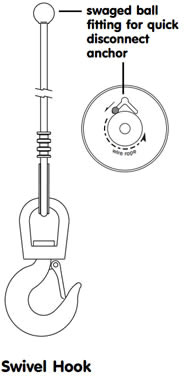

| Galvanized Aircraft Cable With Swivel Hook and Swaged Ball Fitting |
|
|
3/16 in x 20 ft
|
3 lbs
|
$159.00
|
|
|
3/16 in x 28 ft
|
4 lbs
|
$167.00
|
|
|
3/16 in x 36 ft
|
4 lbs
|
$172.00
|
|
|
3/16 in x 45 ft
|
7 lbs
|
$199.00
|
|
|
1/4 in x 20 ft
|
4 lbs
|
$172.00
|
|
|
1/4 in x 28 ft
|
5 lbs
|
$177.00
|
|
|
1/4 in x 36 ft
|
6 lbs
|
$191.00
|
|
|
1/4 in x 45 ft
|
7 lbs
|
$217.00
|
|
|
1/4 in x 60 ft
|
9 lbs
|
$244.00
|
|
|
1/4 in x 75 ft
|
11 lbs
|
$282.00
|
| Galvanized Aircraft Cable With Swivel Hook and Unfinished End |
|
|
5/16 in x 20 ft
|
6 lbs
|
$210.00
|
|
|
5/16 in x 28 ft
|
7 lbs
|
$244.00
|
|
|
5/16 in x 36 ft
|
8 lbs
|
$256.00
|
|
|
5/16 in x 45 ft
|
10 lbs
|
$276.00
|
|
|
5/16 in x 60 ft
|
12 lbs
|
$288.00
|
|
|
5/16 in x 75 ft
|
15 lbs
|
$309.00
|
|
|
3/8 in x 28 ft.
|
8 lbs
|
$536.00
|
|
|
3/8 in x 36 ft
|
10 lbs
|
$594.00
|
|
|
3/8 in x 45 ft
|
11 lbs
|
$641.00
|
|
|
3/8 in x 60 ft
|
14 lbs
|
$731.00
|
|
|
3/8 in x 75 ft
|
17 lbs
|
$839.00
|
| 304 Stainless Steel Wire Rope With SS Swivel Hook and Swaged Ball Fitting |
|
|
3/16 in x 20 ft
|
3 lbs
|
$270.00
|
|
|
3/16 in x 28 ft
|
3 lbs
|
$282.00
|
|
|
3/16 in x 36 ft
|
4 lbs
|
$302.00
|
|
|
3/16 in x 45 ft
|
7 lbs
|
$323.00
|
|
|
3/16 in x 60 ft
|
9 lbs
|
$360.00
|
|
|
3/16 in x 75 ft
|
11 lbs
|
$405.00
|
|
|
1/4 in x 20 ft
|
5 lbs
|
$360.00
|
|
|
1/4 in x 28 ft
|
5 lbs
|
$381.00
|
|
|
1/4 in x 36 ft
|
6 lbs
|
$393.00
|
|
|
1/4 in x 45 ft
|
7 lbs
|
$458.00
|
|
|
1/4 in x 60 ft
|
9 lbs
|
$543.00
|
|
|
1/4 in x 75 ft
|
11 lbs
|
$608.00
|
| 304 Stainless Steel Wire Rope With SS Swivel Hook and Unfinished End |
|
|
5/16 in x 20 ft
|
6 lbs
|
$485.00
|
|
|
5/16 in x 28 ft
|
7 lbs
|
$510.00
|
|
|
5/16 in x 36 ft
|
9 lbs
|
$530.00
|
|
|
5/16 in x 45 ft
|
11 lbs
|
$568.00
|
|
|
5/16 in x 60 ft
|
14 lbs
|
$627.00
|
|
|
5/16 in x 75 ft
|
17 lbs
|
$686.00
|
|
|
3/8 in x 28 ft.
|
8 lbs
|
$588.00
|
|
|
3/8 in x 36 ft
|
10 lbs
|
$627.00
|
|
|
3/8 in x 45 ft
|
11 lbs
|
$667.00
|
|
|
3/8 in x 60 ft
|
14 lbs
|
$769.00
|
|
|
3/8 in x 75 ft
|
17 lbs
|
$855.00
|
|
|
|
