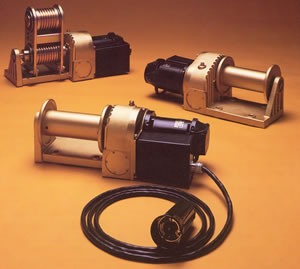

Power Winch
|
|
|
|
|
|
|
 |
|
Weighs only 38 lbs and pulls 15,000 pounds.
|
|
|
|
So light you can hand carry it to the job! Fast mounting
platforms, davits, trolleys, cranes. Easily put pulling power
wherever you need it.
|
|
|
|
|
|
|
Overview
|
|
|
|
|
|
|
|
• Pulls over 15,000 pound loads up 5% inclines
• Lifts 1,200 pounds directly
• Up to 512 ft cable on anti-stacking drum
• Self-locking, double-reduction worm gear drive
• Patented trigger Duo-Dynamic™ electrical braking system
• Precise start/stop remote controls
• Ball and roller bearings in sealed oil bath
• 8 models, 115 or 230 VAC
|
|
|
|
|
|
|
|
Single & Double Drum Features
|
|
|
|
|
|
|
|
• Hi-Strength Aluminum Gear Housing: Precision
machined to exact specifications.
• Lightweight Intermittent Reversible Motor: High
speed AC 1.3 HP open universal motor with
aluminum body. 115 v-17 amps, 230 v- 8 amps.
• Double Reduction Worm Gearing: Aluminum
bronze worm gears with hardened and ground steel
worms. Gear ratios: 533:1 and 267:1.
• Ball and Roller Bearings: Used throughout for
smooth performance.
• Single Selector Switch Controls (AC Only):
Momentary or maintained available.
• Cable Lock: Lets you attach cable to drum in seconds. |
|
• Anti-Stacking Drum: Helps eliminate cable
"stacking" that can reduce lifting/pulling power.
• Sealed Gears: Run in oil bath for constant lubrication
to help prevent "friction wear" and heat rise.
• Simple Field Repair: Quick disconnect of switch connections and of main box assemblies.
• Switch Box Materials: Hi-impact plastic made from permanent mold equipment.
• Easy Mounting: Mount horizontally, vertically or inversely with the 4 mounting holes below drum. (All positions except wall mount with oil filler plug in "up" position.)
• Disconnect: Available as option on remote controls. |
|
 |
|
|
|
|
|
Double Drum Winch Features
|
|
|
|
|
|
|
|
• Specially Grooved Steel Drums: Assist in proper alignment for continuous loop cable.
• Additional Bearings: Four large load carrying
bearings at drum section.
• Patented trigger Duo-Dynamic™ electrical braking
in conjunction with reversible universal motor plus
double reduction self-locking worm gearing gives the
operator safer control. |
|
|
|
|
|
|

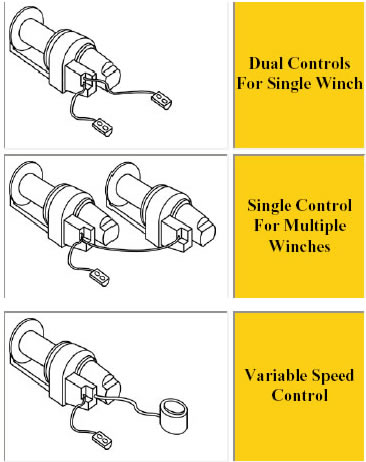

Multiple Control Configurations Available
|
|
|
|
|
|
|
|
In addition to pendant style remote control, and radio
remote control, Power Winches are also available in
configurations for variable speed control, dual controls
for a single winch, and a single control for multiple
winches. |
|
|
|
|
|
|
|
|
|
|
Specifications
|
|
|
|
|
|
|
|
Single Drum Winches
|
|
Cable On Drum
|
|
|
| Series |
Drum
Cable
Layer |
Lift
Capacity
(lbs) |
In |
Out |
No
Load |
| 1200 |
1 st
Full |
1200
700 |
17
25 |
37
54 |
28
41 |
| 700 |
1st
Full |
700
400 |
34
50 |
76
112 |
56
82 |
|
|
Cable Diameter
(inches) |
Drum Capacity
(feet) |
Breaking Strength
(lbs) |
| 1/8 |
512 |
2,000 |
| 5/32 |
325 |
2,800 |
| 3/16 |
215 |
4,200 |
| 7/32 |
165 |
5,600 |
| 1/4 |
135 |
7,000 |
|
|
|
Important: First cable layer should have at least
the first five wraps not in use. Each additional
cable layer reduces capacity. Block and tackle
arrangement (use double line only) doubles
capacity and cable on drum but reduces line
speed by one-half. |
|
|
|
|
Note: Galvanized aircraft cable, 7 x 19, is recommended for
strength and flexibility.
Important: Use a minimum cable safety factor of 5:1 and a
Safety Latch on all hooks. |
|
|
|
|
|
|
|
|
|
|
|
Double Drum Winches
|
|
Advantages of the Power Winch
|
|
|
|
Series
|
Drum Cable
Layer
|
Lift Capacity
(lbs)
|
Full
Load
|
No
Load
|
|
1200
|
Continuous
|
1200
|
17
|
28
|
|
700
|
Continuous
|
700
|
34
|
56
|
|
|
|
|
|
|
The lightweight and compact features of this Power Winch
aid in OEM usage as well as easier handling for storage and
maintenance. Shipping costs are held to a minimum. Quality
consciousness since introduction of first model in 1962
minimizes downtime. Each unit is completely factory wired
and comes with oil in gear box for quick field usage. |
|
|
Incline Data: All winches can pull much greater
loads than they can lift. (Ex: Series 1200, using
first cable layer, can pull 15,200 Ibs running on
casters up a 5% grade. This considers a 3% rolling
friction.)
Line Speed varies with voltage input. Figures are
based on line voltage at motors (115 v or 230 v). |
|
|
|
|
|
|
|
|
Conversion Kits & Custom Design
|
|
|
|
|
|
|
|
The 1200 Series can be converted to the 700 Series and vice
versa. Custom Design Proposals invited. Call us for further
information. |
|
|
|
|
|
|
|
Dimensions
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

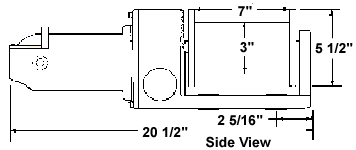

Single Drum
|
|

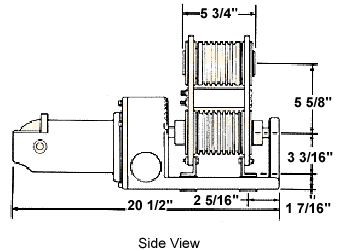

Double Drum
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Single & Double Drum
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Power Winch Model Number Code
|
|
|
|
|
|
|
|
Winch Series: 12 = 1200, 7 = 700
Switch Control:
S = Standard (mounted on winch)
R = Remote (10' remote cord, additional length available) |
|
Voltage: 15 = 115 volt, 30 = 230 volt
MO = Momentary Selector Switch
MA = Maintained Selector Switch |
|
|
|
|
|
|
|
Example: Model No.12-15 RMO is 1200 Series / 115 volt / Remote Momentary Selector Switch |
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
Power Winch Prices
|
|
|
|
|
|
Standard Operation
|
|
|
|
Series
|
Voltage
|
Switch
|
Shipping Weight (lbs)
|
Model No.
|
Price
|
|
1200
|
115
|
MO
|
42
|
|
$3,283.25
|
|
1200
|
115
|
MA
|
42
|
|
$3,283.25
|
|
1200
|
230
|
MO
|
42
|
|
$3,346.50
|
|
1200
|
230
|
MA
|
42
|
|
$3,346.50
|
|
700
|
115
|
MO
|
42
|
|
$3,326.95
|
|
700
|
115
|
MA
|
42
|
|
$3,326.95
|
|
700
|
230
|
MO
|
42
|
|
$3,390.20
|
|
700
|
230
|
MA
|
42
|
|
$3,390.20
|
|
|
|
|
|
|
Remote Operation
|
|
|
|
Series
|
Voltage
|
Switch
|
Shipping Weight (lbs)
|
Model No.
|
Price
|
|
1200
|
115
|
MO
|
44
|
|
$3,339.60
|
|
1200
|
115
|
MA
|
44
|
|
$3,339.60
|
|
1200
|
230
|
MO
|
44
|
|
$3,402.85
|
|
1200
|
230
|
MA
|
44
|
|
$3,402.85
|
|
700
|
115
|
MO
|
44
|
|
$3,384.45
|
|
700
|
115
|
MA
|
44
|
|
$3,384.45
|
|
700
|
230
|
MO
|
44
|
|
$3,447.70
|
|
700
|
230
|
MA
|
44
|
|
$3,447.70
|
|
|
|
Notes:
To order a Quick Disconnect option for the RMO or RMA add an "X" after the RMO or RMA and add $379.50.
To order Double Drum Winches, prefix above 20 models by letter "D" and add $1,644.50 to above prices. |
|
|
|
Accessories
|
|
|
|
|
|
|
|
For Single & Double Drum Models
|
|
For Single Drum Models Only
|
|
|
|
|
|
|
|
• ACP-12 Motor and Switch Box Shield - For
addedprotection against outside inclement weather
conditions. Plastic with opening on bottom for air
circulation (upright winch position only).
• ACP-22 Handle - For carrying winch.
• ACP-52 Trolley (6" I-Beam) - Has 1200 lb
capacity and hoist headroom of 11 1/2". |
|
• ACP56 Reversible Cable Guard (all positions except inverted) and ACP-58 Cable Guard (for inverted
position) help prevent cable from slipping over drum flanges.
• ACP-65 Drum Divider - Lets you use two or more
separate cables on one drum. Each divider is 3/4 of an
inch wide, thus reducing drum cable capacity. |
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
Prices for Accessory Equipment
|
|
|
| Model No. |
Shipping Weight (lbs) |
Price |
|
|
2
|
$158.70
|
|
|
1
|
$25.30
|
|
|
20
|
$664.70
|
|
|
2
|
$120.75
|
|
|
2
|
$120.75
|
|
|
1
|
$40.25
|
|
|
|
|
|
|
Pricing for Galvanized Aircraft Cable, 7 x 19
|
|
|
| Model No. |
Cable Diameter (inches) |
Breaking Strength (lbs.) |
Price/Foot |
Weight/100' |
|
|
1/8
|
2,000
|
$1.39
|
2.9
|
|
|
5/32
|
2,800
|
$1.77
|
4.5
|
|
|
3/16
|
4,200
|
$2.15
|
6.5
|
|
|
7/32
|
5,600
|
$2.53
|
8.6
|
|
|
1/4
|
7,000
|
$2.91
|
11
|
|
|
|
|
|
|
Safety Latch Hook (Attached to Cable):
Model No. CORD-SL Price: $88.55Shipping Weight: 3/4 lbs
Note: Use a minimum cable safety factor of 5:1 and a Safety Latch on all hooks. |
|
|
