PARK BENCHES

Model 205

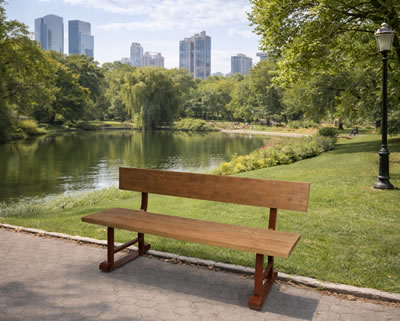

Model 205 Lawn – Park Bench

A rugged , sturdy bench that will take abuse, yet very simple to assemble. Wide bolt plate provides rigid connection to seat boards. Use three pieces of standard 2″ x 8″ lumber, six to eight foot length recommended’ longer one-piece benches may be assembled merely by adding extra frames.

Specifications: Frame of steel channels formed from 3 1/4″ x 12 gauge flat steel stock. Bolt plate for seat boards is 5″ wide; ground plate is 3 1/4″. Two end frames per set. Brown enamel with rust inhibitor. Zinc plated bolts furnished.
Painted or hot dipped galvanized.

Model 238BP - Portable

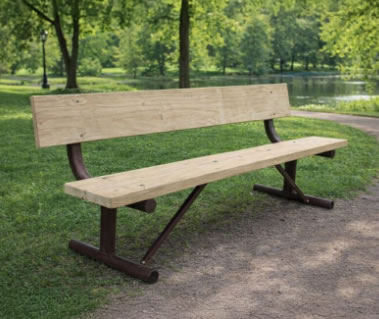

Model 238 Park Bench

Park benches are available for stationary (model BS) or portable (model BP) use. These are formed from 2 3/8″ OD schedule 40 pipe material. Plated carriage bolts are standard.
Seats and backs can be 2×4 or 2×10 lumber.
These can be painted or hot dipped galvanized. (Stationary pictured below)

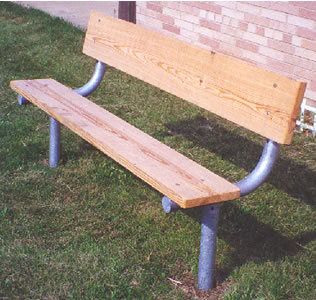

Model 238BS - Stationary

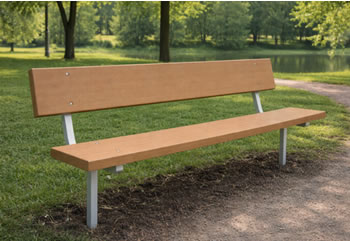

Model 14BS

Model 14 Series Bench

Park benches are available for stationary (model BS) or portable (model BP) use.
Model 14 series frame is constructed from 1 1/2″x 1 1/2″ 14 gauge steel square
tubing. Plated carriage bolts are standard. Seats and backs can be
2×4 or 2×10 lumber. These can be painted or hot dipped galvanized.
(Stationary pictured here)
