NSF SINKS
|

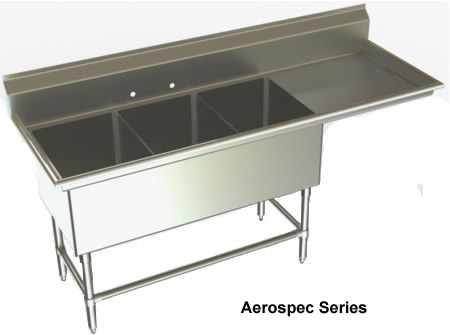

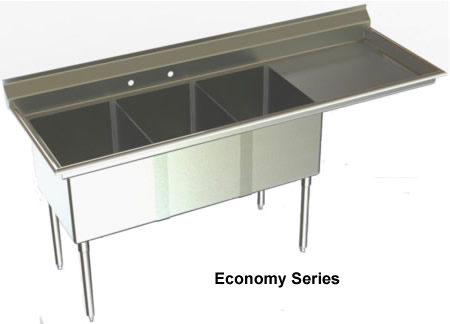

F3R SERIES, Three Compartment with Right Drainboard
|
|
|
|
|
|
|
 |
|
CONSTRUCTION |
|
|
|
|
• Exclusive 14" bowl depth on all models. |
|
|
|
|
• Custom style fabricated bowl for true
gauge integrity |
|
|
|
|
• All sinks have a 3/4" radius at all inter-
secting planes. |
|
|
|
|
• Stainless steel gusset is machine welded
360 deg. to a stainless steel triangular
plate. |
|
|
|
|
• Gusset plate is fully welded directly
underneath the sink. |
|
|
|
|
• Polished to a #4 blended finish. |
|
|
|
|
• All sinks with drainboards 30" or longer
equipped with 2 stainless steel 1 5/8"
O.D. legs with stainless steel gussets and
white metal feet. |
|
|
|
|
• 18 gauge stainless steel strip to cover
seams between bowls. |
 |
|
|
|
|
|
PLUMBING |
|
|
|
|
•Water supply is 1/2" hot and cold. |
|
• Faucet holes are 8" o.c. (Faucets not
included. See below for accessories). |
|
|
|
|
SAFETY EDGE |
|
• Sink hemmed on the roll and backsplash
to eliminate cuts from rough edges. |
|
|
|
|
|
|
|
|
|
| MATERIAL |
|
|
|
|
|
|
|
|
LEGS |
| BODY |
|
|
• 1 5/8" O.D. 16 gauge 304 series stainless steel
tubing, complete with 1" adjustable impact resistant
white metal feet. |
| • MF–16 gauge 304 stainless steel bowl, 430 body. |
|
|
|
| • 3F–16 gauge 304 stainless steel. |
|
|
|
| • 2F–14 gauge 304 stainless steel. |
|
|
|
|
|
|
|
|
|
|
|
|
| DESIGN FEATURES: |
|
|
|
|
|
|
|
| • All sinks are fully cartoned. |
|
|
|
|
|
|
|
| • Easily assembled. |
|
|
|
|
|
|
|
| •Drainboard pitched 3/4" for positive drainage. |
|
|
|
|
|
|
|
|
|
|
|
|
|
CUSTOM SIZES AVAILABLE
|
|
|
|
|
|
|
|
 |
|
 |
|
|
Safety Edge
|
|
Fully Welded Gusset Assembly
|
|
|
|
|
|
|
|
 |
|
 |
|
|
1" Sanitary Lip
|
|
14" Custom-Style Bowl
|
|
|
|
|
|
|
|
FABRICATED QUALITY AT AN
ECONOMY PRICE
|
|
|
| • Supplied with stainless steel drain basket and strainer. |
|
|
|
|
|
|
|
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
|

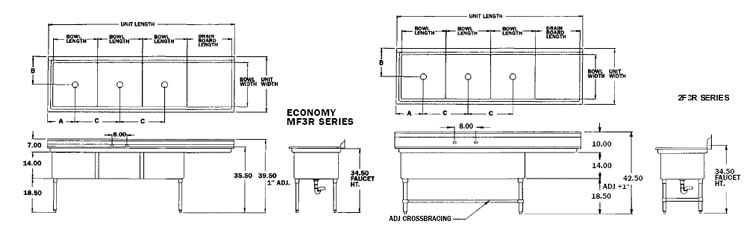

SPECIFICATIONS AND PRICING
|
|
BOWL
Width |
BOWL
Length |
UNIT
Width |
UNIT
Length |
ECONOMY 16
GA 430 Model # |
Price |
DELUX 16 GA 304 Model # |
Price |
PREMIUM 14 GA
304 Model # |
Price |
Ship
Wgt. |
Cubic
Feet |
| 20" WIDE |
| 20 |
20 |
26 |
84.25 |
MF3-2020-20R |
$5,128.87
|
|
$5,752.08
|
|
$6,633.71
|
172 |
26 |
| 20 |
20 |
26 |
88.25 |
MF3-2020-24R |
$5,146.60
|
|
$5,776.15
|
|
$6,681.84
|
177 |
28 |
| 20 |
20 |
26 |
94.25 |
MF3-2020-30R |
$5,177.00
|
|
$5,878.75
|
|
$6,885.78
|
182 |
29 |
| 20 |
20 |
26 |
100.25 |
MF3-2020-36R |
$5,203.60
|
|
$5,966.16
|
|
$7,055.52
|
187 |
31 |
| 21" WIDE |
| 21 |
16 |
27 |
70.25 |
MF3-2116-18R |
$3,587.29
|
|
$4,855.26
|
|
$5,621.61
|
140 |
23 |
| 21 |
16 |
27 |
76.25 |
MF3-2116-24R |
$3,616.43
|
|
$4,893.26
|
|
$5,684.95
|
145 |
25 |
| 21 |
16 |
27 |
82.25 |
MF3-2116-30R |
$3,992.64
|
|
$5,018.67
|
|
$5,760.95
|
150 |
27 |
| 21 |
16 |
27 |
88.25 |
MF3-2116-36R |
$4,528.45
|
|
$5,211.20
|
|
$6,009.22
|
155 |
29 |
| 24" WIDE |
| 24 |
18 |
30 |
76.25 |
MF3-2418-18R |
$5,230.20
|
|
$5,838.22
|
|
$6,691.98
|
150 |
25 |
| 24 |
18 |
30 |
82.25 |
MF3-2418-24R |
$5,244.14
|
|
$5,861.02
|
|
$6,740.11
|
155 |
27 |
| 24 |
18 |
30 |
88.25 |
MF3-2418-30R |
$5,277.07
|
|
$6,052.29
|
|
$6,937.72
|
160 |
29 |
| 24 |
18 |
30 |
92.25 |
MF3-2418-36R |
$5,302.41
|
|
$5,890.16
|
|
$7,101.12
|
165 |
31 |
| 24" WIDE |
| 24 |
24 |
30 |
94.25 |
MF3-2424-18R |
$6,612.17
|
|
$7,232.86
|
|
$7,776.27
|
195 |
34 |
| 24 |
24 |
30 |
100.25 |
MF3-2424-24R |
$6,667.91
|
|
$7,340.53
|
|
$8,118.28
|
200 |
37 |
| 24 |
24 |
30 |
106.25 |
MF3-2424-30R |
$6,860.45
|
|
$7,421.60
|
|
$8,350.09
|
205 |
39 |
| 24 |
24 |
30 |
112.25 |
MF3-2424-36R |
$7,070.72
|
|
$7,446.93
|
|
$8,554.03
|
210 |
41 |
| 30" WIDE |
| 30 |
20 |
36 |
84.25 |
MF3-3020-20R |
$7,031.45
|
|
$7,426.66
|
|
$8,198.08
|
205 |
36 |
| 30 |
20 |
36 |
88.25 |
MF3-3020-24R |
$7,101.12
|
|
$7,501.40
|
|
$8,270.28
|
210 |
39 |
| 30 |
20 |
36 |
94.25 |
MF3-3020-30R |
$7,144.19
|
|
$7,576.13
|
|
$8,490.69
|
215 |
41 |
| 30 |
20 |
36 |
100.25 |
MF3-3020-36R |
$7,164.46
|
|
$7,607.80
|
|
$8,778.23
|
222 |
44 |
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
