NSF SINKS
|
F3 SERIES, Three Compartment
|
 |
|
MATERIAL |
|
|
|
|
Body |
|
|
|
|
• MF –16 gauge 304 stainless steel bowl,
430 body. |
|
|
|
|
• 3F–16 gauge 304 stainless steel. |
|
|
|
|
• 2F–14 gauge 304 stainless steel. (Aerospec) |
|
|
|
|
Legs |
|
|
|
|
• 1 5/8" O.D. 16 gauge 304 series stainless
steel tubing, complete with 1" adjustable
impact resistant white metal feet. |
|
|
|
|
DESIGN FEATURES: |
|
|
|
|
• All sinks are fully cartoned. |
|
|
|
|
• Easily assembled. |
|
|
|
|
• Space saving design eliminates 4" of length
through the use of bowl partitions. |
|
|
|
|
SAFETY EDGE |
|
|
|
|
• Sink hemmed on the roll and back-splash to
eliminate cuts from rough edges. |
|
|
|
|
| PLUMBING |
|
|
|
|
|
|
|
|
|
|
 |
| • Water supply is 1/2" hot and cold. |
|
|
|
•Faucet holes are 8" o.c. (Faucets not
included. See below for accessories). |
|
|
|
| • Two sets faucet holes on sinks 60" or longer. |
|
|
|
| CONSTRUCTION |
|
|
|
| • Exclusive 14" bowl depth on all models. |
|
|
|
• Custom style fabricated bowl for true gauge
integrity. |
|
|
|
| • 3/4" radius at all intersecting planes. |
|
|
|
• 18 gauge stainless steel strip to cover seams
between bowls. |
|
|
|
• Stainless steel gusset is machine welded 360
deg. to a stainless steel triangular plate. |
|
|
|
• Gusset plate is fully welded directly under-
neath the sink for support.. |
|
|
|
| • Polished to a #4 blended finish. |
|
|
|
| AEROSPEC (Includes all the above and the following: |
|
|
|
|
|
|
|
|
| • Full 10" backsplash instead of standard 7" |
|
|
|
|
|
|
|
| • 18 gauge stainless steel enclosure surrounding all sink bowls. |
|
|
|
|
|
|
|
| • Stainless steel feet in lieu of white metal. |
|
|
|
|
|
|
|
| • Legs have stainless steel crossbracing with aluminum castings at all intersections. |
|
|
|
|
|
|
|
CUSTOM SIZES AVAILABLE
|
|
|
|
|
|
|
|
 |
|
 |
|
|
Safety Edge
|
|
Fully Welded Gusset Assembly
|
|
|
|
|
|
|
|
 |
|
 |
|
|
1" Sanitary Lip
|
|
14" Custom-Style Bowl
|
|
|
|
|
|
|
|
FABRICATED QUALITY AT AN
ECONOMY PRICE
|
|
|
|

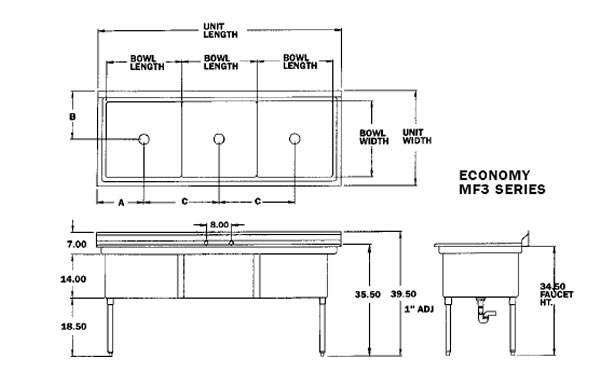

DIMENSIONAL SPECIFICATIONS
|
| *Supplied with stainless steel drain basket and strainer. |
|
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
|
PRICING FOR F3 SERIES, THREE COMPARTMENT
|
BOWL
Width |
BOWL
Length |
UNIT
Width |
UNIT
Length |
ECONOMY
Model # |
Price |
DELUX
Model # |
Price |
AEROSPEC
Model # |
Price |
Ship
Wgt. |
Cubic
Feet |
Sets
Faucet
Holes |
| 18" WIDE |
| 18 |
14 |
24 |
47.5 |
MF3-1814 |
$2,757.61
|
|
$3,142.68
|
|
$4,903.40
|
85 |
14 |
ONE |
| 18 |
16 |
24 |
53.5 |
MF3-1816 |
$3,070.48
|
|
$3,230.08
|
|
$5,007.27
|
99 |
16 |
ONE |
| 18 |
18 |
24 |
59.5 |
MF3-1818 |
$3,491.03
|
|
$3,736.76
|
|
$5,329.01
|
110 |
17 |
ONE |
| 18 |
20 |
24 |
65.5 |
MF3-1820 |
$3,612.63
|
|
$3,850.77
|
|
$5,462.01
|
122 |
19 |
TWO |
| 18 |
24 |
24 |
77.5 |
MF3-1824 |
$3,751.97
|
|
$3,954.64
|
|
$5,588.68
|
134 |
23 |
TWO |
| 21" WIDE |
| 21 |
14 |
27 |
47.5 |
MF3-2114 |
$3,164.22
|
|
$3,792.50
|
|
$5,265.67
|
99 |
16 |
ONE |
| 21 |
16 |
27 |
53.5 |
MF3-2116 |
$3,388.42
|
|
$3,839.37
|
|
$5,398.68
|
103 |
18 |
ONE |
| 21 |
18 |
27 |
59.5 |
MF3-2118 |
$0.00
|
|
$4,211.78
|
|
$6,053.56
|
114 |
20 |
ONE |
| 21 |
20 |
27 |
65.5 |
MF3-2120 |
$4,074.97
|
|
$4,471.45
|
|
$6,651.44
|
126 |
21 |
TWO |
| 21 |
24 |
27 |
77.5 |
MF3-2124 |
$4,213.04
|
|
$4,579.12
|
|
$6,857.91
|
138 |
25 |
TWO |
| 24" WIDE |
| 24 |
14 |
30 |
47.5 |
MF3-2414 |
$4,010.37
|
|
$4,278.91
|
|
$6,064.96
|
101 |
17 |
ONE |
| 24 |
16 |
30 |
53.5 |
MF3-2416 |
$4,101.57
|
|
$4,371.38
|
|
$6,196.70
|
113 |
20 |
ONE |
| 24 |
18 |
30 |
59.5 |
MF3-2418 |
$4,451.18
|
|
$4,736.19
|
|
$6,608.37
|
125 |
22 |
ONE |
| 24 |
20 |
30 |
65.5 |
MF3-2420 |
$4,528.45
|
|
$4,889.46
|
|
$6,690.71
|
137 |
24 |
TWO |
| 24 |
24 |
30 |
77.5 |
MF3-2424 |
$5,000.93
|
|
$5,507.61
|
|
$7,184.72
|
149 |
28 |
TWO |
| 30" WIDE |
| 30 |
14 |
36 |
47.5 |
MF3-3014 |
$4,446.12
|
|
$4,807.13
|
|
$6,647.64
|
123 |
21 |
ONE |
| 30 |
16 |
36 |
53.5 |
MF3-3016 |
$4,543.65
|
|
$4,992.06
|
|
$6,994.72
|
135 |
23 |
ONE |
| 30 |
18 |
36 |
59.5 |
MF3-3018 |
$4,892.00
|
|
$5,344.21
|
|
$7,358.26
|
147 |
26 |
ONE |
| 30 |
20 |
36 |
65.5 |
MF3-3020 |
$5,279.61
|
|
$5,695.08
|
|
$7,558.40
|
159 |
29 |
TWO |
| 30 |
24 |
36 |
77.5 |
MF3-3024 |
$5,339.14
|
|
$6,058.63
|
|
$7,902.94
|
175 |
34 |
TWO |
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
SINK ACCESSORIES AND OPTIONS
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
