SERIES 1000 MEDIUM DUTY
CANTILEVER RACK
|
|
|
|
|
|
|
 |
|
EXCELLENT LOW COST STORAGE
SYSTEM |
|
|
|
|
 IDEAL FOR MAINTENANCE
DEPARTMENT AND TOOL ROOMS |
|
|
|
|
High quality Series 1000 Cantilever Rack is
designed for use where heavier capacities are not
required. These racks are similar to our popular heavy
duty racks except for the use of lighter gauge steel and
smaller dimensions of component parts. Available in
6', 7', 8', 10' and 12' single and double sided uprights
with a choice of eight standard brace lengths (measured
on center) to accommodate 12", 18", 24", 30", 36",
42" and 48" straight or inclined arms. Arms are
completely adjustable on 3" centers up and down
the full length of the uprights. Two or more uprights
can be assembled into a continuous system. |
|
|
|
|
| EASY LOADING AND UNLOADING |
|
| EVERY ITEM READILY AVAILABLE |
|
| ALL WEIGHTS INCLUDE HARDWARE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Series 1000 Uprights, Arms and
Brace Sets are not interchangeable
with any other racks series. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| NOTE: For assistance designing a cantilever rack system, CLICK HERE. |
|
|
|
|
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
PRICING FOR SERIES 1000 MEDIUM DUTY
CANTILEVER RACKS BY INDIVIDUAL COMPONENT.
|
|
| SINGLE SIDED UPRIGHTS |
|
Upright Height
|
Base Length
|
Arm Length
|
Weight
|
Capacity (Lbs)
|
Model No.
|
Price
|
|
6'
|
33"
|
12", 18" & 24"
|
83 lbs
|
8,100, 6,600 & 5,500
|
|
$406.49
|
|
45"
|
30" & 36"
|
92lbs
|
4,700 & 4,100
|
|
$431.42
|
|
57"
|
42" & 48"
|
101 lbs
|
3,700 & 3,300
|
|
$476.35
|
|
7'
|
33"
|
12", 18" & 24"
|
90 lbs
|
7,900, 6,400 & 5,300
|
|
$429.05
|
|
45"
|
30" & 36"
|
99 lbs
|
4,600 & 4,100
|
|
$453.97
|
|
57"
|
42" & 48"
|
107 lbs
|
3,700 & 3,300
|
|
$497.02
|
|
8'
|
33"
|
12", 18" & 24"
|
96 lbs
|
7,600, 6,300 & 5,300
|
|
$448.42
|
|
45"
|
30" & 36"
|
104 lbs
|
4,500 & 4,000
|
|
$473.34
|
|
57"
|
42" & 48"
|
114 lbs
|
3,600 & 3,200
|
|
$515.88
|
|
10'
|
33"
|
12", 18" & 24"
|
110 lbs
|
7,100, 5,900 & 5,000
|
|
$493.59
|
|
45"
|
30" & 36"
|
118 lbs
|
4,400 & 3,800
|
|
$518.52
|
|
57"
|
42" & 48"
|
129 lbs
|
3,400 & 3,100
|
|
$558.59
|
|
12'
|
33"
|
12", 18" & 24"
|
126 lbs
|
6,500, 5,400 & 4,700
|
|
$576.75
|
|
45"
|
30" & 36"
|
135 lbs
|
4,100 & 3,700
|
|
$601.67
|
|
57"
|
42" & 48"
|
144 lbs
|
3,300 & 3,000
|
|
$655.81
|
|
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
|
DOUBLE SIDED UPRIGHTS
|
|
Upright Height
|
Base Length
|
Arm Length
|
Weight
|
Capacity (Lbs)
|
Model No.
|
Price
|
|
6'
|
54"
|
12", 18" & 24"
|
102 lbs
|
16,200, 13,200 & 11,000
|
|
$487.89
|
|
78"
|
30" & 36"
|
120 lbs
|
9,400 & 8,200
|
|
$537.07
|
|
102"
|
42" & 48"
|
135 lbs
|
7,400 & 6,600
|
|
$634.58
|
|
7'
|
54"
|
12", 18" & 24"
|
106 lbs
|
15,800, 12,800 & 10,600
|
|
$510.44
|
|
78"
|
30" & 36"
|
122 lbs
|
9,200 & 8,200
|
|
$559.66
|
|
102"
|
42" & 48"
|
142 lbs
|
7,400 & 6,600
|
|
$657.14
|
|
8'
|
54"
|
12", 18" & 24"
|
113 lbs
|
15,200, 12,600 & 10,600
|
|
$529.81
|
|
78"
|
30" & 36"
|
129 lbs
|
9,000 & 8,000
|
|
$579.00
|
|
78"
|
42" & 48"
|
149 lbs
|
7,200 & 6,400
|
|
$676.51
|
|
10'
|
54"
|
12", 18" & 24"
|
127 lbs
|
14,200, 11,800 & 10,000
|
|
$574.99
|
|
78"
|
30" & 36"
|
143 lbs
|
8,800 & 7,600
|
|
$624.20
|
|
102"
|
42" & 48"
|
163 lbs
|
6,800 & 6,200
|
|
$721.69
|
|
12'
|
54"
|
12", 18" & 24"
|
141 lbs
|
13,000, 10,800 & 9,400
|
|
$658.14
|
|
78"
|
30" & 36"
|
157 lbs
|
8,200 & 7,400
|
|
$707.33
|
|
102"
|
42" & 48"
|
177 lbs
|
6,600 & 6,000
|
|
$804.84
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
|
STRAIGHT ARMS
|
|
Length
|
Capacity
|
Weight
|
Model No.
|
Price
|
|
No Lip
|
Lip
|
|
12"
|
1000 lbs
|
6 lbs
|
|
|
$54.53
|
|
18"
|
750 lbs
|
7 lbs
|
|
|
$58.23
|
|
24"
|
600 lbs
|
8 lbs
|
|
|
$62.60
|
|
30"
|
500 lbs
|
9 lbs
|
|
|
$71.41
|
|
36"
|
400 lbs
|
10 lbs
|
|
|
$76.29
|
|
42"
|
350 lbs
|
13 lbs
|
|
|
$94.94
|
|
48"
|
300 lbs
|
15 lbs
|
|
|
$95.03
|
|
STRAIGHT ARMS have a minimum pitch of 3/8" per foot to compensate for deflection. Arm capacities are based on an evenly distributed
load. |
|
|
INCLINED ARMS
|
|
Length
|
Capacity
|
Weight
|
Model No.
|
Price
|
|
No Lip
|
Lip
|
|
12"
|
1000 lbs
|
6 lbs
|
|
|
$55.38
|
|
18"
|
750 lbs
|
7 lbs
|
|
|
$61.36
|
|
24"
|
600 lbs
|
8 lbs
|
|
|
$65.73
|
|
30"
|
500 lbs
|
9 lbs
|
|
|
$77.45
|
|
36"
|
400 lbs
|
10 lbs
|
|
|
$80.27
|
|
42"
|
350 lbs
|
13 lbs
|
|
|
$94.21
|
|
48"
|
300 lbs
|
15 lbs
|
|
|
$99.00
|
|
INCLINED ARMS have a minimum pitch of 20 degrees or approximately 4.36" per foot. Arm capacities are based on an evenly
distributed load. |
|
|
 |
Click the button of the item you wish to purchase. Contact us for special lengths
|
|

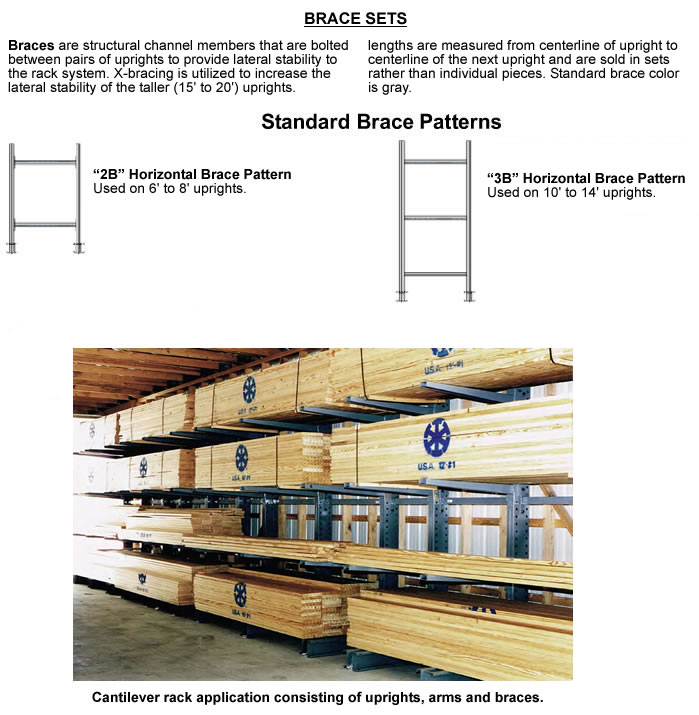

PRICING FOR BRACE SETS
|
|
Length*
|
For 6'-8' Uprights, Set of Two
|
For 10'-12' Uprights, Set of Three
|
|
Model No.
|
Weight
|
Price
|
Model No.
|
Weight
|
Price
|
|
23"
|
|
21
|
$113.76
|
|
31
|
$170.62
|
|
35"
|
|
28
|
$131.82
|
|
41
|
$197.70
|
|
41"
|
|
31
|
$138.05
|
|
47
|
$207.06
|
|
47"
|
|
35
|
$146.15
|
|
52
|
$219.23
|
|
59"
|
|
42
|
$170.71
|
|
62
|
$256.09
|
|
71"
|
|
49
|
$187.96
|
|
73
|
$281.95
|
|
83"
|
|
56
|
$203.23
|
|
83
|
$304.81
|
|
95"
|
|
63
|
$232.62
|
|
94
|
$356.34
|
|
| * Length of braces is measured from center of upright to center of upright. |
|
