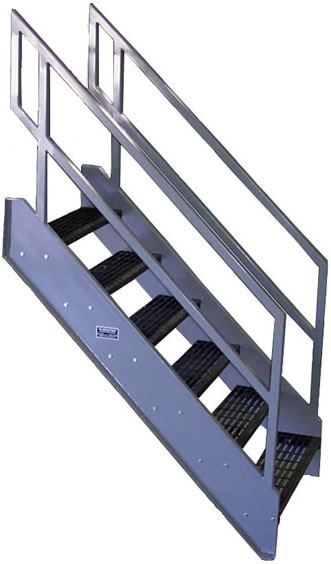

The FS Industries S3074-P-A is a 45 degree prefab stairway with a 36" high combination guard and handrail. It fits a 72"-77" floor to floor height, with a 64 9/16"-68 7/8" horizontal run. Its 30" wide black bar grating treads are 9 3/4" deep with open risers, for a 33" overall width. The frame is polyester powder coated in gray, black, blue, white or safety yellow.
It is for heights up to 48" for all industrial/commercial uses, or for non-routine, non-regular travel between levels up to 144" for industrial/commercial maintenance access and storage access, under current OSHA acceptable usage. Per OSHA Regulation 1910.25(b)(7), it should not be used for regular and routine travel between levels except under those conditions, and it is not acceptable for public access, office use or residential applications. Please note: the buyer is responsible for verifying the suitability of this stair design for their particular use or application. A drawing will be emailed to you for your approval prior to fabrication.
IBC Industrial - Internal Handrail 42" guards 36" inboard rails 32° comfort angle, conforms to IBC groups F, H, I, S for industrial/commercial uses to 144"
45 Degree Stair 36" handrail/guard 45° incline Acceptable for all uses up to 48" or for heights to 144" for non-routine travel between levels
32 Degree Stair 36" handrail/guard 32° comfort incline Accceptable for all uses up to 48" or heights to 144" for non-routine travel between levels
IBC stair for all use groups 36" inboard handrails, 42" balusters guards 32° comfort angle, conforms to new OSHA 2017 standard For all stair applications to 144"
45 Degree Aluminum Stairs 36" handrail/guard 45° incline Acceptable for all uses up to 48" or for heights to 144" for non-routine travel between levels
32 Degree Aluminum Stairway 7/11 Rise-Run 36" handrail/guard 32° comfort incline Accceptable for all uses up to 48" or heights to 144" for non-routine travel between levels
