The
Mover is a fully powered pallet truck, equipped with a
maintenance free Lithium battery. With the capacity of
3300 lbs it is perfectly suited for light and medium duty
material handling.
The
battery weight is only 11,7 lbs and has small dimensions,
enabling an extremely compact truck. Within two seconds
the battery can be exchanged, and the charging takes only
2.5 hours with a long operational time between charges.
The Lithium batteries have a high number of battery cycles.
Focus
is put on ergonomic working conditions of the user.
The ergonomically correct handle has soft grips, returning
smoothly to vertical position. The handle has integrated
PIN code panel with LCD display with status indication.
This ensures an easy control and operation.
Performance
Space
utilization
•
Capacity 3300 lbs
• Maintenance free Lithium battery
• Electric lifting and lowering
• Electric top stop
• Slow speed mode (Turtle function)
• LCD display - battery indicator, operating hour,
error codes
• Keyless - integrated pincode panel
•
Small battery dimensions enable compact truck
• Operates with the handle upright
Ergonomic
handle with soft
grips, returning smoothly to
vertical position. Possible
to operate with the handle
upright.

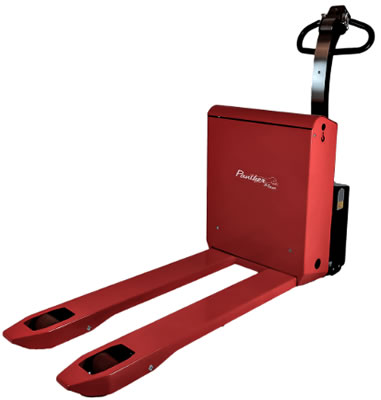

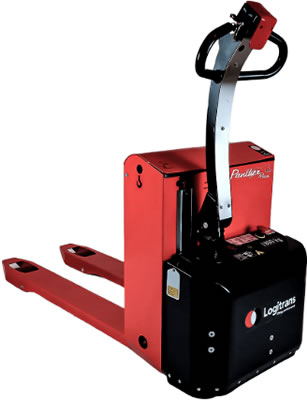

PANTHER
MAXI
Fully
powered pallet truck
– smooth movements
The
fully powered pallet truck, Panther Maxi, with the
capacity of 1800 kg, moves many different pallets both
easily and quietly. The compact construction and the
option of operating with the handle upright ensure an
optimum space utilization in very confined areas.
The
strong construction with use of quality materials
provides a long operating life and low maintenanc
costs.
Focus
is put on both ergonomic and safe working
conditions of the user. The ergonomically correct
handle ensures the user a relaxed hold. Motor brake,
centrally located control buttons and a safety button
which can be activated in all positions, ensure safe
operations.
Performance
•
Capacity 4000 lbs
• AC-technology (Curtis Controller)
• Long operating time per charge
• Easy setting of e.g. driving speed, acceleration and
deceleration
• Soft acceleration
• Speed control
Durability
•
No brushes in the wheel motor
• Easy maintenance
• Low maintenance costs
• Easy access to the components
Space
utilisation
•
Compact construction
• Operates with the handle upright
• Narrower than the width of a EUR pallet
Panther
Maxi (capacity 4000 lbs.) is perfect for heavy
pallet transport, e.g. in the transport industry.
MOVER
DIMENSIONS
PANTHER
MAXI DIMENSIONS
Order Online
Click the button of the item you wish to purchase.
Driving
motor - speed control electronically
variable
24
V, 65 kW
24
V 1.2 kW
Driving
speed with/without load
2.85/2.98mph
5/6
km/h
Pump
motor
24V
0.5 kW
24V
1.2 kW
Lifting
speed with/without load
0.8"/1.0"
per sec
1.5"
per sec./2" per sec
Lowering
speed with/without load
8"
per sec./1.6" per sec.
4.5"
per sec./1.5" per sec
Gradient
performance
6%
10%
Weight
in lbs. with 45" forks (without battery)
276,
286.6
451
(wgt. in kg
w/45" forks w/battery)
*
Tests show that 63.5" are enough.
