All-terrain pallet truck with gas-powered traction drive system, great for moving heavy loads over rough terrain, features 2000 lbs. or 4000 lbs. capacity @ 18" load center, unit also includes powered fork lift and lower, steel construction for years of dependable use with blue painted finish.
Standard Features:
• Briggs & Stratton 6HP gas-powered engine to power hydrostatic traction drive and fork lift
• Handle with variable speed forward / reverse control and safety kill switch
• Hydrostatic transmission with hand-operated, Forward and Reverse control
• Powered fork raise and lower controlled with hand lever
• Fork service range is 2-5/8" lowered to 12" raised
• Forged steel forks are 4" wide x 36" long and painted black
• Adjustable fork width between 8" minimum and 36" maximum
• Usable width between outriggers is 50"
• Overall size of unit is 79" wide x 68" long (including handle)
• Pneumatic steer wheels are 13" diameter x 4" wide each
• Drive wheels are 18" diameter x 8-1/2" wide each
• Steering arc is 150°
• Wheels include sealed bearings for outdoor use
• 3 m.p.h. walking speed
6HP Briggs & Stratton gas-powered engine
Drive wheels are 18" diameter x 8-1/2" wide
Emergency Shut-Off Release
Parking Brake
MODEL
CAPACITY
FORK LENGTH (FL)
LOAD CENTER (LC)
ALL-T-2-GPT
2000 lbs.
36"
18"
ALL-T-2-GPT-L
2000 lbs.
48"
24"
ALL-T-4-GPT
4000 lbs.
36"
18"
ALL-T-4-GPT-L
4000 lbs.
48"
24"
Order Online
Click the button of the item you wish to purchase.
Fill engine with oil and gasoline per the engine instruction booklet. Locate unit outdoors in an unobstructed area to minimize the chance of collisions while becoming familiar with operating the unit. Set choke and throttle per engine instruction manual. Squeeze the kill switch bale with left hand and pull the starter rope with right. After engine starts, set choke to open and allow engine to warm up for a few moments. Set the engine throttle to the desired speed. Increasing the throttle will increase the speed. Squeeze the left shift lever and the unit will start to move forward. The further the lever is squeezed the faster the unit will move. When the lever is released the unit will stop. Squeeze the right lever and the unit will reverse. If anything unexpected happens simply let go of the kill switch bale, the engine and unit will stop. Practice driving the unit around, getting used to how it turns. If you turn sharp, the outer wheel will speed up and the inner wheel will slow down. Get used to how the unit behaves when turning sharp! Practice engaging from forward to reverse. After a few minutes you should get the feel for shifting the transaxle. When moving heavy loads, it may be necessary to slow the unit down with the shift lever resulting is less power demand. Do not shift from forward to reverse rapidly! The change can cause the load to shift on the forks and may damage transaxle.

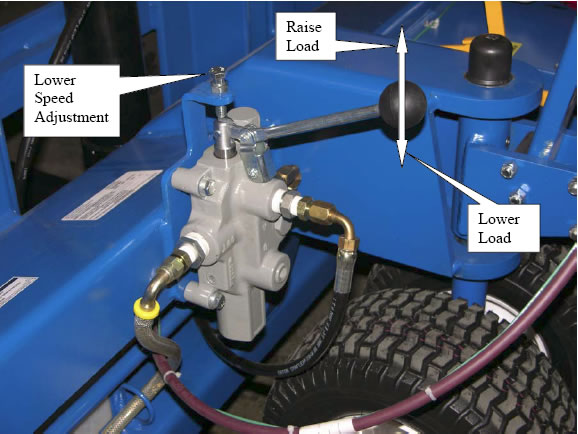

Raising and lowering a load.
Raising a load: Release the shift lever. Speed the engine up to mid speed and lift the valve lever gently with your hand. The load should start to rise. Releasing the valve will cause the load to stop and hold position. Lifting the raise lever again will cause the load to continue to rise. At the top of the stroke, you will hear the engine load. Release the raise lever. Do not allow the hydraulics to over load at the end of the stroke! Doing so for more then a few seconds will cause the hydraulics to over heat and cause permanent damage. Lowering a load: Press the raise lever down gently with your hand. The engine does not have to be running to lower the load. The load will be lowered at a controlled speed. Releasing the lever will cause the load to stop and hold position. The lowering speed can be adjusted. If the load is lowered too fast the velocity fuse in the cylinder will close, holding the load. If this happens raise the load to reset the velocity fuse. Adjust the adjustment screw to decrease lowering speed.
Parking Brake
The ALL-T-GPT is equipped with a locking parking brake. This brake is not intended to be used as a dynamic brake for slowing while engine is engaged or for steep grades. To operate brake, simply pull the lever back until it locks. Push the lever forward to release. Do not use the parking brake for holding heavy loads on steep grades.
Transaxle Release
If the unit needs to be moved without the engine running, the transaxle must be disengaged. Push the transaxle release lever forward then down, to disengage the transaxle.
Lifting
The unit can be lifted by using the two holes located in the carriage channels. Use proper clevises and chains (not supplied with unit).
Maintenance
The ALL-T-GPT should provide years of operation with little maintenance. Follow the engine manufacture’s recom- mendations on maintaining the engine. Every other engine oil change, check the drive chain tension and lubricate the drive chains with sticky spray grease. The chains should be slightly loose (not tight) but not loose enough to allow the chain to slap or jump. Inspect and lube the chains by removing the tube chain covers. Adjust the chains by loosing the lock nut and applying tension on the hex.
There are set screws on the front and rear sprockets, the drive shaft coupling, motor pulley, and pump pulley. Check to be sure set screws are tight. If loose retighten and use red locktite to keep them from coming loose. The rear sprocket should line up with the front sprocket on that side. Check the belt for wear and replace if necessary. With the belt tension removed, check the bearings and shaft on the hydraulic pump drive for wear. Replace if necessary.
To adjust brake tension, remove cotter key. Adjust by turning rod nut. Take care not to over tighten brake as it will over heat damaging the transaxle
The belt tension is spring loaded and requires no adjustment. Check belt for wear or cracking, and replace as necessary.

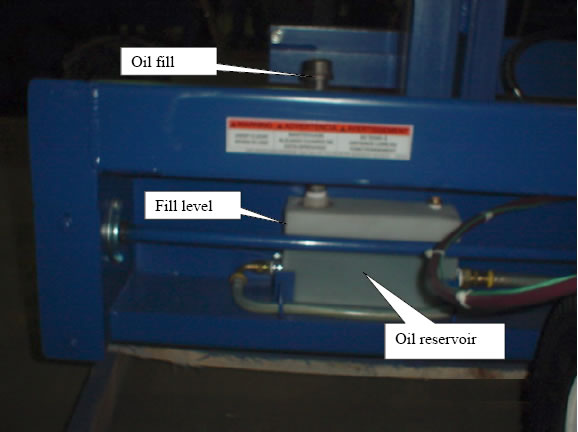

Check hydraulic oil level and refill as necessary. Use an ISO 32 general purpose hydraulic oil. Fill to 1" from top with cylinder in down position.
