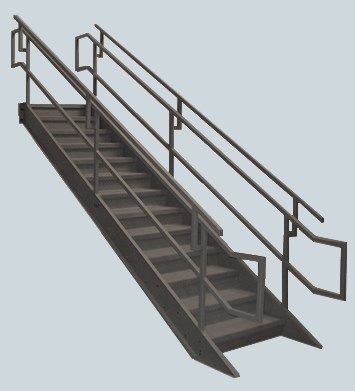

The FS Industries IIBC48122-P-A is a prefab steel IBC industrial/institutional stairway with external guards. It fits a 10'-0" to 10'-5" floor to floor height, with a 16'-9" to 16'-10" horizontal run. Its 48" wide black bar grating treads are 11" deep with open risers, for a 51" overall width. The frame is polyester powder coated in gray, black, blue, white or safety yellow.
The handrail and guard are all welded and smooth, with 42" high external guards on both sides and top and bottom handrail extensions. The external guards don't reduce tread clearance. It is for IBC use groups I3, F, H and S serving an occupant load of 50 or less, and also meets OSHA 1910.25. Please note: a drawing will be emailed to you for your approval prior to fabrication.
