5" x 5" HEAVY DUTY AREA
AND MACHINE GUARDS
Use these rigid frames to guard machines and areas requiring a wider
protection area than that which is provided by single bollards.
Choose from various lengths and heights.
* 5" x 5" x 3/16" wall square tube
construction
* All welded with prepunched 12" x 12"
x 3/4" footplates
* Attractive safety yellow standard finish
(blue and gray also available)
* Optional floor fasteners available
* Custom sizes and designs available
Model
MG4236
Model
MG1648
traffic protection guards bollard protection
Keep errant fork lift traffic away
from personnel traffic
Protect equipment and operations
from production traffic
anchor bolt kits footplate cross section
MGFK8 ANCHOR
BOLT KIT
FOOTPLATE
CROSS SECTION VIEW

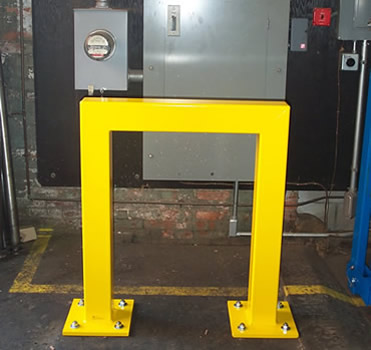

guards machine guard
Sensitive paint area kept safe and clear of rolling carts.
Keep critical access areas clear and safe.
bollards

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

PRICING
Model No.
Height
Length*
Weight
Price
9"
24"
109 lbs
$517.00
9"
36"
122 lbs
$553.00
9"
48"
134 lbs
$590.00
16"
24"
124 lbs
$560.00
16"
36"
136 lbs
$596.00
16"
48"
148 lbs
$633.00
24"
24"
140 lbs
$609.00
24"
36"
152 lbs
$645.00
24"
48"
164 lbs
$683.00
36"
24"
164 lbs
$683.00
36"
36"
176 lbs
$719.00
36"
48"
188 lbs
$756.00
42"
24"
176 lbs
$719.00
42"
36"
188 lbs
$756.00
42"
48"
200 lbs
$793.00
48"
24"
188 lbs
$756.00
48"
36"
200 lbs
$793.00
48"
48"
212 lbs
$830.00
Fastener Kit: (8) 5/8" x 4 1/2" Wedge Anchors
$38.00

*Add 7" to length dimension to determine overall dimension out to out of baseplates.
