COMPLETE
FREE STANDING
OVERHEAD BRIDGE CRANE AND HOIST
|
|
|
|
|
 |
|
If
you’d like the benefits of efficient
and safe overhead material handling,
but don’t think your building is
structurally or financially suited for an
overhead crane, check out the
NOMAD. Buildings like those listed
below may not work well with
standard overhead cranes, but the
NOMAD will adapt for the
following reasons: |
|
|
|
|
Precast
Concrete Buildings
The NOMAD can often be installed
without footers, eliminating the need
for digging through and damaging
existing floors. |
|
|
|
|
Leased
Buildings
All of the NOMAD’s connections
are bolted for easy disassembly and
relocation. If you think you may
move sometime in the future, you
can easily take the NOMAD to
a new site. |
|
|
 |
|
|
|
|
|
Buildings
not designed
specifically for overhead cranes.
The NOMAD’s free standing
structure supports loads your
building’s steel might not handle.
And the low overhead design allows
it to fit into sites where headroom
might otherwise be a problem. |
|
|
|
|
Think
again if you’ve ruled out an
overhead crane. NOMAD can give
you the material handling you need
at a price you’ll like. |
|
|
|
|
 |
|
|
|
|
|

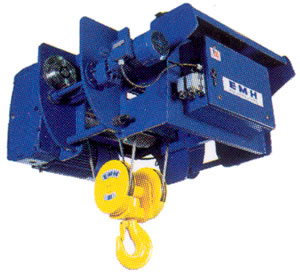

See
bottom of page for specs on Wire Rope Hoist.
|
|
|
|
|
|
|
|
|
|
|
|
|
CLICK
ON LINK BELOW FOR A SPECIFIC FREESTANDING BRIDGE CRANE SYSTEM
PRICING &
DIMENSIONS
|
|
|
|
|
|
|
|
 |
|
 |
|
 |
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

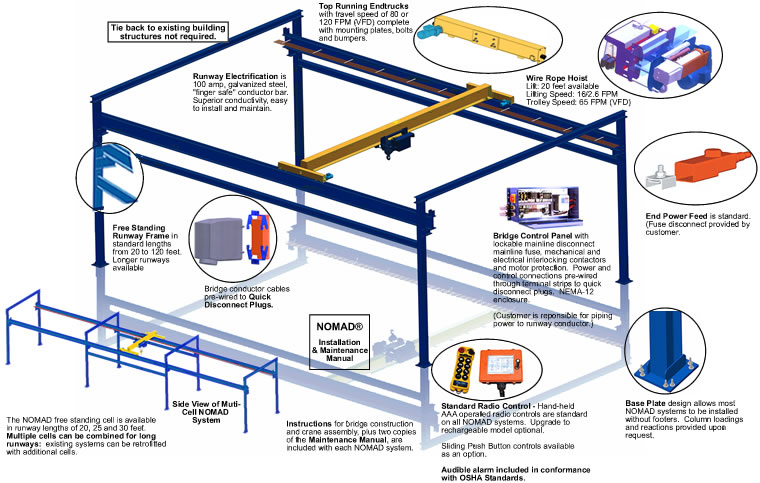

| EACH
NOMAD SYSTEM INCLUDES: |
 |
|
|
If you'd like
the benefits of efficient and safe overhead material handling,
but don't think your building is structurally or
financially suited for an overhead crane, check the NOMAD.7211
Buildings like
those listed below may not work well with standard overhead
cranes, but the NOMAD will adapt for the
following reasons:
NOMAD®
finds a home in:
Precast
Concrete Buidings
The NOMAD can often be install without footers, eliminating
the need for digging through and damaging existing floors.
Leased Buildings
All of the NOMAD's connections are bolted for easy disassembly
and relocation. If you think you may move sometime
in the future, you can easily take the NOMAD to a new site.
Buildings
not designed specifically for overhead cranes.
The NOMAD's free standing structure supports loads your building's
steel might not handle. And the low overhead
design allows it to fit into sites where headroom might otherwise
be a problem.
Think again if
you've ruled out an overhead crane. NOMAD can give you the
material handling you need at a price
you'll like.
|
|
|
|
|
|
|
|
|
 |
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
PRICES
& CONFIGURATIONS (Hoist Included)
|
|
|

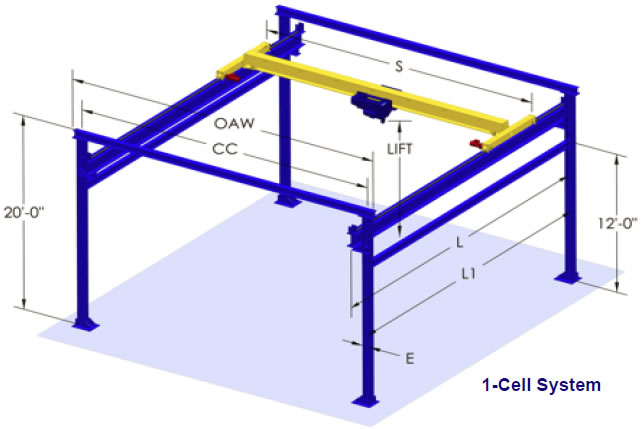

1-CELL
SYSTEM
|
Model
No. |
Cap.
tons |
FRONT DIMENSIONS |
SIDE DIMENSIONS |
Price |
OAW
(Overall
Sys Width) |
S
(Crane
Girder
Span) |
CC |
Lift |
E |
L
(Runway
Length
per Cell) |
L1
(Center
Support
Dist.) |
|
|
2 |
20' |
16'-10" |
18'-10" |
17'-0.75" |
6.375 |
20' |
18' |
$53,133.00
|
|
|
25' |
23' |
$55,407.00
|
|
|
30' |
28' |
$57,961.00
|
|
|
30' |
26'-10" |
28'-10" |
16'-11.25" |
6.375 |
20' |
18' |
$56,061.00
|
|
|
25' |
23' |
$58,539.00
|
|
|
30' |
28' |
$60,891.00
|
|
|
40' |
36'-10" |
38'-10" |
16'-9.5" |
6.375 |
20' |
18' |
$60,620.00
|
|
|
25' |
23' |
$63,097.00
|
|
|
30' |
28' |
$66,056.00
|
|
|
3 |
20' |
16'-8" |
18'-8" |
16'-3.25" |
8 |
20' |
18' |
$55,609.00
|
|
|
25' |
23' |
$57,985.00
|
|
|
30' |
28' |
$61,170.00
|
|
|
30' |
26'-8" |
28'-8" |
16'-1.5" |
8 |
20' |
18' |
$59,051.00
|
|
|
25' |
23' |
$61,732.00
|
|
|
30' |
28' |
$64,978.00
|
|
|
40' |
36'-8" |
38'-8" |
15'-9" |
8 |
20' |
18' |
$64,826.00
|
|
|
25' |
23' |
$67,503.00
|
|
|
30' |
28' |
$70,749.00
|
|
|
5 |
20' |
16'-6" |
18'-6" |
16'-0.75" |
10 |
20' |
18' |
$61,261.00
|
|
|
25' |
23' |
$64,549.00
|
|
|
30' |
28' |
$68,488.00
|
|
|
30' |
26'-6" |
28'-6" |
15'-8.5" |
10 |
20' |
18' |
$65,493.00
|
|
|
25' |
23' |
$69,598.00
|
|
|
30' |
28' |
$70,859.00
|
|
|
40' |
36'-6" |
38'-6" |
15'-6.5" |
10 |
20' |
18' |
$71,642.00
|
|
|
25' |
23' |
$75,749.00
|
|
|
30' |
28' |
$78,873.00
|
|
|
7.5 |
20' |
16'-6" |
18'-6" |
15'-11" |
10 |
20' |
18' |
$68,083.00
|
|
|
25' |
23' |
$71,536.00
|
|
|
30' |
28' |
$75,879.00
|
|
|
30' |
26'-6" |
28'-6" |
15'-8" |
10 |
20' |
18' |
$73,235.00
|
|
|
25' |
23' |
$76,690.00
|
|
|
30' |
28' |
$81,035.00
|
|
|
40' |
36'-6" |
38'-6" |
15'-6.5" |
10 |
20' |
18' |
$82,453.00
|
|
|
25' |
23' |
$86,689.00
|
|
|
10 |
20' |
16'-6" |
18'-6" |
15'-2.5" |
10 |
20' |
18' |
$81,544.00
|
|
|
25' |
23' |
$84,556.00
|
|
|
30' |
28' |
$89,755.00
|
|
|
30' |
26'-6" |
28'-6" |
15' |
10 |
20' |
18' |
$86,358.00
|
|
|
25' |
23' |
$89,364.00
|
|
|
30' |
28' |
$94,563.00
|
|
|
40' |
36'-6" |
38'-6" |
14'-7.5" |
10 |
20' |
18' |
$95,299.00
|
|
|
25' |
23' |
$98,304.00
|
|
|
30' |
28' |
$103,138.00
|
|
| *Same
for all capacities and widths. |
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
PRICES
& CONFIGURATIONS (Hoist Included)
|
|
|
|

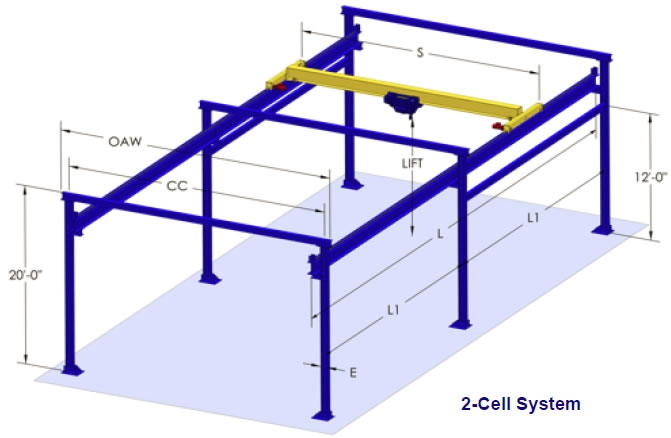

2-CELL
SYSTEM
|
Model
No. |
Cap.
tons |
FRONT DIMENSIONS |
SIDE DIMENSIONS* |
Price |
OAW
(Overall
Sys Width) |
S (Crane
Girder
Span) |
CC |
Lift |
E |
L (Runway
Length
per Cell) |
L1
(Center
Support Dist.) |
|
|
2 |
20' |
16'-10" |
18'-10" |
17'-0.75" |
6.375 |
40' |
19' |
$63,902.00
|
|
|
50' |
24' |
$68,139.00
|
|
|
60' |
29' |
$72,949.00
|
|
|
30' |
26'-10" |
28'-10" |
16'-11.25" |
6.375 |
40' |
19' |
$67,135.00
|
|
|
50' |
24' |
$71,779.00
|
|
|
60' |
29' |
$76,190.00
|
|
|
40' |
36'-10" |
38'-10" |
16'-9.5" |
6.375 |
40' |
19' |
$71,997.00
|
|
|
50' |
24' |
$76,645.00
|
|
|
60' |
29' |
$82,266.00
|
|
|
3 |
20' |
16'-8" |
18'-8" |
16'-3.25" |
8 |
40' |
19' |
$67,499.00
|
|
|
50' |
24' |
$71,878.00
|
|
|
60' |
29' |
$77,824.00
|
|
|
30' |
26'-8" |
28'-8" |
16'-1.5" |
8 |
40' |
19' |
$71,363.00
|
|
|
50' |
24' |
$76,296.00
|
|
|
60' |
29' |
$82,366.00
|
|
|
40' |
36'-8" |
38'-8" |
15'-9" |
8 |
40' |
19' |
$73,810.00
|
|
|
50' |
24' |
$82,760.00
|
|
|
60' |
29' |
$88,831.00
|
|
|
5 |
20' |
16'-6" |
18'-6" |
16'-0.75" |
10 |
40' |
19' |
$74,920.00
|
|
|
50' |
24' |
$81,070.00
|
|
|
60' |
29' |
$88,520.00
|
|
|
30' |
26'-6" |
28'-6" |
15'-8.5" |
10 |
40' |
19' |
$79,599.00
|
|
|
50' |
24' |
$87,379.00
|
|
|
60' |
29' |
$93,202.00
|
|
|
40' |
36'-6" |
38'-6" |
15'-6.5" |
10 |
40' |
19' |
$86,194.00
|
|
|
50' |
24' |
$93,974.00
|
|
|
60' |
29' |
$99,801.00
|
|
|
7.5 |
20' |
16'-6" |
18'-6" |
15'-11" |
10 |
40' |
19' |
$82,392.00
|
|
|
50' |
24' |
$88,868.00
|
|
|
60' |
29' |
$97,136.00
|
|
|
30' |
26'-6" |
28'-6" |
15'-8" |
10 |
40' |
19' |
$88,483.00
|
|
|
50' |
24' |
$94,959.00
|
|
|
60' |
29' |
$103,229.00
|
|
|
40' |
36'-6" |
38'-6" |
15'-6.5" |
10 |
40' |
19' |
$98,315.00
|
|
|
50' |
24' |
$106,014.00
|
|
|
60' |
29' |
$112,814.00
|
|
|
10 |
20' |
16'-6" |
18'-6" |
15'-2.5" |
10 |
40' |
19' |
$98,118.00
|
|
|
50' |
24' |
$103,698.00
|
|
|
60' |
29' |
$111,665.00
|
|
|
30' |
26'-6" |
28'-6" |
15' |
10 |
40' |
19' |
$103,372.00
|
|
|
50' |
24' |
$108,958.00
|
|
|
60' |
29' |
$118,931.00
|
|
|
40' |
36'-6" |
38'-6" |
14'-7.5" |
10 |
40' |
19' |
$112,763.00
|
|
|
50' |
24' |
$118,345.00
|
|
|
60' |
29' |
$127,589.00
|
|
| *Same
for all capacities and widths. |
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
PRICES
& CONFIGURATIONS (Hoist Included)
|
|
|
|

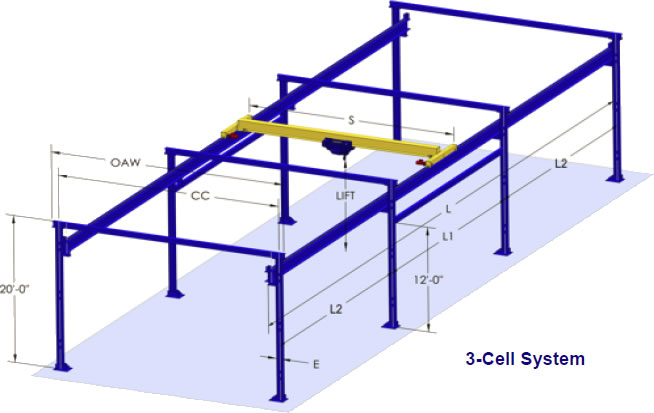

3-CELL SYSTEM |
Model
No. |
Cap.
tons |
FRONT DIMENSIONS |
SIDE DIMENSIONS* |
Price |
OAW
(Overall
Sys Width) |
S
(Crane
Girder
Span) |
CC |
Lift |
E |
L
(Runway
Length
per Cell) |
L1
(Center
Support
Dist.) |
L2
(Center
Support Dist.
Outer Cells) |
|
|
2 |
20' |
16'-10" |
18'-10" |
17'-0.75" |
6.375 |
60' |
20' |
19' |
$74,524.00
|
|
|
75' |
25' |
24' |
$80,736.00
|
|
|
90' |
30' |
29' |
$87,786.00
|
|
|
30' |
26'-10" |
28'-10" |
16'-11.25" |
6.375 |
60' |
20' |
19' |
$78,064.00
|
|
|
75' |
25' |
24' |
$84,882.00
|
|
|
90' |
30' |
29' |
$91,326.00
|
|
|
40' |
36'-10" |
38'-10" |
16'-9.5" |
6.375 |
60' |
20' |
19' |
$83,233.00
|
|
|
75' |
25' |
24' |
$90,049.00
|
|
|
90' |
30' |
29' |
$98,326.00
|
|
|
3 |
20' |
16'-8" |
18'-8" |
16'-3.25" |
8 |
60' |
20' |
19' |
$79,360.00
|
|
|
75' |
25' |
24' |
$85,627.00
|
|
|
90' |
30' |
29' |
$94,334.00
|
|
|
30' |
26'-8" |
28'-8" |
16'-1.5" |
8 |
60' |
20' |
19' |
$83,536.00
|
|
|
75' |
25' |
24' |
$90,727.00
|
|
|
90' |
30' |
29' |
$99,607.00
|
|
|
40' |
36'-8" |
38'-8" |
15'-9" |
8 |
60' |
20' |
19' |
$88,682.00
|
|
|
75' |
25' |
24' |
$97,876.00
|
|
|
90' |
30' |
29' |
$106,765.00
|
|
|
5 |
20' |
16'-6" |
18'-6" |
16'-0.75" |
10 |
60' |
20' |
19' |
$88,431.00
|
|
|
75' |
25' |
24' |
$97,447.00
|
|
|
90' |
30' |
29' |
$108,409.00
|
|
|
30' |
26'-6" |
28'-6" |
15'-8.5" |
10 |
60' |
20' |
19' |
$93,559.00
|
|
|
75' |
25' |
24' |
$105,014.00
|
|
|
90' |
30' |
29' |
$113,728.00
|
|
|
40' |
36'-6" |
38'-6" |
15'-6.5" |
10 |
60' |
20' |
19' |
$100,606.00
|
|
|
75' |
25' |
24' |
$112,059.00
|
|
|
90' |
30' |
29' |
$120,582.00
|
|
|
7.5 |
20' |
16'-6" |
18'-6" |
15'-11" |
10 |
60' |
20' |
19' |
$96,556.00
|
|
|
75' |
25' |
24' |
$106,055.00
|
|
|
90' |
30' |
29' |
$118,243.00
|
|
|
30' |
26'-6" |
28'-6" |
15'-8" |
10 |
60' |
20' |
19' |
$103,584.00
|
|
|
75' |
25' |
24' |
$113,087.00
|
|
|
90' |
30' |
29' |
$125,271.00
|
|
|
40' |
36'-6" |
38'-6" |
15'-6.5" |
10 |
60' |
20' |
19' |
$113,920.00
|
|
|
75' |
25' |
24' |
$125,198.00
|
|
|
90' |
30' |
29' |
$135,185.00
|
|
|
10 |
20' |
16'-6" |
18'-6" |
15'-2.5" |
10 |
60' |
20' |
19' |
$114,539.00
|
|
|
75' |
25' |
24' |
$122,699.00
|
|
|
90' |
30' |
29' |
$137,449.00
|
|
|
30' |
26'-6" |
28'-6" |
15' |
10 |
60' |
20' |
19' |
$120,247.00
|
|
|
75' |
25' |
24' |
$128,407.00
|
|
|
90' |
30' |
29' |
$143,155.00
|
|
|
40' |
36'-6" |
38'-6" |
14'-7.5" |
10 |
60' |
20' |
19' |
$130,085.00
|
|
|
75' |
25' |
24' |
$143,823.00
|
|
|
90' |
30' |
29' |
$151,892.00
|
|
| *Same
for all capacities and widths. |
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
PRICES
& CONFIGURATIONS (Hoist Included)
|
|
|
|

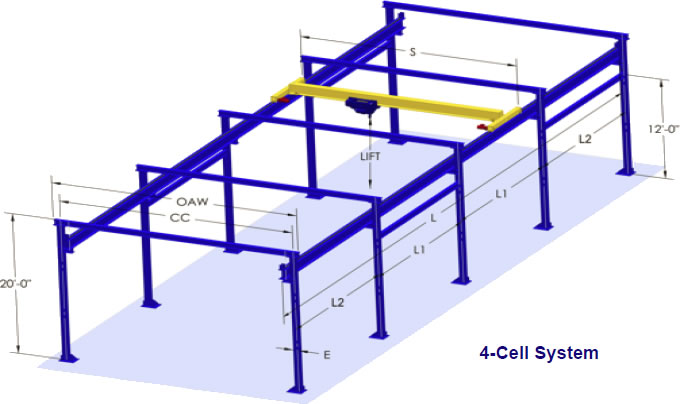

4-CELL SYSTEM |
Model
No. |
Cap.
tons |
FRONT DIMENSIONS |
SIDE DIMENSIONS* |
Price |
OAW
(Overall
Sys.
Width) |
S
(Crane
Girder
Span) |
CC |
Lift |
E |
L
(Runway
Length
per Cell) |
L1
(Center
Support
Dist.) |
L2
(Center
Support Dist.
Outer Cells) |
|
|
2 |
20' |
16'-10" |
18'-10" |
17'-0.75" |
6.375 |
80' |
20' |
19' |
$87,243.00
|
|
|
100' |
25' |
24' |
$95,716.00
|
|
|
120' |
30' |
29' |
$105,332.00
|
|
|
30' |
26'-10" |
28'-10" |
16'-11.25" |
6.375 |
80' |
20' |
19' |
$91,088.00
|
|
|
100' |
25' |
24' |
$100,373.00
|
|
|
120' |
30' |
29' |
$109,177.00
|
|
|
40' |
36'-10" |
38'-10" |
16'-9.5" |
6.375 |
80' |
20' |
19' |
$96,562.00
|
|
|
100' |
25' |
24' |
$105,847.00
|
|
|
120' |
30' |
29' |
$117,094.00
|
|
|
3 |
20' |
16'-8" |
18'-8" |
16'-3.25" |
8 |
80' |
20' |
19' |
$93,749.00
|
|
|
100' |
25' |
24' |
$102,385.00
|
|
|
120' |
30' |
29' |
$114,281.00
|
|
|
30' |
26'-8" |
28'-8" |
16'-1.5" |
8 |
80' |
20' |
19' |
$98,289.00
|
|
|
100' |
25' |
24' |
$108,147.00
|
|
|
120' |
30' |
29' |
$120,286.00
|
|
|
40' |
36'-8" |
38'-8" |
15'-9" |
8 |
80' |
20' |
19' |
$106,139.00
|
|
|
100' |
25' |
24' |
$115,997.00
|
|
|
120' |
30' |
29' |
$128,136.00
|
|
|
5 |
20' |
16'-6" |
18'-6" |
16'-0.75" |
10 |
80' |
20' |
19' |
$104,527.00
|
|
|
100' |
25' |
24' |
$116,800.00
|
|
|
120' |
30' |
29' |
$131,736.00
|
|
|
30' |
26'-6" |
28'-6" |
15'-8.5" |
10 |
80' |
20' |
19' |
$110,103.00
|
|
|
100' |
25' |
24' |
$125,659.00
|
|
|
120' |
30' |
29' |
$137,310.00
|
|
|
40' |
36'-6" |
38'-6" |
15'-6.5" |
10 |
80' |
20' |
19' |
$117,596.00
|
|
|
100' |
25' |
24' |
$133,152.00
|
|
|
120' |
30' |
29' |
$144,803.00
|
|
|
7.5 |
20' |
16'-6" |
18'-6" |
15'-11" |
10 |
80' |
20' |
19' |
$113,301.00
|
|
|
100' |
25' |
24' |
$126,254.00
|
|
|
120' |
30' |
29' |
$142,791.00
|
|
|
30' |
26'-6" |
28'-6" |
15'-8" |
10 |
80' |
20' |
19' |
$121,268.00
|
|
|
100' |
25' |
24' |
$134,220.00
|
|
|
120' |
30' |
29' |
$150,754.00
|
|
|
40' |
36'-6" |
38'-6" |
15'-6.5" |
10 |
80' |
20' |
19' |
$131,996.00
|
|
|
100' |
25' |
24' |
$147,391.00
|
|
|
120' |
30' |
29' |
$160,993.00
|
|
|
10 |
20' |
16'-6" |
18'-6" |
15'-2.5" |
10 |
80' |
20' |
19' |
$133,547.00
|
|
|
100' |
25' |
24' |
$144,706.00
|
|
|
120' |
30' |
29' |
$164,660.00
|
|
|
30' |
26'-6" |
28'-6" |
15' |
10 |
80' |
20' |
19' |
$139,701.00
|
|
|
100' |
25' |
24' |
$150,860.00
|
|
|
120' |
30' |
29' |
$170,816.00
|
|
|
40' |
36'-6" |
38'-6" |
14'-7.5" |
10 |
80' |
20' |
19' |
$150,001.00
|
|
|
100' |
25' |
24' |
$161,144.00
|
|
|
120' |
30' |
29' |
$179,634.00
|
|
| *Same
for all capacities and widths. |
|
|
Bridge Cranes,
Cranes, Free Standing Bridge Cranes, Overhead Bridge Cranes,
Hoist, Top Running Bridge Cranes, Overhead Bridge
Crane and Hoist, and Under Running Crane from your source
for material handling equipment.
|
|
6 to 1 Hoist/Speed Ratio - two speeds for precise and
efficient
