Transfers
and turns material smoothly and easily in ANY direction. Available
to fit ALL
common conveyor shaft shapes and sizes.
Standard
Features
Description
•
Offers unprecedented flexibility in moving packages or
products in any direction.
• Modular design provides maximum build flexibility and
customization for any formation and application.
• No maintenance and lubrication required - ever.
• Each individual roller element, as well as the main core,
is made of corrosion resistant polyacetal plastic.
• Lightweight, plastic construction with stainless steel
axles.
• Plastic, no-bearing rollers prevent damaging, scoffing
or
marring of transferred material.
• Suitable for wet environments including submersion
applications.
• Open construction which does not accumulate dirt or
debris and prevents lock-up problems.
• Wide roller contact surface distributes the load therefore
reducing indentation.
• The multidirectional roller function is optimized in
a paired
duplex configuration, but the simplex roller is a practical
alternative for lighter weight applications.
A
flexible and versatile conveyor roller that allows you
to move, transfer and turn material smoothly and easily
in ANY direction. The unique Ergo Roll design uses
four free turning barrel shaped rollers mounted in a 90°
staggered pattern around the perimeter of a main core
wheel, allowing a multidirectional roller function.
Application
With
unlimited applications, the modular roll design fits all
conveyor transfer areas.
Ergonomic
Benefit
•
Eliminate employee strain, fatigue and injury.
• Create a safer and more productive work environment.
Technical
Application
Model
No.
Dia.
(D)
Bore
Size
(E)
Typical
Axle
Size
Application
Width
(F)
Unit
Weight
(oz)
Load
Cap.
(lb.)
Simplex
Roller
ER190S-14RG
1.9"
0.26"
1/4"
Round
Gravity
0.65"
0.8
12.5
ER200S-14RG
2.0"
0.26"
1/4"
Round
Gravity
0.65"
0.8
12.5

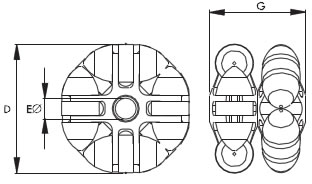

Model
No.
Dia.
(D)
Bore
Size
(E)
Typical
Axle Size
Application
Width
(G)
Unit
Wgt.
(oz)
Load
Cap.
(lb.)
Duplex
Roller
ER190D-14RG
1.9"
0.26"
1/4"
Round
Gravity
1.3"
1.7
25
ER190D-516RG
1.9"
0.327"
5/16"
Round
Gravity
1.3"
1.7
25
ER190D-516RD
1.9"
0.327"
5/16"
Round
Driven
1.3"
1.7
25
ER190D-12RG
1.9"
0.544"
1/2"
Round
Gravity
1.3"
1.7
25
ER190D-12RD
1.9"
0.544"
1/2"
Round
Driven
1.3"
1.7
25
ER190D-716HG
1.9"
0.443"
7/16"
Hex
Gravity
1.3"
1.7
25
ER190D-716HD
1.9"
0.443"
7/16"
Hex
Driven
1.3"
1.7
25
ER200D-14RG
2.0"
0.26"
1/4"
Round
Gravity
1.3"
1.7
25
ER200D-516RG
2.0"
0.327"
5/16"
Round
Gravity
1.3"
1.7
25
ER200D-516RD
2.0"
0.327"
5/16"
Round
Driven
1.3"
1.7
25
ER200D-12RG
2.0"
0.544"
1/2"
Round
Gravity
1.3"
1.7
25
ER200D-12RD
2.0"
0.544"
1/2"
Round
Driven
1.3"
1.7
25
ER200D-716HG
2.0"
0.443"
7/16"
Hex
Gravity
1.3"
1.7
25
ER200D-716HD
2.0"
0.443"
7/16"
Hex
Driven
1.3"
1.7
25
