NestaFlex®

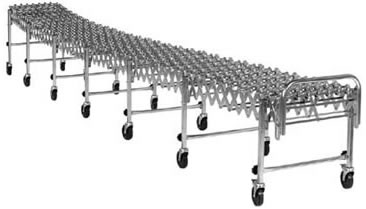

226 Gravity Skate Wheel Conveyor
|
|
|
 |
|
|
Designed
to expand, contract and move easily, the NestaFlex 226 is a
self
tracking, gravity skate wheel conveyor that has a per linear
foot capacity
of 226 pounds. This unit is engineered to handle multi-sized
cartons in
low to medium volume applications. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
The
all-steel construction provides unmatched structural integrity,
whether
the conveyor is extended, compacted or configured in simple
or
compound curves. Adjustable inner legs vary height to achieve
gravity
flow. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
The
NestaFlex 226 is the choice for use in retail store level applications,
packaging areas, assembly lines and in low volume shipping and
receiving departments. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Features
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
•
Load capacity 226 lbs/ft
• 5.25" axle centers
• 20" – 52" adjustable conveyor
heights using hand knobs to raise
or lower the legs
• Heavy duty steel square tubing
zinc plated legs offer longer
service life and stability
• Welded horizontal leg brace
• Heavy duty 5" x 1.5" casters for
easy movement, along with 2 total
lock brake casters on each end,
stabilize the conveyor while in use
• 5/16" diameter axle across width |
•
11 gauge steel side links
assembled using steel pin and
retaining ring
• Self-tracking design allows
packages to follow the path
of the conveyor without using
guards
• Couplers easily connect multiple
conveyors to span greater lengths
for continuous package flow
• Heavy duty retractable package
stop prevents packages from
falling off the end of the
conveyor and can be retracted
when not needed |
|
|
|
|
|
|
|
|
|
Skate
Wheel Types
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
Black
Polymer |
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Details
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
FLEXIBILITY
Able to bend and twist as needed to go around
obstacles. Conveyors can curve up to 180º. |
|
|
Red
Nylon |
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
SELF
TRACKING
Cartons will follow the twists and turns of the
conveyor path without using engineered curves. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
EXPANDABILITY
Designed to expand and contract as needed to
help with the loading and unloading process and
minimize storage footprint. |
|
| Zinc
Plated |
|
|
|
|
|
|
|
|
|
|
NestaFlex
226 come standard with
black high density polymer skate wheels
with steel ball. They are lighter than zinc
plated wheels, and increase the speed
of package conveyance, making these
excellent for packaging machines and
light parcel applications. |
|
|
|
|
|
|
|
|
|
|
|
|
|
SKATE
WHEELS
Standard with black high density polymer skate
wheels with steel ball increases the speed of
package conveyance. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ACCESSORIES
/ OPTIONS
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Additional
brake casters
Additional set of couplers
Curve Guards
Swing Stick
T-Junction |
|
|
|
|
Zinc
plated skate wheels with steel ball bearings
and polymer skate wheels with nylon bushings
are also available. The zinc plated skate wheels
provide maximum durability, while the nylon
bushiness skate wheels provide the most
economical option. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
 |
|
|
|
 |
|
|
|
|
|
|
|
Zinc
Plated, heavy-duty
leg supports 1.25" square
steel tubing with a double welded cross brace.
|
|
Two
total lock brake
casters on each end help
stabilize the conveyor
while in use.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
Connection
couplers allow easy connection between multiple
conveyor sections for continuous package flow. This allows
for conveyors to be disconnected when retracting or storing.
|
|
|
|
|
|
 |
| Connection
Couplers |
|
|
|
|
|
|
|
Axle
centers are measured from centerline to
centerline of skate wheels, and ensure that materials
remain securely on the conveyor while maintaining
efficient flow. Proper axle centers are determined
by the smallest item that will be conveyed. The
industry standard is three rollers (rows of skate
wheels) should be under a carton at all times. |
|
|
|
|
|
|
|
|
Axle
Centers |
|
 |
Package
Stop
The retractable package stop will keep cartons
from going into the floor if the product flow is
faster than the operators ability to load/unload. |
|
Heavy
Duty Impact Cart
The optional heavy duty impact cart assist in
extending the live of the conveyor in unloading
applications. |
Click the button of the item you wish to purchase. Contact us for special lengths
|
Nestaflex®
226 Gravity Skate Wheel Conveyor Prices
|
|
Model
No.
|
Skate
Wheels
Per Axle
|
Contracted
-
Extended
|
Leg
Sets
|
Bed
Sections
|
Ship
Weight
(lbs.)
|
Price
(Skate Wheel + Bearing)
|
|
All
Steel
|
Black
Poly
+ Steel
|
Red
Poly
+ Nylon
|
|
14"
Width
|
|
22614008
|
6
|
2'4"
- 8'11"
|
3
|
2
|
130
|
|
|
|
|
22614012
|
6
|
3'3"
- 12'10"
|
4
|
3
|
165
|
|
|
|
|
22614016
|
6
|
4'3"
- 16'9"
|
5
|
4
|
210
|
|
|
|
|
22614020
|
6
|
5'2"
- 20'9"
|
6
|
5
|
245
|
|
|
|
|
22614024
|
6
|
6'2"
- 24'8"
|
7
|
6
|
280
|
|
|
|
|
22614028
|
6
|
7'1"
- 28'7"
|
8
|
7
|
350
|
|
|
|
|
22614032
|
6
|
8'1"-32'6"
|
9
|
8
|
385
|
|
|
|
|
22614036
|
6
|
9'0"
- 36'6"
|
10
|
9
|
430
|
|
|
|
|
22614040
|
6
|
10'0"
- 40'5"
|
11
|
10
|
465
|
|
|
|
|
18"
Width
|
|
22618008
|
6
|
2'4"
- 8'11"
|
3
|
2
|
150
|
|
|
|
|
22618012
|
6
|
3'
3" - 12' 10"
|
4
|
3
|
195
|
|
|
|
|
22618016
|
6
|
4'
3" - 16' 9"
|
5
|
4
|
250
|
|
|
|
|
22618020
|
6
|
5'
2" - 20' 9"
|
6
|
5
|
315
|
|
|
|
|
22618024
|
6
|
6'
2" - 24' 8"
|
7
|
6
|
335
|
|
|
|
|
22618028
|
6
|
7'1"
- 28'7"
|
8
|
7
|
415
|
|
|
|
|
22618032
|
6
|
8'1"
- 32'6"
|
9
|
8
|
455
|
|
|
|
|
22618036
|
6
|
9'0"
- 36'6"
|
10
|
9
|
500
|
|
|
|
|
22618040
|
6
|
10'0"
- 40'5"
|
11
|
10
|
555
|
|
|
|
|
22618044
|
6
|
10'11"
- 44'4"
|
12
|
11
|
595
|
|
|
|
|
22618048
|
6
|
11'11"
- 48'3"
|
13
|
12
|
660
|
|
|
|
|
22618052
|
6
|
12'10"
- 52'3"
|
14
|
13
|
720
|
|
|
|
|
22618056
|
6
|
13'10"
- 56'2"
|
15
|
14
|
760
|
|
|
|
|
22618060
|
6
|
14'9"
- 60'1"
|
16
|
15
|
800
|
|
|
|
|
24"
Width
|
|
22624008
|
8
|
2'4"
- 8'11"
|
3
|
2
|
175
|
|
|
|
|
22624012
|
8
|
3'
3" - 12' 10"
|
4
|
3
|
230
|
|
|
|
|
22624016
|
8
|
4'
3" - 16' 9"
|
5
|
4
|
295
|
|
|
|
|
22624020
|
8
|
5'
2" - 20' 9"
|
6
|
5
|
350
|
|
|
|
|
22624024
|
8
|
6'
2" - 24' 8"
|
7
|
6
|
400
|
|
|
|
|
22624028
|
8
|
7'1"
- 28'7"
|
8
|
7
|
495
|
|
|
|
|
22624032
|
8
|
8'1"
- 32'6"
|
9
|
8
|
545
|
|
|
|
|
22624036
|
8
|
9'0"
- 36'6"
|
10
|
9
|
595
|
|
|
|
|
22624040
|
8
|
10'0"
- 40'5"
|
11
|
10
|
665
|
|
|
|
|
22624044
|
8
|
10'11"
- 44'4"
|
12
|
11
|
715
|
|
|
|
|
22624048
|
8
|
11'11"
- 48'3"
|
13
|
12
|
790
|
|
|
|
|
22624052
|
8
|
12'10"
- 52'3"
|
14
|
13
|
860
|
|
|
|
|
22624056
|
8
|
13'10"
- 56-2"
|
15
|
14
|
910
|
|
|
|
|
22624060
|
8
|
14'9"
- 60'1"
|
16
|
15
|
965
|
|
|
|
|
| Estimated
weight based on Poly/Nylon. For Steel Add 1.25 x weight shown.
|
|
|
Nestaflex®
226 Gravity Skate Wheel Conveyor Accessories
|
|
|
|
|
|
|
|
|
|
|
|
T-Junction
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
Provides
a section of conveyor with multi-directional skate wheels that
helps the
operator to manually sort packages by changing the direction
of package flow while
keeping the flexibility of the conveyors. It is designed to
connect with flexible gravity
and power conveyors using couplers. It can also be used with
three or four
conveyors. Using three conveyors requires the T-Junction to
have a backstop to
assist the operator with choosing the direction of package flow.
Without the back-
stop, four conveyors can be attached allowing package to flow
in any direction the
operator chooses. |
|
|
|
|
|
|
|
Curve
Guards
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
Curve
Guards help guide packages under accumulation circumstances
when packages
of varying sizes and shapes begin to build up causing a potential
risk of packages being
pushed off the conveyor around the curve. It protects packages
from falling by creating
a solid surface for them to follow. It has a flexible design
to allow them to open and
close with the flex of the conveyor. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Swing
Stick Extension
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
The
Swing Stick Extension bridges the gap between the flexible conveyors
at ground
level up to the bed of the trailer for unloading without a dock. |
|
|
|
|
|
|
Nestaflex®
226 Gravity Skate Wheel Conveyor Accessories
|
|
Model
No.
|
Description
|
Price
|
|
TJunction226
|
Stand
alone unit w/bilateral skatewheels for perpendicular
transfer
of packages from one conveyor to another. 5" casters.
|
Contact
Us
|
|
Curve
Guards
|
Per
bed section, per side.
|
Contact
Us
|
|
60"L x 18"W Swing Stick Extensions
|
|
STK185.ON
|
6
red poly skate wheels per axle and 1 coupler hook
|
Contact
Us
|
|
STK185.OS
|
6 steel skate wheels per axle and 1 coupler hook
|
Contact
Us
|
|
60"L x 24"W Swing Stick Extensions
|
|
STK245.ON
|
9
red poly skate wheels per axle and 1 coupler hook
|
Contact
Us
|
|
STK245.OS
|
9
steel skate wheels per axle and 1 coupler hook
|
Contact
Us
|
|
|
