MODEL 26-CRR
|
|
CHAIN DRIVEN LIVE ROLLER CONVEYOR
(Roll-to-Roll Type)
|
 |
|
|
|
The heavy design of the 26-CRR
allows it to be used for conveying
higher load capacities such as loaded
pallets and drums. Chain driven rollers
make it ideal for conveying oily parts
in bottling and steel industries. |
|
|
|
• 15 Bed Widths
• Center Drive
• Reversible
• Chain Driven Rollers
• Adjustable HSN-Type Floor Supports
Available |
|
|
|
 |
|
|
|
|

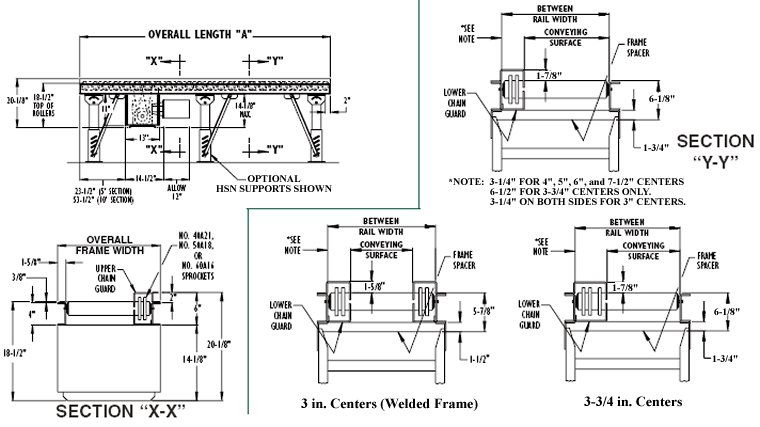

STANDARD SPECIFICATIONS
|
|
BED - with No. 40 roller chain; 5 in. with No. 50 roller
chain. No. 60 roller chain used on 3 in., 3-3/4 in., 6 in.,
and 7-1/2 in. roller centers only. Tread rollers mounted
in 4 in. x 4 ga. powder painted formed steel channel on
side opposite chain guard and 6 in. x 4 ga. powder
painted formed steel channel on chain guard side.
NOTE: 3 in. roller center tread rollers mounted in 4 in.
channel each side. |
BEARINGS–Sealed, pre-lubricated ball bearings. |
|
|
|
SPEED REDUCTION–Sealed worm gear C-Face
speed reducer. |
|
|
|
MOTOR–1 HP–208/230/460/575V–3 Ph. 60 Hz.
Totally Enclosed C-Face. |
|
|
|
| CONVEYING SPEED–Constant 30 FPM. |
|
|
|
CAPACITY–Maximum load per linear foot of conveyor
300 lbs. with supports on 10 ft. centers, 1000 lbs. with
supports on 5 ft. centers. Contact us for capacity of
No. 40 chain, 4 in. roller centers. NOT TO EXCEED
CAPACITY IN CHART. |
|
|
|
CENTER DRIVE- Can be placed in any section of
conveyor length, specify. Chain guard located on left
hand side. |
|
|
|
| DRIVE CHAIN–No. 40, 50 or 60 roller chain. |
|
|
|
|
FLOOR SUPPORTS–Now supplied as optional
equipment. |
|
CHAIN GUARD–Formed steel, upper and lower
chain guard mounted to top and bottom of channel
frame to totally enclose drive chains. |
|
|
|
|
|
|
|
 |
|
|
|
|
|
LOAD CAPACITY CHART @ 30 FPM
|
|
HP
|
TOTAL LOAD (LBS.)
|
|
UP TO 50'
|
UP TO 100'
|
|
1
|
9000
|
6000
|
|
2
|
22000
|
18000
|
|
|
|
NOTE: Capacities are calculated on 5" Roller Centers with
#50 Chain. |
|
|
|
|
|
|
OPTIONAL EQUIPMENT
|
|
FLOOR SUPPORTS–HSN Type floor supports are
available with a wide range of adjustment. Specify top or
roller elevation. One support required at every bed joint
and ends of conveyor. Holes in feet for lagging to floor.
Knee braces recommended above HSN-3 support. |
CHANNEL END STOP–6" x 8.2 lb. structural channel
end stop. |
|
|
|
ROLLERS SET LOW–Tread rollers mounted in 6 in.
x 4 ga. formed steel channel frame to form 1-5/8 in. high
guard rails. Also available in 5 in. x 6.7 lbs. structural
channel frame (welded). Specify. |
|
|
|
CONVEYING SPEED–Other constant and variable
speeds. V-belt supplied on speeds under 12 FPM (1 HP).
NOTE: Capacity affected with speed change. |
|
|
|
CHAIN CROSSOVER–Separate 3-roller section
moves driving chain from one side of conveyor to other.
Offset-style adds 12 in. to OAL of conveyor with No.
40 chain, 15 in. with No. 50 chain & 18 in. with No.60
chain. |
|
|
|
TOP SIDE MOUNTED DRIVE–Motor reducer unit
mounted to side of conveyor with drive chain through top
of chain guard. Specify clearances. Minimum elevation top
of rollers 6 in. |
|
|
|
TRANSFERS–Chain transfers available. See Acces-
sory section. |
|
|
|
V-BELT DRIVE–V-belt supplied between motor and
reducer. |
|
|
|
MOTORS–Energy efficient, single phase, brake motor,
other characteristics. 2 HP maximum. |
|
|
|
O-RING DRIVE CHAIN–With sealed in lubricant
(Recommended for applications that do not permit regular
lubrication). |
|
|
|
ELECTRICAL CONTROLS–Non-reversing
magnetic starter – pushbutton stations. AC variable
frequency drive. |
|
|
|
| FRAMES–4 in. x 5.4 lb. structural channel. |
|
|
|
|
|
|
GUARD RAILS–Fixed angle (2 in. high x 1/4 in. steel)
guard bolts to top flange of channel opposite chain guard. |
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
| PRICES FOR COMPLETE CONVEYOR INCLUDE: |
• 2-5/8" Dia. x 7 Ga. Roller Mounted in a 4" x 4 Ga. Formed Channel Frame
• No. 40 *, No. 50, or No. 60 Roller Chain
• "C" Face Speed Reducer—Sealed Worm Gear
• 1 HP–"C" Face Totally Enclosed Motor (Specify Exact Voltage)
• Totally Enclosed Chain Guard
• 30 FPM Conveying Speed
• Less Electrical Controls
• Less Supports |
|
|
4 in., 5 in., 6 in. and 7-1/2 in. Roller Centers
|
| Conveying Surface |
15-3/4" |
17-3/4" |
19-3/4" |
21-3/4" |
23-3/4" |
27-3/4" |
29-3/4" |
33-3/4" |
35-3/4" |
39-3/4" |
43-3/4" |
47-3/4" |
51-3/4" |
57-3/4" |
63-3/4" |
| Between Rail Width |
19" |
21" |
23" |
25" |
27" |
31" |
33" |
37" |
39" |
43" |
47" |
51" |
55" |
61" |
67" |
| Overall Frame Width |
22-1/4" |
24-1/4" |
26-1/4" |
28-1/4 |
30-1/4" |
34-1/4" |
36-1/4" |
40-1/4" |
42-1/4 |
46-1/4" |
50-1/4" |
54-1/4" |
58-1/4" |
64-1/4" |
70-1/4" |
*4" Centers 10' Length-
O.A. Per Foot |
No. 40 Chain |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
5" Centers 10' Length-
OA Per Foot |
No. 50 Chain |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
6" Centers 10' Length-
OA Per Foot |
No. 60 Chain |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
7-1/2" Centers 10' Length-
OA Per Foot |
No. 60 Chain |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 3 in Roller Centers |
| Conveying Surface |
15-3/4" |
17-3/4" |
19-3/4" |
21-3/4" |
23-3/4" |
27-3/4" |
29-3/4" |
33-3/4" |
35-3/4" |
39-3/4" |
43-3/4" |
47-3/4" |
51-3/4" |
57-3/4" |
63-3/4" |
| Between Rail Width |
22-1/4" |
24-1/4" |
26-1/4" |
28-1/4" |
30-1/4" |
34-1/4" |
36-1/4" |
40-1/4" |
42-1/4" |
46-1/4" |
50-1/4" |
54-1/4" |
58-1/4" |
64-1/4" |
70-1/4" |
| Overall Frame Width |
25-1/2" |
27-1/2" |
29-1/2" |
31-1/2" |
33-1/2" |
37-1/2" |
39-1/2" |
43-1/2" |
45-1/2" |
49-1/2" |
53-1/2" |
57-1/2" |
61-1/2" |
67-1/2" |
73-1/2" |
3" Centers 10' Length-
OA Per Foot |
No. 60 Chain |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 3 3/4 in Roller Centers |
| Conveying Surface |
15-3/4" |
17-3/4" |
19-3/4" |
21-3/4" |
23-3/4" |
27-3/4" |
29-3/4" |
33-3/4" |
35-3/4" |
39-3/4" |
43-3/4" |
47-3/4" |
51-3/4" |
57-3/4" |
63-3/4" |
| Between Rail Width |
22" |
24" |
26" |
28" |
30" |
34" |
36" |
40" |
42" |
46" |
50" |
54" |
58" |
64" |
70" |
| Overall Frame Width |
25-1/4" |
27-1/4" |
29-1/4" |
31-1/4" |
33-1/4" |
37-1/4" |
39-1/4" |
43-1/4" |
45-1/4" |
49-1/4" |
53-1/4" |
57-1/4" |
61-1/4" |
67-1/4" |
73-1/4" |
3 3/4" Centers 10' Length
OA Per Foot |
No. 60 Chain |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| *No. 40 Chain reduces total conveyor capacity. |
| IMPORTANT NOTES |
|
• OTHER LENGTHS
For longer or shorter than 10’ Overall Length, add or deduct PER FOOT from 10’ price. NO DEDUCT for unit
less than 5’.
• OTHER WIDTHS
For "IN-BETWEEN WIDTHS", use next width plus 10%. For widths up to 74-1/4" OAW, interpolate plus 10%.
For widths over 74-1/4" OAW, contact us for lead time.
• INTERMEDIATE BEDS
Use per foot price of width x required length, supports not included.
• FLOOR SUPPORTS
Floor Supports are not included in base price. There are two (2) stationary floor supports required for the first
bed section and one (1) support required per bed section thereafter.
• NON-STANDARD WIDTHS
Contact us for lead time.
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
| PRICES FOR OPTIONAL EQUIPMENT |
|
MOTORS
|
Extra Motor Price for OTHER THAN: 1 HP-208/230/460/575 V-3 Ph.-60 Hz.-Totally Enclosed. Speed affects
horsepower requirements. |
|
|
H.P. REQ.
|
TOTALLY ENCLOSED
|
ENERGY EFFICIENT
|
|
200/208/230/460/575V 3Ph-60Hz.
|
115/230V 1Ph-60Hz
|
|
1
|
N/C
|
|
|
2
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| FLOOR SUPPORTS |
|
|
|
DRIVE COMPONENT DEDUCTS |
Not Included in Base Price. Use Chart Below for
Required Elevation. |
|
|
|
Less Complete Motor Drive and Drive Shell (For |
|
|
|
Slave Driving) ........... Deduct.................... |
$982.00 |
|
| Model No. |
Adjustment to
Top of Roller |
Price Up to
73 1/4" OAW |
Price Above
74 1/4" OAW |
| HSN-1** |
10-1/2" to 12" |
|
|
| HSN-2** |
12" to 15" |
|
|
| HSN-3** |
15" to 18" |
|
|
| HSN-4* |
18" to 21" |
|
|
| HSN-5* |
21" to 24" |
|
|
| HSN-6* |
24" to 30" |
|
|
| HSN-7* |
30" to 36" |
|
|
| HSN-8* |
36" to 48" |
|
|
| HSN-9* |
48" to 60" |
|
|
| HSN-10* |
60" to 72" |
|
|
| HSN-11* |
72" to 84" |
|
|
| HSN-12* |
84" to 96" |
|
|
|
|
|
|
Less Motor Only (1 HP-208/230/460/575 V-3 |
|
|
|
|
Ph.-60 Hz.) ............... Deduct .................. |
$282.90 |
|
|
|
|
Less Reducer* (4A or 4AC) Deduct ........ |
$307.40 |
|
|
|
|
*Less V-Belt Guard, Chain Guard, sheaves and
sprockets when V-Belt drive is supplied. Less
chain guard and sprockets when C-Face drive is
supplied. |
|
|
|
|
|
|
|
|
|
|
|
|
|
GUARD RAILS |
|
|
|
|
Angle Type "A"
2" x 1-5/8" x 1/4" |
|
|
|
|
|
|
Side Opposite Chain Guard ... per foot ..... |
|
$12.10
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
CONSTANT AND VARIABLE SPEEDS |
|
|
|
Constant C-Face–Within 13-100 FPM .No Charge
Constant V-Belt–Within 4-12 FPM .....................
............................... Use V-Belt Drive Add-on |
|
| * Knee Braces (Included in support price) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Extra Braces ......Add per pair ................... |
$77.20
|
|
|
|
|
|
|
|
|
|
|
|
|
|
OPTIONAL FRAME |
|
**Less than 18-1/2" top of roller elevation–
Top Side Mounted Drive Required. |
|
|
|
|
|
6" x 1-5/8" x 4 Ga. Formed Channel Set Low ..... |
|
|
............................... add on per foot ........ |
$6.00
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
4" x 5.4 lbs. Structural Channel ........................ |
|
|
OPTIONAL DRIVE |
|
|
|
|
|
............................... add on per foot ........ |
$14.40
|
|
Drive
Type |
Overall Frame Width |
22-1/4" to
34-1/4" |
36-1/4"
to 54-1/4"
|
58-1/4"
to 70-1/4"
|
Top Side
Mounted C-Face |
|
|
|
Top Side
Mounted V-Belt |
|
|
|
|
|
|
|
|
5" x 6.7 lbs. Structural Channel Set Low ............. |
|
|
|
|
............................... add on per foot ........ |
$18.40
|
|
|
6" x 8.2 lbs. Structural Channel Set Low ............. |
|
|
|
............................... add on per foot ........ |
$34.60
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
HEAVY DUTY END STOP (SET HIGH ONLY) |
|
|
|
6" x 8.2 lbs. structural channel |
|
|
|
|
|
|
|
|
|
#50 O-Ring Drive Chain ......... Add ......... |
$301.40
|
|
19" - 43" BR ............................................ |
$106.20
|
|
|
#60 O-Ring Drive Chain ......... Add ......... |
$430.40
|
|
|
45" - 67" BR ............................................ |
$155.20
|
|
|
Under 5’ -0" OAL use Top Side Mounted or V-Belt Drive. |
|
|
|
|
|
|
|
|
|
|
V-Belt Drive. 3'-0" and under use V-Belt Drive ONLY. |
|
|
HEAVY DUTY END STOP (SET LOW ONLY) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
7" x 9.8 lbs. structural channel |
|
ELECTRICAL CONTROLS |
|
|
|
|
|
19" - 43" BR ............................................ |
$155.30
|
|
See below. |
|
|
|
45" - 67" BR ............................................ |
$236.10
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GALVANIZING |
|
|
CHAIN CROSSOVER |
|
|
|
|
|
|
|
|
| Contact us. |
|
|
Off-Set Style "C" or "D" .......................... |
$1,076.40
|
|
|
|
|
|
 |
|
| OPTIONAL ROLLERS |
|
|
|
|
Use the following Add-on prices for optional
roller centers and bearings. |
|
|
|
|
|
|
|
|
|
|
| Regreasable Bearings with Grease Fittings |
|
|
|
|
| 3" Roller Centers ....... Add-on per foot ... |
$175.70
|
|
|
|
|
| 3-3/4" Roller Centers .. Add-on per foot .. |
$140.50
|
|
|
|
|
| 4" Roller Centers ....... Add-on per foot .... |
$131.80
|
|
|
|
|
| 5" Roller Centers ....... Add-on per foot .... |
$105.40
|
|
|
|
|
| 6" Roller Centers ....... Add-on per foot .... |
$88.00
|
|
|
|
|
| 7-1/2" Roller Centers .. Add-on per foot ... |
$70.30
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ANGLE END STOP |
|
|
|
2" x 2" x 4 Ga. |
|
|
|
|
19" - 23" BR ........................................... |
|
|
|
|
$45.20
|
|
|
|
25" - 39" BR ............................................ |
$59.40
|
|
|
|
43" - 67" BR ............................................ |
$87.90
|
|
| 2-5/8" x .219 Wall with 013.1059 Heavy Duty Bearings |
| Conveying Surface |
15-3/4" |
17-3/4" |
19-3/4" |
21-3/4" |
23-3/4" |
27-3/4" |
29-3/4" |
33-3/4" |
35-3/4" |
39-3/4" |
43-3/4" |
47-3/4" |
51-3/4" |
57-3/4" |
63-3/4" |
| 3" Centers Add on Per Foot |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 3-3/4" Centers Add on Per Foot |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 4" Centers Add on Per Foot |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 5" Centers Add on Per Foot |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 6" Centers Add on Per Foot |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 7-1/2" Centers Add on Per Foot |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
| ELECTRICAL CONTROLS AND DRIVE SECTION |
|
|
|
|
MANUAL START SWITCH or
SAFETY DISCONNECT
|
|
 |
|
|
|
LIMIT SWITCH, SINGLE POLE,
WITH NYLON ROLLER LEVER |
 |
|
|
|
|
| #032.1014......................................... |
$225.79
|
|
|
|
|
#033.2032 & #033.2072..................$589.01
Nema 4 |
"START-STOP", Nema 1, One direction, 30
AMP, 3 Pole (Single or 3 phase) |
|
|
|
|
|
|
|
|
LIMIT SWITCH, DOUBLE POLE,
WITH NYLON ROLLER LEVER |
|
 |
|
|
|
|
|
|
|
|
|
#033.2033& #033.2072...................$352.04
Nema 4 |
|
REVERSING DRUM SWITCH |
|
|
|
|
|
|
#032.103.......................................... |
$905.51
|
|
|
|
 |
|
|
|
|
|
|
|
|
"Fwd-Stop-Rev", Nema 1, for 1-1/2 HP at
115 volts or 2 HP at 230 volts single phase,
or 2 HP max. three phase |
|
|
|
|
|
 |
PROXIMITY SWITCH, INDUCTIVE,
(METAL SENSING) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
#032.210.........................................$217.67
115 Volt AC, two wire with ground, 30mm dia.,
10mm range
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
FOOT SWITCH WITH GUARD |
|
|
|
|
|
|
|
|
|
|
#032.211.........................................$257.68
24 Volt DC, two wire with ground, 30mm dia.,
10mm range |
|
#032.200........................................... $286.50
(Constant Pressure) "On-Off" type, Nema 1,
Pilot Control or 1 HP max. single phase. |
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
PHOTO EYE, ON-OFF TYPE |
 |
|
|
|
|
|
|
|
#EA-000005......................................$1,122.83
Banner Q45 Retro Reflective Photo Eye Kit
with timing module, reflector and mounting
brackets. Photo Eye output is one form C
type relay, Operating voltage
24-250VAC/12-250VDC |
|
POWER CORD AND PLUG (20') |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
POWER CORD WITH PLUG ONLY 20' LONG
|
|
Model No.
|
Voltage
|
HP Rating
|
Prices
|
|
EA-039-1A
|
115/1
|
1/2-3/4
|
|
|
EA-039-2A
|
115/1
|
1
|
|
|
EA-039-3A
|
115/1
|
1 1/2
|
|
|
EA-039-4A
|
230/1
|
1/2-1
|
|
|
EA-039-5A
|
230/1
|
1 1/2-2
|
|
|
EA-039-6A
|
208-230/3
|
1/2-2
|
|
|
EA-039-7A
|
460/3
|
1/2-2
|
|
|
|
|
POWER CORD WITH PLUG 20' LONG WITH MANUAL START SWITCH AND MOUNTING BRACKET
|
|
Model No.
|
Voltage
|
HP Rating
|
Prices
|
|
EA-039-1B
|
115/1
|
1/2-3/4
|
|
|
EA-039-2B
|
115/1
|
1
|
|
|
EA-039-3B
|
115/1
|
1 1/2
|
|
|
EA-039-4B
|
230/1
|
1/2-1
|
|
|
EA-039-5B
|
230/1
|
1 1/2-2
|
|
|
EA-039-6B
|
208-230/3
|
1/2-2
|
|
|
EA-039-7B
|
460/3
|
1/2-2
|
|
|
|
|
|
|
|
|
|
|
|
|
MOUNTING BRACKETS FOR PHOTO
EYE #033.2122 |
|
|
|
|
B-05165...........................................$125.19
|
|
|
|
|
|
|
|
|
|
|
|
 |
AIR PRESSURE SWITCH |
|
#094.191........................................$732.79
Nema 4 |
|
|
|
|
|
|
|
|
|
|
EMERG. STOP PULL CORD SWITCH |
|
|
|
|
|
#032.285 with 032.2851 Turnbuckle
...........................................................$737.85
Nema 4 |
|
|
|
|
|
"RED" EMERGENCY PULL CORD
CABLE AND MOUNTING HARDWARE |
|
|
|
|
|
#032.281...one side.................$7.88
per / ft.
both sides..............$16.83
per / ft. |
|
|
|
|
|
EMERGENCY PUSH BUTTON |
|
|
|
|
|
#032.284..........................................$296.39
Nema 4 |
|
|
|
|
|
|
|
|
PHOTO EYE, 18MM DIA., DIFFUSED,
(PHOTO PROX.) 115 VOLT, LIGHT
OPERATE, 2-METER CABLE |
|
|
|
|
|
#032.2113 (100mm range, 3.94")....$1,130.24
#032.2116 (200mm range, 7.87")....$205.79
#033.218 (400mm range, 15.74")....$311.09
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
NOTE: PRICING LISTED NOT MOUNTED
OR WIRED |
|
|
|
|
"PHOTO EYE, RETRO-REFLECTIVE,
(POLARIZED) 24 VOLT DC |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
#033.2128 with 032.21122 Cable.....$253.44
#032.21122 (Cable Only)...................$76.71
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
CONTROLLER PRICES
|
|
|
|
|
AC VARIABLE SPEED CONTROLLER ONLY
|
|
SINGLE PHASE CONTROLLER INPUT
|
| Motor Size |
115 Volt |
208/230 Volt |
| 1/2 |
VSC-12-10 |
VSC-12-12 |
| Price |
$1,581.35
|
$1,260.73
|
| 1 |
VSC-12-11 |
VSC-12-13 |
| Price |
$1,827.73
|
|
| 2 |
N/A |
VSC-12-14
|
| Price |
~ |
|
|
THREE PHASE CONTROLLER INPUT
|
| Motor Size |
208/230 Volt |
460 Volt |
575 Volt |
| 1/2 |
VSC-01-15
|
VSC-01-18
|
VSC-12-29
|
| Price |
|
|
|
| 1 |
VSC-01-16
|
VSC-01-19
|
VSC-12-29
|
| Price |
|
|
|
| 2 |
VSC-01-17
|
VSC01--20
|
VSC-12-30
|
| Price |
|
|
|
|
|
REPLACEMENT INVERTER DUTY
ENERGY EFFICIENT MOTORS
|
|
| HP |
Part No. |
Price |
| 1/2 |
032.351 230/460 |
|
| 1 |
032.353 230/460 |
|
| 2 |
032.355 230/460 |
|
| 1/2 |
032.3512 575 |
|
| 1 |
032.3532 575 |
|
| 2 |
032.3552 575 |
|
|
|
|
|
|
|
IMPORTANT NOTES...
|
|
|
• All above motors are 230 / 460 / 575 Volt, 3 Phase.
• All above V/S Drive Kits include NEMA 1 / IP30
Junction Box, Controller and Motor.
• Good for cycle rates of up to 15 cycles per minute, at
1/2 second ramp time, with a maximum speed of 250
FPM.
• Drawing No. DG-001146. |
|
|
|
|
|
OPTIONAL: Mounting and Wiring Add-On . . .
(mounted close to the motor) |
$715.70
|
|
|
|
|
|
|
|
| Brake Relay Kit (EA-068A).............................. |
$575.24
|
|
|
• When AC Variable Speed Controller is used with a
Brake Motor, A Brake Relay Kit (EA-068A) is
required. Add an additional $575.24
for this option.) |
|
|
|
|
|
|
ELECTRONIC CLUTCH BRAKE DRIVE PACKAGE
|
| Part No. |
Description |
Price |
| EA-VSC-01-CB |
2 HP Electronic Clutch-Brake Kit |
$5,361.50
|
|
|
|
|
|
OPTIONAL: Mounting and Wiring Add-on .
(mounted close to the motor) |
$715.70
|
|
|
|
|
|
|
|
KIT INCLUDES
|
|
|
|
| Part No. |
Description |
| VSC-01-20 |
AC Variable Speed Controller, 460 Volt, 3 Phase |
| 032.345 |
2 HP 460 Volt, 3 Phase, C-Face Motor TEBC
(Blower Cooled) With 5AC Reducer and #60 Chain
and Sprockets |
|
|
|
|
|
IMPORTANT NOTES
|
|
• Good for cycle rates of up to 60 cycles per minute.
• 1/10 second Accel and Decel time, with 350 FPM
Maximum Speed.
• 230 or 460 Volt Only, Other Voltages, Contact us.
• Motor Cooling Blower is 115 Volt, 1 Phase, 60 Hz.
• Price Includes 5AC Reducer and #60 Chain and
Sprockets |
| Part No. |
Description |
| VSC-01-17 |
AC Variable Speed Controller, 230 Volt, 3 Phase |
| 032.345 |
2 HP 230 Volt, 3 Phase, C-Face Motor TEBC
(Blower Cooled) With 5AC Reducer and #60 Chain
and Sprockets |
|
|
|
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
| • "Start-Stop" Push-button Station |
|
|
• "Start-Stop"Push-button Station |
| 033.1955 |
$223.91
|
|
|
|
033.195................................................. |
$151.10
|
| Remote mounted, Nema 1 |
|
|
|
To be mounted in Mag Starter Cover |
|
|
|
|
|
|
|
|
|
|
| • "Fwd-Rev-Stop" Push-button Station |
|
|
• "Fwd-Rev-Stop"Push Button Station |
| 033.1965 |
$420.87
|
|
|
|
033.196.................................................. |
$520.41
|
| Remote mounted, Nema 1 |
|
|
|
To be mounted in Mag Starter Cover |
|
|
|
|
|
|
|
|
|
|
| • "Up-Down-Stop" Push-button Station |
|
|
|
| 033.1975 |
$420.87
|
|
|
• Mounting Brackets for photo eye |
| Remote mounted, Nema 1 |
|
|
|
|
|
#033.2122
B-05165 .............................................. |
$125.19
|
|
|
|
|
|
|
|
|
|
| CONVEYOR WEIGHT CHART |
| OAW-4 in., 5 in., 6 in., 7-1/2 in., 10 in. and 12 in. Roller Centers |
| Conveying Surface |
15-3/4" |
17-3/4" |
19-3/4" |
21-3/4" |
23-3/4" |
27-3/4" |
29-3/4" |
33-3/4" |
35-3/4" |
39-3/4" |
43-3/4" |
47-3/4" |
51-3/4" |
57-3/4" |
63-3/4" |
| Between Rail Width |
19" |
21" |
23" |
25" |
27" |
31" |
33" |
37" |
39" |
43" |
47" |
51" |
55" |
61" |
67" |
| Overall Frame Width |
22-1/4" |
24-1/4" |
26-1/4" |
28-1/4 |
30-1/4" |
34-1/4" |
36-1/4" |
40-1/4" |
42-1/4 |
46-1/4" |
50-1/4" |
54-1/4" |
58-1/4" |
64-1/4" |
70-1/4" |
|
*4" Centers 10' Length-
OA Per Foot
|
No. 40
Chain |
808 |
845 |
882 |
919 |
956 |
1030 |
1067 |
1141 |
1178 |
1252 |
1326 |
1400 |
1474 |
1585 |
1696 |
| 73 |
77 |
81 |
85 |
89 |
97 |
101 |
109 |
113 |
121 |
129 |
137 |
145 |
157 |
169 |
|
5" Centers 10' Length-
OA Per Foot
|
No. 50
Chain |
707 |
742 |
777 |
812 |
847 |
917 |
952 |
1022 |
1057 |
1127 |
1197 |
1267 |
1337 |
1442 |
1547 |
| 65 |
69 |
73 |
77 |
81 |
89 |
93 |
101 |
105 |
113 |
121 |
129 |
137 |
149 |
161 |
|
6" Centers 10' Length-
OA Per Foot
|
No. 60
Chain |
639 |
673 |
707 |
741 |
775 |
843 |
877 |
945 |
979 |
1047 |
1115 |
1183 |
1251 |
1353 |
1455 |
| 59 |
62 |
65 |
68 |
71 |
77 |
80 |
86 |
89 |
95 |
101 |
107 |
113 |
122 |
131 |
|
7-1/2" Centers 10' Length-
OA Per Foot
|
No. 60
Chain |
572 |
605 |
638 |
671 |
704 |
770 |
803 |
869 |
902 |
968 |
1034 |
1100 |
1166 |
1265 |
1364 |
| 55 |
59 |
61 |
64 |
67 |
73 |
76 |
82 |
85 |
91 |
97 |
103 |
109 |
118 |
127 |
| OAW-3 in Roller Centers |
| Conveying Surface |
15-3/4" |
17-3/4" |
19-3/4" |
21-3/4" |
23-3/4" |
27-3/4" |
29-3/4" |
33-3/4" |
35-3/4" |
39-3/4" |
43-3/4" |
47-3/4" |
51-3/4" |
57-3/4" |
63-3/4" |
| Between Rail Width |
22-1/4" |
24-1/4" |
26-1/4" |
28-1/4" |
30-1/4" |
34-1/4" |
36-1/4" |
40-1/4" |
42-1/4" |
46-1/4" |
50-1/4" |
54-1/4" |
58-1/4" |
64-1/4" |
70-1/4" |
| Overall Frame Width |
25-1/2" |
27-1/2" |
29-1/2" |
31-1/2" |
33-1/2" |
37-1/2" |
39-1/2" |
43-1/2" |
45-1/2" |
49-1/2" |
53-1/2" |
57-1/2" |
61-1/2" |
67-1/2" |
73-1/2" |
3" Centers 10' Length-
OA Per Foot |
No. 60 Chain |
976 |
1016 |
1056 |
1096 |
1136 |
1216 |
1256 |
1336 |
1376 |
1456 |
1536 |
1616 |
1696 |
1816 |
1936 |
| 87 |
90 |
93 |
96 |
99 |
103 |
108 |
114 |
117 |
123 |
129 |
135 |
141 |
150 |
159 |
| OAW-3 3/4 in Roller Centers |
| Conveying Surface |
15-3/4" |
17-3/4" |
19-3/4" |
21-3/4" |
23-3/4" |
27-3/4" |
29-3/4" |
33-3/4" |
35-3/4" |
39-3/4" |
43-3/4" |
47-3/4" |
51-3/4" |
57-3/4" |
63-3/4" |
| Between Rail Width |
22" |
24" |
26" |
28" |
30" |
34" |
36" |
40" |
42" |
46" |
50" |
54" |
58" |
64" |
70" |
| Overall Frame Width |
25-1/4" |
27-1/4" |
29-1/4" |
31-1/4" |
33-1/4" |
37-1/4" |
39-1/4" |
43-1/4" |
45-1/4" |
49-1/4" |
53-1/4" |
57-1/4" |
61-1/4" |
67-1/4" |
73-1/4" |
3 3/4" Centers 10' Length-
OA Per Foot |
No. 60 Chain |
839 |
879 |
919 |
959 |
999 |
1079 |
1119 |
1199 |
1239 |
1319 |
1399 |
1479 |
1559 |
1629 |
1799 |
| 78 |
81 |
84 |
87 |
90 |
96 |
99 |
105 |
108 |
114 |
120 |
126 |
132 |
141 |
150 |
|
*#40 chain reduces total conveyor capacity. Consult us.
All weights are conveyor weights only. Accessories, crating, etc., are not included.
Note: Add 1-3/8" to OAL for Chain Guard End Caps on 4" centers only.
Note: Add 3" to OAL for Chain Guard End Caps on 3" roller centers only. |
|
|
Chain Driven Live Roller Conveyor, Roll-to-Roll, Chain Driven Live Roller Conveyors, Conveyor, Live Roller
Conveyors, Powered Live Roller, Conveyors, and Roller Conveyors from your source for material handling
equipment.
|
|
