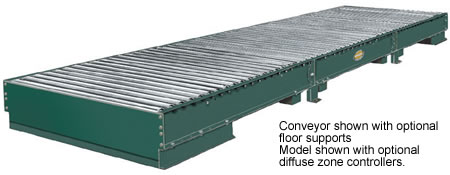

MODEL 25-LREZ
|
HEAVY DUTY ACCUMULATING CONVEYOR
|
 |
|
|
The Model 25-LREZ is a belt driven live
roller conveyor designed for use where
zero pressure accumulation, low elevation
(12") and close roller centers are required. |
|
|
|
|
• EZLogic® Accumulation
System
• Compact Drive
• Low Elevation
• Adjustable LRAS-Type Floor
Supports Available |
|
|
|
|
|
|
|
 |
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
HOW IT WORKS
|
The conveyor is made up of standard 60 in. long accumulation zones. Each zone extracts power from a flat drive belt
that runs the entire length of the conveyor. EZ-Logic Zone Controllers sense product presence and control the
accumulation and release of product from the zones. |
|
| CONVEYOR WEIGHT TABLE |

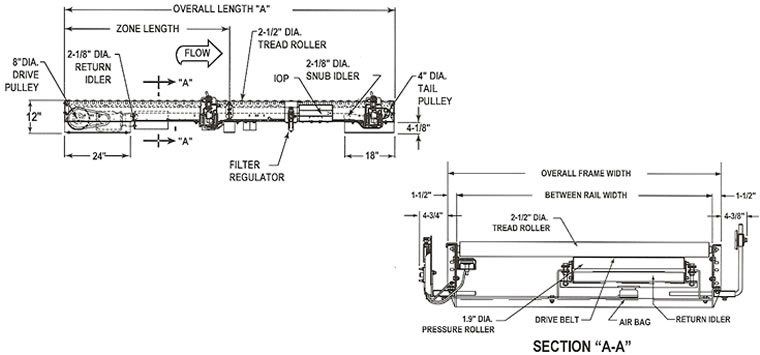

SIZE TO ORDER
Overall Length
"A" |
Between Rail Width |
39" |
41" |
43" |
45" |
47" |
49" |
51" |
61" |
| Overall Frame Width |
42" |
44" |
46" |
48" |
50" |
52" |
54" |
64" |
| 10' |
Weights
(Lbs)
|
1261 |
1296 |
1331 |
1366 |
1400 |
1435 |
1470 |
1645 |
| 15' |
1764 |
1815 |
1867 |
1918 |
1970 |
2021 |
2072 |
2329 |
| 20' |
2267 |
2335 |
2403 |
2471 |
2538 |
2606 |
2674 |
3014 |
| 25' |
2770 |
2854 |
2939 |
3023 |
3107 |
3192 |
3276 |
3698 |
| 30' |
3272 |
3373 |
3474 |
3575 |
3675 |
3776 |
3877 |
4382 |
| 35' |
3776 |
3893 |
4011 |
4128 |
4245 |
4363 |
4480 |
5067 |
| 40' |
4279 |
4413 |
4547 |
4680 |
4814 |
4948 |
5082 |
5751 |
| 45' |
4781 |
4931 |
5082 |
5232 |
5382 |
5533 |
5683 |
6435 |
| 50' |
5284 |
5451 |
5618 |
5784 |
5951 |
6118 |
6285 |
7119 |
|
All weights in catalog are conveyor weights only. Accessories, crating, etc., are not included.
Overall lengths in chart are for 60" zones. Other zone lengths will affect overall length. |
|
**ACCUMULATION ZONE LENGTHS
|
|
3" Roller Centers
|
4" Roller Centers
|
6" Roller Centers
|
|
*30"
|
|
*30"
|
|
*36"
|
*32"
|
*36"
|
|
*42"
|
*40"
|
*42"
|
|
*48"
|
*48"
|
*48"
|
|
*54"
|
*56"
|
*54"
|
|
60"
|
60"
|
60"
|
|
66"
|
72"
|
66"
|
|
72"
|
|
72"
|
|
|
|
|
|
 |
|
*MINIMUM INFEED DRIVE ZONE LENGTH IS 60" WITH 3",
4" & 6" ROLLER CENTERS.
**FRAME LENGTH AND OVERALL LENGTH CHANGE
WITH ZONE LENGTH. |
|
|
|
|
|
|
 |
|
|
|
|
|
|
STANDARD SPECIFICATIONS
|
|
|
|
 BELT–14 in. black Ultimate 140 SD. |
|

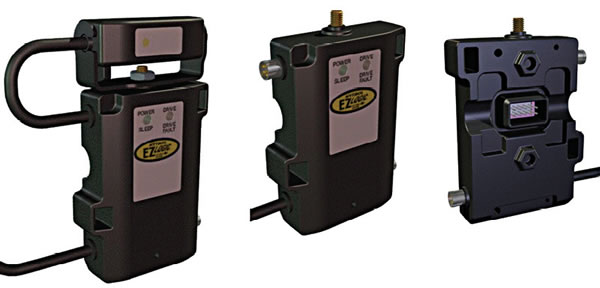

EZLogic® ZONE CONTROLLER–Located in
each zone (Retro-reflective). NEMA 1, 2, IP 62. UL
Approved. |
|
|
BED–Roller bed with 2-1/2 in. dia. x 11 ga. unplated
tread rollers spaced every 3 in. and 1.9 in. dia. x 16 ga.
unplated pressure rollers spaced every 6 in. Mounted in
7-1/2 in. x 10 ga. powder painted formed steel channel
frame. Bolted together with butt coupling. |
|
|
|
|

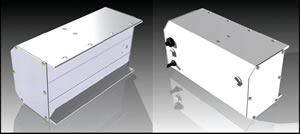

IOP—Provides 27VDC, 100 watt power for
EZLogic® accumulation system - contains slots for
4 input/output boards. Requires 120VAC or
230VAC single phase input. |
|
|
| END DRIVE–Located on infeed end of conveyor. |
|
|
|
|
|
AIR REQUIREMENTS–Recommended working
pressure 40 P.S.I. Free air consumption at 40 P.S.I.–
.028 cu. ft. per sensor actuation. |
DRIVE PULLEY––8 in. dia. with 1-7/16 in. dia.
shaft at bearings, machine crowned and fully lagged. |
|
|
|
TAIL PULLEY–4 in. dia. with 1 in. dia. shaft,
machine crowned. |
|
|
|
|
FILTER, REGULATOR–Supplied for main air supply
line. (3/8 in. NPT port). |
|
|
SNUB IDLER–Adjustable 2-5/8 in. dia. at drive
pulley, 2-1/8 in. dia. at tail pulley. Pre-lubricated ball
bearings. |
|
|
|
|
SPEED REDUCTION–Sealed Helical–Bevel C-Face
gear reducer. No.60 roller chain to drive pulley. |
|
|
|
|
|
|
|
MOTOR–1 HP–208/230/460/575V–3 PH. 60 Hz.
Totally Enclosed C-Face. |
RETURN IDLER–2-1/8 in. dia. at drive end,
all others 1.9 dia. unplated. Pre-lubricated ball
bearings. |
|
|
|
|
CONVEYING SPEED–Constant 30 FPM. |
|
|
| TAKE-UP–Take-up at tail pulley. |
|
|
|
CAPACITY–Maximum load per linear foot of conveyor
1000 lbs. Maximum unit load 4000 lbs. Total load NOT
TO EXCEED capacity in charts. |
|
|
BEARINGS–Sealed, pre-lubricated, self-aligning
ball bearings on drive and tail pulley. Sealed, pre-
lubricated ball bearings in tread and pressure rollers. |
|
|
|
|
FLOOR SUPPORTS–Now supplied as optional
equipment. |
|
|
ACCUMULATION ZONES–3 in. roller centers,
30 in. to 72 in. on 3 in. increments. 4 in. roller
centers, 32 in. to 72 in. on 4 in. increments. 6 in.
roller centers, 30 in. to 72 in. on 6 in. increments.
Minimum length of infeed zone (drive) is 60 in.
Frame length changes with zone length. |
|
|
|
|
|
|
TREAD ROLLER BRAKE–Friction type brake
stops tread rollers to prevent coasting of product in
accumulation zone. |
|
|
|
|
|
| EZLogic® Accumulation System |
|
EZLogic®, or "Electronic Zero-pressure Logic" Accumulation System, combines the sensing accuracy of photo-
electronics with discrete electronic logic control without the use of a PLC or pneumatic logic components.
The EZLogic® Accumu-lation System provides many features including:
Zero-pressure accumulation of product
Zone Stop – Function is built in! Any zone may be transformed into a workstation by connecting the EZLogic®
Accumulation Module to any dry contact type switching device. The feature is always used at the discharge end of the
conveyor line, and may be used at any other location where a zone stop is required.
|
Selectable Modes of Operation
Singulation Mode – Product separates while traveling down the conveyor and when it is released
from the conveyor - creating a zone-length gap between products. |
Enhanced Slug Mode w/ Jam Protection – Product does not separate when traveling down the conveyor or when it
is released from the conveyor. This allows higher product throughput at any given conveyor speed. Product will not
separate on the conveyor even when accumulation has been activated at the discharge end. |
Cascaded Slug Release – Rather than releasing all zones simultaneously, this function introduces a momentary delay
in the release of each zone, from discharge upstream. |
Dynamic Zone Allocation – Automatically adjusts the conveyor’s zone length to accommodate the length of the
product being conveyed. Improves conveyor efficiency and system flexibility. |
|
|
|
|
LOAD CAPACITY CHART (Accumulated) @ 30 FPM
|
| HP |
Overall Frame Width |
Overall Frame Width |
Overall Frame Width |
| 42" To 48" |
50" To 64" |
76" To 88" |
| Total Load (Lbs) |
Total Load (Lbs) |
Total Load (Lbs) |
| Up To 25' |
Up To 50' |
Up To 25' |
Up To 50' |
Up To 25' |
Up To 50' |
| 1 |
16500 |
12900 |
15400 |
10800 |
13700 |
7500 |
| 2 |
*20000 |
23000 |
*20000 |
20900 |
*20000 |
17600 |
|
|
NOTE: Operating 25-LREZ in slug
mode is not recommended
NOTE: Product footprint may affect
drive capacity. |
|
|
| *Limited to 4000# Per Accumulation Zone |
|
|
|
|
|
|
|
OPTIONAL EQUIPMENT
|
|
FLOOR SUPPORTS–LRAS Type floor supports are
available with a wide range of adjustment. Specify top
of belt or roller elevation. One support required at every
bed joint and ends of conveyor. Holes in feet for lagging
to floor. |
O-RING DRIVE CHAIN–With sealed in lubricant
(Recommended for applications that do not permit regular
lubrication). |
|
TREAD ROLLERS–2-5/8 in. dia. x 7 ga. unplated
steel, 11/16 in. hex spring loaded shaft. |
|
CONVEYING SPEED–Other constant speeds to 50
FPM. NOTE: Capacity and accumulation feature
affected with speed change. |
MOTORS–Energy efficient, single phase, other
characteristics. 2 HP maximum. |
|
ELECTRICAL CONTROLS–Non-reversing
magnetic starter – pushbutton stations. AC variable
frequency drive. |
|
UNDERSIDE TAKE-UP–Provides 12 in. of belt take-up.
Minimum elevation 12 in. (Required on units 40 ft. or
longer.) Must be located in 4 ft. long intermediate section. |
|
| EZLogic: (See Bottom of Page) |
|
|
|
|
|
PRICES FOR COMPLETE CONVEYOR INCLUDE:
|
|
|
|
• 2-1/2" Dia. x 11 Ga. Roller (Rollers on 3", 4", or 6"
Centers) in a 7-1/2" x 1-1/2" x 10 Ga. Formed Channel
Frame
• 14" Wide Black Ultimate 140 SD Belt
•Air-Controlled Accumulating Zones with EZLogic
®Accumulation Systems. EZ-Logic® Zone
Controller NEMA 1, 2, IP62. UL Approved.
• Each Zone Supplied With Roller Brake
• Sealed Helical—Bevel "C" Face Gear Reducer |
|
• 27 VDC, 100 Watt Power Supply for Zone
Controllers (Requires 120 VAC or 230 VAC
Single Phase Input)
• 1 HP–"C" Face Totally Enclosed Motor (Specify
Exact Voltage)
• Totally Enclosed Chain Guard
• 30 FPM Constant Conveying Speed
• Filter/Regulator for Main Air Supply Line, and a 45 lbs.
Pressure Relief Valve Included
• Less Motor Controls & Wiring
• Less Floor Supports |
|
|
|
|
|
NOTE: Pushbutton Programmer or Programming Kit for PC NOT INCLUDED in listed price. See EZLogic
Components below for information and pricing. |
| NOTE: 76" and 88" widths available. Contact us. |
Click the button of the item you wish to purchase. Contact us for special lengths
| Between Rail Width |
39" |
41" |
43" |
45" |
47" |
49" |
51" |
61" |
| Overall Frame Width |
42" |
44" |
46" |
48" |
50" |
52" |
54" |
64" |
| *3" Centers 10' Length-O.A. |
|
|
|
|
|
|
|
|
| Per Foot Price |
|
|
|
|
|
|
|
|
| Add for each Accum Zone |
$992.20
|
| *4" Centers 10' Length-O.A. |
|
|
|
|
|
|
|
|
| Per Foot Price |
|
|
|
|
|
|
|
|
| Add for each Accum Zone |
$992.20
|
| *6" Centers 10' Length-O.A. |
|
|
|
|
|
|
|
|
| Per Foot Price |
|
|
|
|
|
|
|
|
| Add for each Accum Zone |
$992.20
|
|
| NOTE: Section lengths and OAL change with zone lengths. |
*PRICE FOR ACCUMULATION ZONES IS NOT INCLUDED IN BASE PRICE.
FOR ZONES 76" OR LONGER, USE $1,223.80
AS PER ZONE PRICE.
MAXIMUM OVERALL LENGTH: 50’. |
|
|
IMPORTANT NOTE:
Operating 25-LREZ in slug mode is not recommended.
|
IMPORTANT NOTES . . .
• OTHER LENGTHS
For lengths longer than 10’-0" OAL add per foot price of width for additional length + zone price x total number of
zones required.
NOTE: OAL must be divisible by zone length. Zone length must be divisible by roller centers.
• OTHER WIDTHS
For "IN-BETWEEN WIDTHS", use next width plus 10%. For widths wider than 64" OAW, contact us.
All non-standard widths contact us for lead time.
• UNDERSIDE TAKE-UP
Required on units 40’ and longer when supplied with end drive.
• PRODUCT FOOTPRINT
Product footprint may affect drive capacity.
• FLOOR SUPPORTS
Floor Supports are not included in base price. There are two (2) stationary floor supports required for the first
bed section and one (1) support required per bed section thereafter.
NOTE: Longer zones may require an additional floor support depending on product load. |
|
|
**ACCUMULATION ZONE LENGTHS
|
|
3" Roller Centers
|
4" Roller Centers
|
6" Roller Centers
|
|
30"
|
32"
|
30"
|
|
36"
|
48"
|
36"
|
|
42"
|
56"
|
42"
|
|
48"
|
72"
|
48"
|
|
54"
|
|
54"
|
|
60"
|
|
60"
|
|
72"
|
|
72"
|
|
* MINIMUM INFEED ZONE LENGTH IS 48" WITH 3", 4", & 6" ROLLER CENTERS.
** FRAME LENGTH AND OVERALL LENGTH CHANGE WITH ZONE LENGTH. |
Click the button of the item you wish to purchase. Contact us for special lengths
|
| PRICES FOR OPTIONAL EQUIPMENT |
|
|
|
|
|
| DRIVE OPTIONS |
|
|
MOTORS |
| #60 O-Ring Drive Chain . . . . . . . . .Add . . . . $430.40
|
|
|
Extra Motor Price for OTHER THAN: 1 HP–
208/230/460/575 V–3 Ph.–60 Hz.–Totally Enclosed.
Speed affects horsepower requirements. |
|
|
|
|
| UNDERSIDE TAKE-UP |
|
|
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $1,038.90
12" minimum elevation with underside take-up and end
drive |
|
|
|
|
|
H.P. REQ.
|
TOTALLY ENCLOSED
|
ENERGY
EFFICIENT
|
|
200/208/230/460/575V 3Ph-60Hz.
|
115/230V
1Ph-60Hz
|
|
1
|
N/C
|
|
|
2
|
|
|
|
|
|
|
|
| CONSTANT AND VARIABLE SPEEDS |
|
|
| Constant–Within 30 to 50 FPM . . . . . . .No Charge |
|
|
|
|
|
|
| DRIVE COMPONENT DEDUCTS |
|
|
Less Motor Only (1 HP-208/230/460/575 V-3 Ph.-60 Hz.)
. . . . . . . . . . . . . . . . . . . . . .Deduct . . . . . . . . $287.90 |
|
|
|
|
|
|
|
GALVANIZING |
|
|
|
|
| EZLOGIC® |
|
|
|
|
Contact us. |
| See EZLogic Component Section below |
|
|
|
|
|
|
|
|
DIFFUSE ZONE CONTROLLERS |
| ELECTRICAL CONTROLS |
|
|
Add Per Zone .................................................$31.10
|
| See Electrical Controls Section below |
|
|
|
|
|
|
|
|
|
| OPTIONAL ROLLERS |
2-5/8" dia. x 7 ga. steel tread rollers extra price per foot of conveyor Overall Length (in addition to 2-1/2"
dia. x 11 ga. rollers regularly furnished). |
|
|
|
|
|
| Between Rail Width |
39" |
41" |
43" |
45" |
47" |
49" |
51" |
61" |
| Overall Frame Width |
42" |
44" |
46" |
48" |
50" |
52" |
54" |
64" |
| 3" Centers Add On Per Foot |
|
|
|
|
|
|
|
|
| 4" Centers Add On Per Foot |
|
|
|
|
|
|
|
|
| 6" Centers Add On Per Foot |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| NON-ADJUSTABLE FLOOR SUPPORTS |
| Not Included in Base Price. Use Chart Below for Required Elevation. |
|
|
|
|
|
| DRIVE AND TAIL SUPPORT |
| Model No. |
Adjustment to Top of Roller |
Price each |
| LRADS-13 |
13" |
|
| LRADS-14 |
14" |
|
| LRADS-15 |
15" |
|
| LRADS-16 |
16" |
|
| LRADS-17 |
17" |
|
| LRADS-18 |
18" |
|
| LRADS-19 |
19" |
|
| LRADS-20 |
20" |
|
| LRADS-21 |
21" |
|
| LRADS-22 |
22" |
|
| LRADS-23 |
23" |
|
| LRADS-24 |
24" |
|
| LRADS-25 |
25" |
|
| LRADS-26 |
26" |
|
| LRADS-27 |
27" |
|
| LRADS-28 |
28" |
|
| LRADS-29 |
29" |
|
| LRADS-30 |
30" |
|
|
|
|
|
|
INTERMEDIATE SUPPORT
|
| Model No. |
Adjustment to Top of Roller |
Price each |
| LRAS-12 |
12" |
|
| LRAS-13 |
13" |
|
| LRAS-14 |
14" |
|
| LRAS-15 |
15" |
|
| LRAS-16 |
16" |
|
| LRAS-17 |
17" |
|
| LRAS-18 |
18" |
|
| LRAS-19 |
19" |
|
| LRAS-20 |
20" |
|
| LRAS-21 |
21" |
|
| LRAS-22 |
22" |
|
| LRAS-23 |
23" |
|
| LRAS-24 |
24" |
|
| LRAS-25 |
25" |
|
| LRAS-26 |
26" |
|
| LRAS-27 |
27" |
|
| LRAS-28 |
28" |
|
| LRAS-29 |
29" |
|
| LRAS-30 |
30" |
|
|
|
|
|
|
|
|
|
|
|
NOTE: One (1) Floor Support required per Bed Section (not included in base price). Bed Section Length is the
same as Zone Length for 42" to 72" Long Zones and Double the Zone Length for 30" to 36" Long Zones. |
Click the button of the item you wish to purchase. Contact us for special lengths
| ELECTRICAL CONTROLS AND DRIVE SECTION |
|
|
|
|
MANUAL START SWITCH or
SAFETY DISCONNECT
|
|
 |
|
|
|
LIMIT SWITCH, SINGLE POLE,
WITH NYLON ROLLER LEVER |
 |
|
|
|
|
| #032.1014......................................... |
$225.79
|
|
|
|
|
#033.2032 & #033.2072..................$589.01
Nema 4 |
"START-STOP", Nema 1, One direction, 30
AMP, 3 Pole (Single or 3 phase) |
|
|
|
|
|
|
|
|
LIMIT SWITCH, DOUBLE POLE,
WITH NYLON ROLLER LEVER |
|
 |
|
|
|
|
|
|
|
|
|
#033.2033& #033.2072...................$352.04
Nema 4 |
|
REVERSING DRUM SWITCH |
|
|
|
|
|
|
#032.103.......................................... |
$905.51
|
|
|
|
 |
|
|
|
|
|
|
|
|
"Fwd-Stop-Rev", Nema 1, for 1-1/2 HP at
115 volts or 2 HP at 230 volts single phase,
or 2 HP max. three phase |
|
|
|
|
|
 |
PROXIMITY SWITCH, INDUCTIVE,
(METAL SENSING) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
#032.210.........................................$217.67
115 Volt AC, two wire with ground, 30mm dia.,
10mm range
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
FOOT SWITCH WITH GUARD |
|
|
|
|
|
|
|
|
|
|
#032.211.........................................$257.68
24 Volt DC, two wire with ground, 30mm dia.,
10mm range |
|
#032.200........................................... $286.50
(Constant Pressure) "On-Off" type, Nema 1,
Pilot Control or 1 HP max. single phase. |
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
PHOTO EYE, ON-OFF TYPE |
 |
|
|
|
|
|
|
|
#EA-000005......................................$1,122.83
Banner Q45 Retro Reflective Photo Eye Kit
with timing module, reflector and mounting
brackets. Photo Eye output is one form C
type relay, Operating voltage
24-250VAC/12-250VDC |
|
POWER CORD AND PLUG (20') |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
POWER CORD WITH PLUG ONLY 20' LONG
|
|
Model No.
|
Voltage
|
HP Rating
|
Prices
|
|
EA-039-1A
|
115/1
|
1/2-3/4
|
|
|
EA-039-2A
|
115/1
|
1
|
|
|
EA-039-3A
|
115/1
|
1 1/2
|
|
|
EA-039-4A
|
230/1
|
1/2-1
|
|
|
EA-039-5A
|
230/1
|
1 1/2-2
|
|
|
EA-039-6A
|
208-230/3
|
1/2-2
|
|
|
EA-039-7A
|
460/3
|
1/2-2
|
|
|
|
|
POWER CORD WITH PLUG 20' LONG WITH MANUAL START SWITCH AND MOUNTING BRACKET
|
|
Model No.
|
Voltage
|
HP Rating
|
Prices
|
|
EA-039-1B
|
115/1
|
1/2-3/4
|
|
|
EA-039-2B
|
115/1
|
1
|
|
|
EA-039-3B
|
115/1
|
1 1/2
|
|
|
EA-039-4B
|
230/1
|
1/2-1
|
|
|
EA-039-5B
|
230/1
|
1 1/2-2
|
|
|
EA-039-6B
|
208-230/3
|
1/2-2
|
|
|
EA-039-7B
|
460/3
|
1/2-2
|
|
|
|
|
|
|
|
|
|
|
|
|
MOUNTING BRACKETS FOR PHOTO
EYE #033.2122 |
|
|
|
|
B-05165...........................................$125.19
|
|
|
|
|
|
|
|
|
|
|
|
 |
AIR PRESSURE SWITCH |
|
#094.191........................................$732.79
Nema 4 |
|
|
|
|
|
|
|
|
|
|
EMERG. STOP PULL CORD SWITCH |
|
|
|
|
|
#032.285 with 032.2851 Turnbuckle
...........................................................$737.85
Nema 4 |
|
|
|
|
|
"RED" EMERGENCY PULL CORD
CABLE AND MOUNTING HARDWARE |
|
|
|
|
|
#032.281...one side.................$7.88
per / ft.
both sides..............$16.83
per / ft. |
|
|
|
|
|
EMERGENCY PUSH BUTTON |
|
|
|
|
|
#032.284..........................................$296.39
Nema 4 |
|
|
|
|
|
|
|
|
PHOTO EYE, 18MM DIA., DIFFUSED,
(PHOTO PROX.) 115 VOLT, LIGHT
OPERATE, 2-METER CABLE |
|
|
|
|
|
#032.2113 (100mm range, 3.94")....$1,130.24
#032.2116 (200mm range, 7.87")....$205.79
#033.218 (400mm range, 15.74")....$311.09
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
NOTE: PRICING LISTED NOT MOUNTED
OR WIRED |
|
|
|
|
"PHOTO EYE, RETRO-REFLECTIVE,
(POLARIZED) 24 VOLT DC |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
#033.2128 with 032.21122 Cable.....$253.44
#032.21122 (Cable Only)...................$76.71
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
CONTROLLER PRICES
|
|
|
|
|
AC VARIABLE SPEED CONTROLLER ONLY
|
|
SINGLE PHASE CONTROLLER INPUT
|
| Motor Size |
115 Volt |
208/230 Volt |
| 1/2 |
VSC-12-10 |
VSC-12-12 |
| Price |
$1,581.35
|
$1,260.73
|
| 1 |
VSC-12-11 |
VSC-12-13 |
| Price |
$1,827.73
|
|
| 2 |
N/A |
VSC-12-14
|
| Price |
~ |
|
|
THREE PHASE CONTROLLER INPUT
|
| Motor Size |
208/230 Volt |
460 Volt |
575 Volt |
| 1/2 |
VSC-01-15
|
VSC-01-18
|
VSC-12-29
|
| Price |
|
|
|
| 1 |
VSC-01-16
|
VSC-01-19
|
VSC-12-29
|
| Price |
|
|
|
| 2 |
VSC-01-17
|
VSC01--20
|
VSC-12-30
|
| Price |
|
|
|
|
|
REPLACEMENT INVERTER DUTY
ENERGY EFFICIENT MOTORS
|
|
| HP |
Part No. |
Price |
| 1/2 |
032.351 230/460 |
|
| 1 |
032.353 230/460 |
|
| 2 |
032.355 230/460 |
|
| 1/2 |
032.3512 575 |
|
| 1 |
032.3532 575 |
|
| 2 |
032.3552 575 |
|
|
|
|
|
|
|
IMPORTANT NOTES...
|
|
|
• All above motors are 230 / 460 / 575 Volt, 3 Phase.
• All above V/S Drive Kits include NEMA 1 / IP30
Junction Box, Controller and Motor.
• Good for cycle rates of up to 15 cycles per minute, at
1/2 second ramp time, with a maximum speed of 250
FPM.
• Drawing No. DG-001146. |
|
|
|
|
|
OPTIONAL: Mounting and Wiring Add-On . . .
(mounted close to the motor) |
$715.70
|
|
|
|
|
|
|
|
| Brake Relay Kit (EA-068A).............................. |
$575.24
|
|
|
• When AC Variable Speed Controller is used with a
Brake Motor, A Brake Relay Kit (EA-068A) is
required. Add an additional $575.24
for this option.) |
|
|
|
|
|
|
ELECTRONIC CLUTCH BRAKE DRIVE PACKAGE
|
| Part No. |
Description |
Price |
| EA-VSC-01-CB |
2 HP Electronic Clutch-Brake Kit |
$5,361.50
|
|
|
|
|
|
OPTIONAL: Mounting and Wiring Add-on .
(mounted close to the motor) |
$715.70
|
|
|
|
|
|
|
|
KIT INCLUDES
|
|
|
|
| Part No. |
Description |
| VSC-01-20 |
AC Variable Speed Controller, 460 Volt, 3 Phase |
| 032.345 |
2 HP 460 Volt, 3 Phase, C-Face Motor TEBC
(Blower Cooled) With 5AC Reducer and #60 Chain
and Sprockets |
|
|
|
|
|
IMPORTANT NOTES
|
|
• Good for cycle rates of up to 60 cycles per minute.
• 1/10 second Accel and Decel time, with 350 FPM
Maximum Speed.
• 230 or 460 Volt Only, Other Voltages, Contact us.
• Motor Cooling Blower is 115 Volt, 1 Phase, 60 Hz.
• Price Includes 5AC Reducer and #60 Chain and
Sprockets |
| Part No. |
Description |
| VSC-01-17 |
AC Variable Speed Controller, 230 Volt, 3 Phase |
| 032.345 |
2 HP 230 Volt, 3 Phase, C-Face Motor TEBC
(Blower Cooled) With 5AC Reducer and #60 Chain
and Sprockets |
|
|
|
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
| • "Start-Stop" Push-button Station |
|
|
• "Start-Stop"Push-button Station |
| 033.1955 |
$223.91
|
|
|
|
033.195................................................. |
$151.10
|
| Remote mounted, Nema 1 |
|
|
|
To be mounted in Mag Starter Cover |
|
|
|
|
|
|
|
|
|
|
| • "Fwd-Rev-Stop" Push-button Station |
|
|
• "Fwd-Rev-Stop"Push Button Station |
| 033.1965 |
$420.87
|
|
|
|
033.196.................................................. |
$520.41
|
| Remote mounted, Nema 1 |
|
|
|
To be mounted in Mag Starter Cover |
|
|
|
|
|
|
|
|
|
|
| • "Up-Down-Stop" Push-button Station |
|
|
|
| 033.1975 |
$420.87
|
|
|
• Mounting Brackets for photo eye |
| Remote mounted, Nema 1 |
|
|
|
|
|
#033.2122
B-05165 .............................................. |
$125.19
|
|
|
|
|
|
|
|
|
|
|
|
| EZ-LOGIC® COMPONENTS |
|
|
 |
While featuring the same EZLogic®
familiarity, GEN3 incorporates new technologies
for ease of installation, operation,
and maintenance. |
|
|
|
Click the button of the item you wish to purchase. Contact us for special lengths

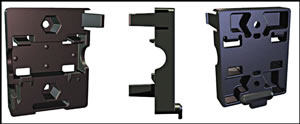

| ZONE CONTROLLERS |
|
|
|
|
|
 |
|
|
|
|
|
|
Retro-Reflective Type Zone Controller |
|
|
|
Zone controller including mounting base and unitized retro-reflective transducer.
032.501 .......................................................................................................................... |
|
|
$369.80
|
|
|
|
|
|
Diffuse Type Zone Controller |
|
|
|
Zone controller including mounting base and unitized diffuse transducer with adjustable
sensitivity (through programming). |
|
|
032.502 .................................. Add-On ............................................Per Zone ...................... |
|
|
032.502 .................................. Replacement ........................................................................... |
|
|
|
|
|
|
Enhanced Retro-Reflective Zone Controller |
|
|
|
Same as standard, plus used for IOP communication, and addressable remote access. |
|
|
032.505 .................................. Add-On ............................................Per Zone ................... |
|
|
032.505 .................................. Replacement ........................................................................ |
|
|
|
|
|
|
Enhanced Diffuse Zone Controller |
|
|
Same as standard, plus used for IOP communication, and addressable remote access. |
|
|
032.506 .................................. Add-On ............................................Per Zone ................... |
$246.90
|
|
032.506 .................................. Replacement ........................................................................ |
$450.60
|
|
|
|
|
|
Remote Zone Controller |
|
|
Zone controller including mounting base. Connectorized for attaching any remote transducer. |
|
|
032.504 .................................. Replacement ........................................................................ |
$398.60
|
|
Enhanced Remote Zone Controller |
|
|
|
Enhanced zone controller including mounting base. Connectorized for attaching any remote
transducer. Same as standard, plus used for IOP communication, and addressable remote
access. |
|
|
032.507 .................................. Replacement ........................................................................ |
$556.90
|
|
|
|
|
|
|
|
|
|
| TRANSDUCERS (SENSORS) |
|
 |
|
|
|
|
|
| Remote Diffuse Transducer (Narrow Beam) |
|
|
Has narrow beam for use with close roller centers. Attaches to any remote zone
controller and allows transducer to be mounted separate from controller. |
|
|
| 032.513 .................................. Replacement .................................. |
$235.60
|
|
|
|
|
|
|
|
|
|
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
| IOP |
|
|
|
|
|
|
|
|
|
| IOP |
|
 |
|
Provides 27VDC, 100 watt power for EZLogic" accumulation
system. Requires 120 VAC or 230 VAC single phase input.
Operates up to 50 zones (25 zones each side of IOP).– contains
slots for 4 input/ output boards. Requires enhanced zone controllers
to communicate with input/output boards. |
|
|
| 032.582 .................................. Each ....................... |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

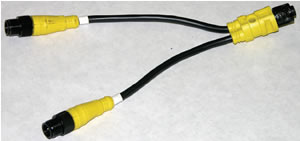

| IOP "T" Cable |
|
|
 |
|
|
Required to deliver power and IOP communication from IOP to
zone controllers. Max. of 25 zones per each branch of T. |
|
|
|
|
| Standard Push-On 032.559 .....Each .......................... |
$116.50
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| I/O Board |
|
|
 |
|
|
|
Plugs into slot in IOP to provide two input/output connections.
Requires enhanced controller to receive signal. |
|
|
|
|
|
| 032.583 .................................. Each ............................... |
$154.02
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| CONFIGURATION/DIAGNOSTIC COMPONENTS |
|
|
|
 |
| Push Button Programmer |
|
Plugs into auxiliary port of any controller to configure certain features of
controller. Required for customization of factory default settings. |
|
| 032.535 .................................. Each ............................... |
$623.70
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
| Programming Kit for PC and PC Adaptor |
|
|
|
|
Used to connect PC USB port to auxiliary port of any controller. Includes GenesisTM configuration software. Used to configure all
features of controller. Required for customization of factory default settings. |
|
|
|
|
| K-01554 .................................. Each ............................... |
$568.20
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| AUXILIARY COMPONENTS |
|
|
|
|
|
|
|
|
|

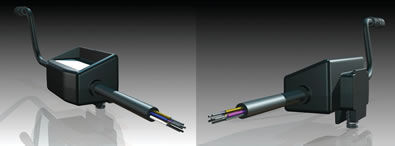

| Auxiliary I/O Module |
 |
|
|
Plugs into auxiliary port of any controller - used to
provide photo eye output or to accept a voltage type
input. |
| 032.532 .................................................... |
$128.10
|
|
|
| Auxiliary Input Cable |
|
|
|
|
|
|
|
Attaches to any zone controller. Used for zone stop input, wakeup eye input,
or slug input. Available in 3 and 10 ft. lengths. |
|
|
|
|
 |
|
|
|
|
|
|
|
|
| 3 ft. ............................032.563 ....................................Each .................. |
$54.40
|
|
|
| 10 ft. ..........................032.564 ....................................Each .................. |
$57.18
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Zone Actuation Module "ZAM" (Alternate Drive)
Provides NPN, PNP, or dry contact output from zone controller. |
|
|
 |
| 032.531 ......................................................Each................................ |
$126.40
|
|
|
|
|
|
|
|
|
|
Retro-Reflective Wake-up Eye
Plugs into auxiliary port of any controller to send wake-up signal. |
|
| 032.591 ......................................................Each................................ |
$218.30
|
|
|
|
|
|
|
|
|
Diffuse Wake-up Eye
Plugs into auxiliary port of any controller to send wake-up signal. |
|
|
| 032.592 ......................................................Each................................ |
$252.60
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Retro-Reflectors |
|
|
|
|
|
|
| 2.18" Dia. 032.218 .....................................Each ............................... |
$3.40
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Connector Covers |
|
|
|
|
|
|
| Upstream Connector Cover 032.010 .............Each ............................... |
$7.50
|
|
|
|
|
| Downstream Connector Cover 032.011..........Each ............................... |
$7.50
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
| CABLE COMPONENTS |
|
|
|
|
|
|
|
|
|
|
|
| Power Isolation Cable |
|
|
|
|
|
|
 |
|
Required to isolate DC power when joining conveyors w/ separate IOPs
utilizing no more than one set of I/O boards. |
|
|
| Standard Push-On ................... 032.562 ....................Each ............. |
$70.70
|
|
|
|
|
|
|
|
|
|
| IOP Isolation Cable |
|
|
Required to isolate DC power and input/output signals when joining two
conveyors with separate IOPs, both utilizing I/O boards. |
|
|
| Standard Push-On ................... 032.570 ....................Each ............. |
$70.70
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Extension Cable (Zone to Zone Communication) |
|
|
|
|
| Available in 3 and 10 ft. lengths. Used to extend zone controller cable when necessary. |
|
|
|
|
| Standard Push-On 3 ft.................... 032.560 ....................Each ......... |
$92.50
|
|
|
|
|
| Standard Push-On 10 ft.................... 032.561 ....................Each ........ |
$120.20
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Nano Extension Cable |
|
|
|
|
| Used to extend auxiliary devices or remote transducer cable. Available in the following lengths: |
|
|
| 1 ft ........................... 032.565 ...........................................Replacement ................. |
$56.80
|
|
|
|
| 2 ft ........................... 032.566 ...........................................Replacement ................. |
$60.40
|
|
|
|
| 3 ft ........................... 032.567 ...........................................Replacement ................. |
$63.40
|
|
|
|
| 6 ft ........................... 032.568 ...........................................Replacement ................. |
$72.70
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Power Splitter |
|
|
 |
| Used to connect two conveyors located side by side to one IOP. Requires 2 power supply T cables. Maximum total of 50 zones. |
|
|
| 032.569 ...............................Each ........................ |
$77.30
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| SPECIAL USE COMPONENTS |
|
|
|
|
|
|
|
|
| Diffuse Type Zone Controller |
|
|
 |
|
Zone controller including mounting base and unitized diffuse transducer with
adjustable sensitivity (through programming). 24 in. cable. |
|
|
|
| 032.503 .......................................Each ................................ |
$435.80
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Remote Retro-Reflective Transducer |
|
|
 |
|
|
Attaches to any remote zone controller and allows transducer to be mounted
separate from controller. |
|
|
|
|
| 032.511 .............................................Each .............................. |
$143.30
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Remote Diffuse Transducer |
|
|
 |
|
|
|
Attaches to any remote zone controller and allows transducer to be mounted
separate from controller. |
|
|
|
|
|
| 032.512 ............................................Each .............................. |
$189.60
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Remote Retro-Reflective Transducer (Dual with T Cable) |
|
|
|
|
|
|
For use in dual head applications. Attaches to any remote zone controller
and allows addition of second remote transducer. |
|
|
|
|
|
|
|
 |
|
| 032.514 ..........................................Replacement .................. |
$332.90
|
|
|
|
|
|
|
| Remote Diffuse Transducer (Dual with T Cable) |
|
|
For use in dual head applications. Attaches to any remote zone
controller and allows addition of second remote transducer. |
|
|
| 032.515 ...................................................Replacement .............. |
$379.00
|
|
|
|
|
|
|
| Remote Diffuse Transducer (Narrow Beam, Dual with T Cable) |
|
|
For use in dual head applications. Has narrow beam for use with close roller
centers. Attaches to any remote zone controller and allows addition of second
remote transducer. |
|
|
|
|
|
|
| 032.516 ...................................................Replacement .............. |
$435.80
|
|
|
|
|
|
|
|
Heavy Duty Accumulating Conveyor, Chain Driven Live Roller Conveyors, Conveyor, Live Roller Conveyors,
Powered Live Roller, Zero Pressure, Conveyors, and Roller Conveyors from your source for material handling
equipment.
|
|
