MODEL 190-ACZ

HORIZONTAL POWER CONVEYOR (ACCUMULATING TYPE)
The Model ACZ accumulates cartons, boxes,
etc. Basic design eliminates complicated
adjustments and allows a minimum of
2% Back Pressure.
12 Bed Widths
2% Minimum Back Pressure
Finger Tip Snub Roller Adjustment, Both
Sides
Reversible
Center Drive
Adjustable MS- Type Floor Supports
Available

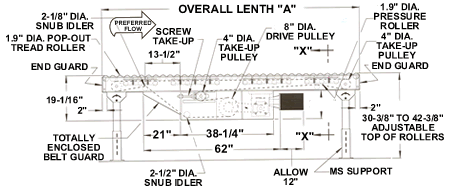

horizontal power conveyor rollers
STANDARD SPECIFICATIONS
BELT– Ultimate 140 BBS - Nitrile. SNUB IDLER–Adjustable 2-1/8 in dia. pre-lubricated
ball bearings.
BED–Roller bed with 1.9 in. dia. roller x 16 ga.
galvanized tube spaced every 3 in. and 1.9 in. dia.
pressure roller x 16 Ga. galvanized tube spaced every
6 in. Mounted in 6-1/2 in. x 12 Ga. powder painted
formed steel channel frame bolted together with butt
couplings.
RETURN IDLER–Adjustable 1.9 in dia. Pre-lubricated
ball bearings.
TAKE-UP–Take-ups in center drive. Provides 16 in.
of belt take-up.
BEARINGS–Sealed, pre-lubricated, self-aligning, ball
bearings on drive, tail, and take-up pulleys. Pre-lubricated
ball bearings in tread and pressure rollers.
CROSS BRACING–Rods with turnbuckles are
fastened to underside of bed to provide proper align-
ment of bed rollers and insure correct product tracking.
Supplied on every other section 30 ft. bed lengths and
over.
SPEED REDUCTION–Sealed worm C-Face gear
reducer. No. 50 roller chain to drive sheave.
MOTOR–1/2 HP–208/230/460/575V–3 PH. 60 Hz.
Totally Enclosed C-Face.
CENTER DRIVE–Can be placed in any section of
conveyor length.
CONVEYING SPEED–Constant 65 FPM.
DRIVE PULLEY–8 in. dia. with 1-7/16 in. dia. shaft
at bearings, fully lagged.
CAPACITY–Maximum load per linear foot of conveyor
200 lbs. NOT TO EXCEED capacity in chart.
TAIL PULLEY–4 in. dia. with 1 in. dia. shaft at
bearings,machine crowned.
FLOOR SUPPORTS–Now supplied as optional
equipment.
LOAD CAPACITY CHART @65 FPM
HP OVERALL FRAME WIDTH OVERALL FRAME WIDTH OVERALL FRAME WIDTH
16" TO 22" 24" TO 30" 34" TO 42"
TOTAL LOAD (LBS.) TOTAL LOAD (LBS.) TOTAL LOAD (LBS.)
UP TO 50' UP TO 100' UP TO 50' UP TO 100' UP TO 50' UP TO 100'
1/2 1100 200 600 - - -
1 3300 2400 2800 1600 2200 -
2 7000 6000 6400 5200 5800 3300
OPTIONAL EQUIPMENT
FLOOR SUPPORTS–MS Type . oor supports are
available with a wide range of adjustment. Specify top
of belt or roller elevation. One support required at
every bed joint and ends of conveyor. Holes in feet
for lagging to . oor. Knee braces recommended above
MS-6 support.		 GUARD RAILS–Adjustable Universal channel guard
rail, fixed channel, type A angle elevated to allow for
pop-out tread rollers. Type B angle not available. (See
Accessory section.) NOTE: If product comes in
contact with guard rails, product flow will be
affected. Fixed channel overlapping, one direction.
Fixed channel non-overlapping, reversing.
CONVEYING SPEED–Other constant and variable
speeds from 20 to 90 FPM. V-belt drive supplied under
46 FPM (2 HP) and with variable speeds.
ROLLER CENTERS–Tread rollers spaced every 4 in.,
6 in., or 8 in. (4 in. or 8 in. centers NOT AVAILABLE in
7 ft. 6 in. bed).
NOTE: Capacity and accumulation feature
affected with speed change.
POLY-TIER SUPPORTS–36 in. to 120 in. support
heights in 6 in. increments. Knee braces supplied.
SIDE MOUNTED LOW ELEVATION CENTER
DRIVE–Motor reducer unit mounted to side of
conveyor. Minimum low elevation 16 in.
CEILING HANGERS–5/8 in. dia. x 8 ft. long unplated
rods fully threaded. Other lengths and galvanized rods
available.
SIDE MOUNTED END DRIVE–Minimum elevation
12-1/4 in. (underside take-up required).
MOTORS–Energy efficient, single phase, other
characteristics. 2 HP maximum.
V-BELT DRIVE–V-belt supplied between motor and
reducer. Allow 65 in.
ELECTRICAL CONTROLS–Non-reversing or
reversible magnetic starters and push–button stations.
AC variable frequency drive.
O-RING DRIVE CHAIN–With sealed in lubricant
(Recommended for applications that do not permit
regular lubrication).
PACKAGE STOPS–Roller or pin type stops available,
contact us.
PRICES FOR COMPLETE CONVEYOR INCLUDE:
1.9" Dia. x 16 Ga. Galvanized Roller (Rollers on 3"
Centers) in a 6-1/2" x 12 Ga. Channel Frame		 1/2 HP-"C" Face Totally Enclosed Motor
(Specify Exact Voltage)
Black Ultimate 140 BBS Belt Totally Enclosed Chain Guard
LessFloor Supports 65 FPM Constant Conveying Speed
"C" Face Speed Reducer-Sealed Worm Gear End Guards
Less Electrical Controls

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths
SIZE TO
ORDER
Overall
Length
"A"		 Between Rail Widths
15" 21" 27" 33" 39"
Overall Frame Widths
18" 24" 30" 36" 42"
Ultimate 140 BBS Belt Widths
6" 8"
10'
15'
20'
25'
30'
35'
40'
45'
50'
55'
60'
65'
70'
75'
80'
85'
90'
95'
100'
Per Foot Price
IMPORTANT NOTES... BED LENGTHS
OTHER LENGTHS Intermediate bed sections are available in multiples
of 4', 5', 6', 7-1/2', 8' and 10' lengths only. Minimum
standard units consult us.
Other lengths not listed in price chart are available. For
"IN-BETWEEN SIZES", use next larger Overall
Length "A" price. SEE BED LENGTHS BELOW
INTERMEDIATE BEDS
OTHER WIDTHS
Use per foot price of width x required length, supports
not included. From Stockyard, available in 10 ft.
lengths only.
For "IN-BETWEEN WIDTHS", use next width plus
10%. For widths over 63" OAW, contact us.
NON-STANDARD WIDTHS
FLOOR SUPPORTS
Contact us for lead time.
Floor Supports are not included in base price.There
are two (2) stationary floor supports required for
the first bed section and one (1) support per bed
section thereafter.
PRICES FOR OPTIONAL EQUIPMENT
MOTORS
Extra Motor Price for OTHER THAN: 1/2 HP-208/230/460/575V-3 Ph.-60 Hz.-Totally Enclosed.
Speed affects horsepower requirements.
H.P.
REQ.
TOTALLY ENCLOSED
ENERGY EFFICIENT
200/208/230/
460/575V
3 Ph.-60 Hz.		 115/230V
1 Ph.-60 Hz.		 230/460V
3 Ph.-60 Hz.		 575V
3 Ph.-60 Hz.
1/2 N/C
1 N/A
2 N/A
OPTIONAL DRIVES DRIVE COMPONENT DEDUCTS
Unified Drives: (Shaft Mounted) Less Motor Drive, Motor Mount and Guards,
Unified Drives: OVERALL FRAME WIDTH
16" to 28" 30" to 42"
Center Drive 8" Drive Pulley with
075 Reducer
Center Drive 8" Drive Pulley with
090 Reducer
but with Shaft Extension Deduct .................. $694.20
Less Motor Only (1/2 HP-208/230/460/
575V-3 Ph.-60 Hz.) ....Deduct ................... $258.30
Less Reducer* ..... Deduct ......................... $307.40
*Less V-Belt Guard, Chain Guard, sheaves and
sprockets when V-Belt drive is supplied. Less chain
guard and sprockets when C-Face drive is supplied.
8" Drive Pulley
Speed FPM
65
78
97
130
156
195
260
389
Max HP
1
1.2*
1
2
2
2
2
2**
SLAVE CONNECTION KIT
For Slave Driving existing curves ................. $239.80
(Please Provide Sketch)
GALVANIZING
* Reducer size increases with 2 HP.
**Contact us.
Contact us.
Drive Type
OVERALL
FRAME WIDTH
16" to
28"
30" to
42"
Center Drive (V-Belt)
Low Elevation Side Mounted
Center Drive (C-Face)
Low Elevation Side Mounted
Center Drive (V-Belt)
Center Drive with Extended Take-Up
C-Face
Center Drive with Extended Take-Up
V-Belt
High Performance Center Drive (C-Face)
Heavy Duty Center Drive (C-Face)
Side Mounted End C-Face with
Underside Take-Up
Side Mounted End V-Belt with
Underside Take-Up
CONSTANT AND VARIABLE SPEEDS
Constant C-Face-Within 17-134 FPM
......................................................... No Charge
Variable Speed
See AC Variable Speed Drives
#50 O-Ring Drive Chain ...................Add ......$301.40
#60 O-Ring Drive Chain ...................Add ......$430.40

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths
FLOOR SUPPORTS
CEILING HANGERS
Not Included in Base Price. Use Chart Below for
Required Elevation.
ceiling hangers
"MS" SUPPORT
Model No. Adjustment to Top of Belt Price Each
*MS-1 13-3/4" to 15-1/2"
*MS-1.2 14-3/4" to 16-1/2"
*MS-1.4 15-3/4" to 17-1/2"
*MS-2 16-3/4" to 19-3/4"
MS-3 19-3/8" to 22-3/8"
MS-4 22-3/8" to 28-3/8"
MS-5 26-3/8" to 32-3/8"
MS-6 30-3/8" to 42-3/8"
MS-7 40-3/8" to 52-3/8"
MS-8 52-3/8" to 64-3/8"
MS-9 64-3/8" to 76-3/8"
MS-10 76-3/8" to 88-3/8"
MS-11 86-3/8" to 98-3/8"
MS-12 98-3/8" to 110-3/8"

Ceiling Hanger Brackets with (2) 5/8" dia. x
8’-0" long unplated fully threaded rods......

$156.70

Ceiling Hanger Brackets with (2) 5/8" dia. x
8’-0" long galvanized fully threaded rods....
$187.20
Ceiling Hanger Brackets with (2) 5/8" dia. x
10’-0" long unplated fully threaded rods.....
$231.60
Ceiling Hanger Brackets with (2) 5/8" dia. x
10’-0" long galvanized fully threaded rods....
$381.20
Ceiling Hanger Brackets with (2) 5/8" dia. x
12’-0" long unplated fully threaded rods.....
$384.40
Ceiling Hanger Brackets with (2) 5/8" dia. x
12’-0" long galvanized fully threaded rods....
$444.50
Ceiling Hanger Brackets, Less Rods Only.... $98.70
Extra Length Rods:
(2) 8’-0" long x 5/8" dia. unplated fully
threaded rods ............................................
$57.40
*Knee Braces ...................... Per pair ................ $31.80
(2) 8’-0" long x 5/8" dia. galvanized fully
threaded rods .............................................
*Less than 19 1/2" top of roller elevation-Low
$88.40
Elevation Side Mounted Center Drive Required (16"
Minimum Elevation).
2) 10’-0" long x 5/8" dia. unplated fully
threaded rods ..............................................
$132.70
NOTE: MS-7 to MS-12: Knee Braces included in price.
(2) 10’-0" long x 5/8" dia. galvanized fully
threaded rods ..............................................
$282.30
(2) 12’-0" long x 5/8" dia. unplated fully
threaded rods ..............................................
$285.80
(2) 12’-0" long x 5/8" dia. galvanized fully
threaded rods ..............................................
$346.00
Hex Coupling Nuts for Rods ........................ $5.20
POLY-TIERS SUPPORTS (POWERED & GRAVITY CONVEYORS
PRICES FOR COMPLETE SUPPORT INCLUDE: poly tiers IMPORTANT NOTES
Painted Steel Support Legs Check for Clearance
Adjustable Crosspipe Assembly Specify type of conveyor to be used.
Knee Braces (1 set per level of conveyor) Use in place of LS or MS Supports only.
"U" Brackets
CAPACITY DATA:
Single Width Conveyor Only
1500 lbs........................................per cross pipe
4500 lbs........................................per set of legs
(2) TIER POLY-TIER SUPPORTS
36"
42"
48"
54"
60"
66"
72"
78"
84"
90"
96"
102"
108"
114"
120"
(3) TIER POLY-TIER SUPPORTS
36"
42"
48"
54"
60"
66"
72"
78"
84"
90"
96"
102"
108"
114"
120"

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

GUARD RAILS PACKAGE STOPS
NOTE: Available in 5’ and 10’ lengths only from
Stockyard. Contact us for other lengths.		 Angle End Stop
1-1/2" x 1-1/2" x 12 Ga. Steel
Adjustable Universal Channel Guard Rail 13" to 25" Between Rail Width...................
27" to 39" Between Rail Width...................
Both Sides ................per foot ........................
One Sides................. per foot ........................
Angle Type "A" Raised Roller End Stop
1-1/2" x 1-1/2" 12 Ga..both sides per foot .... 2-1/8" Dia. Roller
Angle Type "B" Integral 13" to 25" Between Rail Width..................
1-1/2" x 1-1/2" 12 Ga. with Pop-Out Roller
Feature........both sides per foot..............		 27" to 39" Between Rail Width..................
NOTE: Available with 3" and 4" roller centers only. Hand Operated Stop
Fixed Channel Type - Non-Overlapping (Reversing) (Prices are for both sides) (Blade or Roller Types, specify)
13" to 23" Between Rail Width .................
25" to 39" Between Rail Width ................ $627.70
3-1/2" x 1-1/2" x 12 Ga..........per foot..........
6-1/2" x 1-1/2" x 12 Ga..........per foot..........
10" x 1-1/2" x 12 Ga..........per foot.............. Air Operated Linear Thruster Stop
13" x 1-1/2" x 12 Ga..........per foot.............. (Pin, Roller or Blade Type. Specify)
Fixed Channel Type - Overlapping (One Direction)
(Prices are both sides)		 13" to 39" Between Rail Width................
3-1/2" x 1-1/2" x 12 Ga..........per foot.......... $27.20 NOTE: Filter Regulator Unit not supplied as standard.
Air Package Stops are supplied in NORMALLY
DOWN position. Can be supplied in Normally
Up position -Specify.
6-1/2" x 1-1/2" x 12 Ga..........per foot..........
10" x 1-1/2" x 12 Ga..........per foot..............
13" x 1-1/2" x 12 Ga..........per foot..............
NOTE: Angle Type and Fixed Channel Guard
Rails are raised with spacer.
ELECTRICAL CONTROLS
NOTE: If product comes in contact with guard rails,
product flow will be affected.		 (See below)
TC-250 TRAFFIC COP
190-NSPS & NSPSS
tc-250 traffic cop
190-ACC, LRS, & LRSS, 190-ACZ
Overall
Frame Width		 16" to 28" 30" to 42"
Price Each
The traffic Cop controls product flow from one conveyor
onto another. It allows products from one line of traffic to
flow freely, without interference from another converging
line of traffic. This eliminates collision of products which
may cause damage and disrupt product flow. Specify
model, width and degree.		 7 arm widths, aluminum
Available in 30°, 45°, 60°, 90° & 180° applications.
Includes mounting hardware.
180° application-10" minimum required between lines
5 lbs. Minimum Package Weight at 65 FPM
250 lbs. Maximum Accumulated Capacity
OPTIONAL ROLLER CENTERS
Other than Standard 3". See Chart Below.
Between Rail Width 13" 15" 17" 19" 21" 23" 25" 27" 31" 33" 37" 39"
Overall Frame Width 16" 18" 20" 22" 24" 26" 28" 30" 34" 36" 40" 42"
Add Per Foot of Conveyor
2" Centers*
Deduct Per Foot of Conveyor 4" Centers* -$13.60 -$14.50 -$15.50 -$16.70 -$17.80 -$19.20 -$20.10 -$21.20 -$23.10 -$24.60 -$26.60 -$27.60
Deduct Per Foot of Conveyor 6" Centers -$16.50 -$17.90 -$19.50 -$20.80 -$22.10 -$23.80 -$25.20 -$26.60 -$29.40 -$31.00 -$33.80 -$35.20
NOTE: 4" Centers Not Available on 7'-6" Long Bed Section.

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

ELECTRICAL CONTROLS AND DRIVE SECTION
MANUAL START SWITCH or
SAFETY DISCONNECT
 limit switch LIMIT SWITCH, SINGLE POLE,
WITH NYLON ROLLER LEVER
manual start switch
#032.1014......................................... $225.79 #033.2032 & #033.2072..................$589.01
Nema 4
"START-STOP", Nema 1, One direction, 30
AMP, 3 Pole (Single or 3 phase)
LIMIT SWITCH, DOUBLE POLE,
WITH NYLON ROLLER LEVER
limit switch double pole
#033.2033& #033.2072...................$352.04
Nema 4
REVERSING DRUM SWITCH
#032.103.......................................... $905.51
"Fwd-Stop-Rev", Nema 1, for 1-1/2 HP at
115 volts or 2 HP at 230 volts single phase,
or 2 HP max. three phase
PROXIMITY SWITCH, INDUCTIVE,
(METAL SENSING)

#032.210.........................................$217.67
115 Volt AC, two wire with ground, 30mm dia.,
10mm range
foot swtich with guard FOOT SWITCH WITH GUARD
#032.211.........................................$257.68
24 Volt DC, two wire with ground, 30mm dia.,
10mm range
#032.200........................................... $286.50
(Constant Pressure) "On-Off" type, Nema 1,
Pilot Control or 1 HP max. single phase.
PHOTO EYE, ON-OFF TYPE
power cord and plug #EA-000005......................................$1,122.83
Banner Q45 Retro Reflective Photo Eye Kit
with timing module, reflector and mounting
brackets. Photo Eye output is one form C
type relay, Operating voltage
24-250VAC/12-250VDC
POWER CORD AND PLUG (20')
POWER CORD WITH PLUG ONLY 20' LONG
Model No.
Voltage
HP Rating
Prices
EA-039-1A
115/1
1/2-3/4
EA-039-2A
115/1
1
EA-039-3A
115/1
1 1/2
EA-039-4A
230/1
1/2-1
EA-039-5A
230/1
1 1/2-2
EA-039-6A
208-230/3
1/2-2
EA-039-7A
460/3
1/2-2
POWER CORD WITH PLUG 20' LONG WITH MANUAL START SWITCH AND MOUNTING BRACKET
Model No.
Voltage
HP Rating
Prices
EA-039-1B
115/1
1/2-3/4
EA-039-2B
115/1
1
EA-039-3B
115/1
1 1/2
EA-039-4B
230/1
1/2-1
EA-039-5B
230/1
1 1/2-2
EA-039-6B
208-230/3
1/2-2
EA-039-7B
460/3
1/2-2
MOUNTING BRACKETS FOR PHOTO
EYE #033.2122
B-05165...........................................$125.19
AIR PRESSURE SWITCH
#094.191........................................$732.79
Nema 4
EMERG. STOP PULL CORD SWITCH
#032.285 with 032.2851 Turnbuckle
...........................................................$737.85
Nema 4
"RED" EMERGENCY PULL CORD
CABLE AND MOUNTING HARDWARE
#032.281...one side.................$7.88 per / ft.
both sides..............$16.83 per / ft.
EMERGENCY PUSH BUTTON
#032.284..........................................$296.39
Nema 4
PHOTO EYE, 18MM DIA., DIFFUSED,
(PHOTO PROX.) 115 VOLT, LIGHT
OPERATE, 2-METER CABLE
#032.2113 (100mm range, 3.94")....$1,130.24
#032.2116 (200mm range, 7.87")....$205.79
#033.218 (400mm range, 15.74")....$311.09
NOTE: PRICING LISTED NOT MOUNTED
OR WIRED 		"PHOTO EYE, RETRO-REFLECTIVE,
(POLARIZED) 24 VOLT DC
#033.2128 with 032.21122 Cable.....$253.44
#032.21122 (Cable Only)...................$76.71

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

CONTROLLER PRICES
AC VARIABLE SPEED CONTROLLER ONLY
SINGLE PHASE CONTROLLER INPUT
Motor Size 115 Volt 208/230 Volt
1/2 VSC-12-10 VSC-12-12
Price $1,581.35 $1,260.73
1 VSC-12-11 VSC-12-13
Price $1,827.73
2 N/A
VSC-12-14
Price ~
THREE PHASE CONTROLLER INPUT
Motor Size 208/230 Volt 460 Volt 575 Volt
1/2
VSC-01-15
VSC-01-18
VSC-12-29
Price
1
VSC-01-16
VSC-01-19
VSC-12-29
Price
2
VSC-01-17
VSC01--20
VSC-12-30
Price
REPLACEMENT INVERTER DUTY
ENERGY EFFICIENT MOTORS
HP Part No. Price
1/2 032.351 230/460
1 032.353 230/460
2 032.355 230/460
1/2 032.3512 575
1 032.3532 575
2 032.3552 575
IMPORTANT NOTES...
• All above motors are 230 / 460 / 575 Volt, 3 Phase.
• All above V/S Drive Kits include NEMA 1 / IP30
Junction Box, Controller and Motor.
• Good for cycle rates of up to 15 cycles per minute, at
1/2 second ramp time, with a maximum speed of 250
FPM.
• Drawing No. DG-001146.
OPTIONAL: Mounting and Wiring Add-On . . .
(mounted close to the motor)		 $715.70
Brake Relay Kit (EA-068A).............................. $575.24 • When AC Variable Speed Controller is used with a
Brake Motor, A Brake Relay Kit (EA-068A) is
required. Add an additional $575.24 for this option.)
ELECTRONIC CLUTCH BRAKE DRIVE PACKAGE
Part No. Description Price
EA-VSC-01-CB 2 HP Electronic Clutch-Brake Kit $5,361.50
OPTIONAL: Mounting and Wiring Add-on .
(mounted close to the motor)		 $715.70
KIT INCLUDES
Part No. Description
VSC-01-20 AC Variable Speed Controller, 460 Volt, 3 Phase
032.345 2 HP 460 Volt, 3 Phase, C-Face Motor TEBC
(Blower Cooled) With 5AC Reducer and #60 Chain
and Sprockets
IMPORTANT NOTES
• Good for cycle rates of up to 60 cycles per minute.
• 1/10 second Accel and Decel time, with 350 FPM
Maximum Speed.
• 230 or 460 Volt Only, Other Voltages, Contact us.
• Motor Cooling Blower is 115 Volt, 1 Phase, 60 Hz.
• Price Includes 5AC Reducer and #60 Chain and
Sprockets
Part No. Description
VSC-01-17 AC Variable Speed Controller, 230 Volt, 3 Phase
032.345 2 HP 230 Volt, 3 Phase, C-Face Motor TEBC
(Blower Cooled) With 5AC Reducer and #60 Chain
and Sprockets

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

• "Start-Stop" Push-button Station • "Start-Stop"Push-button Station
033.1955 $223.91 033.195................................................. $151.10
Remote mounted, Nema 1 To be mounted in Mag Starter Cover
• "Fwd-Rev-Stop" Push-button Station • "Fwd-Rev-Stop"Push Button Station
033.1965 $420.87 033.196.................................................. $520.41
Remote mounted, Nema 1 To be mounted in Mag Starter Cover
• "Up-Down-Stop" Push-button Station
• Mounting Brackets for photo eye
033.1975 $420.87
Remote mounted, Nema 1 #033.2122
B-05165 ..............................................		 $125.19
CONVEYOR WEIGHT TABLE
SIZE TO ORDER
Overall Length
"A"		 Between
Rail Width		 13" 15" 17" 19" 21" 23" 25" 27" 31" 33" 37" 39"
Drive Belt Width 6" 6" 6" 6" 6" 6" 6" 6" 8" 8" 8" 8"
Overall
Frame Width		 16" 18" 20" 22" 24" 26" 28" 30" 34" 36" 40" 42"
10'

WEIGHTS
(Lbs.)
Weights
Based on
3" Roller
Centers

385 416 448 479 509 551 581 612 679 720 771 803
15' 521 552 596 637 679 733 774 816 908 950 1033 1077
20' 657 688 744 797 849 915 967 1020 1137 1190 1295 1351
25' 793 824 898 956 1019 1097 1160 1224 1366 1430 1557 1625
30' 929 960 1040 1115 1189 1279 1353 1428 1595 1670 1819 1899
35' 1065 1096 1188 1274 1359 1461 1546 1632 1824 1910 2081 2173
40' 1201 1232 1336 1433 1529 1643 1739 1836 2053 2150 2343 2447
45' 1337 1368 1484 1592 1699 1825 1932 2040 2282 2390 2605 2721
50' 1473 1504 1632 1751 1869 2007 2125 2244 2511 2630 2867 2995
55' 1609 1640 1780 1910 2039 2189 2318 2448 2740 2870 3129 3269
60' 1745 1776 1928 2069 2209 2371 2511 2652 2969 3010 3391 3543
65' 1886 1912 2076 2228 2379 2553 2704 2856 3198 3350 3653 3817
70' 2017 2048 2224 2387 2549 2735 2897 3060 3427 3590 3915 4091
75' 2153 2184 2372 2546 2719 2917 3090 3264 3656 3830 4177 4365
80' 2289 2320 2520 2705 2889 3099 3283 3468 3885 4070 4439 4639
85' 2425 2456 2668 2864 3059 3281 3476 3672 4114 4310 4701 4913
90' 2561 2592 2816 3023 3229 3463 3669 3876 4343 4550 4963 5187
95' 2697 2728 2964 3182 3399 3645 3862 4080 4572 4790 5225 5461
100' 2833 2864 3112 3341 3569 3827 4055 4284 4801 5030 5487 5735
All weights are conveyor weights only. Accessories, crating, etc. are not included.
NOTE: Bed sections available in multiples of 4 ft., 5 ft., 6 ft., 7-1/2 ft., 8 ft., 9 ft. and 10 ft. lengths only.
Accumulating Conveyor, Conveyor, Live Roller Conveyors, Powered Live Roller, Power Conveyor, Conveyors,
and Roller Conveyors from your source for material handling equipment.
