MODEL 190-LRC, 190-LRS, 190-LRSS
|
LIVE ROLLER CURVE, SPUR, OR STRAIGHT SPUR CONVEYOR
|
|
MODEL 190-LRC - LIVE ROLLER CURVE CONVEYOR
|
|
|
|
|
 |
|
The Model 190-LRC is a medium-duty
live roller curve that provides a positive
drive for negotiating 90°, 60°, 45°, or 30°
turns. It may be self-powered or can be
slave driven from 190-ACC, LRS or
LRSS conveyors. |
|
|
|
|
|
* 12 Bed Widths
* Reversible
* Tapered Tread Rollers
* Adjustable MS-Type Floor
Supports Available
|
|
|
|
|
|
|
|
 |
|
| DRAWING FOR 190-LRC |
 |
|
|
MODEL 190-LRS - LIVE ROLLER SPUR CONVEYOR
|
|
|
|
 |
|
|
|
The Model 190-LRS Live Roller Spur is
used in diverging or converging applications.
It may be self-powered or can be slave
driven form 190-ACC, LRC, or LRSS
conveyors. |
|
|
|
* 12 Bed Widths
* Reversible
* Right or Left Hand Units
Available
* Adjustable MS-Type floor
supports available |
|
|
|
|
|
 |
|
| STANDARD SPECIFICATIONS FOR 190-LRC & 190-LRS |
|
|
|
BED - (For 190-LRC & LRS) Roller bed with 2-1/2 in.
dia. tapered to 1-11/16 in. dia. x 16 Ga. galvanized and
1.9 in. dia. rollers x 16 Ga. galvanized tube. Mounted in
6-1/2 in. x 12 Ga. powder painted formed steel channel
frame. |
|
TAKE-UP - Take-ups provided to maintain proper
V-belt tension. Includes 4-3/8 in. dia. x 5/8 in. bore
V type take-up sheave. |
|
|
|
BEARINGS - Tread rollers have pre-lubricated ball
bearings. Flange and pillow block bearings are sealed,
pre-lubricated with eccentric lock collar. |
|
|
FLOOR SUPPORTS - Now supplied as optional
equipment. |
|
|
|
|
MOUNTED BRACKET - Bracket is supplied to
attach spur to side channels of 190-ACC,190-ACZ,
or 190-LR conveyor. (for 190-LRS.) |
|
|
| END DRIVE - Mounted underneath bed section. |
|
|
|
DRIVE BELT - Endless B-section V-Belt, industrial
grade. |
|
|
|
|
BUTT COUPLINGS - Standard for connecting
190-ACC, 190-LRS, 190-LRC and 190-LRSS,
190-ACZ, or 190-LR conveyors. |
|
|
PRESSURE SHEAVES - 2-1/2 in. dia. with 3/8 in.
bore. |
|
|
|
|
SPEED REDUCTION - Sealed worm gear reducer
driven by V-belt No. 50 roller chain to drive sheave.
(For 190-LRSS has C-Face speed reducer) |
|
|
IDLER SHEAVE - 4 in. dia. x 5/8 in. bore V type
and/or 5-1/2 in. dia. x 5/8 in. bore flat type. (For 190-
LRC and 190-LRS only.) |
|
|
|
|
MOTOR - 1/2 HP-208/230/460/575V-3 Ph.
60 Hz. Totally Enclosed . |
|
|
SNUB RETURN SHEAVE – 3-1/4 in. dia. x 1/2 in.
bore flat idler has seven position adjustment. (For
190-LRSS only) |
|
|
|
|
CONVEYING SPEED - Constant 65 FPM. |
|
|
| CAPACITY - 500 lbs. total distributed live load. |
|
|
|
|
|
Spur Applications - Live Roller Spurs are used to transfer cartons, etc., onto and off of main conveyor lines. The
illustrations below show the correct usage of Plows and Turning Wheels with Spurs in Diverging and Converging
applications. |
|
|
|
| OPTIONAL EQUIPMENT 190-LRC & 190-LRS |
|
|
|
END DRIVE – Mounted on inside radius. Minimum
elevation 18-7/8". |
|
FLOOR SUPPORTS–MS Type floor supports are
available with a wide range of adjustment. Specify top
of belt or roller elevation. One support required at
every bed joint and ends of conveyor. Holes in feet
for lagging to floor. Knee braces recommended
above MS-6 support. |
|
|
CONVEYING SPEED - Other constant and variable
speeds from 25 to 120 FPM. NOTE: Capacity
affected with speed change. |
|
|
|
SIDE MOUNTED DRIVE - Motor reducer unit
mounted to side of conveyor. Specify inside or outside.
Minimum elevation 11-1/16 in. (For 190-LRS)
Minimum elevation - 11-1/8 in.(For 190-LRC) |
|
|
|
|
SLAVE DRIVEN - Standard drive may be omitted
and curve or spur slave driven from 190-ACC,
190-ACZ, or 190-LR conveyors. (Specify by sketch,
location of slave connection). Minimum elevation 11 in. |
|
|
O-RING DRIVE CHAIN–With sealed in lubricant
(Recommended for applications that do not permit
regular lubrication). |
|
|
|
|
MOTORS - Energy efficient, single phase, other
characteristics. 1 HP maximum. |
|
|
|
ELECTRICAL CONTROLS - Non-reversing
magnetic starters and push-button stations. AC
variable frequency drive. |
|
|
GUARD RAILS - Adjustable Universal Channel Guard
Rail, fixed channel, type A or B angle. See Accessory
section. NOTE: If product comes in contact with
guard rails, product flow will be affected. |
|
|
|
|
CEILING HANGERS - 5/8 in. dia. x 8 ft. long un-
plated rods fully threaded. Other lengths and galvanized
rods available. |
|
|
POLY-TIER SUPPORTS - 36 in. to 120 in. support
heights in 6 in. increments. Knee braces supplied. (Only
for 190-LRC and LRS.) |
|
|
|
|
|
MODEL 190-LRSS - LIVE ROLLER STRAIGHT SPUR CONVEYOR
|
|
|
|
 |
|
|
|
The Model 190-LRSS Live Roller Straight Spur is used in
diverging or converging applications. It may be self-powered
or can be slave driven from 190-ACC, LRC, or LRS
conveyors. |
|
|
|
* 12 Bed Widths
* Reversible
* Right or Left Hand Units Available
* Adjustable MS-Type floor supports available |
|
|
|
|
|
 |
|
|
|
| STANDARD SPECIFICATIONS FOR 190-LRSS ONLY |
|
|
|
BED - Roller bed with 1.9 in. dia. Roller x 16 Ga.
galvanized tube spaced every 3 in. Mounted in 6-1/2 in.
x 12 Ga. powder painted steel channel frame. |
|
BEARINGS - Tread rollers have pre-lubricated ball
bearings. Flange and pillow block bearings are sealed,
pre-lubricated with eccentric lock collar. |
|
|
|
FLOOR SUPPORTS - Now supplied as optional
equipment. |
|
MOUNTED BRACKET - Bracket is supplied to
attach spur to side channels of 190-ACC,190-ACZ,
or 190-LR conveyor. |
|
|
| END DRIVE - Mounted underneath bed section. |
|
|
|
|
|
BUTT COUPLINGS - Standard for connecting
190-ACC, 190, 190-LRC, 190-ACZ, or 190-LR
conveyors. |
DRIVE BELT - Endless B-section aramid core V-Belt
drives each section of conveyor. |
|
|
|
PRESSURE SHEAVES - 2-1/2 in. dia. with 3/8 in.
bore. |
|
|
|
|
SPEED REDUCTION - Sealed worm gear C-Face
speed reducer. No. 50 roller chain to drive sheave |
|
|
SNUB RETURN SHEAVE – 3-1/4 in. dia. x 1/2 in.
bore flat idler has seven position adjustment. |
|
|
|
|
MOTOR - 1/2 HP-208/230/460/575V-3 Ph.
60 Hz. Totally Enclosed . |
|
|
TAKE-UP - Take-ups provided to maintain proper
V-belt tension. Includes 4 in. dia. x 5/8 in. bore V type
take-up sheave. |
|
|
|
|
CONVEYING SPEED - Constant 65 FPM. |
|
|
|
CAPACITY - 500 lbs. total distributed live load. |
|
|
|
Spur Applications - Live Roller Spurs are used to transfer cartons, etc., onto and off of main conveyor lines. The
illustrations below show the correct usage of Plows and Turning Wheels with Spurs in Diverging and Converging
applications. |
|
|
|

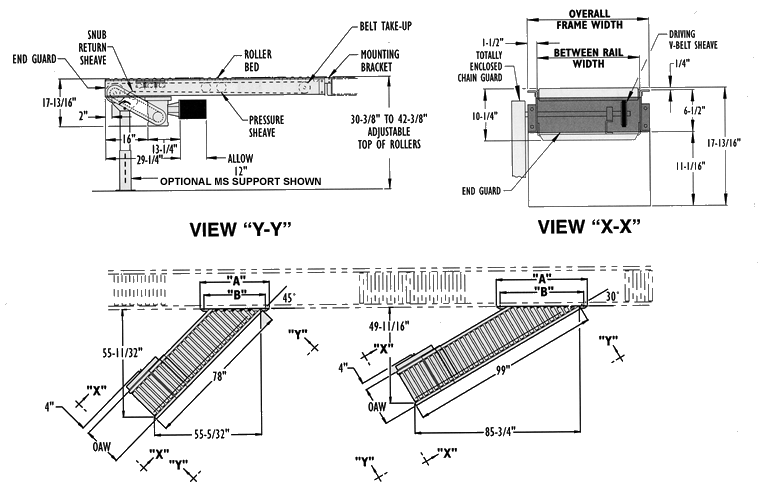

| DRAWING FOR 190-LRS & 190-LRSS |
|
|
|
Live Roller Spurs or straight spurs are used to transfer cartons, etc.,
onto and off of main conveyor lines. The illustrations below show the
correct usage of Plows and Turning Wheels with Spurs in Diverging and
Converging applications. |
|
SPUR
APPLICATIONS
|
|
 |
|
|
| OPTIONAL EQUIPMENT |
|
|
|
FLOOR SUPPORTS–MS Type floor supports are
available with a wide range of adjustment. Specify top
of belt or roller elevation. One support required at
every bed joint and ends of conveyor. Holes in feet
for lagging to floor. Knee braces recommended
above MS-6 support. |
|
O-RING DRIVE CHAIN–With sealed in lubricant
(Recommended for applications that do not permit
regular lubrication). |
|
|
|
GUARD RAILS - Adjustable Universal Channel Guard
Rail, fixed channel, type A or B angle. See Accessory
section. NOTE: If product comes in contact with
guard rails, product flow will be affected. |
|
|
BED LENGTHS - 57 in., 63 in., 69 in.,75 in., 81 in.,
and 87 in. Drive not available on all lengths and widths.
Contact us. |
|
|
|
|
CEILING HANGERS - 5/8 in. dia. x 8 ft. long unplated
rods fully threaded. Other lengths and galvanized rods
available. |
|
|
CONVEYING SPEED - Other constant and variable
speeds from 25 to 120 FPM. NOTE: Capacity affected
with speed change. |
|
|
|
|
SLAVE DRIVEN - Standard drive may be omitted
and curve or spur slave driven from 190-ACC,
190-ACZ, or 190-LR conveyors. (Specify by sketch,
location of slave connection). Minimum elevation 11 in. |
|
|
SHAFT MOUNTED DRIVE – Motor reducer unit
mounted on extended drive shaft. Can be mounted
with standard sheave retainer for 10 ½ in. elevation
(motor horizontal), or can be mounted with low
elevation sheave retainer for 8 3/4 in. elevation (motor
vertical). Mounting bracket and torque arm allows for
multiple mounting positions. |
|
|
|
|
MOTORS - Energy efficient, single phase, other
characteristics. 1 HP maximum. |
|
|
|
ELECTRICAL CONTROLS - Non-reversing
magnetic starters and push-button stations. AC
variable frequency drive. |
|
|
SIDE MOUNTED DRIVE - Motor reducer unit
mounted to side of conveyor. Specify inside or outside.
Minimum elevation 11-1/2 in. |
|
|
|
|
|
|
|
SHAFT MOUNTED DRIVE (For 190-LRSS)
|
|
SPEED CHART FOR SHAFT MOUNTED DRIVE ON 190ACC
|
|
SPEED FPM
|
MAX HP
|
MOTOR FRAME
|
|
26
|
3/4
|
56C
|
|
32
|
1
|
56C
|
|
43
|
1
|
46C
|
|
52
|
1-1/2
|
140TC
|
|
64
|
2
|
140TC
|
|
86
|
2
|
140TC
|
|
103
|
2
|
140TC
|
|
129
|
3
|
140TC
|
|
*172
|
3
|
140TC
|
|
*257
|
3
|
140TC
|
|
*343
|
3
|
140TC
|
|
|
|
|
 |
|
|
|
Conveyor shown with
featured option -
shaft mounted drive.
|
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
PRICES FOR COMPLETE CONVEYOR INCLUDE:
|
|
|
|
|
* 2-1/2" dia. galvanized tapered to 1-11/16" dia.
Roller in a 6-1/2" x 12 Ga. channel frame. (The
190-LRSS has 1.9" dia. x 16 Ga. galvanized roller.)
* Driving V-Belt
* 1/2 HP - Totally Enclosed Motor (Specify Exact
Voltage)
* Less Floor Supports |
|
|
* V-Belt Drive (190-LRC & LRS) / C-Face Drive
(190-LRSS)
* Totally Enclosed Chain & Motor V-Belt Guard
* 65 FPM Constant Conveying Speed
* End Guards
* Less Electrical Controls |
|
|
|
|
|
|
|
| IMPORTANT NOTES... |
• OTHER WIDTHS
Contact us for "IN-BETWEEN WIDTHS". |
• NON-STANDARD WIDTHS WITH STANDARD
INSIDE RADIUS
Contact us for lead time. |
|
|
|
|
| For Weights see below. |
|
|
|
|
|
PRICES FOR 190-LRC Live ROLLER CURVE CONVEYOR
|
|
Between Rail Width
|
15"
|
21"
|
27"
|
33"
|
39"
|
|
Overall frame Width
|
18"
|
24"
|
30"
|
36"
|
42"
|
|
30°
|
|
|
|
|
|
|
45°
|
|
|
|
|
|
|
60°
|
|
|
|
|
|
|
90°
|
|
|
|
|
|
|
180°
|
|
|
|
|
|
|
|
|
|
|
|
PRICES FOR 190-LRS Live ROLLER SPUR CONVEYOR
|
|
|
Between Rail Width
|
15"
|
21"
|
27"
|
33"
|
39"
|
|
Overall frame Width
|
18"
|
24"
|
30"
|
36"
|
42"
|
|
30°
|
|
|
|
|
|
|
45°
|
|
|
|
|
|
|
|
|
PRICES FOR 190-LRSS Live ROLLER STRAIGHT SPUR CONVEYOR
|
|
|
Between Rail Width
|
15"
|
21"
|
27"
|
33"
|
39"
|
|
Overall frame Width
|
18"
|
24"
|
30"
|
36"
|
42"
|
|
30°
|
|
|
|
|
|
|
45°
|
|
|
|
|
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
| PRICES FOR OPTIONAL EQUIPMENT |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| OPTIONAL DRIVE |
|
CONSTANT AND VARIABLE SPEEDS |
| Unified Drives: (Shaft Mounted) |
|
|
|
|
Constant - Within 25 - 120 FPM............. |
No Charge |
| Unified Drives: |
16" to 28" |
30" to 42" |
| Shaft Mounted Drive |
$432.60
|
$432.60
|
|
|
Variable Speed....See Electrical Controls and Drive
Section Below. |
|
|
|
|
|
|
|
|
|
|
|
|
DRIVE COMPONENT DEDUCTS |
| Speed FPM |
43 |
52 |
64 |
86 |
103 |
129 |
172 |
257 |
343 |
| Max HP |
1 |
1 * |
2 |
2 |
2 |
2* |
2* |
2* |
2* |
|
|
|
Less Motor Drive, Motor Mount and Guards, but with |
|
Drive Shaft..............Deduct..................... |
$694.20 |
* Reducer size increases with 2 HP.
**Contact us. |
|
|
Less Motor Only (1/2 HP-208/230/460/575
V-3 Ph.-60 Hz) |
|
|
...............................Deduct......................
*Less Reducer........Deduct...................... |
$258.30 |
| Drive Type |
OVERALL FRAME WIDTH |
| 16" TO 24" |
26" TO 42" |
| Side Mounted |
|
|
|
|
|
|
|
$307.40 |
|
|
*Less V-Belt Guard, Chain Guard, sheaves and
sprockets when V-Belt drive is supplied. Less chain
guard and sprockets when C-Face drive is supplied. |
|
|
|
|
|
|
|
| MOTORS |
|
|
Extra Motor Price for OTHER THAN: 1/2 HP-208/230/
460/575V-3 Ph.-60 Hz. - Totally Enclosed.
Speed affects horsepower requirements. |
|
|
|
|
|
|
|
|
|
|
|
|
SLAVE DRIVEN |
|
The |
"190-LRC", |
"190-LRS", & "190-LRSS" may be |
|
slave driven from straight "ACC", "ACZ", or "LR" |
|
H.P. REQ.
|
TOTALLY ENCLOSED
|
ENERGY EFFICIENT
|
|
200/208V
3 Ph.-60 Hz.
|
230/460/575V
3Ph.-60 Hz.
|
115/230 V
1 Ph.-60 Hz.
|
230/460/575
V 3Ph.-60 Hz.
|
| 1/2 |
|
|
|
|
| 1 |
N/A
|
N/A
|
|
|
|
|
|
|
|
|
conveyors............Deduct....................... |
$490.30 |
|
|
LRC Slave Connection on Inside Radius. |
|
|
Please provide sketch. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
SLAVE DRIVEN FROM SLIDER BED |
|
|
|
..............................Deduct........................... |
$412.00 |
|
|
|
|
|
|
|
|
|
|
|
|
|
NOTE: Drive deduct includes slave connection and
system end for slider bed. (Belt 6" less than Bed Width). |
| FLOOR SUPPORTS |
|
|
Not Included in Base Price. Use Chart Below for
Required Elevation. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GUARD RAILS |
| "MS" SUPPORT |
| Model No. |
Adjustment to Top of Roller |
Price Each |
| *MS-1 |
13-3/4" to 15-1/2" |
|
| *MS-1.2 |
14-3/4" to 16-1/2" |
|
| *MS-1.4 |
15-3/4" to 17-1/2" |
|
| *MS-2 |
16-3/4" to 19-3/4" |
|
| MS-3 |
19-3/8" to 22-3/8" |
|
| MS-4 |
22-3/8" to 28-3/8" |
|
| MS-5 |
26-3/8" to 32-3/8" |
|
| MS-6 |
30-3/8" to 42-3/8" |
|
| MS-7 |
40-3/8" to 52-3/8" |
|
| MS-8 |
52-3/8" to 64-3/8" |
|
| MS-9 |
64-3/8" to 76-3/8" |
|
| MS-10 |
76-3/8" to 88-3/8" |
|
| MS-11 |
86-3/8" to 98-3/8" |
|
| MS-12 |
98-3/8" to 110-3/8" |
|
|
|
|
|
Adjustable UniversalChannel Guard Rail
90°, 60°, 45°, & 30° |
|
|
|
|
|
Both Sides.......................................... |
$237.90
|
|
|
|
Outside Only......................................... |
$160.40
|
|
|
|
Inside Only............................................ |
$105.70
|
|
|
|
Angle Type "A"
1-1/2" x 1-1/2" x 12 Ga.
90°, 60°, 45°, & 30° |
|
|
|
|
|
|
Both Sides............................................. |
$97.30
|
|
|
|
Outside Only......................................... |
$60.40
|
|
|
|
Inside Only............................................ |
$35.80
|
|
|
|
Angle Type "B"
1-1/2" x 1-1/2" x 12 Ga.
90°, 60°, 45°, & 30° |
|
|
|
|
|
|
Both Sides............................................. |
$145.40
|
|
|
|
Outside Only......................................... |
$92.40
|
|
|
|
Inside Only............................................ |
$53.70
|
|
|
|
Fixed Channel Type90°, 60°, 45°, & 30° |
|
|
|
3-1/2" x 1-1/2" x 12 Ga. |
6-1/2" x 1-1/2" x 12 Ga. |
|
|
|
|
|
|
*Less than 18-1/2" top of roller elevation-
-Shaft Mounted Drive or Side Mounted Drive required. |
|
|
|
|
|
|
Both Sides...... |
$232.10
|
Both Sides...... |
$430.50
|
|
|
|
Outside Only... |
$146.60
|
Outside Only... |
$271.80
|
| NOTE: MS-7 to MS-12: Knee Braces included in price. |
|
|
|
|
|
|
Inside Only.... |
$86.80
|
Inside Only.... |
$153.70
|
| Extra Knee Braces...........Add per pair........ |
$31.80
|
|
|
|
|
|
|
10-1/2" x 1-1/2" x 12 Ga. |
13-1/2" x 1-1/2" x 12 Ga. |
| Single Center Leg (MSC-6 and below) ea ...... |
$64.00
|
|
|
|
|
|
|
Both Sides...... |
$662.70
|
Both Sides...... |
$861.50
|
| Single Center Leg (MSC-7 and above) ea ...... |
$79.70
|
|
|
|
|
|
|
Outside Only... |
$418.30
|
Outside Only... |
$543.60
|
|
|
|
|
|
|
|
|
|
|
|
|
Inside Only.... |
$236.10
|
Inside Only.... |
$322.30
|
|
|
|
|
|
|
NOTE: For 180° curve, use the above prices x2.
NOTE: If product comes in contact with guard rails,
product flow will be affected. |
Click the button of the item you wish to purchase. Contact us for special lengths
|
|
LOW ELEVATION |
| TANGENTS (Add-on to Curve) |
|
|
Low Elevation Sheave Retainer and Low Elevation
Take-Up to provide 11 1/8" elevation for 190-LRC
and 190-LRS. (Side Mounted Drive required – See
Optional Drives.) |
Special Length Tangents for 190-LRC & 190-LRS curves
up to 4’ long. with 3" roller centers |
|
|
|
| *OAL Tangent |
190-LRC & 190-LRS |
| 9", 12", 15", 18", & 21" |
|
| 24", 27", 30", 33", & 36" |
|
| 39", 42", 45", 48" |
|
|
|
|
|
|
|
Low Elevation Sheave Retainer to provide 8 3/4"
elevation for 190-LRSS. (Shaft Mounted Drive
required – See Optional Drives.) |
|
Low Elevation Sheave Retainer to provide 11 1/8"
elevation for 190-LRSS. (Side Mounted Drive
required – See Optional Drives.) |
|
|
* "OAL Tangent" includes a 6-1/4" long tangent on 90°
and an 18" long tangent on a 30°, 45°, & 60°. Tangent
lengths increase in 3" increments only. |
|
|
Add-on for LRC & LRS...per bracket...... |
$459.30
|
|
Add-on for LRSS.............per bracket...... |
$353.20
|
NOTE: 30°,45°, & 60° minimum 18 in. Long tangent on
both ends. All curves, no more than 48 in. Long tangent
on one end. For Tangents over 18" long on either or both
ends, add one additional floor support per end. Combined
Tangent lengths cannot exceed 54 1/4". 180° Curve has
maximum 6 1/4" long tangent each end with no middle
tangent. Contact factory for additional tangent
combinations. |
|
|
|
|
|
TRAFFIC COP |
|
See below. |
|
|
|
|
TURNING WHEEL |
|
See below. |
|
|
|
|
ELECTRICAL CONTROLS |
|
See below. |
|
|
| GALVANIZING |
|
|
|
| Contact us. |
|
|
|
|
| • CEILING HANGERS |
|
Ceiling Hanger Brackets with (2) 5/8" dia. x 8’-0" long unplated
fully threaded rods ...................................................................... |
|
 |
$156.70
|
Ceiling Hanger Brackets with (2) 5/8" dia. x 8’-0" long galvanized
fully threaded rods ....................................................................... |
|
| $187.20
|
Ceiling Hanger Brackets with (2) 5/8" dia. x 10’-0" long unplated fully
threaded rods................................................................................ |
|
| $231.60
|
| Ceiling Hanger Brackets with (2) 5/8" dia. x 10’-0" long galvanized fully threaded rods................................................................................. |
|
| $381.20
|
| Ceiling Hanger Brackets with (2) 5/8" dia. x 12’-0" long unplated fully threaded rods................................................................................. |
|
|
|
|
$384.40
|
|
Ceiling Hanger Brackets with (2) 5/8" dia. x 12’-0" long galvanized fully threaded rods.................................................................................. |
|
|
$444.50
|
|
Ceiling Hanger Brackets, Less Rods Only .................................... |
$98.70
|
|
Extra Length Rods: |
|
|
(2) 8’-0" long x 5/8" dia. unplated fully threaded rods .................. |
$57.40
|
|
(2) 8’-0" long x 5/8" dia. galvanized fully threaded rods ............... |
$88.40
|
|
(2) 10’-0" long x 5/8" dia. unplated fully threaded rods ................ |
$132.70
|
|
(2) 10’-0" long x 5/8" dia. galvanized fully threaded rods ............. |
$282.30
|
|
(2) 12’-0" long x 5/8" dia. unplated fully threaded rods ................ |
$285.80
|
|
(2) 12’-0" long x 5/8" dia. galvanized fully threaded rods ............. |
$346.00
|
|
Hex Coupling Nuts for Rods ......................................................... |
$5.20
|
|
Above noted delivery times determined by delivery time of model ordered. |
|
|
|
| • POLY-TIER SUPPORTS |
 |
|
PRICES FOR COMPLETE
SUPPORT INCLUDE:
|
|
|
|
IMPORTANT NOTES
• Check for Clearance
• Specify type of conveyor to be used.
• Use in place of LS or MS Supports only. |
|
• Painted Steel Support Legs
• Adjustable Cross pipe Assembly
• Knee Braces (1 set per level of
conveyor)
• "U" Brackets
• Single Width Conveyor Only |
|
|
|
|
|
|
|
|
|
|
|
|
CAPACITY DATA:
1500 lbs..............................................per cross pipe
4500 lbs..............................................per set of legs |
|
|
|
|
|
|
|
|
|
|
|
|
| (2) TIER POLY-TIER SUPPORTS |
|
36"
|
|
|
42"
|
|
|
48"
|
|
|
54"
|
|
|
60"
|
|
|
66"
|
|
|
72"
|
|
|
78"
|
|
|
84"
|
|
|
90"
|
|
|
96"
|
|
|
102"
|
|
|
108"
|
|
|
114"
|
|
|
120"
|
|
|
|
| (3) TIER POLY-TIER SUPPORTS |
|
36"
|
|
|
42"
|
|
|
48"
|
|
|
54"
|
|
|
60"
|
|
|
66"
|
|
|
72"
|
|
|
78"
|
|
|
84"
|
|
|
90"
|
|
|
96"
|
|
|
102"
|
|
|
108"
|
|
|
114"
|
|
|
120"
|
|
|
|
|
|
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
|
|
|
|
|
|
|
|
|
TC-250 TRAFFIC COP
|
|
The Traffic Cop controls product flow from one
conveyor onto another. It allows products from one
line of traffic to flow freely, without interference from
another converging line of traffic. This eliminates collision
of products which may cause damage and disrupt
product flow. Specify model, width and degree.
• 7 arm widths, aluminum
• Available in 30°, 45°, 60°, 90° & 180° applications.
Includes mounting hardware.
* 180° application - 10" minimum required between lines. |
|
|
|
|
|
|
 |
|
|
|
|
|
| Overall Frame Width |
16" to 28" |
30" to 42" |
| Price Each |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
TURNING WHEEL
|
|
Turning Wheels are used in converging 30° and 45° spur applications. Also used at 90° (right angle) transfers where
Traffic Cops, Package Stops and other product flow controlling devices are used. Wheel is mounted on adjustable
bracket to insure proper package orientation through transfer. Can be mounted to slider bed or side channels of
powered and gravity conveyors - specify model where applicable. |
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| B-05568 - 6" dia. Turning Wheel with mounting hardware .............................................$130.40
|
|
Note: To be used on roller beds & gravity models with 90° transfer.
Please specify what model the assembly will be used on. |
|
|
|
| B-10739 - 6" Dia. Turning Wheel with mounting hardware..............................................$130.40
|
|
|
| Note: To be used on slider beds & spur models. Please specify what model the assembly will be used on. |
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
| ELECTRICAL CONTROLS AND DRIVE SECTION |
|
|
|
|
MANUAL START SWITCH or
SAFETY DISCONNECT
|
|
 |
|
|
|
LIMIT SWITCH, SINGLE POLE,
WITH NYLON ROLLER LEVER |
 |
|
|
|
|
| #032.1014......................................... |
$225.79
|
|
|
|
|
#033.2032 & #033.2072..................$589.01
Nema 4 |
"START-STOP", Nema 1, One direction, 30
AMP, 3 Pole (Single or 3 phase) |
|
|
|
|
|
|
|
|
LIMIT SWITCH, DOUBLE POLE,
WITH NYLON ROLLER LEVER |
|
 |
|
|
|
|
|
|
|
|
|
#033.2033& #033.2072...................$352.04
Nema 4 |
|
REVERSING DRUM SWITCH |
|
|
|
|
|
|
#032.103.......................................... |
$905.51
|
|
|
|
 |
|
|
|
|
|
|
|
|
"Fwd-Stop-Rev", Nema 1, for 1-1/2 HP at
115 volts or 2 HP at 230 volts single phase,
or 2 HP max. three phase |
|
|
|
|
|
 |
PROXIMITY SWITCH, INDUCTIVE,
(METAL SENSING) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
#032.210.........................................$217.67
115 Volt AC, two wire with ground, 30mm dia.,
10mm range
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
FOOT SWITCH WITH GUARD |
|
|
|
|
|
|
|
|
|
|
#032.211.........................................$257.68
24 Volt DC, two wire with ground, 30mm dia.,
10mm range |
|
#032.200........................................... $286.50
(Constant Pressure) "On-Off" type, Nema 1,
Pilot Control or 1 HP max. single phase. |
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
PHOTO EYE, ON-OFF TYPE |
 |
|
|
|
|
|
|
|
#EA-000005......................................$1,122.83
Banner Q45 Retro Reflective Photo Eye Kit
with timing module, reflector and mounting
brackets. Photo Eye output is one form C
type relay, Operating voltage
24-250VAC/12-250VDC |
|
POWER CORD AND PLUG (20') |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
POWER CORD WITH PLUG ONLY 20' LONG
|
|
Model No.
|
Voltage
|
HP Rating
|
Prices
|
|
EA-039-1A
|
115/1
|
1/2-3/4
|
|
|
EA-039-2A
|
115/1
|
1
|
|
|
EA-039-3A
|
115/1
|
1 1/2
|
|
|
EA-039-4A
|
230/1
|
1/2-1
|
|
|
EA-039-5A
|
230/1
|
1 1/2-2
|
|
|
EA-039-6A
|
208-230/3
|
1/2-2
|
|
|
EA-039-7A
|
460/3
|
1/2-2
|
|
|
|
|
POWER CORD WITH PLUG 20' LONG WITH MANUAL START SWITCH AND MOUNTING BRACKET
|
|
Model No.
|
Voltage
|
HP Rating
|
Prices
|
|
EA-039-1B
|
115/1
|
1/2-3/4
|
|
|
EA-039-2B
|
115/1
|
1
|
|
|
EA-039-3B
|
115/1
|
1 1/2
|
|
|
EA-039-4B
|
230/1
|
1/2-1
|
|
|
EA-039-5B
|
230/1
|
1 1/2-2
|
|
|
EA-039-6B
|
208-230/3
|
1/2-2
|
|
|
EA-039-7B
|
460/3
|
1/2-2
|
|
|
|
|
|
|
|
|
|
|
|
|
MOUNTING BRACKETS FOR PHOTO
EYE #033.2122 |
|
|
|
|
B-05165...........................................$125.19
|
|
|
|
|
|
|
|
|
|
|
|
 |
AIR PRESSURE SWITCH |
|
#094.191........................................$732.79
Nema 4 |
|
|
|
|
|
|
|
|
|
|
EMERG. STOP PULL CORD SWITCH |
|
|
|
|
|
#032.285 with 032.2851 Turnbuckle
...........................................................$737.85
Nema 4 |
|
|
|
|
|
"RED" EMERGENCY PULL CORD
CABLE AND MOUNTING HARDWARE |
|
|
|
|
|
#032.281...one side.................$7.88
per / ft.
both sides..............$16.83
per / ft. |
|
|
|
|
|
EMERGENCY PUSH BUTTON |
|
|
|
|
|
#032.284..........................................$296.39
Nema 4 |
|
|
|
|
|
|
|
|
PHOTO EYE, 18MM DIA., DIFFUSED,
(PHOTO PROX.) 115 VOLT, LIGHT
OPERATE, 2-METER CABLE |
|
|
|
|
|
#032.2113 (100mm range, 3.94")....$1,130.24
#032.2116 (200mm range, 7.87")....$205.79
#033.218 (400mm range, 15.74")....$311.09
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
NOTE: PRICING LISTED NOT MOUNTED
OR WIRED |
|
|
|
|
"PHOTO EYE, RETRO-REFLECTIVE,
(POLARIZED) 24 VOLT DC |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
#033.2128 with 032.21122 Cable.....$253.44
#032.21122 (Cable Only)...................$76.71
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
CONTROLLER PRICES
|
|
|
|
|
AC VARIABLE SPEED CONTROLLER ONLY
|
|
SINGLE PHASE CONTROLLER INPUT
|
| Motor Size |
115 Volt |
208/230 Volt |
| 1/2 |
VSC-12-10 |
VSC-12-12 |
| Price |
$1,581.35
|
$1,260.73
|
| 1 |
VSC-12-11 |
VSC-12-13 |
| Price |
$1,827.73
|
|
| 2 |
N/A |
VSC-12-14
|
| Price |
~ |
|
|
THREE PHASE CONTROLLER INPUT
|
| Motor Size |
208/230 Volt |
460 Volt |
575 Volt |
| 1/2 |
VSC-01-15
|
VSC-01-18
|
VSC-12-29
|
| Price |
|
|
|
| 1 |
VSC-01-16
|
VSC-01-19
|
VSC-12-29
|
| Price |
|
|
|
| 2 |
VSC-01-17
|
VSC01--20
|
VSC-12-30
|
| Price |
|
|
|
|
|
REPLACEMENT INVERTER DUTY
ENERGY EFFICIENT MOTORS
|
|
| HP |
Part No. |
Price |
| 1/2 |
032.351 230/460 |
|
| 1 |
032.353 230/460 |
|
| 2 |
032.355 230/460 |
|
| 1/2 |
032.3512 575 |
|
| 1 |
032.3532 575 |
|
| 2 |
032.3552 575 |
|
|
|
|
|
|
|
IMPORTANT NOTES...
|
|
|
• All above motors are 230 / 460 / 575 Volt, 3 Phase.
• All above V/S Drive Kits include NEMA 1 / IP30
Junction Box, Controller and Motor.
• Good for cycle rates of up to 15 cycles per minute, at
1/2 second ramp time, with a maximum speed of 250
FPM.
• Drawing No. DG-001146. |
|
|
|
|
|
OPTIONAL: Mounting and Wiring Add-On . . .
(mounted close to the motor) |
$715.70
|
|
|
|
|
|
|
|
| Brake Relay Kit (EA-068A).............................. |
$575.24
|
|
|
• When AC Variable Speed Controller is used with a
Brake Motor, A Brake Relay Kit (EA-068A) is
required. Add an additional $575.24
for this option.) |
|
|
|
|
|
|
ELECTRONIC CLUTCH BRAKE DRIVE PACKAGE
|
| Part No. |
Description |
Price |
| EA-VSC-01-CB |
2 HP Electronic Clutch-Brake Kit |
$5,361.50
|
|
|
|
|
|
OPTIONAL: Mounting and Wiring Add-on .
(mounted close to the motor) |
$715.70
|
|
|
|
|
|
|
|
KIT INCLUDES
|
|
|
|
| Part No. |
Description |
| VSC-01-20 |
AC Variable Speed Controller, 460 Volt, 3 Phase |
| 032.345 |
2 HP 460 Volt, 3 Phase, C-Face Motor TEBC
(Blower Cooled) With 5AC Reducer and #60 Chain
and Sprockets |
|
|
|
|
|
IMPORTANT NOTES
|
|
• Good for cycle rates of up to 60 cycles per minute.
• 1/10 second Accel and Decel time, with 350 FPM
Maximum Speed.
• 230 or 460 Volt Only, Other Voltages, Contact us.
• Motor Cooling Blower is 115 Volt, 1 Phase, 60 Hz.
• Price Includes 5AC Reducer and #60 Chain and
Sprockets |
| Part No. |
Description |
| VSC-01-17 |
AC Variable Speed Controller, 230 Volt, 3 Phase |
| 032.345 |
2 HP 230 Volt, 3 Phase, C-Face Motor TEBC
(Blower Cooled) With 5AC Reducer and #60 Chain
and Sprockets |
|
|
|
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
| • "Start-Stop" Push-button Station |
|
|
• "Start-Stop"Push-button Station |
| 033.1955 |
$223.91
|
|
|
|
033.195................................................. |
$151.10
|
| Remote mounted, Nema 1 |
|
|
|
To be mounted in Mag Starter Cover |
|
|
|
|
|
|
|
|
|
|
| • "Fwd-Rev-Stop" Push-button Station |
|
|
• "Fwd-Rev-Stop"Push Button Station |
| 033.1965 |
$420.87
|
|
|
|
033.196.................................................. |
$520.41
|
| Remote mounted, Nema 1 |
|
|
|
To be mounted in Mag Starter Cover |
|
|
|
|
|
|
|
|
|
|
| • "Up-Down-Stop" Push-button Station |
|
|
|
| 033.1975 |
$420.87
|
|
|
• Mounting Brackets for photo eye |
| Remote mounted, Nema 1 |
|
|
|
|
|
#033.2122
B-05165 .............................................. |
$125.19
|
|
|
|
|
|
|
|
|
|
|
| 190-LRC CONVEYOR WEIGHT TABLE |
Between
Rail Width |
Overall Frame Width |
"R" |
Number of Rollers** |
Weight (Lbs.) |
| 90° |
60° |
45° |
30° |
90° |
60° |
45° |
30° |
| 13" |
16" |
24" |
16T/4S |
10T/12S |
8T/12S |
5T/12S |
336 |
330 |
323 |
317 |
| 15" |
18" |
32 1/2" |
20T/4S |
14T/12S |
10T/12S |
7T/12S |
349 |
343 |
336 |
300 |
| 17" |
20" |
364 |
357 |
350 |
343 |
| 19" |
22" |
378 |
371 |
364 |
357 |
| 21" |
24" |
393 |
386 |
378 |
371 |
| 23" |
26" |
408 |
401 |
393 |
386 |
| 25" |
28" |
425 |
417 |
409 |
401 |
| 27" |
30" |
442 |
434 |
425 |
417 |
| 31" |
34" |
48" |
30T/4S |
22T/12S |
14T/12S |
10T/12S |
562 |
551 |
540 |
529 |
| 33" |
36" |
585 |
573 |
562 |
550 |
| 37" |
40" |
625 |
613 |
601 |
589 |
| 39" |
42" |
651 |
638 |
625 |
612 |
|
| All weights are conveyor weights only. Accessories, crating, etc., are not included. |
|
| * T = TAPERED S = STRAIGHT |
|
| 190-LRS CONVEYOR WEIGHT TABLE |
| Between Rail Width |
Overall Frame Width |
"R" |
"A" |
"B" |
"C" |
"D" |
"E" |
Number of
Rollers** |
Weight
(Lbs.) |
| 45° |
30° |
45° |
30° |
45° |
30° |
45° |
30° |
45° |
30° |
45° |
30° |
45° |
30° |
| 13" |
16" |
24" |
29" |
38" |
27" |
36" |
21" |
30" |
21 7/8" |
38" |
50" |
42 7/32" |
13S/8T |
12S/10T |
195 |
206 |
| 15" |
18" |
32 1/2" |
32" |
41" |
30" |
39" |
36" |
54" |
34
31/32" |
63" |
66
5/8" |
61 19/32" |
18S/10T |
20S/14T |
224 |
245 |
| 17" |
20" |
35" |
47" |
33" |
45" |
233 |
255 |
| 19" |
22" |
38" |
50" |
36" |
48" |
241 |
264 |
| 21" |
24" |
41" |
53" |
39" |
51" |
250 |
270 |
| 23" |
26" |
44" |
56" |
42" |
54" |
262 |
287 |
| 25" |
28" |
47" |
62" |
45" |
60" |
276 |
299 |
| 27" |
30" |
50" |
65" |
48" |
63" |
282 |
311 |
| 31" |
34" |
48" |
56" |
74" |
54" |
72" |
48" |
75" |
48" |
88
31/32" |
86
1/16" |
85
1/2" |
22S/14T |
27S/22T |
322 |
380 |
| 33" |
36" |
59" |
77" |
57" |
75" |
329 |
390 |
| 37" |
40" |
65" |
86" |
63" |
84" |
340 |
406 |
| 39" |
42" |
68" |
89" |
66" |
87" |
351 |
416 |
|
| All weights are conveyor weights only. Accessories, crating, etc., are not included. |
|
| * T = TAPERED S = STRAIGHT |
|
|
| 190-LRSS CONVEYOR WEIGHT TABLE |
| Between Rail Width |
Overall Frame Width |
"A" |
"B" |
Weight (Lbs.) |
| 45° |
30° |
45° |
30° |
45° |
30° |
| 13" |
16" |
29" |
38" |
27" |
36" |
176 |
202 |
| 15" |
18" |
32" |
41" |
30" |
39" |
179 |
210 |
| 17" |
20" |
35" |
47" |
33" |
45" |
182 |
214 |
| 19" |
22" |
38" |
50" |
36" |
48" |
185 |
216 |
| 21" |
24" |
41" |
53" |
39" |
51" |
188 |
219 |
| 23" |
26" |
44" |
56" |
42" |
54" |
191 |
222 |
| 25" |
28" |
47" |
62" |
45" |
60" |
194 |
224 |
| 27" |
30" |
50" |
65" |
48" |
63" |
198 |
227 |
| 31" |
34" |
56" |
74" |
54" |
72" |
201 |
230 |
| 33" |
36" |
59" |
77" |
57" |
75" |
208 |
235 |
| 37" |
40" |
65" |
86" |
63" |
84" |
212 |
239 |
| 39" |
42" |
68" |
89" |
66" |
87" |
216 |
243 |
|
|
| All weights are conveyor weights only. Accessories, crating, etc., are not included. |
|
|
|
Accumulating Conveyor, Conveyor, Live Roller Curve Conveyor, Spur, Live Roller Conveyors, Powered Live Roller,
Conveyors, and Roller Conveyors from your source for material handling equipment.
|
|
