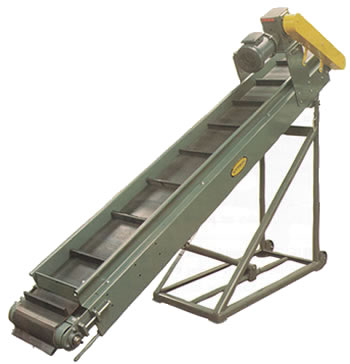

MODEL PC
|
PORTABLE PARTS CONVEYOR
|
|
|
 |
The Model PC can be used as a portable or
permanent parts conveyor. Side guards and
cleated belt easily catch small stampings,
plastic parts, etc., and carry them to hoppers
or drums. Flapper guard prevents parts
from falling through conveyor. |
|
|
 8 Belt Widths |
|
| Tough Cleated Belt |
|
| Portable or Permanent |
|
| Overhead Drive |
|
| Formed Edge Guard Rails |
|
|
|
|
|
|
|
|
 |
|
|
|
|
 |
|
|
|
|
|
|
STANDARD SPECIFICATIONS
|
|
|
|
BELT–3- ply black Nitrile with 1-1/2 in. high molded
cleats on 12 in. centers. Clipper unibar lacing. |
|
DRIVE PULLEY–4 in. dia. With 1 in. dia. Shaft at
bearings, machine crowned and fully lagged. |

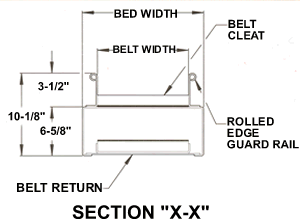

BED–6-5/8 in. deep x 12 ga powder painted formed
steel slider bed. 3-1/2 in. high vertical sides with rolled
edge. Standard sections are 4 ft., 6 ft., 8 ft., 10 ft., and
12 ft. long. Longer bed sections are bolted together with
splice plates and joint support angles. |
|
BELT RETURN–4 in. dia. with 1 in. dia. shaft at
bearings, machine crowned. |
|
TAKE-UP–Take-ups provided at tail pulley. Provides
4 in. of belt take-up. |
|
BEARINGS–Sealed, pre-lubricated, self-aligning, ball
bearings on drive and tail pulleys. |
PORTABLE BASE SUPPORT–Tubular steel support
mounted on 4 in. dia. steel wheels. Adjustable to control
conveyor height at top and bottom. Adjustment height can
be locked in place with lever. NOTE: Not available on
units longer than 13 ft. |
|
|
SPEED REDUCTION–Sealed worm gear "C" face
speed reducer. No. 50 roller chain to drive pulley. |
|
MOTOR–1/2 HP–208/230/460/575V–3 Ph. 60 Hz.
Totally Enclosed "C" face. |
OVERHEAD END DRIVE–Motor reducer unit
mounted 9-1/2 in. above belt (chain guard RH side). |
|
BELT SPEED–Constant 65 FPM. |
|
CAPACITY–300 lbs. total distributed load at 65 FPM. |
|
|
|
|
 |
|
|
FEEDER SHOWN WITH STANDARD PC TYPE GUARD RAIL, GRAVITY BRACKET
WITH POP-OUT ROLLER AND OPTIONAL MS TYPE FLOOR SUPPORTS
|
|
|
|
|
OPTIONAL EQUIPMENT
|
|
|
|
BELT–1/2 in. x 1 in. galvanized flat wire mesh belt with
1-1/4 in. high steel angle cleats, spaced every 12 in.
Galvanized low carbon steel or stainless steel. 1 in. x
1 in. or 1/2 in. x 1/2 in. mesh available. |
|
HIGHER SIDE GUARDS–6 in., 9 in., or 12 in. high
vertical sides in place of standard 3-1/2 in. high. NOTE:
12 in. high sides require higher than standard
overhead or underside drive. |
BELT SPEED–Other constant and variable speeds.
V-belt drive supplied under 17 FPM. NOTE: Capacity
affected with speed change. |
|
LOWER POWERED FEEDER–Chain type driven
from tail pulley of conveyor. Black friction surface belt.
Includes MS-6 support. NOTE: conveyor tail pulley
is used for belt take-up. When belt tension is
adjusted, feeder will have to be moved along with
the take-up. NOTE: Capacity affected with this
option. |
OVERHEAD END DRIVE–Higher than standard
clearance above belt, specify. |
|
UNDERSIDE END DRIVE–Motor reducer unit
mounted underneath bed. Extends down 11 in. from
bottom of bed. |
|
|
FLOOR SUPPORTS–MS Type floor supports are
available with a wide range of adjustment. Specify top
of belt or roller elevation. One support required at
every bed joint and ends of conveyor. Holes in feet
for lagging to floor. Knee braces recommended
above MS-3 support. |
PULLEYS–6 in. tail with 1-3/16 in. dia. Shaft at
bearings or 8 in. drive with 1-3/16 in. dia. Shaft at
bearings. |
|
V-BELT DRIVE–V-belt supplied between motor and
reducer. Minimum overall drive width 14 in. |
|
O-RING DRIVE CHAIN–With sealed in lubricant
(Recommended for applications that do not permit
regular lubrication). |
|
MOTORS–Energy efficient, single phase, other
characteristics. 2 HP maximum. |
|
ELECTRICAL CONTROLS–One direction manual
start switch. Non-reversing magnetic starters. Push button
stations. AC variable frequency drive. |
|
|
|
|
|
| PRICES FOR COMPLETE CONVEYOR INCLUDE: |
|
|
|
3-Ply Black Nitrile Belt with 1-1/2" High Cleats on
12" Center. |
|
1/2 HP-"C" Face Totally Enclosed
Motor (Specify Exact Voltage) |
6-5/8" Deep x 12 Ga. Slider Bed with 3-1/2"
Guard Rails. |
|
Totally Enclosed Chain Guard |
|
65 FPM Constant Belt Speed |
| Overhead End Drive |
|
Less Electrical Controls |
| Portable Base Support |
|
|
| "C" Face Speed Reducer-Sealed Worm Gear |
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
SIZE TO
ORDER
Overall
Length
"A" |
Bed
Length
"L" |
3-Ply Black Nitrile Belt Width |
| 4" |
6" |
8" |
10" |
12" |
16" |
18" |
24" |
| 12 Ga. Steel Slider Bed Width |
| 8" |
10" |
12" |
14" |
16" |
20" |
22" |
28" |
| Price |
Price |
Price |
Price |
Price |
Price |
Price |
Price |
| 5' |
4' |
|
|
|
|
|
|
|
|
| 7' |
6' |
|
|
|
|
|
|
|
|
| 9' |
8' |
|
|
|
|
|
|
|
|
| 11' |
10' |
|
|
|
|
|
|
|
|
| 13' |
12' |
|
|
|
|
|
|
|
|
| Per Foot Price |
|
|
|
|
|
|
|
|
|
| Lengths other than those listed are (4) week delivery. |
|
|
|
|
| IMPORTANT NOTES... |
| OTHER WIDTHS |
PORTABLE BASE |
|
For "IN-BETWEEN WIDTHS", contact us. |
|
Portable Base Not Supplied on Conveyor Longer
than 13’ or with Underside Drive. Deduct Portable
Base and add MS-Type Floor Supports. |
| NON-STANDARD WIDTHS |
|
Contact us for lead time. |
Click the button of the item you wish to purchase. Contact us for special lengths
| MOTORS |
Extra Motor Price for OTHER THAN: 1/2 HP–208/230/460/575 V–3 Ph.–60 Hz.–Totally Enclosed. Speed affects
horsepower requirements. |
|
|
H.P. REQ.
|
TOTALLY ENCLOSED
|
ENERGY EFFICIENT
|
200/208/230/
460/575V
3 Ph.-60 Hz. |
115/230V
1 Ph.-60 Hz. |
230/460V
1 Ph.-60 Hz. |
575V
3 Ph.-60 Hz. |
| 1/2 |
N/C |
|
|
|
| 1 |
N/A |
|
|
|
| 2 |
N/A |
|
|
|
|
|
|
|
|
|
LARGER DRIVE OR TAIL PULLEY |
| POWERED FEEDER |
|
|
|
Bed
Widths |
8" Dia. Drive Pulley
in Lieu of 4" Dia. |
6" Dia. Tail Pulley
in Lieu of 4" Dia. |
| 8" to 12" |
|
|
| 14" to 20" |
|
|
| 22" |
|
|
| 28" |
|
|
|
|
Prices for Powered Feeder Include: |
|
|
|
Black Ultimate 140 BOS Belt, Bed, Drive & Tail Pulleys |
|
|
NOTE: Adjustable Floor Support Not Included in Base Price |
|
|
|
NOTE: Overall length of 29-1/2" requires 1 support |
|
|
|
|
Overall length of 44-1/2" or more requires 2
supports |
|
|
|
|
|
|
|
|
NOTE: NO DEDUCT for Feeders less than minimum
lengths. Shorter lengths COULD CAUSE IMPROPER
BELT TRACKING |
|
|
|
|
|
|
|
|
|
|
|
|
CHAIN DRIVEN TYPE
|
