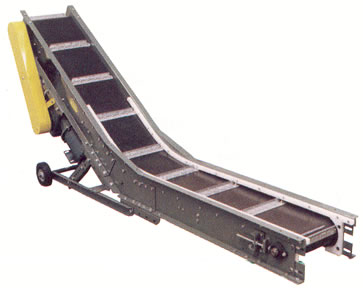

MODEL PCX

LOW PROFILE PORTABLE
PART CONVEYOR
The portable Model PCX parts
conveyor can be easily positioned
under punch presses and
extruding machines to catch
small steel, plastics, or aluminum
stampings, etc. Conveys them
quickly up to hopper or drum.
low profile protable part conveyor

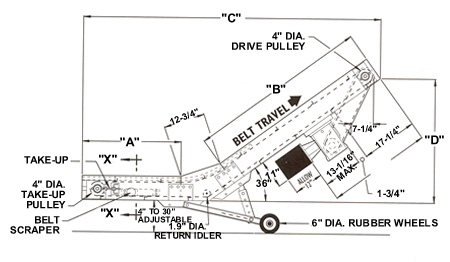

Belt with 1" High Metal Cleats
Underside Drive
5/8" High Vertical Sides Above
Cleat
 Enclosed Box Construction
Belt Scraper
Adjustable Portable Support
For conveyor weight see chart at bottom of page.
portable parts conveyor low profile conveyors
STANDARD SPECIFICATIONS
END DRIVE–Located on discharge end of
conveyor. Chain guard located on left hand side.		 TAIL PULLEY–4 in. dia. With 1 in. dia. Shaft at
bearings, machine crowned.
BELT–Black Trackmate 533 COS-PVC (cover one
side) with 1" high steel angle cleats on 12" centers.
Clipper unibar lacing.		 BELT RETURN–Belt cleats slide on flat metal
return guide.
TAKE-UP–Take-ups at tail pulley. Provides 6 in.
of belt take-up.

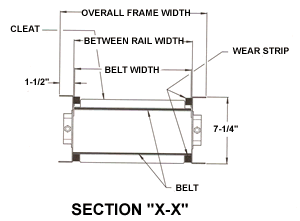

BED–7-1/4 in. x 12 ga. powder painted steel, formed
side channel with bolted in slider bed which provides
1 in. high sides above belt.
BEARINGS–Sealed, pre-lubricated, self-aligning
ball bearings on drive and tail shafts.
BELT SCRAPER–Mounted inside conveyor bed
section to clean underside of return belt.
SPEED REDUCTION–Sealed worm gear C-Face
speed reducer. No. 50 roller chain to drive sprocket.
PORTABLE SUPPORT–Undercarriage is
adjustable from 4 in. to 30 in. with 6 in. dia. rubber
wheels.
MOTOR–1/2 HP–208/230/460/575V–3 Ph.
60 Hz. Totally Enclosed C-Face.
BELT SPEED–Constant 25 FPM.
DRIVE PULLEY–4 in. dia. with 1 in. dia. shaft at
bearings, machine crowned and fully lagged.
CAPACITY–100 lbs. total distributed live load.
OPTIONAL EQUIPMENT
FLOOR SUPPORTS–MS Type floor supports are
available with a wide range of adjustment. Specify top
of belt or roller elevation. One support required at
every bed joint and ends of conveyor. Holes in feet for
lagging to floor. Knee braces recommended above
MS-3 support.		 O-RING DRIVE CHAIN–With sealed in lubricant
(Recommended for applications that do not permit
regular lubrication).
V-BELT DRIVE–V-belt supplied between motor
and reducer.
MOTORS–Energy efficient, single phase, other
characteristics. 1 HP maximum.
OVERHEAD END DRIVE–Motor reducer unit
mounted 9-1/4 in. above cleat.
ELECTRICAL CONTROLS–One direction
manual start switch, non-reversing magnetic starters,
push button stations, power cord. AC variable
frequency drive.
INCLINE–45° in place of standard 36° requires
15-3/4" incline section. Other horizontal and incline
lengths available.

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

PRICES FOR COMPLETE CONVEYOR INCLUDE:
Black Trackmate #533 COS with 1" High Steel Angle
Cleats on 12" Centers		 1/2 HP - "C" Face Totally Enclosed Motor
(Specify Exact Voltage)
7-1/4" x 12 Ga. Steel Formed Side Channels with
Bolted in Slider Bed Providing 1" High Sides Above
Belt		 Totally Enclosed Chain Guard
25 FPM Constant Belt Speed
Less Electrical Controls
Portable Base Support
"C" Face Speed Reducer - Sealed Worm Gear

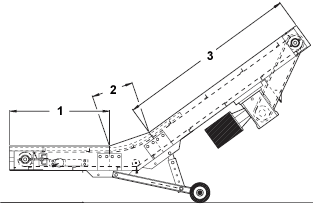

Location
(See
Drawing)


Description


Length
Angle
Degree		 Belt Width
12" 18" 24"
Between Rail Width
12-1/8" 18-1/8" 24-1/8"
Overall Frame Width
15-1/8" 21-1/8" 27-1/8"
1


Horizontal
Tail
Assembly 		30"
1 42"
1 54"
1 66"
1 78"
1 90"
1 102"
1 114"
2 Incline
Joint Angle		 36°
2 45°
3



Incline
Drive
Assembly 		45"
3 54"
3 66"
3 75" *
3 84" *
3 93" *
3 102" *
3 111" *
3 120" *
IMPORTANT NOTES...
OTHER WIDTHS
For "IN-BETWEEN WIDTHS", use
next width plus 10%. For widths over
27-1/8" OAW, contact us.
NON-STANDARD WIDTHS
Contact us for lead time.
part conveyors
*Less Portable Base Support - See Floor Support Chart below
for Support Add-On Price.

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

PRICES FOR OPTIONAL EQUIPMENT
OPTIONAL DRIVES MOTORS
Drive
Type		 BELT WIDTHS
12" to 18" 24"
End Drive C-Face
End Drive V-Belt
Overhead C-Face
Overhead V-Belt
Extra Motor Price for OTHER THAN: 1/2 HP -
208/230/460/575V - 3 Ph - 60 Hz. - Totally
Enclosed.
Speed Affects horsepower requirements.
H.P.
REQ.		 TOTALLY ENCLOSED ENERGY
EFFICIENT
200/208/230/
460/575V
3 Ph.-60 Hz.
115/230V
1 Ph.-60 Hz.
230/460V
3 Ph.-60 Hz.
575V 3
Ph.-60 Hz.
1/2
1 N/A
#50 O-Ring Drive Chain ................Add ....... $301.40
FLOOR SUPPORTS
Deduct Portable Base and Add Price for 3 Supports.
Specify top of belt elevation.
"PCXS" SUPPORT
Model No. Adjustment to Top of Belt Price Each
PCXSL-01 9-1/4" to 10-1/4"
PCXSL-02 10-1/4" to 12"
PCXSL-03 12" to 14-5/8"
PCXS-01 14-1/4" to 16"
PCXS-01.2 15-1/4" to 17"
PCXS-01.4 16-1/4" to 18"
PCXS-02 17-1/4" to 20-1/4"
PCXS-03 19-7/8" to 22-7/8"
PCXS-04 22-7/8" to 28-7/8"
PCXS-05 26-7/8" to 32-7/8"
PCXS-06 30-7/8" to 42-7/8"
PCXS-07 40-7/8" to 52-7/8"
PCXS-08 52-7/8" to 64-7/8"
PCXS-09 64-7/8" - 76-7/8"
PCXS-10 76-7/8" to 88-7/8"
PCXS-11 86-7/8" to 98-7/8"
PCXS-12 98-7/8" to 110-7/8"
CONSTANT AND VARIABLE SPEEDS
Constant C-Face - Within 17-25 FPM ....No Charge
Constant V-Belt - Minimum of 4 FPM ......................
................................Use V-Belt Drive Add-On
Constant Speeds Below Those Listed Above........
.............................................................Contact us
Variable Speed ...............See Electrical Controls
and Drive Section Below
DRIVE COMPONENT DEDUCTS
Less Motor Drive, Motor Mount and Guards,
but with Shaft Extension .......Deduct ......... $694.20
Less Motor Only (1/2 HP - 208/230/460/575V -
3 Ph -60 Hz.) ................Deduct................... $258.30
*Less Reducer ...........Deduct...................... $307.40
*Less V-Belt Guard, Chain Guard, sheaves and
sprockets when V-Belt drive is supplied. Less chain
guard and sprockets when C-Face drive is supplied.
ELECTRICAL CONTROLS
See below
NOTE: PCXS-3 to PCXS-12 AND PCXDS-06 to
PCXDS-12: Knee Braces included in price.
Less Portable Base ...........Deduct .................. $136.20
"PCXDS" SUPPORT
 GALVANIZING
Model No. Adjustment to Top of Belt Price Each
PCXDS-06 30-7/8" to 42-7/8"
PCXDS-07 40-7/8" to 52-7/8"
PCXDS-08 52-7/8" to 64-7/8"
PCXDS-09 64-7/8" - 76-7/8"
PCXDS-10 76-7/8" to 88-7/8"
PCXDS-11 86-7/8" to 98-7/8"
PCXDS-12 98-7/8" to 110-7/8"
Contact us.

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

ELECTRICAL CONTROLS AND DRIVE SECTION
MANUAL START SWITCH or
SAFETY DISCONNECT
 limit switch LIMIT SWITCH, SINGLE POLE,
WITH NYLON ROLLER LEVER
manual start switch
#032.1014......................................... $225.79 #033.2032 & #033.2072..................$589.01
Nema 4
"START-STOP", Nema 1, One direction, 30
AMP, 3 Pole (Single or 3 phase)
LIMIT SWITCH, DOUBLE POLE,
WITH NYLON ROLLER LEVER
limit switch double pole
#033.2033& #033.2072...................$352.04
Nema 4
REVERSING DRUM SWITCH
#032.103.......................................... $905.51
"Fwd-Stop-Rev", Nema 1, for 1-1/2 HP at
115 volts or 2 HP at 230 volts single phase,
or 2 HP max. three phase
PROXIMITY SWITCH, INDUCTIVE,
(METAL SENSING)

#032.210.........................................$217.67
115 Volt AC, two wire with ground, 30mm dia.,
10mm range
foot swtich with guard FOOT SWITCH WITH GUARD
#032.211.........................................$257.68
24 Volt DC, two wire with ground, 30mm dia.,
10mm range
#032.200........................................... $286.50
(Constant Pressure) "On-Off" type, Nema 1,
Pilot Control or 1 HP max. single phase.
PHOTO EYE, ON-OFF TYPE
power cord and plug #EA-000005......................................$1,122.83
Banner Q45 Retro Reflective Photo Eye Kit
with timing module, reflector and mounting
brackets. Photo Eye output is one form C
type relay, Operating voltage
24-250VAC/12-250VDC
POWER CORD AND PLUG (20')
POWER CORD WITH PLUG ONLY 20' LONG
Model No.
Voltage
HP Rating
Prices
EA-039-1A
115/1
1/2-3/4
EA-039-2A
115/1
1
EA-039-3A
115/1
1 1/2
EA-039-4A
230/1
1/2-1
EA-039-5A
230/1
1 1/2-2
EA-039-6A
208-230/3
1/2-2
EA-039-7A
460/3
1/2-2
POWER CORD WITH PLUG 20' LONG WITH MANUAL START SWITCH AND MOUNTING BRACKET
Model No.
Voltage
HP Rating
Prices
EA-039-1B
115/1
1/2-3/4
EA-039-2B
115/1
1
EA-039-3B
115/1
1 1/2
EA-039-4B
230/1
1/2-1
EA-039-5B
230/1
1 1/2-2
EA-039-6B
208-230/3
1/2-2
EA-039-7B
460/3
1/2-2
MOUNTING BRACKETS FOR PHOTO
EYE #033.2122
B-05165...........................................$125.19
AIR PRESSURE SWITCH
#094.191........................................$732.79
Nema 4
EMERG. STOP PULL CORD SWITCH
#032.285 with 032.2851 Turnbuckle
...........................................................$737.85
Nema 4
"RED" EMERGENCY PULL CORD
CABLE AND MOUNTING HARDWARE
#032.281...one side.................$7.88 per / ft.
both sides..............$16.83 per / ft.
EMERGENCY PUSH BUTTON
#032.284..........................................$296.39
Nema 4
PHOTO EYE, 18MM DIA., DIFFUSED,
(PHOTO PROX.) 115 VOLT, LIGHT
OPERATE, 2-METER CABLE
#032.2113 (100mm range, 3.94")....$1,130.24
#032.2116 (200mm range, 7.87")....$205.79
#033.218 (400mm range, 15.74")....$311.09
NOTE: PRICING LISTED NOT MOUNTED
OR WIRED 		"PHOTO EYE, RETRO-REFLECTIVE,
(POLARIZED) 24 VOLT DC
#033.2128 with 032.21122 Cable.....$253.44
#032.21122 (Cable Only)...................$76.71

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

CONTROLLER PRICES
AC VARIABLE SPEED CONTROLLER ONLY
SINGLE PHASE CONTROLLER INPUT
Motor Size 115 Volt 208/230 Volt
1/2 VSC-12-10 VSC-12-12
Price $1,581.35 $1,260.73
1 VSC-12-11 VSC-12-13
Price $1,827.73
2 N/A
VSC-12-14
Price ~
THREE PHASE CONTROLLER INPUT
Motor Size 208/230 Volt 460 Volt 575 Volt
1/2
VSC-01-15
VSC-01-18
VSC-12-29
Price
1
VSC-01-16
VSC-01-19
VSC-12-29
Price
2
VSC-01-17
VSC01--20
VSC-12-30
Price
REPLACEMENT INVERTER DUTY
ENERGY EFFICIENT MOTORS
HP Part No. Price
1/2 032.351 230/460
1 032.353 230/460
2 032.355 230/460
1/2 032.3512 575
1 032.3532 575
2 032.3552 575
IMPORTANT NOTES...
• All above motors are 230 / 460 / 575 Volt, 3 Phase.
• All above V/S Drive Kits include NEMA 1 / IP30
Junction Box, Controller and Motor.
• Good for cycle rates of up to 15 cycles per minute, at
1/2 second ramp time, with a maximum speed of 250
FPM.
• Drawing No. DG-001146.
OPTIONAL: Mounting and Wiring Add-On . . .
(mounted close to the motor)		 $715.70
Brake Relay Kit (EA-068A).............................. $575.24 • When AC Variable Speed Controller is used with a
Brake Motor, A Brake Relay Kit (EA-068A) is
required. Add an additional $575.24 for this option.)
ELECTRONIC CLUTCH BRAKE DRIVE PACKAGE
Part No. Description Price
EA-VSC-01-CB 2 HP Electronic Clutch-Brake Kit $5,361.50
OPTIONAL: Mounting and Wiring Add-on .
(mounted close to the motor)		 $715.70
KIT INCLUDES
Part No. Description
VSC-01-20 AC Variable Speed Controller, 460 Volt, 3 Phase
032.345 2 HP 460 Volt, 3 Phase, C-Face Motor TEBC
(Blower Cooled) With 5AC Reducer and #60 Chain
and Sprockets
IMPORTANT NOTES
• Good for cycle rates of up to 60 cycles per minute.
• 1/10 second Accel and Decel time, with 350 FPM
Maximum Speed.
• 230 or 460 Volt Only, Other Voltages, Contact us.
• Motor Cooling Blower is 115 Volt, 1 Phase, 60 Hz.
• Price Includes 5AC Reducer and #60 Chain and
Sprockets
Part No. Description
VSC-01-17 AC Variable Speed Controller, 230 Volt, 3 Phase
032.345 2 HP 230 Volt, 3 Phase, C-Face Motor TEBC
(Blower Cooled) With 5AC Reducer and #60 Chain
and Sprockets

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

• "Start-Stop" Push-button Station • "Start-Stop"Push-button Station
033.1955 ..................................... $223.91 033.195................................................. $151.10
Remote mounted, Nema 1 To be mounted in Mag Starter Cover
• "Fwd-Rev-Stop" Push-button Station • "Fwd-Rev-Stop"Push Button Station
033.1965 .................................... $420.87 033.196.................................................. $520.41
Remote mounted, Nema 1 To be mounted in Mag Starter Cover
• "Up-Down-Stop" Push-button Station
• Mounting Brackets for photo eye
033.1975 ...................................... $420.87
Remote mounted, Nema 1
To be mounted in Mag Starter Cover
#033.2122
B-05165 ..............................................		 $125.19
CONVEYOR WEIGHT TABLE
Overall
Frame
Width		 Between
Rail
Width		 Belt
Width		 "A" "B" "C" "D" Weights
(Lbs.)
15 1/8" 12 1/8" 12" 30" 45" 82 3/4" 32" 268
15 1/8" 12 1/8" 12" 30" 54" 90 1/8" 37 1/4" 279
15 1/8" 12 1/8" 12" 30" 66" 99 3/4" 44 3/8" 294
15 1/8" 12 1/8" 12" 42" 45" 94 3/4" 32" 277
15 1/8" 12 1/8" 12" 42" 54" 102 1/8" 37 1/4" 309
15 1/8" 12 1/8" 12" 42" 66" 111 3/4" 44 3/8" 303
21 1/8" 18 1/8" 18" 30" 45" 82 3/4" 32" 298
21 1/8" 18 1/8" 18" 30" 54" 90 1/8" 37 1/4" 309
21 1/8" 18 1/8" 18" 30" 66" 99 3/4" 44 3/8" 331
21 1/8" 18 1/8" 18" 42" 45" 94 3/4" 32" 309
21 1/8" 18 1/8" 18" 42" 54" 102 1/8" 37 1/4" 323
21 1/8" 18 1/8" 18" 42" 66" 111 3/4" 44 3/8" 342
27 1/8" 24 1/8" 24" 30" 45" 82 3/4" 32" 332
27 1/8" 24 1/8" 24" 30" 54" 90 1/8" 37 1/4" 348
27 1/8" 24 1/8" 24" 30" 66" 99 3/4" 44 3/8" 370
27 1/8" 24 1/8" 24" 42" 45" 94 3/4" 32" 343
27 1/8" 24 1/8" 24" 42" 54" 102 1/8" 37 1/4" 359
27 1/8" 24 1/8" 24" 42" 66" 111 3/4" 44 3/8" 381
All weights are conveyor weights only.
Accessories, crating, etc., are not included.
Belt Conveyors, Cleated Belt, Conveyor, Conveyor Belt, Portable Parts Conveyor, Incline Conveyor, Low Profile Conveyor, Parts
Conveyor, Portable Belt Conveyors, Conveyors, and Slider Bed from your source for material handling equipment.
