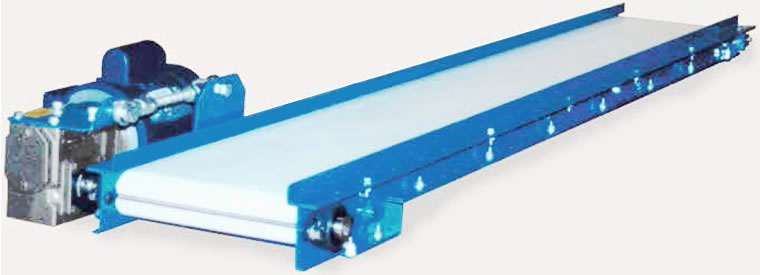

LOW PROFILE SLIDER BED CONVEYOR
|
|
|
•
Designed to convey light weight bulk parts and stampings.
• Ideal for stamping press operations and plastic injection
molding applications.
• Most units ship assembled and ready to install.
• Assembled and Tested.
|
|
 |
|
| Standard
Specifications |
|
|
Optional
Features |
|
|
|
|
|
|
Frame
Construction: 12 ga. formed steel, bolt in beds
Belt Widths: 3" - 25" in two inch increments
Lengths Available: 2' to 12' in one foot increments
(minumum length is
3 times width)
Belting Type: Clear Urethane (with white backer)
Belt Speeds: 1/4 HP at 20, 25, 30, 40, 55, 80, and 115 FPM
(shaft mounted drive)
Load Capacity: 10 lbs. per ft., up to 100 lb. max., not
rated for impacts |
|
Stainless steel
construction
Start / Stop controls - wired or shipped loose
Variable speed controller

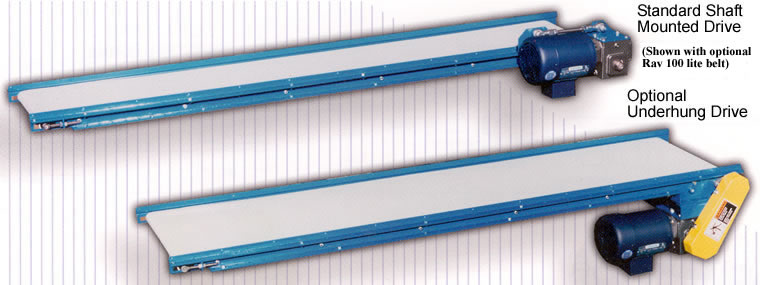

Top mount and underhung base mount drives
Leg supports
Casters
(See Below for Prices)
|
|
|
|
|
|
|
|
|
|
 |
Click the button of the item you wish to purchase. Contact us for special lengths
|
PRICES
FOR THE BCLP CONVEYOR
|
|
Model No. |
Effective Width |
Length |
Price |
| BCLP44 |
4" |
4' |
$4,554.00
|
| BCLP45 |
4" |
5' |
$4,805.00
|
| BCLP46 |
4" |
6' |
$5,016.00
|
| BCLP47 |
4" |
7' |
$5,260.00
|
| BCLP48 |
4" |
8' |
$5,503.00
|
| BCLP49 |
4" |
9' |
$5,747.00
|
| BCLP410 |
4" |
10' |
$5,991.00
|
| BCLP64 |
6" |
4' |
$4,625.00
|
| BCLP65 |
6" |
5' |
$4,894.00
|
| BCLP66 |
6" |
6' |
$5,120.00
|
| BCLP67 |
6" |
7' |
$5,379.00
|
| BCLP68 |
6" |
8' |
$5,638.00
|
| BCLP69 |
6" |
9' |
$5,899.00
|
| BCLP610 |
6" |
10' |
$6,163.00
|
| BCLP84 |
8" |
4' |
$4,785.00
|
| BCLP85 |
8" |
5' |
$5,082.00
|
| BCLP86 |
8" |
6' |
$5,336.00
|
| BCLP87 |
8" |
7' |
$5,623.00
|
| BCLP88 |
8" |
8' |
$5,912.00
|
| BCLP89 |
8" |
9' |
$6,199.00
|
| BCLP810 |
8" |
10' |
$6,488.00
|
| BCLP104 |
10" |
4' |
$4,899.00
|
| BCLP105 |
10" |
5' |
$5,227.00
|
| BCLP106 |
10" |
6' |
$5,506.00
|
| BCLP107 |
10" |
7' |
$5,823.00
|
| BCLP108 |
10" |
8' |
$6,141.00
|
| BCLP109 |
10" |
9' |
$6,458.00
|
| BCLP1010 |
10" |
10' |
$6,773.00
|
| BCLP124 |
12" |
4' |
$4,973.00
|
| BCLP125 |
12" |
5' |
$5,316.00
|
| BCLP126 |
12" |
6' |
$5,613.00
|
| BCLP127 |
12" |
7' |
$5,945.00
|
| BCLP128 |
12" |
8' |
$6,278.00
|
| BCLP129 |
12" |
9' |
$6,613.00
|
| BCLP1210 |
12" |
10' |
$6,945.00
|
|
| All
prices listed above are with standard side mount drive, no legs,
no skirts, pva impression top black belt, and no controls. |
Click the button of the item you wish to purchase. Contact us for special lengths
|
OPTIONAL
PRICES
|

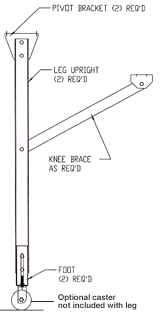

H
Frame Support
with Knee
Brace Drawing
|
|
|
Description |
Price |
|
Top Mount Drive |
|
|
Underhung Drive |
|
|
DC Motor |
|
|
DC Controller (1/4 HP) |
|
|
Single Phase Motor |
|
|
Start/Stop (1 PH or 3 PH) |
|
|
Std. Wiring Charge |
|
|
10' cord & plug |
|
|
Legs with Knee Braces (leg up to 36" high) |
|
|

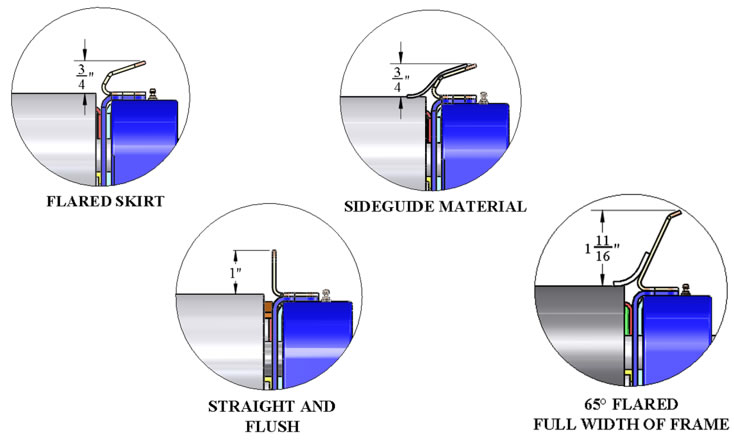

Straight (standard) Side Skirts (CONTACT US TO ORDER) |
$253.85
(plus $20.31/per foot)
|
|
|
 |
|
|
|
|
Belt Conveyors,
Conveyor, Conveyor Belt, Low Profile Conveyor, Low Profile
Slider Bed Conveyor, Conveyors, and Slider Bed
from your source for material handling equipment.
|
|
