MODEL TA

HORIZONTAL BELT CONVEYOR
horizontal belt conveyors
A very versatile conveyor, the Model
TA can be used in many types of
material handling situations such as
assembly line operations, sorting,
packing, and inspection. Conveyor
sets up quickly and easily to save on
installation time.
• 10 Belt Widths
• Reversible (with center drive)
• Smooth, Slim Bed
• Adjustable MS-Type Floor
Supports Available
belt conveyor
horizontal conveyor
conveyors
SPEED CHART FOR
SHAFT MOUNED END
DRIVE ON TA WITH 4 IN.
DIA. DRIVE PULLEY
Speed FPM Max HP
34 1/2
41 1/2
52 1/2
68 1
82 1
103 1
138 1
206 1
274 1
412 1
shalft mounted end drive

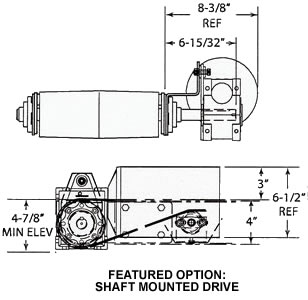

Conveyor shown with
featured option - shaft
mounted end drive
Highlighted speeds in widths
of 16", 18", 24" and 28"
OAW – 1 week from
Stockyard.
STANDARD SPECIFICATIONS
BELT – Ultimate 140 BBS - Nitrile. RETURN IDLER – Adjustable 1.9 in. dia. pre-
lubricated ball bearings.
BED – 4 in. deep x 12 ga. formed steel slider bed-
powder painted. Standard 5 ft. & 10 ft. long sections
bolt together with splice plates.
TAKE-UP – Take-ups at tail pulley. Provides 4 in. of
belt take-up.

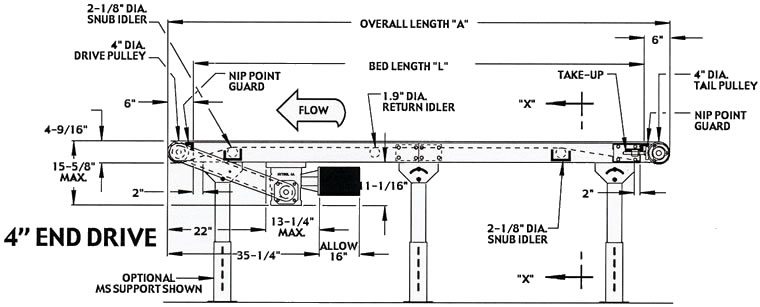

END DRIVE – Located on discharge end of conveyor,
chain guard on left hand side.		 BEARINGS – Sealed, pre-lubricated, self-aligning, ball
bearings on drive and tail pulleys.
SPEED REDUCTION – Sealed worm gear C-Face
speed reducer. No. 50 roller chain to drive pulley.

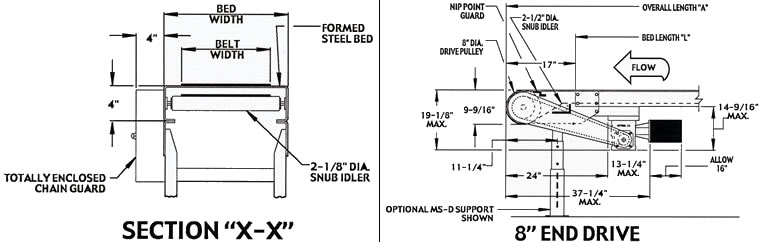

DRIVE PULLEY – 4 in. dia. with 1 in. dia. shaft at
bearings or 8 in. dia. with 1-3/16 in. dia. shaft at
bearings, machine crowned and fully lagged. See chart.
MOTOR – 1/2 HP–208/230/460V/575–3 Ph.–60 Hz.
Totally Enclosed C-Face.
TAIL PULLEY – 4 in. dia. with 1 in. dia. shaft at
bearings, machine crowned.
BELT SPEED – Constant 65 FPM.
SNUB IDLER – Adjustable 2-1/8 in. dia. for 4 in.
pulley–2-1/2 in. dia. for 8 in. pulley. Pre-lubricated ball
bearings. Guards included.
CAPACITY – Maximum load per linear foot of con-
veyor 75 lbs. NOT TO EXCEED capacity in charts.
FLOOR SUPPORTS – Now supplied as optional
equipment.
LOAD CAPACITY CHART
@ 65 FPM W/STANDARD BELT
HP
BELT WIDTHS TO
LENGTHS UP TO
4" Dia. Drive Pulley
8" Dia. Drive Pulley
11'
21'
31'
41'
51'
77'
102'
DISTRIBUTED LOAD (LBS.)
1/2
6"-16"
335
320
310
300
285
260
230
18"-30"
320
300
285
270
255
210
170
1
6"-16"
650
635
625
615
605
625
595
18"-30"
635
620
600
585
570
580
540
LOAD CAPACITY CHART 25° INCLINE
@ 65 FPM W/ROUGHTOP BELT
HP
BELT WIDTHS TO
LENGTHS UP TO
11'
21'
31'
41'
51'
DISTRIBUTED LOAD (LBS.)
1/2
6"-16"
155
145
135
125
110
18"-30"
145
130
115
100
80
1
6"-16"
310
300
290
280
270
18"-30"
305
285
270
255
240
OPTIONAL EQUIPMENT
FLOOR SUPPORTS – MS Type floor supports are
available with a wide range of adjustment. Specify top
of belt or roller elevation. One support required at every
bed joint and ends of conveyor. Holes in feet for lagging
to floor. Knee braces recommended above MS-6 support.		 SIDE TABLES – Powder painted 14 ga. formed
steel table, 10 in., 16 in., or 22 in. wide from side of
bed. One or both sides.
*NOSEOVER – Adjustable, single (0° to 15°), double
(0° to 30°).
BELT* – White Polymate 100 RMP-COS (cover one
side), Black Trackmate 120 Roughtop with PVC cover,
brown Polymate Roughtop w/Nitrile cover, Black
Trackmate 533 COS-PVC, Tan Glidetop, Pure
Gum Rubber Roughtop.
*LOWER POWERED FEEDER – Chain type driven
from tail pulley of inclined conveyor. Underside take-up
required when end drive is used. MS-Type floor sup-
ports now supplied as optional equipment. 8 in. dia.
drive recommended on conveyor when feeder exceeds
44-1/2 in. OAL–50-1/2 in. OAL with system end.
*BELT SPEED – Other constant and variable speeds.
V-belt drive supplied under 17 FPM.
GRAVITY BRACKETS – Adjustable bars with 1 in.
dia. pop-out transfer roller to attach wheel or 1-3/8 in.
roller conveyor. Available 12 in. to 28 in. bed widths only.
OVERHEAD END DRIVE – Motor-reducer unit
mounted 9-1/2 in. above belt. Other clearances available,
specify. (Chain guard right hand side). Minimum elevation
6 in. with 4 in. drive, 10 in. with 8 in. drive.
BUTT COUPLINGS – Provides connection to SB,
RB, LR, ACC, ACZ, ABEZ, 190-SP, 190-NSPEZ,
1.9 in. & 2.0 in. gravity conveyors. Includes 1 in. dia.
Pop-out roller. Center drive or underside take-up
recommended.
SIDE MOUNTED END DRIVE – Motor-reducer
unit mounted left hand side of conveyor. Minimum
elevation 7 in. with 4 in. drive, 10 in. with 8 in. drive.
CENTER DRIVE – Provides 16 in. of belt take-up.
Minimum elevation 16 in. with 4 in. drive, 17 in. with
8 in. drive. Specify location. Minimum OAL without
modification–63 in. with 4 in. drive, 66 in. with 8 in. drive.
SYSTEM END ROLLER – 12 in. long tail sections
provide connection to SB, RB, LR, ACC, ACZ, ABEZ,
190-SP, 190-NSPEZ, 1.9 in. & 2.0 in. gravity conveyors.
Includes 1.9 in. dia. Pop-out transfer roller. Belt width is
6 in. less than bed width. (Center drive or underside
take-up required.) Not available on 10 in. bed.
LOW ELEVATION SIDE MOUNTED CENTER
DRIVE – Motor-reducer unit mounted to side of
conveyor. Minimum elevation 13-1/2 in. with 4 in. or
8 in. drive.
PULLEYS – 6 in. tail with 1-3/16 in. dia. shaft at
bearings, or 8 in. drive with 1-3/16 in. dia. Shaft at
bearings.
STACKED END DRIVE – Minimum elevation
27-3/4" with V-belt drive, 33-3/4" with C-Face drive.
CASTERS – See below.
V-BELT DRIVE – V-Belt supplied between motor
and reducer. Minimum overall drive width 14 in. Allow
65 in.
POLY-TIER SUPPORTS – 36 in. to 120 in. support
heights in 6 in. increments. Knee braces supplied.
CEILING HANGERS – 5/8 in. dia. x 8 ft. long
unplated rods fully threaded. Other lengths and
galvanized rods available.
UNDERSIDE TAKE-UP – Provides 16 in. of belt
take-up. Extends down 13-1/8 in. from top of belt.
GUARD RAILS – Universal adjustable universal
channel, solid side guards, PC side guards with formed
top. Fixed Channel overlapping, one direction (use with
systems ends only). Fixed Channel non-overlapping,
reversing (use with system ends only).
MOTORS–Energy efficient, single phase, brakemotor,
other characteristics. 2 HP maximum.
ELECTRICAL CONTROLS – One direction manual
start switch, reverse drum switch, non-reversing and
reversible magnetic starters, push button stations. AC
variable frequency drive.
SHAFT MOUNTED END DRIVE – Motor reducer
unit mounted on extended drive pulley shaft. Can be
mounted with motor horizontal for 4-7/8 in. minimum
elevation. Mounting bracket and torque arm allows for
multiple mounting positions. 4 in. drive only. See chart
for speeds.
SIDE TABLES – Powder painted 14 ga. formed steel
table, 10 in., 16 in., or 22 in. wide from side of bed.
One or both sides.
O-RING DRIVE CHAIN – With sealed in lubricant
(Recommended for applications that do not permit regular
lubrication).
NOTE: Capacity affected with these options.

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

PRICES FOR COMPLETE CONVEYOR INCLUDE:
• End Drive, Located on Discharge End of Conveyor,
Chain Guard on Left Hand Side When Standing at
Infeed Looking Toward Discharge
• Black Ultimate 140 BBS Belt
• 4" Deep x 12 Ga. Slider Bed
• "C" Face Speed Reducer–Sealed Worm Gear		 • 1/2 HP–"C" Face Totally Enclosed Motor
(Specify Exact Voltage)
• Totally Enclosed Chain Guard
• 65 FPM Belt Speed
• Less Electrical Controls
• Less Floor Supports
SIZE TO ORDER Overall Length "A" Bed Length "L" Overall Length with Center Drive Black Ultimate 140 BBS Belt Widths
6" 8" 10" 12" 14" 16" 18" 20" 22" 24" 26" 30"
Slider Bed Width - 12 Ga. Steel
10" 12" 14" 16" 18" 20" 22" 24" 26" 28" 30" 34"
6'
5'
6'
11'
10'
11'
16'
15'
16'
21'
20'
21'
26'
25'
26'
31'
30'
31'
36'
35'
36'
41'
40'
41'
46'
45'
46'
51'
50'
51'
56'-11"
55'
56'
61'-11"
60'
61'
66'-11"
65'
66'
71'-11"
70'
71'
76'-11"
75'
76'
81'-11"
80'
81'
86'-11"
95'
86'
91'-11"
90'
91'
96'-11"
95'
96'
101'-11"
100'
101'
Price per foot
IMPORTANT NOTES
• OTHER LENGTHS
Other lengths not listed in price chart are available. For "IN-BETWEEN SIZES", use next larger Overall Length "A"
price. For lengths longer or shorter than those shown in chart, please contact factory.
• OTHER WIDTHS
For "IN-BETWEEN WIDTHS", use next width plus 10%.
• STANDARD WIDTHS
Available in 16", 18", 24" and 28" OAW in 5 ft. and 10 ft. bed lengths only, 3 days.
All standard widths to be offered in 1 INCH length increments beginning at 6’ OAL - 2 weeks from factory.
• INTERMEDIATE BEDS
Use per foot price of width x required length, supports not included.
Available in 16", 18", 24" and 28" OAW in 5 ft. and 10 ft. bed lengths only, 3 days.
• FLOOR SUPPORTS
FLOOR SUPPORTS ARE NOT INCLUDED IN BASE PRICE. There are two (2) stationary floor support
required for the first bed section and one (1) support required per bed section thereafter.
PRICES FOR OPTIONAL EQUIPMENT
OPTIONAL BELTS
Extra Price Per Foot Conveyor Length "A" (in addition to Black Ultimate 140 BBS Belt regularly furnished).
See chart below.
BELT DESCRIPTION
Belt Width
PRICES PER FOOT OF CONVEYOR LENGTH "A"
Black
Ultimate
140 BBS
Tan
Glidetop
Polymate 100
RMP-COS
(White)
Trackmate
533 COS-PVC
(Black)
Trackmate
120 Roughtop
with PVC Cover
(Black)
Polymate
Roughtop
Nitrile-COS
(Brown)
Pure Gum
Rubber
Roughtop
High Grip
Longitudinally
Groove Belt
6"
 ~
8"
10"
12"
14"
16"
18"
20"
22"
24"
26"
28"
30"
32"
OTHER BELT WIDTHS—2" Wider on Same Bed. (AVAILABLE with Outrigged Center Drive or Outrigged
Underside Take-Up) e.g., 12" Belt on 14" Bed.

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

MOTORS
Extra Motor Price for OTHER THAN: 1/2 HP–208/230/460/575 V–3 Ph.–60 Hz.–Totally Enclosed. Speed affects
horsepower requirements.
H.P.
REQ.
TOTALLY ENCLOSED
ENERGY EFFICIENT
BRAKEMOTORS
200/208/230/
460/575V
3 Ph.-60 Hz.		 115/230V
1 Ph.-60 Hz.		 230/460V
3 Ph.-60 Hz.		 575V
3 Ph.-60 Hz.		 Holding Brake
208/230/
460/575V
3 Ph.-60Hz.		 Cycling Brake 208/230/
460/575V*
3 Ph.-60Hz.		 Cycling Brake 208/230/
460/575V*
3 Ph.-60Hz.		 Holding
Brake
115/230V
1 Ph.-60Hz.
1/2 N/C
N/A
N/A
N/A
N/A
1 N/A
2 N/A
*575V - Prices coded in light blue call for lead time.
* Note: "Cycle Brakemotors" are used for indexing and are
rated for 30 cycles per minute. Add-On Prices Include 5AC
Reducer, Heavy Duty Motor Base Plate, and #60 Chain and
Sprockets with Taper Lock Hubs.
** Note: "Cycle Brakemotor" Add-On Prices Include 5AC
Reducer, Heavy Duty Motor Base Plate and Timing Belt Drive.
Note: Holding Brakes and are NOT rated for cycling.
Note: "Cycle Brakemotors" are available with Center Drive Only.		 CEILING HANGERS
ciling hangers for conveyors
FLOOR SUPPORTS Ceiling Hanger Brackets with (2) 5/8" dia. x
8'-0" long unplated fully threaded rods.........
Not Included in Base Price. Use Chart Below for
Required Elevation.

$156.70

Ceiling Hanger Brackets with (2) 5/8" dia. x
8'-0" long galvanized fully threaded rods.......
"MS" SUPPORT
Model No. Adjustment to Top
of Belt		 Price Each
*MS-1 11-1/8" to 12-7/8"
*MS-1.2 12-1/8" to 13-7/8"
*MS-1.4 13-1/8" to 14-7/8"
*MS-2 14-1/8" to 17-1/8"
**MS-3 16-3/4" to 19-3/4"
MS-4 19-3/4" to 25-3/4"
MS-5 23-3/4" to 29-3/4"
MS-6 27-3/4" to 39-3/4"
MS-7 37-3/4" to 49-3/4"
MS-8 49-3/4" to 61-3/4"
MS-9 61-3/4" to 73-3/4"
MS-10 73-3/4" to 85-3/4"
MS-11 83-3/4" to 95-3/4"
MS-12 95-3/4" to 107-3/4"
$187.20
Ceiling Hanger Brackets with (2) 5/8" dia.
x 10’-0" long unplated fully threaded rods.....
$231.60
Ceiling Hanger Brackets with (2) 5/8" dia. x
10’-0" long galvanized fully threaded rods....
$381.20
Ceiling Hanger Brackets with (2) 5/8" dia. x
12’-0" long unplated fully threaded rods.....

$384.40

Ceiling Hanger Brackets with (2) 5/8" dia. x
12’-0" long galvanized fully threaded rods...
$444.50
Ceiling Hanger Brackets, Less Rods Only.... $98.70
Extra Length Rods:
(2) 8’-0" long x 5/8" dia. unplated fully
threaded rods ............................................
$57.40
(2) 8’-0" long x 5/8" dia. galvanized fully
threaded rods .............................................
$88.40
(2) 10’-0" long x 5/8" dia. unplated fully
threaded rods ..............................................
$132.70
(2) 10’-0" long x 5/8" dia. galvanized fully
threaded rods ..............................................
$282.30
(2) 12’-0" long x 5/8" dia. unplated fully
threaded rods ..............................................
Knee Braces ......................per pair ..................... $31.80
$285.80
* Less than 16" top of belt elevation– Side Mounted
Drive Required.
**Less than 19-1/2" top of belt elevation–Side
Mounted Drive Required (With 8" dia. Drive Pulley).
NOTE: MS Support adjustment is for 4" drive,
intermediate, and tail sections only. With 8" End
Drive, specify elevation desired.
NOTE: MS-7 to MS-12: Knee Braces included in price.
NOTE: Knee Braces are required on incline or
decline units with MS-3 or higher supports.
(2) 12’-0" long x 5/8" dia. galvanized fully
threaded rods ..............................................
$346.00
Hex Coupling Nuts for Rods ................... $5.20
POLY-TIER SUPPORTS
poly tier supports for conveyors PRICES FOR COMPLETE CONVEYOR INCLUDE:
• Painted Steel Support Legs
• Adjustable Crosspipe Assembly
• Knee Braces (1 set per level of conveyor)
• "U" Brackets
• Single Width Conveyor Only
CASTERS
4" Dia. 6" Dia.
CASTERS Steel Rubber Steel Rubber
Extra Per Support*
IMPORTANT NOTES. . .
• Check for Clearance.
• Specify type of conveyor to be used.
• Use in place of LS or MS Supports only.
* Price Includes Knee Braces
CASTERS ARE RECOMMENDED FOR MS AND
LS TYPE SUPPORTS ONLY.
Caster Foot.........................Per Support...........$57.70
* Available on Swivel Caster Only.
** Center legs available same sizes as LS-MS
shown in chart above.
Brakes for Casters (Add-On Per Support)*:
4" Dia. Caster ................................................$41.50
6" Dia. Caster ................................................$132.70
CAPACITY DATA:
1500 lbs. ...........per cross pipe
4500 lbs. ...........per set of legs
(2) TIER POLY-TIER SUPPORTS
36"
42"
48"
54"
60"
66"
72"
78"
84"
90"
96"
102"
108"
114"
120"
SIDE TABLES—Bed Lengths Only (5 ft. and 10 ft.
Lengths available 2 weeks. Other Lengths available,
Contact us for lead time.)
NOTE: When ordering, specify if for One or Both
Sides, and R.H. or L.H. Side. See chart below.
TABLE
WIDTH
WIDTH FROM
BELT
PER FOOT-PER SIDE
PRICE
10"
12"
16"
18"
22"
24"
NOSEOVER
Adjustable type. Support not included in base
price. DOES NOT include bed length.
Single ...............(0° to 15°) .......................$361.90
Double* ............(0° to 30°) ......................$511.10
*Standard location is 2’ 2" from discharge end
NOTE: Brakemotor required on Incline or Decline
Units greater than 10°.
(3) TIER POLY-TIER SUPPORTS
36"
42"
48"
54"
60"
66"
72"
78"
84"
90"
96"
102"
108"
114"
120"
OPTIONAL DRIVES
Unified Drives: (Shaft Mounted)
Unified
Drives:
10" to 14&quot
16" to 20&quot
22" to 28&quot
34"
End Drive 4"
Drive Pulley
End Drive 8"
Drive Pulley
Center Drive
4" Drive Pulley
Center Drive
8" Dirve Pulley
COUPLING HARDWARE
*Gravity Conveyor Bracket with Pop-Out
Roller...per end.........................................
$92.40
Butt Couplings with Pop-Out Roller..........
..........per end...........................................
4" Drive Pulley
Speed FPM
34
41
52
68
82
103
138
206
274
412
Max HP
1/2
1/2
1/2
1
1
1
1
1
1
1
$85.90
**System End Roller Assembly.................
..........per end...........................................
$236.50
Nose Roller Assembly - 1-1/8" Dia...per end .. $588.90
8" Drive Pulley
*Through 24" Wide Belt Only.
Speed FPM
65
78
97
130
156
195
260
389
Max HP
1
1
1
2
2
2
2
2*
Note: Center drive required if nose rollers used on each
end Tail Pulley - 2 1/4" Dia .....per end..... $224.00
**NOTE: Belt is 2" less than standard. When
System End is supplied on both ends, Center
Drive is required. See "Optional Drive Chart"
for Center Drive Price.
*Contact us.
DRIVE TYPE
BED WIDTHS
10" to 24"
28"
30" to 34"
End Drive (V-Belt)
End Drive High Cycle
(C-Face)*
Side Mounted End (C-Face)
Side Mounted End (V-Belt)
Stacked End Drive (C-Face)**
Stacked End Drive (V-Belt)**
Center (C-Face)
Center (V-Belt)
Side Mounted Center (C-Face)
Side Mounted Center (V-Belt)
Center w/Ext. Take-Up (C-Face)
Center w/Ext. Take-Up (V-Belt)
High Perf. Center (C-Face)
High Perf. HD Center (C-Face)
GUARD RAILS
NOTE: Available in 5’ and 10’ lengths only from
Stockyard. Contact factory for other lengths.
Adjustable Universal Channel Guard Rail
Both Sides...per foot.................................
One Side.....per foot.................................		 $16.00
$8.20
HEIGHT
(Both Sides-Per Foot)		 TYPE
Solid Side PC Style
2"
N/A
3 1/2"
N/A
4"
N/A
6"
9"
12"
(PC Type Guards Only - 5 ft. and 10 ft. Lengths
available two weeks from factory. Other Lengths
available. Contact us for lead time.)
NOTE: Solid Side Guards mount vertically on
outside of conveyor bed, PC Type Guards mount
on top of bed.
#50 O-Ring Drive Chain............Add ........$301.40
**Minimum elevation 28 1/16"" with V-belt Drive,
33-1/16" with C-face drive.
UNDERSIDE TAKE-UP
Provides 16" of Belt Take-Up on Long Units. Required
on Incline Units with Powered Feeders and End Drives.		 CONSTANT AND VARIABLE SPEEDS
Constant C-Face–Within 17-135 FPM ......No Charge
Constant V-Belt–Minimum of 4 FPM ..................
................................ Use V-Belt Drive Add-On
Constant Speeds Below Those Listed Above ......
........................................................... Contact us
Variable Speed .... See AC Variable Speed Drives
BED WIDTHS PRICE
10" to 18"
20" to 24"
28"
OUTRIGGED UNDERSIDE TAKE-UP
FILLER PLATES
Provides 16" of Belt Take-Up on Long Units.
Required on Incline Units with Powered Feeders
and End Drives.
For Solid Side Guards (NOT AVAILABLE
on 2" High Guards)...per joint.......................
$76.60
BED WIDTHS PRICE
10" to 18"
20" to 24"
28"
ELECTRICAL CONTROLS
(See below)
GALVANIZING Contact us
LARGER DRIVE OR TAIL PULLEY
DRIVE COMPONENT DEDUCTS
Bed Widths
8" Dia. Drive Pulley
in Lieu of 4" Dia.
6" Dia. Tail Pulley
in Lieu of 4" Dia.
10" 12" 14"
16" 18" 20"
22" 24" 28"
30", 34"
Less Motor Drive, Motor Mount and Guards,
but with Shaft Extension.........Deduct ............
$694.20
Less Motor Only (1/2 HP-208/230/460/
575V-3 Ph.-60 Hz.) .......Deduct .................
$258.30
Less Reducer* ..Deduct .......................... $307.40
*Less V-Belt Guard, Chain Guard, sheaves and
sprockets when V-Belt drive is supplied. Less
chain guard and sprockets when C-Face drive is
supplied.
TROUGHING ATTACHMENT POWERED FEEDER
Price Per Foot of Conveyor...Both Sides......... $42.50 Prices for Powered Feeder Include Black Ultimate
140 BBS Belt, Bed, Drive & Tail Pulleys
NOTE: Adjustable Floor Supports Not Included In
Base Price
NOTE: Overall length of 29-1/2" requires 1
support. Overall length of 44-1/2" or more requires
2 supports.
Gravity Conveyor Bracket with "Pop-Out" Roller
on Tail End (Through 24" Wide Belt Only)
Hugging Strips w/Troughing Attachments and 6" high
PC Type Guard Rail.....Both Sides per foot..... $68.40
Note: 6" High Sides Minimum.
troughing attachment for conveyors
NOTE: NO DEDUCT for Feeders less than
minimum lengths. Shorter lengths COULD CAUSE
IMPROPER BELT TRACKING.
NOTE: With System End Roller Assembly Add 6"
to OAL. Underside Take-Up required on Incline
Units with Power Feeders and End Drives.
CHAIN DRIVEN TYPE
Belt Width 6" 8" 10" 12" 14" 16" 18" 20" 24" 30"/34"
Min. Length Overall 29 1/2" 29 1/2" 29 1/2" 29 1/2" 44 1/2" 44 1/2" 44 1/2" 44 1/2" 59 1/2" 71 1/2"
Price
Price Per Foot
#50 O-Ring Chain on Slave Connection. ........... Add ..................... $215.70

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

ELECTRICAL CONTROLS AND DRIVE SECTION
MANUAL START SWITCH or
SAFETY DISCONNECT
 limit switch LIMIT SWITCH, SINGLE POLE,
WITH NYLON ROLLER LEVER
manual start switch
#032.1014......................................... $225.79 #033.2032 & #033.2072..................$589.01
Nema 4
"START-STOP", Nema 1, One direction, 30
AMP, 3 Pole (Single or 3 phase)
LIMIT SWITCH, DOUBLE POLE,
WITH NYLON ROLLER LEVER
limit switch double pole
#033.2033& #033.2072...................$352.04
Nema 4
REVERSING DRUM SWITCH
#032.103.......................................... $905.51
"Fwd-Stop-Rev", Nema 1, for 1-1/2 HP at
115 volts or 2 HP at 230 volts single phase,
or 2 HP max. three phase
PROXIMITY SWITCH, INDUCTIVE,
(METAL SENSING)

#032.210.........................................$217.67
115 Volt AC, two wire with ground, 30mm dia.,
10mm range
foot swtich with guard FOOT SWITCH WITH GUARD
#032.211.........................................$257.68
24 Volt DC, two wire with ground, 30mm dia.,
10mm range
#032.200........................................... $286.50
(Constant Pressure) "On-Off" type, Nema 1,
Pilot Control or 1 HP max. single phase.
PHOTO EYE, ON-OFF TYPE
power cord and plug #EA-000005......................................$1,122.83
Banner Q45 Retro Reflective Photo Eye Kit
with timing module, reflector and mounting
brackets. Photo Eye output is one form C
type relay, Operating voltage
24-250VAC/12-250VDC
POWER CORD AND PLUG (20')
POWER CORD WITH PLUG ONLY 20' LONG
Model No.
Voltage
HP Rating
Prices
EA-039-1A
115/1
1/2-3/4
EA-039-2A
115/1
1
EA-039-3A
115/1
1 1/2
EA-039-4A
230/1
1/2-1
EA-039-5A
230/1
1 1/2-2
EA-039-6A
208-230/3
1/2-2
EA-039-7A
460/3
1/2-2
POWER CORD WITH PLUG 20' LONG WITH MANUAL START SWITCH AND MOUNTING BRACKET
Model No.
Voltage
HP Rating
Prices
EA-039-1B
115/1
1/2-3/4
EA-039-2B
115/1
1
EA-039-3B
115/1
1 1/2
EA-039-4B
230/1
1/2-1
EA-039-5B
230/1
1 1/2-2
EA-039-6B
208-230/3
1/2-2
EA-039-7B
460/3
1/2-2
MOUNTING BRACKETS FOR PHOTO
EYE #033.2122
B-05165...........................................$125.19
AIR PRESSURE SWITCH
#094.191........................................$732.79
Nema 4
EMERG. STOP PULL CORD SWITCH
#032.285 with 032.2851 Turnbuckle
...........................................................$737.85
Nema 4
"RED" EMERGENCY PULL CORD
CABLE AND MOUNTING HARDWARE
#032.281...one side.................$7.88 per / ft.
both sides..............$16.83 per / ft.
EMERGENCY PUSH BUTTON
#032.284..........................................$296.39
Nema 4
PHOTO EYE, 18MM DIA., DIFFUSED,
(PHOTO PROX.) 115 VOLT, LIGHT
OPERATE, 2-METER CABLE
#032.2113 (100mm range, 3.94")....$1,130.24
#032.2116 (200mm range, 7.87")....$205.79
#033.218 (400mm range, 15.74")....$311.09
NOTE: PRICING LISTED NOT MOUNTED
OR WIRED 		"PHOTO EYE, RETRO-REFLECTIVE,
(POLARIZED) 24 VOLT DC
#033.2128 with 032.21122 Cable.....$253.44
#032.21122 (Cable Only)...................$76.71

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

CONTROLLER PRICES
AC VARIABLE SPEED CONTROLLER ONLY
SINGLE PHASE CONTROLLER INPUT
Motor Size 115 Volt 208/230 Volt
1/2 VSC-12-10 VSC-12-12
Price $1,581.35 $1,260.73
1 VSC-12-11 VSC-12-13
Price $1,827.73
2 N/A
VSC-12-14
Price ~
THREE PHASE CONTROLLER INPUT
Motor Size 208/230 Volt 460 Volt 575 Volt
1/2
VSC-01-15
VSC-01-18
VSC-12-29
Price
1
VSC-01-16
VSC-01-19
VSC-12-29
Price
2
VSC-01-17
VSC01--20
VSC-12-30
Price
REPLACEMENT INVERTER DUTY
ENERGY EFFICIENT MOTORS
HP Part No. Price
1/2 032.351 230/460
1 032.353 230/460
2 032.355 230/460
1/2 032.3512 575
1 032.3532 575
2 032.3552 575
IMPORTANT NOTES...
• All above motors are 230 / 460 / 575 Volt, 3 Phase.
• All above V/S Drive Kits include NEMA 1 / IP30
Junction Box, Controller and Motor.
• Good for cycle rates of up to 15 cycles per minute, at
1/2 second ramp time, with a maximum speed of 250
FPM.
• Drawing No. DG-001146.
OPTIONAL: Mounting and Wiring Add-On . . .
(mounted close to the motor)		 $715.70
Brake Relay Kit (EA-068A).............................. $575.24 • When AC Variable Speed Controller is used with a
Brake Motor, A Brake Relay Kit (EA-068A) is
required. Add an additional $575.24 for this option.)
ELECTRONIC CLUTCH BRAKE DRIVE PACKAGE
Part No. Description Price
EA-VSC-01-CB 2 HP Electronic Clutch-Brake Kit $5,361.50
OPTIONAL: Mounting and Wiring Add-on .
(mounted close to the motor)		 $715.70
KIT INCLUDES
Part No. Description
VSC-01-20 AC Variable Speed Controller, 460 Volt, 3 Phase
032.345 2 HP 460 Volt, 3 Phase, C-Face Motor TEBC
(Blower Cooled) With 5AC Reducer and #60 Chain
and Sprockets
IMPORTANT NOTES
• Good for cycle rates of up to 60 cycles per minute.
• 1/10 second Accel and Decel time, with 350 FPM
Maximum Speed.
• 230 or 460 Volt Only, Other Voltages, Contact us.
• Motor Cooling Blower is 115 Volt, 1 Phase, 60 Hz.
• Price Includes 5AC Reducer and #60 Chain and
Sprockets
Part No. Description
VSC-01-17 AC Variable Speed Controller, 230 Volt, 3 Phase
032.345 2 HP 230 Volt, 3 Phase, C-Face Motor TEBC
(Blower Cooled) With 5AC Reducer and #60 Chain
and Sprockets

Order Online

Click the button of the item you wish to purchase.

Contact us for special lengths

• "Start-Stop" Push-button Station • "Start-Stop"Push-button Station
033.1955 $223.91 033.195................................................. $151.10
Remote mounted, Nema 1 To be mounted in Mag Starter Cover
• "Fwd-Rev-Stop" Push-button Station • "Fwd-Rev-Stop"Push Button Station
033.1965 $420.87 033.196.................................................. $520.41
Remote mounted, Nema 1 To be mounted in Mag Starter Cover
• "Up-Down-Stop" Push-button Station
• Mounting Brackets for photo eye
033.1975 $420.87
Remote mounted, Nema 1
To be mounted in Mag Starter Cover		 #033.2122
B-05165 ..............................................		 $125.19
CONVEYOR WEIGHT TABLE
SIZE TO ORDER Overall Length "A"
Bed Length "L"
Overall Length with Center Drive
Drive Pulley
Belt Width
6"
8"
10"
12"
14"
16"
18"
20"
24"
30"
Bed Width
10"
12"
14"
16"
18"
20"
22"
24"
28"
34"
6'
5'
6'
4" Dia.
WEIGHTS (Lbs.)
239
252
262
272
282
305
315
343
366
389
11'
10'
11'
271
286
300
314
328
368
382
397
422
447
16'
15'
16'
324
343
362
380
398
456
475
494
528
562
21'
20'
21'
354
377
400
422
444
519
542
565
607
649
26'
25'
26'
406
434
461
488
514
607
635
662
713
764
31'
30'
31'
436
468
499
530
560
670
702
733
792
851
36'
35'
36'
488
525
560
596
630
758
795
830
898
966
41'
40'
41'
519
559
599
638
677
821
862
901
977
1053
46'
45'
46'
570
616
660
704
747
909
955
998
1083
1168
51'
50'
51'
605
655
704
753
801
982
1032
1081
1176
1271
56'-11"
55'
56'
8" Dia.
WEIGHTS (Lbs.)
652
712
795
819
871
1070
1125
1178
1282
1386
61'-11"
60'
61'
688
746
804
861
918
1133
1192
1249
1351
1453
66'-11"
65'
66'
734
803
865
927
988
1221
1285
1346
1457
1568
71'-11"
70'
71'
772
839
905
971
1036
1287
1364
1420
1549
1678
76'-11"
75'
76'
816
896
966
1037
1106
1375
1457
1517
1655
1793
81'-11"
80'
81'
855
930
1005
1079
1153
1438
1514
1588
1734
1880
86'-11"
95'
86'
898
987
1066
1145
1223
1526
1607
1685
1840
1995
91'-11"
90'
91'
937
1021
1104
1187
1269
1589
1673
1756
1920
2084
96'-11"
95'
96'
980
1078
1165
1253
1339
1677
1766
1853
2026
2199
101'-11"
100'
101'
1020
1112
1204
1295
1386
1740
1833
1924
2105
2286
All Standard Widths to be Offered in 1 ft. Length Increments - 1 Wk. Stockyard except 34 in. O.A.W.
All weights in catalog are conveyor weights only. Accessories, crating, etc., are not included.
Belt Conveyors, Conveyor, Conveyor Belt, Low Profile Conveyor, Conveyors, and Slider Bed from your source for material handling
equipment.
