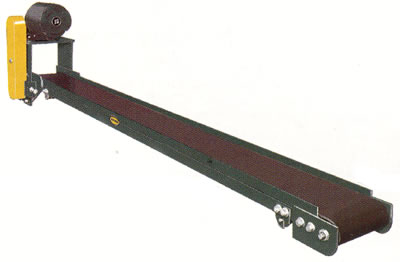

MODEL PCA
|
LIGHT DUTY PORTABLE PARTS CONVEYOR
|
|
|
|
 |
|
|
|
The Model "PCA" Conveyor is easily positioned
in or under punch presses, plastic injection
molding machines, extruding equipment, and
other machinery, where small steel or aluminum
stampings, plastic parts, etc., must be quickly
conveyed to hoppers or drums to keep production
on the move. |
|
|
|
 6 Belt Widths |
|
Reversible |
|
Overhead Drive |
|
One Piece Troughed Bed |
|
Adjustable PCAS Type Floor Supports
Available |
|
|
|
|
|
|
|
 |
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
STANDARD SPECIFICATIONS
|
|
|
|
OVERHEAD END DRIVE–Located on discharge
end of conveyor. Chain guard located on left hand side. |
|
BEARINGS–Sealed, pre-lubricated ball bearings on
drive pulley. |
| BELT–Black Ultimate 140 SD. Clipper lacing. |
|
SPEED REDUCTION–Sealed worm gear "C" face
speed reducer. No. 40 roller chain to drive pulley. |
BED–12 ga. steel formed troughed bed section with
1 in. high vertical sides. |
|
|
MOTOR– 1/2 HP–230/460V–3 Ph. 60 Hz. Totally
Enclosed Fan Cooled "C" face. |
DRIVE PULLEY–2-1/2 in. dia. with 1 in. dia. shaft,
crowned and fully lagged. |
|
|
BELT SPEED–Constant 65 FPM. |
TAIL PULLEY–2-1/8 in. dia. With 7/16 in. dia.
threaded shaft. Pre-lubricated ball bearings. |
|
CAPACITY–Maximum load per linear foot of
conveyor 10 lbs. |
RETURN IDLER–Adjustable 1-3/8 in. dia. pre-
lubricated ball bearings. |
|
TAKE-UP–Screw take-ups are provided at drive
pulley to insure proper belt tension. |
|
|
|
|
|
OPTIONAL EQUIPMENT
|
|
|
|
FLOOR SUPPORTS–PCAS Type floor supports are
available with a wide range of adjustment. Specify top
of belt or roller elevation. One support required at every
bed joint and ends of conveyor. Holes in feet for lagging
to floor. Knee braces recommended above PCAS-6
support. |
|
BED–Higher than 1 in. high vertical sides. |
|
UNDERSIDE DRIVE–Gearhead motor mounted
underneath bed section.
|
|
MOTORS–Energy efficient, single phase, other
characteristics. 1/2 HP maximum. |
|
ELECTRICAL CONTROLS–Manual one direction
push button switch, one direction magnetic starters, push
button stations, power cord. |
| BELT–White Polymate 100 RPM COS. |
|
BELT SPEED–Other constant speeds 11 to 82 FPM,
specify. |
|
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
|
|
| PRICES FOR COMPLETE CONVEYOR INCLUDE: |
|
|
|
| Black Ultimate 140 SD Belt |
|
1/2 HP-230/460V-3 Ph.-60 Hz. Totally Enclosed "C"
Face (Specify Exact Voltage) |
12 Ga. Steel Formed Troughed Bed Section with 1"
High Vertical Sides |
|
|
65 FPM Constant Belt Speed |
| Totally Enclosed Chain Guard |
|
Less Electrical Controls |
|
|
|

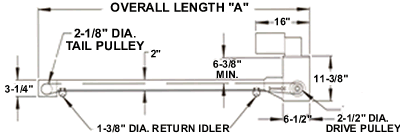

SIZE TO ORDER
Overall
Length "A" |
Belt Width |
4" |
6" |
8" |
10" |
12" |
18" |
| Bed Width |
4 1/2" |
6 1/2" |
8 1/2" |
10 1/2" |
12 1/2" |
18 1/2" |
| "B" |
9 1/8" |
11 1/8" |
13 1/8" |
15 1/8" |
17 1/8" |
23 1/8" |
| 4' |
Weights
(Lbs.) |
96 |
107 |
116 |
125 |
134 |
162 |
| 5' |
100 |
114 |
124 |
128 |
146 |
178 |
| 6' |
106 |
121 |
133 |
145 |
158 |
196 |
| 8' |
116 |
139 |
150 |
165 |
181 |
228 |
| 10' |
126 |
146 |
166 |
186 |
205 |
262 |
| Price - 4' Overall Length |
|
|
|
|
|
|
| Per Foot Price |
|
|
|
|
|
|
|
NOTE: Available in 2 weeks on 4'-0", 5'-0", 6'-0", 8'-0", and 10'-0" lengths only.
Lengths other than those listed, contact us for lead time. |
|
|
|
|
|
| IMPORTANT NOTES... |
| OTHER LENGTHS |
|
For longer than 4' overall length, add extra per foot to base price. Minimum length is 4'. Maximum length is 20'. |
| OTHER WIDTHS |
|
For "IN-BETWEEN WIDTHS", use next width plus 10%. For widths up to 20-1/2" OAW, interpolate plus 10%.
For widths over 20-1/2" OAW, contact us. |
| NON-STANDARD WIDTHS |
|
Contact us for lead time. |
Click the button of the item you wish to purchase. Contact us for special lengths
| FLOOR SUPPORTS |
|
|
|
|
|
|
"PCA" SUPPORT WITH
OVERHEAD DRIVE
|
|
|
|
"PCA" SUPPORT WITH
UNDERSIDE DRIVE
|
| Model No. |
Adjustment to Top of Belt |
Price Each |
| PCAS-01 |
9" to 10-3/4" |
|
| PCAS-01.2 |
10" to 11-3/4" |
|
| PCAS-01.4 |
11" to 12-3/4" |
|
| PCAS-02 |
12" to 15" |
|
| PCAS-03 |
14-1/2" to 17-1/2" |
|
| PCAS-04 |
17-1/2" to 23-1/2" |
|
| PCAS-05 |
21-1/2" to 27-1/2" |
|
| PCAS-06 |
25-1/2" to 37-1/2" |
|
| PCAS-07 |
35-1/2" to 47-1/2" |
|
| PCAS-08* |
47-1/2" to 59-1/2" |
|
| PCAS-09* |
59-1/2" to 71-1/2" |
|
| PCAS-10* |
71-1/2" to 83-1/2" |
|
| PCAS-11* |
81-1/2" to 93-1/2" |
|
| PCAS-12* |
93-1/2" to 105-1/2" |
|
|
|
|
| Model No. |
Adjustment to Top of Belt |
Price Each |
| PCASU-04 |
17-1/2" to 23-1/2" |
|
| PCASU-05 |
21-1/2" to 27-1/2" |
|
| PCASU-06 |
25-1/2" to 37-1/2" |
|
| PCASU-07 |
35-1/2" to 47-1/2" |
|
| PCASU-08 |
47-1/2" to 59-1/2" |
|
| PCASU-09 |
59-1/2" to 71-1/2" |
|
| PCASU-10 |
71-1/2" to 83-1/2" |
|
| PCASU-11 |
81-1/2" to 93-1/2" |
|
| PCASU-12 |
93-1/2" to 105-1/2" |
|
|
|
|
|
We Recommend additional bracing on narrow widths |
|
|
|
Knee Braces ...................Add per pair ..............$31.80
|
|
|
|
NOTE: PCAS-7 to PCAS-12 AND PCASU-7 to
PCASU-12: Knee Braces included in price. |
Click the button of the item you wish to purchase. Contact us for special lengths
| ELECTRICAL CONTROLS AND DRIVE SECTION |
|
|
|
|
MANUAL START SWITCH or
SAFETY DISCONNECT
|
|
 |
|
|
|
LIMIT SWITCH, SINGLE POLE,
WITH NYLON ROLLER LEVER |
 |
|
|
|
|
| #032.1014......................................... |
$225.79
|
|
|
|
|
#033.2032 & #033.2072..................$589.01
Nema 4 |
"START-STOP", Nema 1, One direction, 30
AMP, 3 Pole (Single or 3 phase) |
|
|
|
|
|
|
|
|
LIMIT SWITCH, DOUBLE POLE,
WITH NYLON ROLLER LEVER |
|
 |
|
|
|
|
|
|
|
|
|
#033.2033& #033.2072...................$352.04
Nema 4 |
|
REVERSING DRUM SWITCH |
|
|
|
|
|
|
#032.103.......................................... |
$905.51
|
|
|
|
 |
|
|
|
|
|
|
|
|
"Fwd-Stop-Rev", Nema 1, for 1-1/2 HP at
115 volts or 2 HP at 230 volts single phase,
or 2 HP max. three phase |
|
|
|
|
|
 |
PROXIMITY SWITCH, INDUCTIVE,
(METAL SENSING) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
#032.210.........................................$217.67
115 Volt AC, two wire with ground, 30mm dia.,
10mm range
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
FOOT SWITCH WITH GUARD |
|
|
|
|
|
|
|
|
|
|
#032.211.........................................$257.68
24 Volt DC, two wire with ground, 30mm dia.,
10mm range |
|
#032.200........................................... $286.50
(Constant Pressure) "On-Off" type, Nema 1,
Pilot Control or 1 HP max. single phase. |
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
PHOTO EYE, ON-OFF TYPE |
 |
|
|
|
|
|
|
|
#EA-000005......................................$1,122.83
Banner Q45 Retro Reflective Photo Eye Kit
with timing module, reflector and mounting
brackets. Photo Eye output is one form C
type relay, Operating voltage
24-250VAC/12-250VDC |
|
POWER CORD AND PLUG (20') |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
POWER CORD WITH PLUG ONLY 20' LONG
|
|
Model No.
|
Voltage
|
HP Rating
|
Prices
|
|
EA-039-1A
|
115/1
|
1/2-3/4
|
|
|
EA-039-2A
|
115/1
|
1
|
|
|
EA-039-3A
|
115/1
|
1 1/2
|
|
|
EA-039-4A
|
230/1
|
1/2-1
|
|
|
EA-039-5A
|
230/1
|
1 1/2-2
|
|
|
EA-039-6A
|
208-230/3
|
1/2-2
|
|
|
EA-039-7A
|
460/3
|
1/2-2
|
|
|
|
|
POWER CORD WITH PLUG 20' LONG WITH MANUAL START SWITCH AND MOUNTING BRACKET
|
|
Model No.
|
Voltage
|
HP Rating
|
Prices
|
|
EA-039-1B
|
115/1
|
1/2-3/4
|
|
|
EA-039-2B
|
115/1
|
1
|
|
|
EA-039-3B
|
115/1
|
1 1/2
|
|
|
EA-039-4B
|
230/1
|
1/2-1
|
|
|
EA-039-5B
|
230/1
|
1 1/2-2
|
|
|
EA-039-6B
|
208-230/3
|
1/2-2
|
|
|
EA-039-7B
|
460/3
|
1/2-2
|
|
|
|
|
|
|
|
|
|
|
|
|
MOUNTING BRACKETS FOR PHOTO
EYE #033.2122 |
|
|
|
|
B-05165...........................................$125.19
|
|
|
|
|
|
|
|
|
|
|
|
 |
AIR PRESSURE SWITCH |
|
#094.191........................................$732.79
Nema 4 |
|
|
|
|
|
|
|
|
|
|
EMERG. STOP PULL CORD SWITCH |
|
|
|
|
|
#032.285 with 032.2851 Turnbuckle
...........................................................$737.85
Nema 4 |
|
|
|
|
|
"RED" EMERGENCY PULL CORD
CABLE AND MOUNTING HARDWARE |
|
|
|
|
|
#032.281...one side.................$7.88
per / ft.
both sides..............$16.83
per / ft. |
|
|
|
|
|
EMERGENCY PUSH BUTTON |
|
|
|
|
|
#032.284..........................................$296.39
Nema 4 |
|
|
|
|
|
|
|
|
PHOTO EYE, 18MM DIA., DIFFUSED,
(PHOTO PROX.) 115 VOLT, LIGHT
OPERATE, 2-METER CABLE |
|
|
|
|
|
#032.2113 (100mm range, 3.94")....$1,130.24
#032.2116 (200mm range, 7.87")....$205.79
#033.218 (400mm range, 15.74")....$311.09
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
NOTE: PRICING LISTED NOT MOUNTED
OR WIRED |
|
|
|
|
"PHOTO EYE, RETRO-REFLECTIVE,
(POLARIZED) 24 VOLT DC |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
#033.2128 with 032.21122 Cable.....$253.44
#032.21122 (Cable Only)...................$76.71
|
Click the button of the item you wish to purchase. Contact us for special lengths
|
CONTROLLER PRICES
|
|
|
|
|
AC VARIABLE SPEED CONTROLLER ONLY
|
|
SINGLE PHASE CONTROLLER INPUT
|
| Motor Size |
115 Volt |
208/230 Volt |
| 1/2 |
VSC-12-10 |
VSC-12-12 |
| Price |
$1,581.35
|
$1,260.73
|
| 1 |
VSC-12-11 |
VSC-12-13 |
| Price |
$1,827.73
|
|
| 2 |
N/A |
VSC-12-14
|
| Price |
~ |
|
|
THREE PHASE CONTROLLER INPUT
|
| Motor Size |
208/230 Volt |
460 Volt |
575 Volt |
| 1/2 |
VSC-01-15
|
VSC-01-18
|
VSC-12-29
|
| Price |
|
|
|
| 1 |
VSC-01-16
|
VSC-01-19
|
VSC-12-29
|
| Price |
|
|
|
| 2 |
VSC-01-17
|
VSC01--20
|
VSC-12-30
|
| Price |
|
|
|
|
|
REPLACEMENT INVERTER DUTY
ENERGY EFFICIENT MOTORS
|
|
| HP |
Part No. |
Price |
| 1/2 |
032.351 230/460 |
|
| 1 |
032.353 230/460 |
|
| 2 |
032.355 230/460 |
|
| 1/2 |
032.3512 575 |
|
| 1 |
032.3532 575 |
|
| 2 |
032.3552 575 |
|
|
|
|
|
|
|
IMPORTANT NOTES...
|
|
|
• All above motors are 230 / 460 / 575 Volt, 3 Phase.
• All above V/S Drive Kits include NEMA 1 / IP30
Junction Box, Controller and Motor.
• Good for cycle rates of up to 15 cycles per minute, at
1/2 second ramp time, with a maximum speed of 250
FPM.
• Drawing No. DG-001146. |
|
|
|
|
|
OPTIONAL: Mounting and Wiring Add-On . . .
(mounted close to the motor) |
$715.70
|
|
|
|
|
|
|
|
| Brake Relay Kit (EA-068A).............................. |
$575.24
|
|
|
• When AC Variable Speed Controller is used with a
Brake Motor, A Brake Relay Kit (EA-068A) is
required. Add an additional $575.24
for this option.) |
|
|
|
|
|
|
ELECTRONIC CLUTCH BRAKE DRIVE PACKAGE
|
| Part No. |
Description |
Price |
| EA-VSC-01-CB |
2 HP Electronic Clutch-Brake Kit |
$5,361.50
|
|
|
|
|
|
OPTIONAL: Mounting and Wiring Add-on .
(mounted close to the motor) |
$715.70
|
|
|
|
|
|
|
|
KIT INCLUDES
|
|
|
|
| Part No. |
Description |
| VSC-01-20 |
AC Variable Speed Controller, 460 Volt, 3 Phase |
| 032.345 |
2 HP 460 Volt, 3 Phase, C-Face Motor TEBC
(Blower Cooled) With 5AC Reducer and #60 Chain
and Sprockets |
|
|
|
|
|
IMPORTANT NOTES
|
|
• Good for cycle rates of up to 60 cycles per minute.
• 1/10 second Accel and Decel time, with 350 FPM
Maximum Speed.
• 230 or 460 Volt Only, Other Voltages, Contact us.
• Motor Cooling Blower is 115 Volt, 1 Phase, 60 Hz.
• Price Includes 5AC Reducer and #60 Chain and
Sprockets |
| Part No. |
Description |
| VSC-01-17 |
AC Variable Speed Controller, 230 Volt, 3 Phase |
| 032.345 |
2 HP 230 Volt, 3 Phase, C-Face Motor TEBC
(Blower Cooled) With 5AC Reducer and #60 Chain
and Sprockets |
|
|
|
|
|
Click the button of the item you wish to purchase. Contact us for special lengths
| • "Start-Stop" Push-button Station |
|
|
• "Start-Stop"Push-button Station |
| 033.1955 |
$223.91
|
|
|
|
033.195................................................. |
$151.10
|
| Remote mounted, Nema 1 |
|
|
|
To be mounted in Mag Starter Cover |
|
|
|
|
|
|
|
|
|
|
| • "Fwd-Rev-Stop" Push-button Station |
|
|
• "Fwd-Rev-Stop"Push Button Station |
| 033.1965 |
$420.87
|
|
|
|
033.196.................................................. |
$520.41
|
| Remote mounted, Nema 1 |
|
|
|
To be mounted in Mag Starter Cover |
|
|
|
|
|
|
|
|
|
|
| • "Up-Down-Stop" Push-button Station |
|
|
• Mounting Brackets for photo eye
|
| 033.1975 |
$420.87
|
|
|
Remote mounted, Nema 1
To be mounted in Mag Starter Cover |
|
|
|
#033.2122
B-05165 .............................................. |
$125.19
|
|
Belt Conveyors, Conveyor, Conveyor Belt, Low Profile Conveyor, Portable Parts Conveyor, Conveyors, and Slider Bed from your
source for material handling equipment.
|
|
