The Tri-Glide provides a stable, efficient solution for moving heavy loads over finished floors. It is designed with a large footprint to spread the weight of the load over a greater area. Our Polyurethane and Nylon rollers are non-marking and can be used on a variety of floor surfaces. The Tri-Glide low-profile keeps the load close to the ground for safe moving.
All Tri-Glide Systems contain one steerable front unit and two adjustable-width rear units.
FEATURES

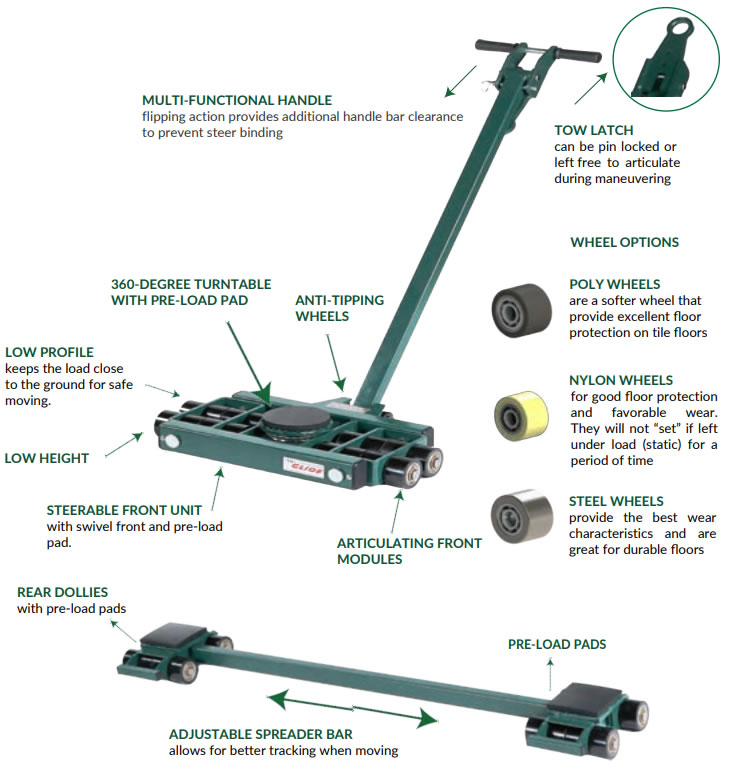

• Low height - just 4 inches on 10,15 & 20 ton units • Multi-functional Handle - flipping action provides additional handle bar clearance to prevent steer binding • Tow Latch - can be pin locked or left free to articulate during maneuvering • 360-Degree Turntable with Non-Slip Swivel Pad-for easy turning
3-POINT MOVING SYSTEM
Placing the dollies in a 3-point configuration can stabilize the rollers and prevent them from slipping out, even under pulling and tugging forces.
Easy Maneuverability, Maintenance Friendly, Easy to Assemble, No Tools Required!
KTG-10N
KTG-15N
KTG-20N
-
-
KTG-10P
KTG-15P
KTG-20-P
KTG-24P
KTG-40P
KTG-10S
KTG-15S
KTG-20S
-
-
Load Capacity:
10 ton
15 ton
20 ton
24 ton
40 ton
Wheels in Front Unit:
8
12
16
8
16
Wheels in Rear Unit:
8
12
16
8
16
Height Without Pad:
4"
4"
4"
5.25"
5.25"
Handle Length:
43 1/2"
43 1/2"
43 1/2"
45 3/4"
45 3/4"
Front Unit Width:
17 7/8"
22 11/16"
26 11/16"
26 7/8"
39 3/16"
Rear Unit Width:
6 1/4"
7 11/16"
9 11/16"
8 1/4"
14 3/16"
Front Unit Weights:
115 lb
145 lb
151 lb
253 lb
131 lb
Rear Unit Weights:
78 lb
91 lb
109 lb
291 lb
201 lb
Order Online
Click the button of the item you wish to purchase.
All kits include: (1) Front Unit with handle and (2) Rear Dollies with a Spreader Bar
