LOAD ROLLERS
NYTON SERIES
FOR INDUSTRIAL AND CONTRACTOR HEAVY MOVING
1.Lift the load - Use pry bars, fork lifts,
jacks, or hoists.
2. Set the rollers - at contact poinsts
or at the corners of the equipment.
3. Move and position the equipment.
Hilman Rollers are high capacity, low profile roller dollies that utilize a recirculating chain design for
moving, shifting, or positioning heavy weights.
The Nyton series is designed for heavy moving capabilities on delicate floor surfaces such as new
concrete, epoxy coated surfaces, painted or sealed floors.
Moving Type
Swivel for turning.
Top Styles
Kits come with either Swivel Padded Tops

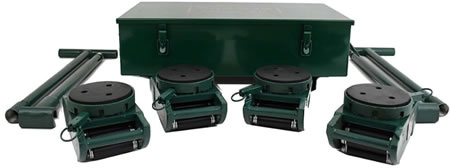

All Kits include 4 Rollers, 2 Handles and a Steel Case Kit Box KB-D1:
16″ (406mm) x 12.375″ (314) x 4.44″ (113mm)
PRICING FOR NYTON SERIES KIT/SET
| Model No. | Kit/Set Capacity (tons) | Kit/Set Includes | Weight (lbs.) | Price |
| KITS | ||||
| KNRS-2-4S | 2 | (4) N.5-SP Rollers, (2) 3-KH Handles, Case | 47 | $1,594.00 |
| KNRS-4-4S | 4 | (4) N1-SP Rollers, (2) 8-KH Handles, Case | 69 | $1,929.00 |
| KNRS-8-SLP | 8 | (2) N2-SLP Rollers, (2) KDH48F Kit Size Handles, Case | 179 | $2,948.00 |
| KNRS-12-SLP | 12 | (4) N3-SLP Rollers, (2) KDH48F Kit Size Handles, Case | 179 | $3,073.00 |
| KNRS-24-SLP | 24 | (4) N6-SLP Rollers, (2) KDH48F Kit Size Handles, Case | 203 | $3,709.00 |
| SET | ||||
| NRS-40-SLP | 40 | (4) N10-SLP Rollers, (2) H60F 60" Handles | 458 | $6,194.00 |
All Kits include - Steel Case Kit Box KB-D2:27.75" x 14.75" x 9.63"

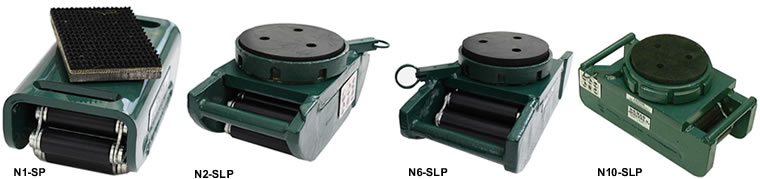

NYTON INDIVIDUAL ROLLERS
The Nyton series addresses the need for heavy moving capabilities on delicate floor surfaces such as new concrete, epoxy coated surfaces, painted or sealed floors, and some properly supported tile and terrazzo floors. Special care must be taken to ensure a clean rolling surface as debris may damage the roll material.
Protects Flooring
Non-marking high impact synthetic nylon rolls are used instead of steel for added protection on delicate floor surfaces.
Top Styles
Choose Swivel or Swivel Locking for easy turning. All Tops feature built-in pads, providing a non-slip surface able to compress over uneven surfaces for further floor surface protection. This helps ensure that the entire chain footprint contacts the floor.
PRICING FOR NYTON SERIES INDIVIDUAL ROLLER
| Model No. | Capacity (Tons) |
Length | Width | Height | Weight | Contact | Price | ||||
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (lb) | (kg) | ||||
| N.5-SP | 0.5 | 6 1/2 | 165 | 3 5/8 | 92 | 3 7/16 | 87 | 7 | 3 | 5 | $353.16 |
| N1-SP | 1 | 6 1/2 | 165 | 4 1/8 | 105 | 3 15/16 | 100 | 12 | 5 | 4 | $440.64 |
| N2-SLP | 2 | 10 1/2 | 267 | 5 3/4 | 146 | 5 | 127 | 28 | 13 | 5 | $600.48 |
| N3-SLP | 3 | 10 1/2 | 267 | 5 3/4 | 146 | 5 1/4 | 134 | 29 | 13 | 4 | $617.76 |
| N6-SLP | 6 | 12 3/4 | 324 | 324 | 162 | 5 1/8 | 130 | 36 | 16 | 5 | $765.72 |
| N10-SLP | 10 | 15 | 381 | 8 | 203 | 5 | 202 | 100 | 45 | 5 | $1,460.16 |
*Width dimension of top exceeds roller frame width
PRICING FOR ACCESSORIES FOR USE WITH NYTON SERIES KITS, SETS AND ROLLERS
| Model No. | Fits | Description | Shipping Weight | Price | |
| (lbs) | (kg) | ||||
| 3-KH | Nyton 2 Ton Kits | Kit sized handle for 3-ton deluxe kits | 3 | 1 | $86.40 |
| 8-KH | Nyton 4 Ton Kits | Kit sized handle for 8-ton deluxe its | 6 | 3 | $99.36 |
| H36F | Nyton 3-6 Ton Rollers | 36" steering handle | 9 | 4 | $186.84 |
| H60F | Nyton 40 Ton Kits | 60" steering handle for FT rollers | 25 | 11 | $284.04 |
| KDH48F | Nyton 8-24 Ton Kits | 48" knock-down handle | 11 | 5 | $212.76 |
