LOAD ROLLERS
FOR INDUSTRIAL AND CONTRACTOR HEAVY DUTY MOVING
The ERS Series features a two-piece design with a base roller and serrated side plates to maintain a firm grip on moving loads plus detachable swivel attachments.
Manually situated on the Rollers, these optional attachments enhance maneuverability and add minimal height to the basic roller. It is especially valuable for tasks
requiring a roller with low clearance.
1. Lift the load - Use pry bars,
fork lifts, jacks, or hoists.
2. Set the Rollers - at contact points
or at the corners of the equipment.
3. Move and position the equipment.
ERS SERIES KITS & SETS
Deluxe Kit Capacities: 20 & 50 Tons
Complete Set Capacities: 100-400 Tons
The ERS Kits and Sets features a two-piece design with a base roller for straight-line movement
and a detachable swivel attachment for easy turning, these kits are particularly valuable for tasks
requiring low-clearance rollers, with the swivel locking capabilities enhancing maneuverability.
PRICING FOR ERS SERIES KIT/SET
| Model No. | Capacity (Tons) |
Kit/Set Includes (All Kits Include Steel Cases) | Weight (lbs) | Price | |||
| Kit | Set | Kit/Set | Kit | Set | Kit | Set | |
| KRS-20-ERSD | - | 20 | (4)5-ERS Rollers, (4) T-5-LD Swivel Locking Diamond Attachments, (4)P-1 Preload Pads, (2) KDH48E Knockdown Steering Handles, Case |
201 | - | $3,520.00 | - |
| KRS-50-ERSD | - | 50 | (4)12.5-ERS Rollers, (4) T-12.5-LD Swivel Locking Diamond Attachments, (4) P-1 Preload Pads, (2) KDH48E Knockdown Steering Handles, Case |
249 | - | $4,248.00 | - |
| - | KRS-100-ERSD | 100 | (4)25-ERS Rollers, (4) T-25-LD Swivel Locking Diamond Attachments, (4)P-2 Preload Pads, (2) H48E Steering Handles |
- | 514 | - | $7,285.00 |
| - | KRS-260-ERSD | 260 | (4) 65-ERS Rollers, (4) T-65-LD Swivel Locking Diamond Attachments, (4) P-2 Preload Pads, (2) H60E Steering Handles |
- | 870 | - | $9,734.00 |
| - | KRS-400-ERSD | 400 | (4) 100-ERS Rollers, (4) T-100-LD Swivel Locking Diamond Attachments, (4) P-2 Preload Pads, (2) H60E Steering Handles |
- | 906 | - | $10,116.00 |

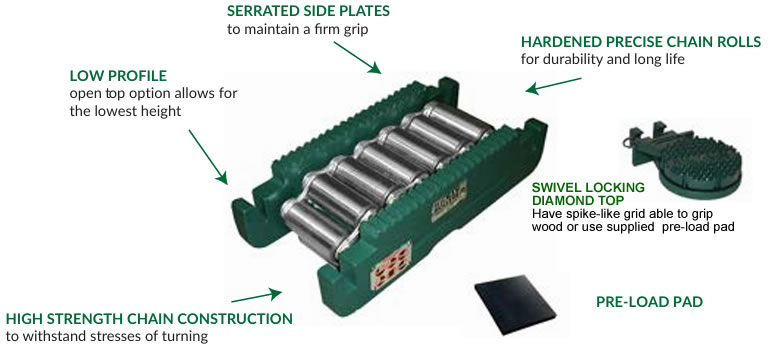

ERS ADVANTAGES
PRICING FOR BASIC ERS ROLLERS
| Model No. |
Capacity (Tons) |
Length | Width | Height | Weight | Contact Rolls | Price | ||||
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (lb) | (kg) | ||||
| 5-ERS | 5 | 8-5/8 | 219 | 5-5/16 | 135 | 2-3/4 | 70 | 20 | 9 | 5 | $507.00 |
| 12.5-ERS | 12.5 | 10-3/8 | 264 | 5-5/8 | 143 | 3-3/8 | 86 | 31 | 14 | 5 | $664.00 |
| 25-ERS | 25 | 5-3/4 | 400 | 7-1/4 | 184 | 4-3/4 | 121 | 79 | 36 | 5 | $1,391.00 |
| 65-ERS | 65 | 23 | 584 | 7-3/8 | 187 | 5-5/8 | 143 | 156 | 71 | 7 | $1,849.00 |
| 100-ERS | 100 | 23 | 584 | 7-7/8 | 200 | 5-5/8 | 143 | 164 | 75 | 7 | $1,995.00 |
PRICING FOR ERS SWIVEL ATTACHMENTS
| Model No. |
Capacity |
Height | Attachment Width | Length | Weight |
Price | ||||
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (lb) | (kg) | |||
| T-5-LD | 5 | 4-7/16 | 113 | 5-7/8 | 149 | 10-3/4 | 273 | 13 | 6 | $287.00 |
| T-12.5-LD | 12.5 | 5-1/16 | 129 | 5-7/8 | 149 | 12-1/2 | 318 | 14 | 6 | $323.00 |
| T-25-LD | 25 | 7-1/16 | 179 | 8 | 203 | 18-19/32 | 472 | 42 | 19 | $730.00 |
| T-65-LD | 65 | 7-5/16 | 202 | 8-3/8 | 213 | 25-3/8 | 645 | 47 | 21 | $806.00 |
| T-100-LD | 100 | 7-5/16 | 202 | 8-3/8 | 213 | 25-3/8 | 645 | 47 | 21 | $879.00 |
RS STEERING HANDLES WITH SAFETY GRIPS
