STEEL STORAGE SHELTERS
FROM 18' TO 30' WIDE
CLASSIC SERIES

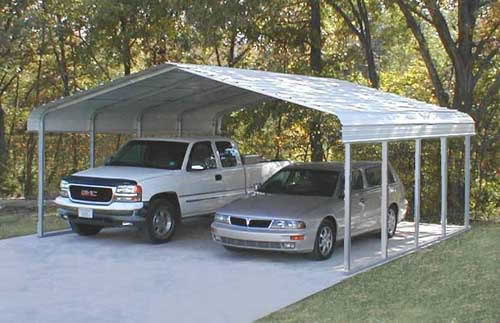

steel storage shelters for 2 vehicles

The carport package provides an
economical canopy-type shelter
for smoking shelters, autos, boats,
RV's and other outdoor equipment
the consumer needs to store under
cover and out of direct exposure
to the elements. And, the consumer
can select their canopy color from
nine available colors. The following
summarizes features of our original
standard Classic Series carports
and shelters.
Shown Standard
For Carport Assembly Instructions Click Here
FEATURES:
 steel storage shelters

• Features horizontal roof panels with a "rounded" look
at the eaves.
• Primary framing utilizes 2" x 3" heavy-gauge, galvanized
and polymer-coated steel tubing with increased rust resistance. 2" x 2" steel tubing is used in the interior truss
bracing required for some 18' W and 20' W carports,
and all 24' W and 30' W units.
• Minimum frame length begins at 18' and, with 4.5' on-
center truss spacing, can be extended in 4.5' increments.
Roof coverage length will be 2' longer (1' on each end)
than the frame length.
• Standard carport canopy package includes 29-gauge
premium painted steel sheet metal panels and painted
self-drilling screws for horizontal sheet metal appli-
cation. White vinyl "push-on" edge trim is also
included.
• Standard carport kits provide at least 12"-15" of
coverage down the eave side of the frame and
varies depending on the width of the carport.

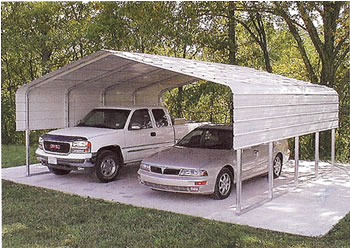

Shown with one extra row of optional sidewall
panels on each side.
(Prices listed below standard price tables.)
Additional Side Sheet Metal Panels -
A customer may request additional side sheet metal
panels for increased side canopy coverage or to
fully cover both sides. A description of any addi-
tional sheet metal panels must be indicated in the
order, such as "additional Sheet Metal Panels -
2 Extra Rows Each Side".
For Carport Assembly Instructions Click Here
White is the standard package sheet metal color, but
eight (8) additional sheet metal colors are available
through Special Orders and must be clearly indicated
at the time of order placement.
STANDARD PACKAGE CONTENTS
• All framing components and self-drilling screws
required to construct the basic frame.
• Ground stake anchors necessary to anchor the
structure to level ground (Concrete anchors not
included).
• Corrugated 29-gauge sheet metal and gasketed self-
drilling screws needed for installation of horizontal or
vertical roofing panels.
• Butyl caulk tape and trim package.
• Comprehensive step-by-step assembly instructions.
Carport frame and sheet metal packages are bundled
together on 1-3 pallets depending on the size of the
structure. A single pallet is typically 120"W x 40"D x
16"-24"H and weighs approximately 1,000 lbs. or less.
Multiple pallets are labeled accordingly.
Complete carport pallets - including both frame com-
ponents and sheet metal panels - are shipped freight
prepaid.
steel storage shelter for recreations boat storage

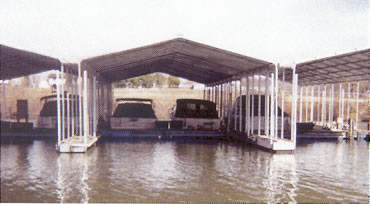

For Boats

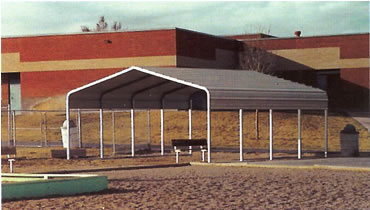

For Recreation Areas

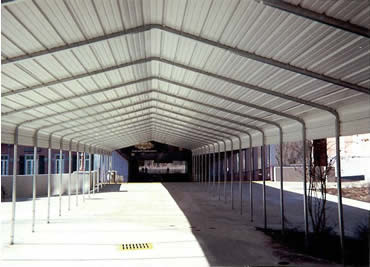

Side View of Covered Walkway
Center View of Covered Walkway
ENGINEERED EASY...WITH STEEL
smooth mandrel bend • "Slip-Fit" design dramatically simplifies the installation process.
This patented "swaged" manufacturing technique combines ease
of assembly with the strength and durability of steel. Our use of a
mandrel bending system results in a cleaner look and a stronger
bend transition.		 slip fit assembly
• We use heavy-duty 2" x 3" rectangular and 2" x 2" square gal-
vanized steel tubing with guaranteed minimum yield strength of
50,000 PSI. Triple layer protection provides a smooth, shiny
solution that resists rust longer than any pre-galvanized or elec-
troplated tubing product - in addition to termite and rot resistance.

ENGINEERING

• Roof pitch is 3:12 for all structures.
• Ground Snow & Wind Loads.
Ground Snow 30 - 70 PSF*
Wind 70 - 120 MPH*
• Consult your local building permit department for local loading
requirements.
• Stamped engineering drawings are available for an additional charge.
COLOR CHART
GO AHEAD...BUILD IT YOURSELF! IT'S EASY
inall base rails assemble trusses attach purlins girts and roofing
Carport Assembly Instructions Typical detail drawings shown
below price tables
PRICES
Complete Package Includes: Frame, Framing Screws, Anchors, Sheet Metal, Sheet Metal Screws and Trim.
Model No. W' x L' x H' Truss
System		 Weight
(lbs)		 IBC Snow Load
PSF @90 MPH		 IBC Snow Load
PSF @110 MPH		 IBC Snow Load
PSF @120 MPH		 Price
CM018200070-29 18' x 20' x 7' None 941 28 25 21
$6,802
CM018245070-29 18' x 24.5' x 7' None 1213 28 25 21
$8,266
CM018290070-29 18' x 29' x 7' None 1388 28 25 21
$9,338
CM018335070-29 18' x 33.5' x 7' None 1563 28 25 21
$10,777
CM018380070-29 18' x 38' x 7' None 1738 28 25 21
$11,926
CM018425070-29 18' x 42.5' x 7' None 1913 28 25 21
$12,984
CM018470070-29 18' x 47' x 7' None 2178 28 25 21
$14,420
CM018515070-29 18' x 51.5' x 7' None 2268 28 25 21
$15,654
CM018560070-29 18' x 56' x 7' None 2358 28 25 21
$16,910
CM018605070-29 18' x 60.5' x 7' None 2448 28 25 21
$18,162
CM018200080-29 18' x 20' x 8' None 993 27 24 20
$6,955
CM018245080-29 18' x 24.5' x 8' None 1258 27 24 20
$8,446
CM018290080-29 18' x 29' x 8' None 1433 27 24 20
$9,546
CM018335080-29 18' x 33.5' x 8' None 1608 27 24 20
$11,013
CM018380080-29 18' x 38' x 8' None 1783 27 24 20
$12,186
CM018425080-29 18' x 42.5' x 8' None 1958 27 24 20
$13,292
CM018470080-29 18' x 47' x 8' None 2223 27 24 20
$14,756
CM018515080-29 18' x 51.5' x 8' None 2393 27 24 20
$16,019
CM018560080-29 18' x 56' x 8' None 2563 27 24 20
$17,666
CM018605080-29 18' x 60.5' x 8' None 2733 27 24 20
$18,946
CM018200100-29 18' x 20' x 10' None 1079 25 22 18
$7,642
CM018245100-29 18' x 24.5' x 10' None 1339 25 22 18
$9,019
CM018290100-29 18' x 29' x 10' None 1509 25 22 18
$10,420
CM018335100-29 18' x 33.5' x 10' None 1679 25 22 18
$11,776
CM018380100-29 18' x 38' x 10' None 1849 25 22 18
$13,070
CM018425100-29 18' x 42.5' x 10' None 2109 25 22 18
$14,534
CM018470100-29 18' x 47' x 10' None 2279 25 22 18
$15,804
CM018515100-29 18' x 51.5' x 10' None 2449 25 22 18
$17,188
CM018560100-29 18' x 56' x 10' None 2619 25 22 18
$18,932
CM018605100-29 18' x 60.5' x 10' None 2789 25 22 18
$20,306
CM018200120-29 18' x 20' x 12' None 1175 21 18 14
$7,874
CM018245120-29 18' x 24.5' x 12' None 1435 21 18 14
$9,296
CM018290120-29 18' x 29' x 12' None 1605 21 18 14
$10,743
CM018335120-29 18' x 33.5' x 12' None 1775 21 18 14
$12,148
CM018380120-29 18' x 38' x 12' None 1945 21 18 14
$13,487
CM018425120-29 18' x 42.5' x 12' None 2115 21 18 14
$14,999
CM018470120-29 18' x 47' x 12' None 2375 21 18 14
$16,314
CM018515120-29 18' x 51.5' x 12' None 2545 21 18 14
$18,110
CM018560120-29 18' x 56' x 12' None 2715 21 18 14
$19,533
CM018605120-29 18' x 60.5' x 12' None 2885 21 18 14
$20,958
CM218200070-29 18' x 20' x 7' Type 2 1082 28 25 21
$7,857
CM218245070-29 18' x 24.5' x 7' Type 2 1394 28 25 21
$9,425
CM218290070-29 18' x 29' x 7' Type 2 1595 28 25 21
$10,992
CM218335070-29 18' x 33.5' x 7' Type 2 1797 28 25 21
$12,515
CM218380070-29 18' x 38' x 7' Type 2 1998 28 25 21
$13,951
CM218425070-29 18' x 42.5' x 7' Type 2 2199 28 25 21
$15,564
CM218470070-29 18' x 47' x 7' Type 2 2503 28 25 21
$17,396
CM218515070-29 18' x 51.5' x 7' Type 2 2607 28 25 21
$18,919
CM218560070-29 18' x 56' x 7' Type 2 2710 28 25 21
$20,462
CM218605070-29 18' x 60.5' x 7' Type 2 2814 28 25 21
$22,006
CM218200080-29 18' x 20' x 8' Type 2 1141 27 27 23
$8,009
CM218245080-29 18' x 24.5' x 8' Type 2 1446 27 27 23
$9,605
CM218290080-29 18' x 29' x 8' Type 2 1647 27 27 23
$11,201
CM218335080-29 18' x 33.5' x 8' Type 2 1848 27 27 23
$12,751
CM218380080-29 18' x 38' x 8' Type 2 2049 27 27 23
$14,479
CM218425080-29 18' x 42.5' x 8' Type 2 2251 27 27 23
$15,873
CM218470080-29 18' x 47' x 8' Type 2 2555 27 27 23
$17,729
CM218515080-29 18' x 51.5' x 8' Type 2 2751 27 27 23
$19,283
CM218560080-29 18' x 56' x 8' Type 2 2946 27 27 23
$20,851
CM218605080-29 18' x 60.5' x 8' Type 2 3141 27 27 23
$22,727
CM218200100-29 18' x 20' x 10' Type 2 1240 25 25 21
$8,512
CM218245100-29 18' x 24.5' x 10' Type 2 1539 25 25 21
$10,382
CM218290100-29 18' x 29' x 10' Type 2 1734 25 25 21
$11,867
CM218335100-29 18' x 33.5' x 10' Type 2 1930 25 25 21
$13,514
CM218380100-29 18' x 38' x 10' Type 2 2125 25 25 21
$15,363
CM218425100-29 18' x 42.5' x 10' Type 2 2424 25 25 21
$16,855
CM218470100-29 18' x 47' x 10' Type 2 2620 25 25 21
$18,780
CM218515100-29 18' x 51.5' x 10' Type 2 2815 25 25 21
$20,452
CM218560100-29 18' x 56' x 10' Type 2 3010 25 25 21
$22,422
CM218605100-29 18' x 60.5' x 10' Type 2 3206 25 25 21
$24,090
CM218200120-29 18' x 20' x 12' Type 2 1351 23 23 19
$8,745
CM218245120-29 18' x 24.5' x 12' Type 2 1649 23 23 19
$10,659
CM218290120-29 18' x 29' x 12' Type 2 1845 23 23 19
$12,193
CM218335120-29 18' x 33.5' x 12' Type 2 2040 23 23 19
$14,149
CM218380120-29 18' x 38' x 12' Type 2 2236 23 23 19
$15,779
CM218425120-29 18' x 42.5' x 12' Type 2 2431 23 23 19
$17,316
CM218470120-29 18' x 47' x 12' Type 2 2730 23 23 19
$19,290
CM218515120-29 18' x 51.5' x 12' Type 2 2925 23 23 19
$21,007
CM218560120-29 18' x 56' x 12' Type 2 3121 23 23 19
$23,026
CM218605120-29 18' x 60.5' x 12' Type 2 3316 23 23 19
$24,739
CM020200070-29 20' x 20' x 7' None 998 28 25 21
$7,187
CM020245070-29 20' x 24.5' x 7' None 1188 28 25 21
$8,658
CM020290070-29 20' x 29' x 7' None 1468 28 25 21
$9,945
CM020335070-29 20' x 33.5' x 7' None 1658 28 25 21
$11,409
CM020380070-29 20' x 38' x 7' None 1848 28 25 21
$12,696
CM020425070-29 20' x 42.5' x 7' None 2128 28 25 21
$14,045
CM020470070-29 20' x 47' x 7' None 2318 28 25 21
$15,363
CM020515070-29 20' x 51.5' x 7' None 2508 28 25 21
$16,986
CM020560070-29 20' x 56' x 7' None 2698 28 25 21
$18,273
CM020605070-29 20' x 60.5' x 7' None 2888 28 25 21
$19,557
CM020200080-29 20' x 20' x 8' None 1046 25 22 18
$7,524
CM020245080-29 20' x 24.5' x 8' None 1326 25 22 18
$8,838
CM020290080-29 20' x 29' x 8' None 1516 25 22 18
$10,354
CM020335080-29 20' x 33.5' x 8' None 1706 25 22 18
$11,645
CM020380080-29 20' x 38' x 8' None 1896 25 22 18
$12,956
CM020425080-29 20' x 42.5' x 8' None 2176 25 22 18
$14,354
CM020470080-29 20' x 47' x 8' None 2366 25 22 18
$15,696
CM020515080-29 20' x 51.5' x 8' None 2556 25 22 18
$17,347
CM020560080-29 20' x 56' x 8' None 2746 25 22 18
$18,662
CM020605080-29 20' x 60.5' x 8' None 2936 25 22 18
$19,973
CM020200100-29 20' x 20' x 10' None 1142 17 14 10
$8,027
CM020245100-29 20' x 24.5' x 10' None 1422 17 14 10
$9,411
CM020290100-29 20' x 29' x 10' None 1612 17 14 10
$11,024
CM020335100-29 20' x 33.5' x 10' None 1802 17 14 10
$12,408
CM020380100-29 20' x 38' x 10' None 1992 17 14 10
$13,840
CM020425100-29 20' x 42.5' x 10' None 2272 17 14 10
$15,332
CM020470100-29 20' x 47' x 10' None 2462 17 14 10
$16,747
CM020515100-29 20' x 51.5' x 10' None 2652 17 14 10
$18,520
CM020560100-29 20' x 56' x 10' None 2842 17 14 10
$19,928
CM020605100-29 20' x 60.5' x 10' None 3122 17 14 10
$21,642
CM020200120-29 20' x 20' x 12' None 1238 17 14 10
$8,259
CM020245120-29 20' x 24.5' x 12' None 1518 17 14 10
$9,893
CM020290120-29 20' x 29' x 12' None 1780 17 14 10
$11,346
CM020335120-29 20' x 33.5' x 12' None 1898 17 14 10
$12,779
CM020380120-29 20' x 38' x 12' None 2178 17 14 10
$14,524
CM020425120-29 20' x 42.5' x 12' None 2368 17 14 10
$15,797
CM020470120-29 20' x 47' x 12' None 2558 17 14 10
$17,625
CM020515120-29 20' x 51.5' x 12' None 2748 17 14 10
$19,075
CM020560120-29 20' x 56' x 12' None 2938 17 14 10
$20,532
CM020605120-29 20' x 60.5' x 12' None 3218 17 14 10
$22,290
CM220200070-29 20' x 20' x 7' Type 2 1134 36 33 29
$8,294
CM220245070-29 20' x 24.5' x 7' Type 2 1370 36 33 29
$9,889
CM220290070-29 20' x 29' x 7' Type 2 1695 36 33 29
$11,690
CM220335070-29 20' x 33.5' x 7' Type 2 1930 36 33 29
$13,258
CM220380070-29 20' x 38' x 7' Type 2 2166 36 33 29
$15,120
CM220425070-29 20' x 42.5' x 7' Type 2 2491 36 33 29
$16,511
CM220470070-29 20' x 47' x 7' Type 2 2727 36 33 29
$18,506
CM220515070-29 20' x 51.5' x 7' Type 2 2962 36 33 29
$20,070
CM220560070-29 20' x 56' x 7' Type 2 3197 36 33 29
$21,971
CM220605070-29 20' x 60.5' x 7' Type 2 3433 36 33 29
$23,563
CM220200080-29 20' x 20' x 8' Type 2 1182 36 33 29
$8,450
CM220245080-29 20' x 24.5' x 8' Type 2 1508 36 33 29
$10,274
CM220290080-29 20' x 29' x 8' Type 2 1743 36 33 29
$11,898
CM220335080-29 20' x 33.5' x 8' Type 2 1978 36 33 29
$13,493
CM220380080-29 20' x 38' x 8' Type 2 2214 36 33 29
$15,380
CM220425080-29 20' x 42.5' x 8' Type 2 2539 36 33 29
$17,188
CM220470080-29 20' x 47' x 8' Type 2 2775 36 33 29
$18,839
CM220515080-29 20' x 51.5' x 8' Type 2 3010 36 33 29
$20,740
CM220560080-29 20' x 56' x 8' Type 2 3245 36 33 29
$22,360
CM220605080-29 20' x 60.5' x 8' Type 2 3481 36 33 29
$23,979
CM220200100-29 20' x 20' x 10' Type 2 1278 37 34 30
$8,953
CM220245100-29 20' x 24.5' x 10' Type 2 1604 37 34 30
$10,847
CM220290100-29 20' x 29' x 10' Type 2 1839 37 34 30
$12,564
CM220335100-29 20' x 33.5' x 10' Type 2 2074 37 34 30
$14,524
CM220380100-29 20' x 38' x 10' Type 2 2310 37 34 30
$16,265
CM220425100-29 20' x 42.5' x 10' Type 2 2635 37 34 30
$18,166
CM220470100-29 20' x 47' x 10' Type 2 2871 37 34 30
$19,890
CM220515100-29 20' x 51.5' x 10' Type 2 3106 37 34 30
$21,909
CM220560100-29 20' x 56' x 10' Type 2 3341 37 34 30
$23,626
CM220605100-29 20' x 60.5' x 10' Type 2 3657 37 34 30
$24,443
CM220200120-29 20' x 20' x 12' Type 2 1374 36 33 29
$9,185
CM220245120-29 20' x 24.5' x 12' Type 2 1700 36 33 29
$11,128
CM220290120-29 20' x 29' x 12' Type 2 2007 36 33 29
$13,154
CM220335120-29 20' x 33.5' x 12' Type 2 2170 36 33 29
$14,895
CM220380120-29 20' x 38' x 12' Type 2 2496 36 33 29
$16,681
CM220425120-29 20' x 42.5' x 12' Type 2 2731 36 33 29
$18,631
CM220470120-29 20' x 47' x 12' Type 2 2967 36 33 29
$20,400
CM220515120-29 20' x 51.5' x 12' Type 2 2302 36 33 29
$21,791
CM220560120-29 20' x 56' x 12' Type 2 3437 36 33 29
$24,229
CM220605120-29 20' x 60.5' x 12' Type 2 3763 36 33 29
$26,092
CM224200070-29 24' x 20' x 7' Type 2 1195 30 27 23
$8,984
CM224245070-29 24' x 24.5' x 7' Type 2 1461 30 27 23
$10,795
CM224290070-29 24' x 29' x 7' Type 2 1817 30 27 23
$12,689
CM224335070-29 24' x 33.5' x 7' Type 2 2083 30 27 23
$14,735
CM224380070-29 24' x 38' x 7' Type 2 2439 30 27 23
$16,425
CM224425070-29 24' x 42.5' x 7' Type 2 2705 30 27 23
$18,398
CM224470070-29 24' x 47' x 7' Type 2 2971 30 27 23
$20,108
CM224515070-29 24' x 51.5' x 7' Type 2 3327 30 27 23
$22,203
CM224560070-29 24' x 56' x 7' Type 2 3593 30 27 23
$24,090
CM224605070-29 24' x 60.5' x 7' Type 2 3859 30 27 23
$25,873
CM224200080-29 24' x 20' x 8' Type 2 1243 30 27 23
$9,137
CM224245080-29 24' x 24.5' x 8' Type 2 1509 30 27 23
$11,180
CM224290080-29 24' x 29' x 8' Type 2 1865 30 27 23
$12,897
CM224335080-29 24' x 33.5' x 8' Type 2 2131 30 27 23
$14,971
CM224380080-29 24' x 38' x 8' Type 2 2487 30 27 23
$16,688
CM224425080-29 24' x 42.5' x 8' Type 2 2753 30 27 23
$18,704
CM224470080-29 24' x 47' x 8' Type 2 3109 30 27 23
$20,750
CM224515080-29 24' x 51.5' x 8' Type 2 3375 30 27 23
$22,568
CM224560080-29 24' x 56' x 8' Type 2 3641 30 27 23
$24,479
CM224605080-29 24' x 60.5' x 8' Type 2 3907 30 27 23
$26,290
CM224200100-29 24' x 20' x 10' Type 2 1401 29 26 22
$9,640
CM224245100-29 24' x 24.5' x 10' Type 2 1757 29 26 22
$11,752
CM224290100-29 24' x 29' x 10' Type 2 2293 29 26 22
$13,830
CM224335100-29 24' x 33.5' x 10' Type 2 2379 29 26 22
$15,734
CM224380100-29 24' x 38' x 10' Type 2 2645 29 26 22
$17,940
CM224425100-29 24' x 42.5' x 10' Type 2 2911 29 26 22
$19,685
CM224470100-29 24' x 47' x 10' Type 2 3177 29 26 22
$21,801
CM224515100-29 24' x 51.5' x 10' Type 2 3533 29 26 22
$23,837
CM224560100-29 24' x 56' x 10' Type 2 3799 29 26 22
$25,745
CM224605100-29 24' x 60.5' x 10' Type 2 4065 29 26 22
$27,753
CM224200120-29 24' x 20' x 12' Type 2 1507 28 25 21
$10,077
CM224245120-29 24' x 24.5' x 12' Type 2 1863 28 25 21
$12,030
CM224290120-29 24' x 29' x 12' Type 2 2129 28 25 21
$14,156
CM224335120-29 24' x 33.5' x 12' Type 2 2485 28 25 21
$16,105
CM224380120-29 24' x 38' x 12' Type 2 2751 28 25 21
$18,357
CM224425120-29 24' x 42.5' x 12' Type 2 3017 28 25 21
$20,455
CM224470120-29 24' x 47' x 12' Type 2 3373 28 25 21
$22,311
CM224515120-29 24' x 51.5' x 12' Type 2 3639 28 25 21
$24,396
CM224560120-29 24' x 56' x 12' Type 2 3905 28 25 21
$26,349
CM224605120-29 24' x 60.5' x 12' Type 2 4171 28 26 21
$28,402
CM324200070-29 24' x 20' x 7' Type 3 1250 43 40 36
$9,667
CM324245070-29 24' x 24.5' x 7' Type 3 1534 43 40 36
$11,912
CM324290070-29 24' x 29' x 7' Type 3 1908 43 40 36
$13,830
CM324335070-29 24' x 33.5' x 7' Type 3 2192 43 40 36
$16,102
CM324380070-29 24' x 38' x 7' Type 3 2566 43 40 36
$18,391
CM324425070-29 24' x 42.5' x 7' Type 3 2851 43 40 36
$20,223
CM324470070-29 24' x 47' x 7' Type 3 3135 43 40 36
$22,467
CM324515070-29 24' x 51.5' x 7' Type 3 3509 43 40 36
$24,587
CM324560070-29 24' x 56' x 7' Type 3 3793 43 40 36
$26,598
CM324605070-29 24' x 60.5' x 7' Type 3 4077 43 40 36
$28,714
CM324200080-29 24' x 20' x 8' Type 3 1298 42 39 35
$9,824
CM324245080-29 24' x 24.5' x 8' Type 3 1582 42 39 35
$12,092
CM324290080-29 24' x 29' x 8' Type 3 1956 42 39 35
$14,038
CM324335080-29 24' x 33.5' x 8' Type 3 2240 42 39 35
$16,338
CM324380080-29 24' x 38' x 8' Type 3 2614 42 39 35
$18,651
CM324425080-29 24' x 42.5' x 8' Type 3 2899 42 39 35
$20,528
CM324470080-29 24' x 47' x 8' Type 3 3273 42 39 35
$22,804
CM324515080-29 24' x 51.5' x 8' Type 3 3557 42 39 35
$24,951
CM324560080-29 24' x 56' x 8' Type 3 3841 42 39 35
$26,990
CM324605080-29 24' x 60.5' x 8' Type 3 4125 42 39 35
$29,131
CM324200100-29 24' x 20' x 10' Type 3 1456 41 38 34
$10,326
CM324245100-29 24' x 24.5' x 10' Type 3 1830 41 38 34
$12,664
CM324290100-29 24' x 29' x 10' Type 3 2384 41 38 34
$14,971
CM324335100-29 24' x 33.5' x 10' Type 3 2488 41 38 34
$17,101
CM324380100-29 24' x 38' x 10' Type 3 2772 41 38 34
$19,536
CM324425100-29 24' x 42.5' x 10' Type 3 3057 41 38 34
$21,815
CM324470100-29 24' x 47' x 10' Type 3 3341 41 38 34
$23,851
CM324515100-29 24' x 51.5' x 10' Type 3 3715 41 38 34
$26,120
CM324560100-29 24' x 56' x 10' Type 3 3999 41 38 34
$28,253
CM324605100-29 24' x 60.5' x 10' Type 3 4283 41 38 34
$30,490
CM324200120-29 24' x 20' x 12' Type 3 1562 39 36 32
$10,760
CM324245120-29 24' x 24.5' x 12' Type 3 1936 39 36 32
$12,942
CM324290120-29 24' x 29' x 12' Type 3 2220 39 36 32
$15,297
CM324335120-29 24' x 33.5' x 12' Type 3 2594 39 36 32
$17,840
CM324380120-29 24' x 38' x 12' Type 3 2878 39 36 32
$19,952
CM324425120-29 24' x 42.5' x 12' Type 3 3163 39 36 32
$22,280
CM324470120-29 24' x 47' x 12' Type 3 3537 39 36 32
$24,465
CM324515120-29 24' x 51.5' x 12' Type 3 3821 39 36 32
$26,678
CM324560120-29 24' x 56' x 12' Type 3 4105 39 36 32
$28,961
CM324605120-29 24' x 60.5' x 12' Type 3 4389 39 36 32
$31,142
CM230200070-29 30' x 20' x 7' Type 2 1466 27 24 20
$10,049
CM230245070-29 30' x 24.5' x 7' Type 2 1866 27 24 20
$12,248
CM230290070-29 30' x 29' x 7' Type 2 2176 27 24 20
$14,492
CM230335070-29 30' x 33.5' x 7' Type 2 2486 27 24 20
$16,522
CM230380070-29 30' x 38' x 7' Type 2 2886 27 24 20
$18,821
CM230425070-29 30' x 42.5' x 7' Type 2 3196 27 24 20
$20,979
CM230470070-29 30' x 47' x 7' Type 2 3596 27 24 20
$23,091
CM230515070-29 30' x 51.5' x 7' Type 2 3906 27 24 20
$25,058
CM230560070-29 30' x 56' x 7' Type 2 4306 27 24 20
$27,188
CM230605070-29 30' x 60.5' x 7' Type 2 4616 27 24 20
$29,321
CM230200080-29 30' x 20' x 8' Type 2 1514 26 23 19
$10,410
CM230245080-29 30' x 24.5' x 8' Type 2 1914 26 23 19
$12,429
CM230290080-29 30' x 29' x 8' Type 2 2224 26 23 19
$14,701
CM230335080-29 30' x 33.5' x 8' Type 2 2534 26 23 19
$17,125
CM230380080-29 30' x 38' x 8' Type 2 2934 26 23 19
$19,085
CM230425080-29 30' x 42.5' x 8' Type 2 3244 26 23 19
$21,284
CM230470080-29 30' x 47' x 8' Type 2 3644 26 23 19
$23,428
CM230515080-29 30' x 51.5' x 8' Type 2 3954 26 23 19
$25,419
CM230560080-29 30' x 56' x 8' Type 2 4354 26 23 19
$27,580
CM230605080-29 30' x 60.5' x 8' Type 2 4664 26 23 19
$29,738
CM230200100-29 30' x 20' x 10' Type 2 1616 23 20 16
$10,909
CM230245100-29 30' x 24.5' x 10' Type 2 2016 23 20 16
$13,265
CM230290100-29 30' x 29' x 10' Type 2 2326 23 20 16
$15,370
CM230335100-29 30' x 33.5' x 10' Type 2 2636 23 20 16
$17,888
CM230380100-29 30' x 38' x 10' Type 2 3036 23 20 16
$20,275
CM230425100-29 30' x 42.5' x 10' Type 2 3346 23 20 16
$22,266
CM230470100-29 30' x 47' x 10' Type 2 3746 23 20 16
$24,476
CM230515100-29 30' x 51.5' x 10' Type 2 4056 23 20 16
$26,692
CM230560100-29 30' x 56' x 10' Type 2 4456 23 20 16
$28,843
CM230605100-29 30' x 60.5' x 10' Type 2 4766 23 20 16
$31,097
CM230200120-29 30' x 20' x 12' Type 2 1736 20 17 13
$11,142
CM230245120-29 30' x 24.5' x 12' Type 2 2136 20 17 13
$13,542
CM230290120-29 30' x 29' x 12' Type 2 2446 20 17 13
$15,693
CM230335120-29 30' x 33.5' x 12' Type 2 2756 20 17 13
$18,260
CM230380120-29 30' x 38' x 12' Type 2 3156 20 17 13
$20,691
CM230425120-29 30' x 42.5' x 12' Type 2 3466 20 17 13
$22,727
CM230470120-29 30' x 47' x 12' Type 2 3866 20 17 13
$24,985
CM230515120-29 30' x 51.5' x 12' Type 2 4176 20 17 13
$26,730
CM230560120-29 30' x 56' x 12' Type 2 4576 20 17 13
$29,550
CM230605120-29 30' x 60.5' x 12' Type 2 4886 20 17 13
$31,749
CM330200070-29 30' x 20' x 7' Type 3 1523 31 28 24
$10,920
CM330245070-29 30' x 24.5' x 7' Type 3 1942 31 28 24
$13,136
CM330290070-29 30' x 29' x 7' Type 3 2271 31 28 24
$15,602
CM330335070-29 30' x 33.5' x 7' Type 3 2600 31 28 24
$18,221
CM330380070-29 30' x 38' x 7' Type 3 3019 31 28 24
$20,681
CM330425070-29 30' x 42.5' x 7' Type 3 3348 31 28 24
$22,755
CM330470070-29 30' x 47' x 7' Type 3 3767 31 28 24
$25,089
CM330515070-29 30' x 51.5' x 7' Type 3 4096 31 28 24
$27,379
CM330560070-29 30' x 56' x 7' Type 3 4515 31 28 24
$29,734
CM330605070-29 30' x 60.5' x 7' Type 3 4844 31 28 24
$31,985
CM330200080-29 30' x 20' x 8' Type 3 1571 29 26 22
$11,076
CM330245080-29 30' x 24.5' x 8' Type 3 1990 29 26 22
$13,317
CM330290080-29 30' x 29' x 8' Type 3 2319 29 26 22
$15,811
CM330335080-29 30' x 33.5' x 8' Type 3 2648 29 26 22
$18,457
CM330380080-29 30' x 38' x 8' Type 3 3067 29 26 22
$20,944
CM330425080-29 30' x 42.5' x 8' Type 3 3396 29 26 22
$23,060
CM330470080-29 30' x 47' x 8' Type 3 3815 29 26 22
$25,426
CM330515080-29 30' x 51.5' x 8' Type 3 4144 29 26 22
$27,743
CM330560080-29 30' x 56' x 8' Type 3 4563 29 26 22
$30,123
CM330605080-29 30' x 60.5' x 8' Type 3 4892 29 26 22
$32,402
Note: See below for drawing of Type 2 and Type 3 structures.
OPTIONAL SIDEWALL PANELS PRICES - Horizontal Sheet Metal Application
Carport/Shelter Length 1 Extra Row on
Each Side		 2 Extra Row on
Each Side		 3 Extra Row on
Each Side		 4 Extra Row on
Each Side
20' L Carport
$572.30
$1,252.20
$1,810.70
$2,372.60
24.5' L Carport
$766.60
$1,515.80
$2,199.20
$2,945.00
29' L Carport
$922.70
$1,776.00
$2,646.70
$3,517.30
33.5' L Carport
$1,064.90
$2,039.60
$3,035.20
$4,027.20
38' L Carport
$1,203.70
$2,303.30
$3,420.20
$4,537.10
42.5' L Carport
$1,408.30
$2,629.30
$3,871.10
$5,109.50
47' L Carport
$1,550.50
$2,892.90
$4,256.20
$5,619.40
NOTE: Each row provides a 36" vertical side coverage.
steel garage
Optional doors available upon request. You can create your own
garage to your measurements. Contact us for pricing and options.
NO TRUSS
steel storage
TYPE 2
large steel storage
TYPE 3
extra large steel storage
Steel Shelters, Storage Shelters, Boat, Vehicle, Smoking Shelter, Equipment Shelter, Transit Shelter, Covered Walkway,
Covered Sidewalk, ATV, RV, Camper, Outdoor Buildings, Metal Buildings, Garages and Carports from your source for
material handling.
