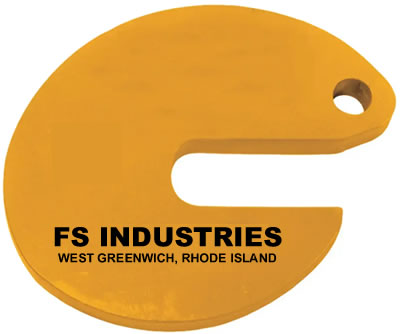

Model PH
PIPE HOOKS

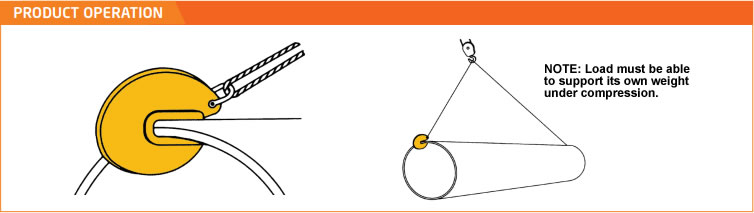

Simplicity personified! Just attach a shackle to the lifting point,
slide the “mouth” over the end of the pipe, and you’re ready
to lift.
PRODUCT FEATURES:
• Designed for lifting and carrying steel or cast iron pipe
• Complies with ASME standards
PRICING AND DIMENSIONS ON MODEL PH PIPE HOOKS
| Model No. Per Pair |
Rated Cap. (tons) Per Pair |
Shackle Pin Dia. (in.) |
Bolt Type Anchor Shackle Cap. (tons) |
Dimensions (in.) | Weight Per Pair (lbs.) |
Price Ea. | |||||
| A | B | C | D | E | F | ||||||
 PH 1 |
2 | 5/8 | 2 | 1.50 | 1.84 | .63 | .69 | 3.75 | 5.24 | 7 | $82.83 |
| PH 2 |
4 | 3/4 | 3.25 | 1.50 | 2.61 | .75 | .81 | 5.69 | 6.76 | 13 | $145.83 |
| PH 4 |
8 | 1 | 6.5 | 1.50 | 3.86 | 1 | 1.06 | 7.75 | 7.79 | 23 | $410.67 |
| PH 5 | 10 | 1-1/8 | 8.5 | 1.50 | 4.06 | 1.25 | 1.19 | 8.15 | 8.93 | 38 | $669.67 |
| PH 7.5 | 15 | 1-3/8 | 12 | 1.50 | 4.06 | 1.75 | 1.44 | 8.15 | 8.93 | 56 | $823.67 |
Custom designed sizes available for larger capacities and other material types
