MODEL LS
TEA CUP LIFTING SLING
5’L lifting sling to be used with Tea Cup Pipe Carriers.
- Drop lifting sling through hole in pipe
- Align and insert Tea Cup Pipe Carrier into lifting sling
- Once set, you are ready to lift
- Choose from six sizes

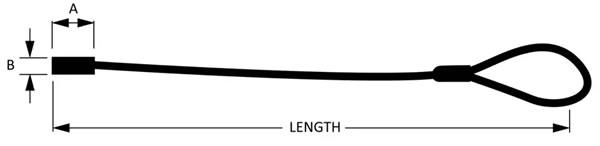

PRICING AND DIMENSIONS
| Model No. | Use With | Capacity (tons) |
Sling Dia. (in.) |
Standard Length* (ft.) |
After Swage (in) | Weight (lbs.) | Price | |
| A | B | |||||||
 LS-3/4 |
PC-3/4 | 4.9 | 3/4 | 5 | 3.25 | 1.55 | 9 | $278.83 |
| LS-7/8 |
6.6 | 7/8 | 5 | 3.86 | 1.80 | 14 | $374.50 | |
| LS-1 |
PC-1 | 8.5 | 1 | 5 | 4.36 | 2.05 | 19 | $473.67 |
| LS-1 1/8 |
10 | 1-1/8 | 5 | 4.81 | 2.30 | 26 | $621.83 | |
| LS-1 1/4 |
13 | 1-1/4 | 5 | 5.42 | 2.56 | 33 | $826.00 | |
| LS-1 1/2 |
PC-1 1/2 | 18 | 1-1/2 | 5 | 6.52 | 3.00 | 52 | $1,333.50 |
*Other sizes available 3' minimum length.
