MODEL MHL
Concrete Manhole Housing Lifter
Safe, efficient, and easy to use.
Fully adjustable legs help you balance the
load quickly

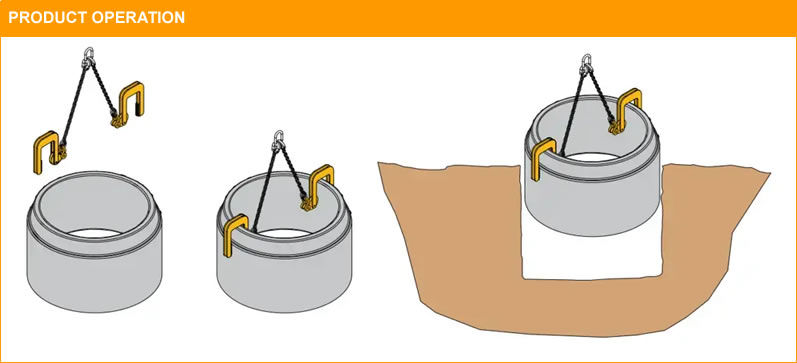

• Handles concrete pipe efficiently without damage to concrete seat
• Legs can be quickly positioned to safely balance the load
• 2- or 3-leg models available
• Handles 4" to 6" concrete wall thickness
• Requires constant tension to maintain positive load contact
• Complies with ASME standards
PRICING AND SPECIFICATIONS
| Model No. | Grip Range Min. - Max. (in.) |
Description | Maximum Dia. (in.) | Capacity (lbs.) | Weight (lbs.) | Price |

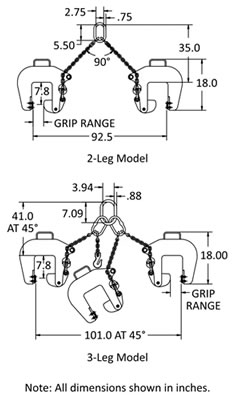

| MHL-5-2/4 | 2 - 4 | 2-Leg Model - Two 42" Legs | 92.5 | 1000 | 126 | $3,531.50 |
 MHL-5-4/6 |
4 - 6 | 131 | $3,634.17 | |||

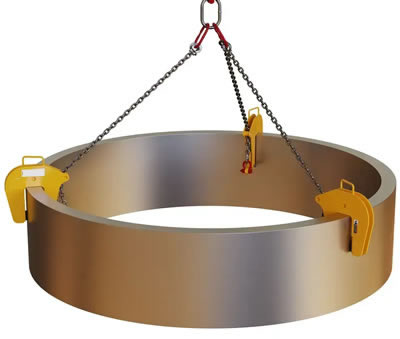

| MHL-7.1/2-2/4 | 2 - 4 | 3-Leg Model - Two 42" Legs - One 72" Leg with Chain Shortener |
101 | 15000 | 176 | $5,731.83 |
| MHL-7.1/2-2/6 |
4 - 6 | 181 | $5,884.67 | |||
| MHL-C-2/4 |

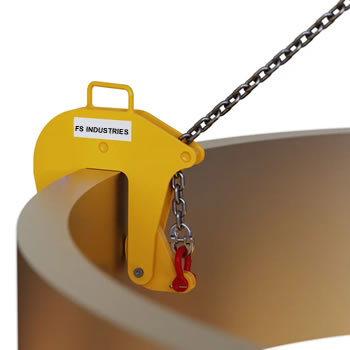

2 - 4 | Clamp Only | - | 5000 | 40 | $1,587.83 |
| MHL-C-4/6 |
4 - 6 | 45 | $1,536.50 |
NOTE: Reverse cam action eliminates slippage tendency. Consult factory for other housing configurations.
