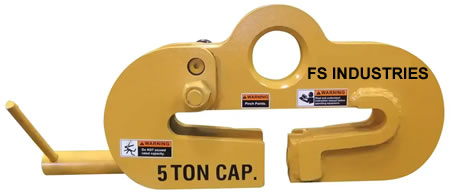

MODEL BWC
Beam Web Clamps
Multiple lifting angles? No problem. The Model BWC Beam Web Clamp is ready
to handle an I-beam. During side- or topload applications, the clamp grips the
I-beam’s web while pinching the flange at the same time for positive contact
while you are lifting or suspending.

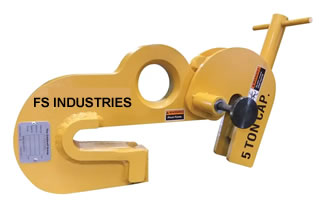

Product Features:
• Designed to accommodate side load applications
• Full rated capacity at any lifting angle
• Low-headroom design
• Securely grips beam web and flange
• Use for lifting or hanging.
• Complies with ASME B30.20 and BTH-1

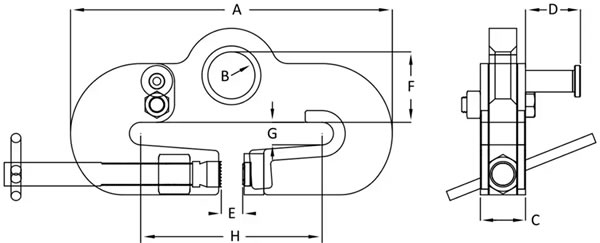

| Model No. | Rated Cap. (tons) |
Dimensions (in.) | Weight (lbs.) |
Price | ||||||||
| A | B | C | D | E | F | G | H | |||||
| Min | Max. | |||||||||||
 BWC-5 |
11,200 | 20.50 | 2.75 | 3.00 | 3.50 | 1.25 | 4.50 | 1.00 | 6.00 | 12.00 | 76 | $4,385.50 |
| BWC-10 |
22,400 | 20.50 | 2.75 | 3.00 | 3.50 | 1.25 | 4.50 | 1.00 | 6.00 | 12.00 | 76 | $4,776.33 |
| BWC-10W |
22,400 | 24.30 | 2.75 | 3.00 | 3.50 | 1.25 | 4.50 | 1.00 | 9.00 | 15.75 | 82 | $5,061.00 |

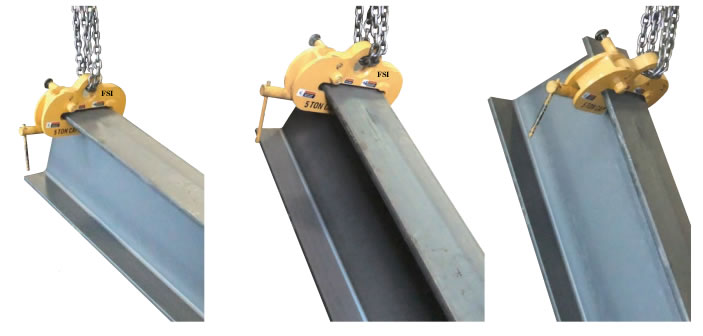

PRODUCTION OPERATION
